POE Injector

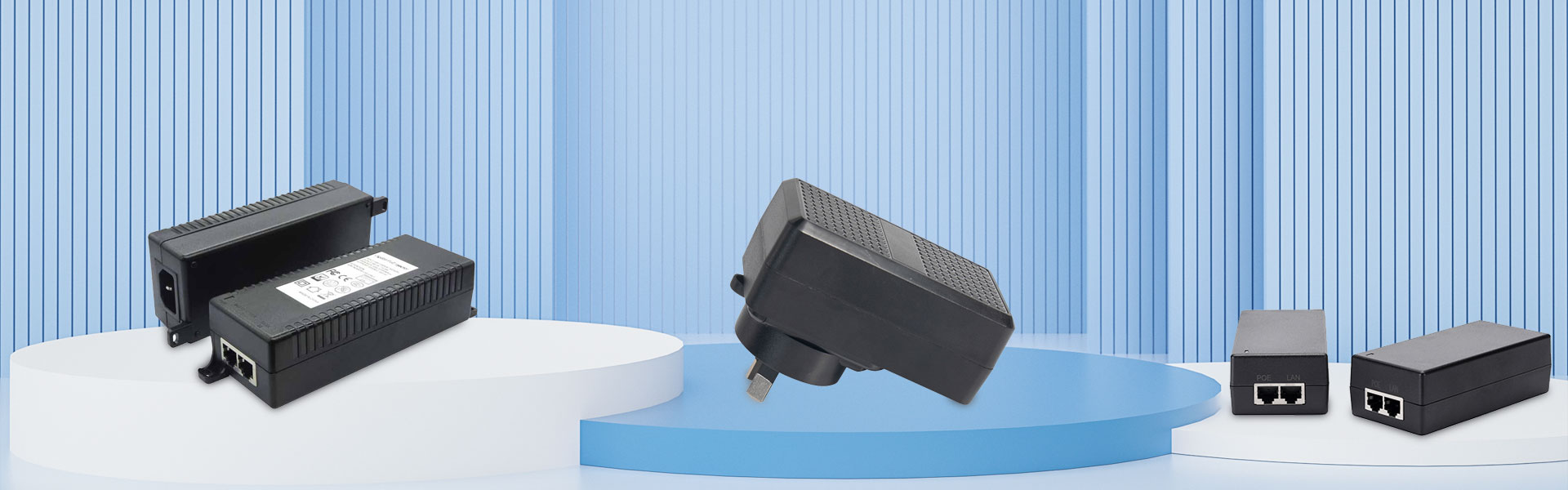

We offer a wide range of POE injectors, including wall-mounted POE injector, desktop type POE injector, and detachable plug-in POE injector. Our products have obtained certifications such as ETL, UL, CE, FCC, TUV, PSE, UKCA, RCM, and more.

Our POE injectors are designed to support a wide range of transmission rates, including 10/100/1000M/2.5G/5G/10G. This flexibility allows for seamless integration with different Ethernet devices, providing reliable power and data transmission.

In terms of standards compliance, STARWELL's POE injectors adhere to the IEEE 802.3.af/at/bt POE++ standards. This ensures compatibility with a variety of POE-enabled devices, providing efficient power delivery and enabling functionality such as remote device management and power monitoring.

24W Wall Mounted POE Injector

STARWELL is one of professional leader China 24W Wall Mounted POE Injector manufacturers with high quality and reasonable price. It supports various transmission rates including 10/100/1000M/2.5G/5G/10G, complying with the IEEE 802.3.af/at/bt POE++ standards.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps (optional)
size: 84*46.9*31.7mm(exclude plug)

24W Plug in POE Injector

STARWELL is a proficient manufacturer and supplier of 24W Plug in POE Injectors in China. If you're searching for the best POE injector at an affordable price, get in touch with us right away!
The POE adapter supports 10/100/1000M/2.5G/5G/10G bps transmission rate, complying with the IEEE 802.3.af/at/bt POE++ standards.
This POE adapter is compatible with both Passive POE and Active POE implementations.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 84*47.0*37.1mm(exclude plug)

24W Detachable Plug POE Injector

A proficient manufacturer, STARWELL aims to offer you 24W Detachable Plug POE Injector. We promise to provide you with the best after-sale support and prompt delivery.
The poe transmission rates of 10/100/1000M/2.5G/5G/10G bps, in accordance with the IEEE 802.3.af/at/bt POE++ standards. The POE pin configuration options include 4,5(+) and 7,8(-) for Midspan, 1,2(+) and 3,6(-) for Endspan, and 1,2,4,5(+) with 3,6,7,8(-) for both configurations.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 82.7*47.0*32.5mm(exclude plug)

24W Desktop POE Injector

24W Desktop POE Injector is a standard Gigabit Ethernet PoE adapter manufactured by STARWELL. This 24W Desktop POE Injector can provides 1G/2.5G/5G Gigabit PoE port and 1/2.5/5 Gigabit uplink port, supports 1/2/4/5+, 3/6/7/8-, 52V POE power supply, and is suitable for devices that support 1/2/4/5+, 3/6/7/8- power supply at the receiving end. The product is mainly used for POE network power supply, suitable for security monitoring, wireless coverage, bridge relay and other application scenarios.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Inlet typpe: C6 /C8 avaliable
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 84*46.9*31.7mm(exclude plug)

36W Desktop POE Injector

High quality 36W Desktop POE Injector is offered by China manufacturers STARWELL Buy 36W Desktop POE Injector which is of high quality directly with low price.

Features:
input: 100-240VAC
output: 48V/0.75A, 56V/0.65A
Inlet typpe: C6 /C8 avaliable
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/at&IEEE802.3bt, POE++
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 115*50.0*33.0mm(exclude plug)

60W Desktop POE Injector

As one of professional high quality 60W Desktop POE Injector manufacturers, you can rest assured to buy 60W Desktop POE Injector from STARWELL and we will offer you the best after-sale service and timely delivery.

Features:
input: 100-240VAC
output: 48V/1.25A, 56V/1.0A
Inlet typpe: C6 /C8/C14 avaliable
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/at&IEEE802.3bt, POE++
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 122*60.0*39.0mm(exclude plug)

90W Desktop POE Injector

The STARWELL 90W Desktop POE Injector is a cutting-edge product manufactured by STARWELL. With its advanced design, it offers a range of features to meet your networking needs. Supporting transmission rates of 10/100/1000M/2.5G/5G bps, it ensures high-speed data transfer.
The STARWELL 90W PoE Injector supports both Passive POE and Active POE, allowing you to choose the option that suits your requirements.

Features:
input: 100-240VAC
output: 56V/1.6A
Inlet typpe: C6 /C8/C14 avaliable
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/at&IEEE802.3bt, POE++
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 122*60.0*39.0mm(exclude plug)
