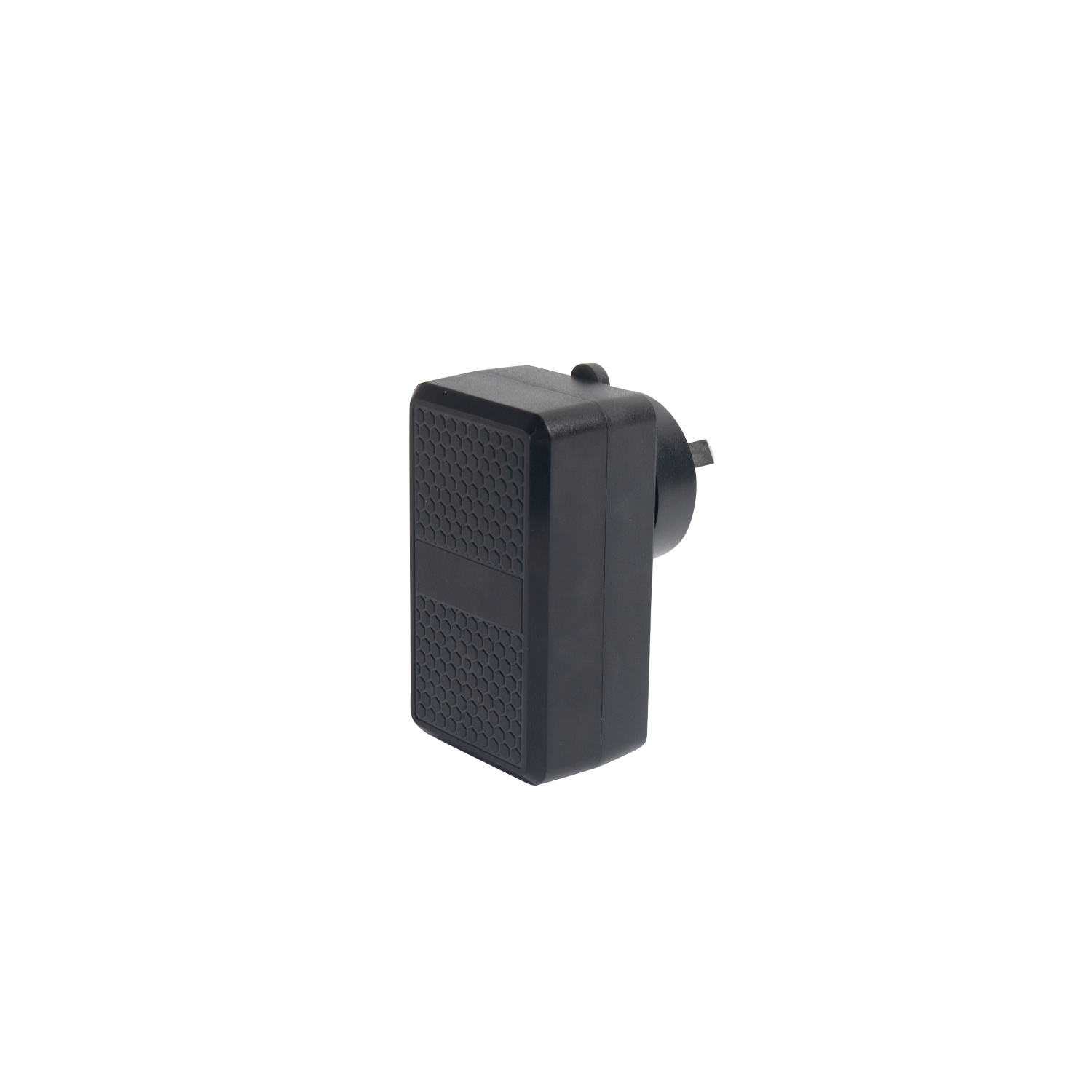

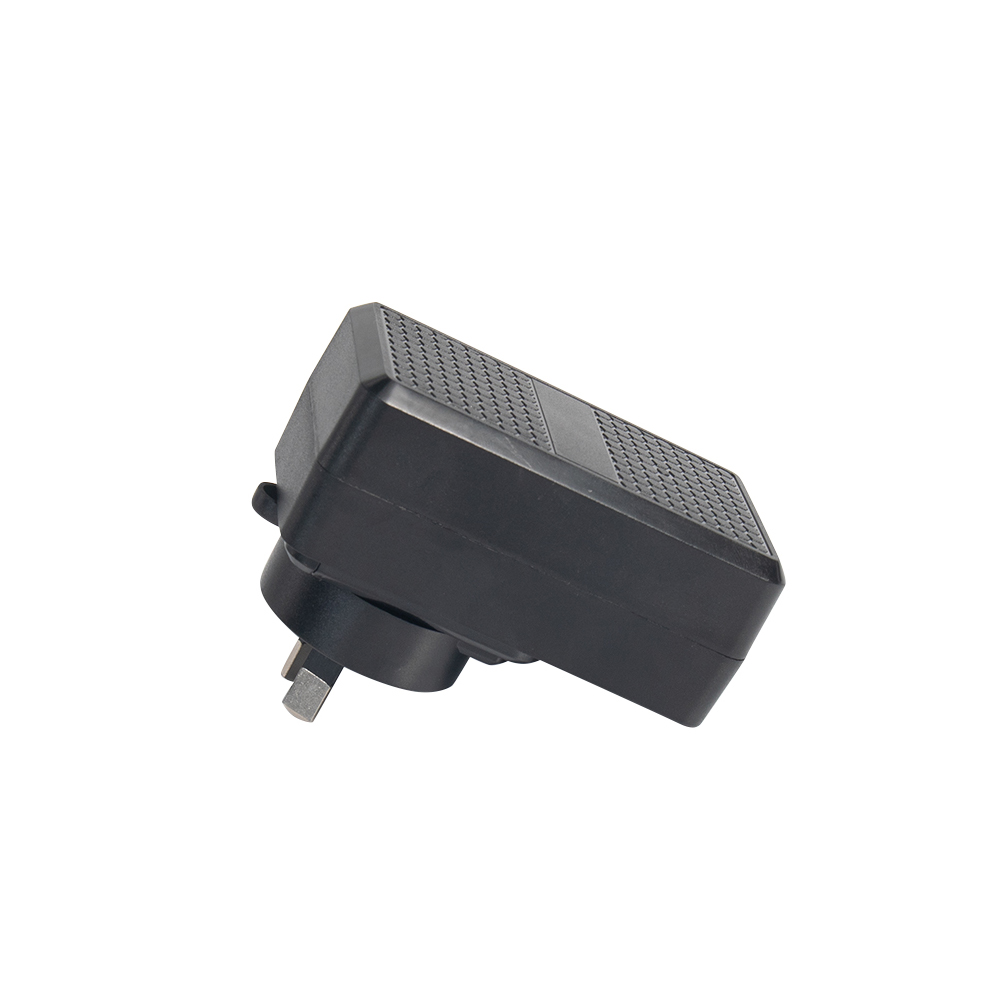

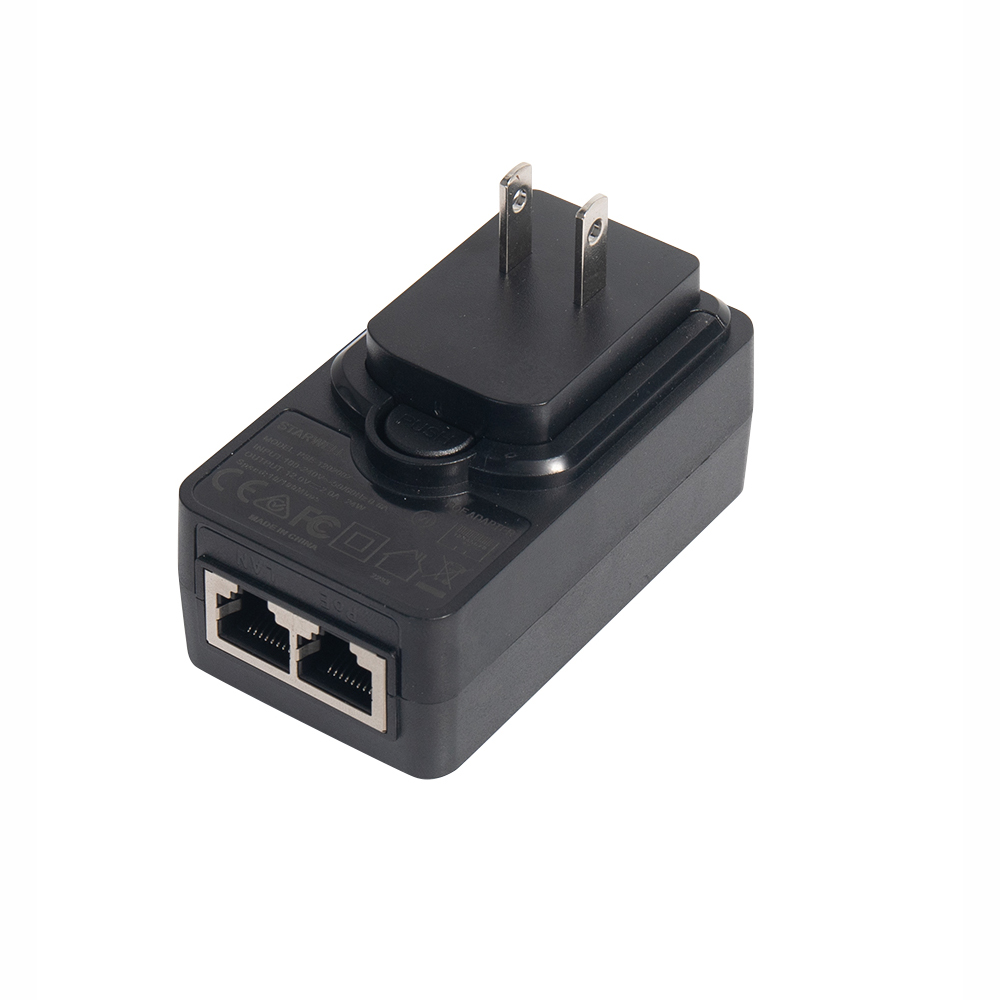

24W Detachable Plug POE Injector

A proficient manufacturer, STARWELL aims to offer you 24W Detachable Plug POE Injector. We promise to provide you with the best after-sale support and prompt delivery.
The poe transmission rates of 10/100/1000M/2.5G/5G/10G bps, in accordance with the IEEE 802.3.af/at/bt POE++ standards. The POE pin configuration options include 4,5(+) and 7,8(-) for Midspan, 1,2(+) and 3,6(-) for Endspan, and 1,2,4,5(+) with 3,6,7,8(-) for both configurations.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 82.747.0*32.5mm(exclude plug)

Product Details

STARWELL is a highly skilled manufacturer dedicated to providing 24W Detachable Plug POE Injector. We prioritize customer satisfaction and offer excellent after-sales support and prompt delivery services to meet your needs.

Our POE injectors support a wide range of transmission rates, including 10/100/1000M/2.5G/5G/10G bps. These rates adhere to the IEEE 802.3.af/at/bt POE++ standards, ensuring compatibility and reliable performance with various Ethernet devices.

For added flexibility, our 24W Detachable Plug POE Injector offer multiple pin configuration options. These options include 4,5(+) and 7,8(-) for Midspan, 1,2(+) and 3,6(-) for Endspan, and 1,2,4,5(+) with 3,6,7,8(-) for both configurations. This allows you to select the appropriate pin configuration based on your specific requirements.

Our 24W Detachable Plug POE Injectors are designed to be compatible with both Passive POE and Active POE implementations. This compatibility provides versatility and ease of integration with different POE-enabled devices, allowing for seamless power and data transmission.

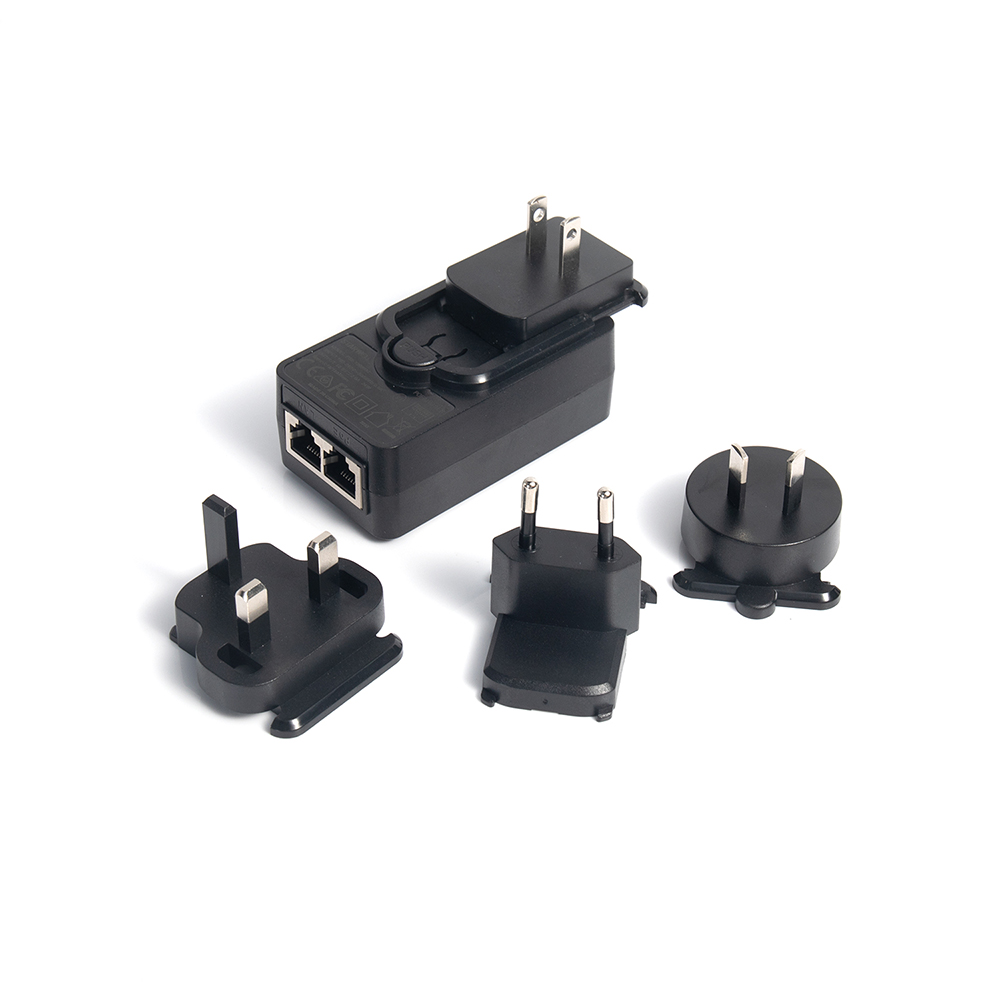

To enhance convenience, our POE injectors come with detachable pins that support British, American, Australian, and European plug types. This feature ensures compatibility with the specific plug standards used in various regions.

At STARWELL, we maintain rigorous quality control measures throughout our manufacturing process, ensuring that our POE injectors meet the highest industry standards. We strive to deliver reliable and durable products to our customers.

In summary, STARWELL is a proficient manufacturer of high-quality 24W Detachable Plug POE Injector. We offer excellent after-sales support and prompt delivery services. Our POE injectors support various transmission rates, comply with industry standards, provide multiple pin configuration options, and are compatible with both Passive POE and Active POE implementations. Additionally, they come with detachable pins for different plug types. Count on STARWELL to provide you with reliable and convenient solutions for your POE needs.

STARWELL 24W Detachable Plug POE Injector Specification:

Item		5W 12W 18W 24W POE Power Adapter, POE injector, Power Over Ethernet for router, Power Over Ethernet adaptor
Model		PSE-xxxyyyw
INPUT		100-240VAC 50/60Hz
Output		12V	15V	18V	24V	48V	56V
		0-2A	0-1.6A	0-1.33A	0-1.0A	0-5A	0.4A
Features	Ripple & Noise	<120mV
	Energy star level	Eup 2.0, Doe VI, CEC VI, CoC VI
	AC Plugs	US/EU/AU/UK AC plugs exchangeable
	Installing	Available for the system of Safety Class I/II
Environment	Operation Temp	-10 ~ +65℃, 10 ~ 95% RH non-condensing
	Storage Temp	-20 ~ +85℃ (Refer to "Derating Curve")
	Storage Humidity	20 ~ 90% RH non-condensing
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
	Cooling Method	by NTC (natural cooling)
Safety&EMC	Safety Standard	UL62368, ETL62368, EN62368, EN61558
	Safety Approvals	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us.
	EMC Stardard	EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
	MTBF	5K hrs min. MIL-HDBK-217F (25℃)
POE funciton	Protocol	Compatible with IEE802.3af/IEEE802.3at/ IEEE802.3bt/POE++
	Protocol type	Passive POE / Active POE (optional)
	POE pin	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678-
	Data Speed	10/100/1000M/2.5G/5G/10G bps ( optional )
Machanicals	DC PORT	2*RJ45 :10/100/1000Mbps, Port 1: LAN, Port 2: POE
	Dimension	84x46.99x37.1mm (LxWxH) exclude plug
	Packing	100g; 100pcs/12.0Kg/0.056CBM
