Wall Mounted POE Injector

Our wall mounted poe injector are available in different plug types, including US, EU, UK, AU, CN, KR, BR, and IN, to comply with the respective standards of the United States, Europe, the United Kingdom, Australia, China, South Korea, Brazil, and India.

Our POE injectors are designed to support a wide range of transmission rates, including 10/100/1000M/2.5G/5G/10G. This flexibility allows for seamless integration with different Ethernet devices, providing reliable power and data transmission.

STARWELL's POE injectors adhere to the IEEE 802.3.af/at/bt POE++ standards.

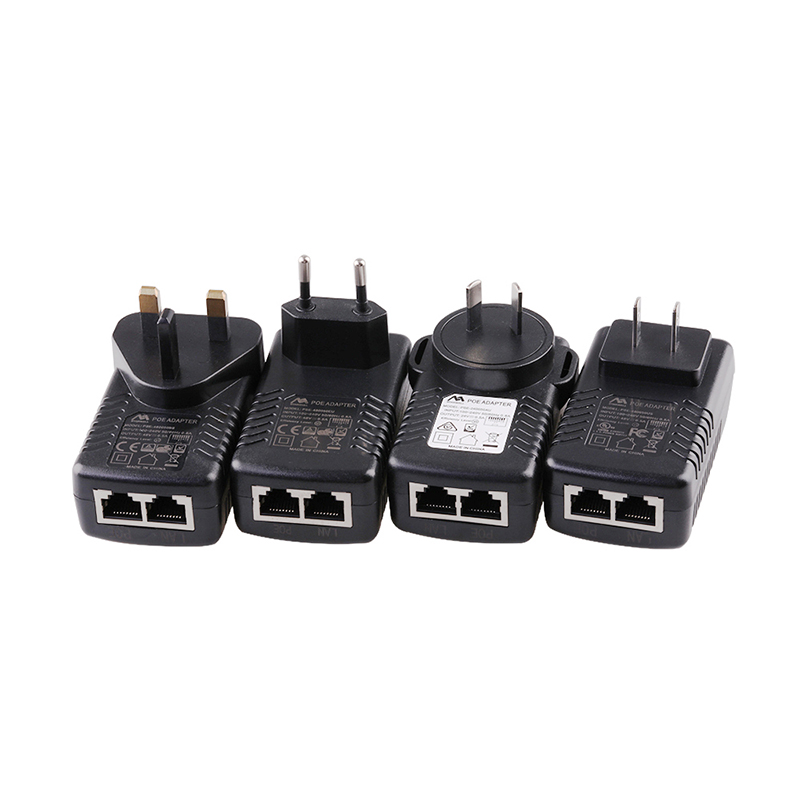

24W Wall Mounted POE Injector

STARWELL is one of professional leader China 24W Wall Mounted POE Injector manufacturers with high quality and reasonable price. It supports various transmission rates including 10/100/1000M/2.5G/5G/10G, complying with the IEEE 802.3.af/at/bt POE++ standards.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps (optional)
size: 84*46.9*31.7mm(exclude plug)

24W Plug in POE Injector

STARWELL is a proficient manufacturer and supplier of 24W Plug in POE Injectors in China. If you're searching for the best POE injector at an affordable price, get in touch with us right away!
The POE adapter supports 10/100/1000M/2.5G/5G/10G bps transmission rate, complying with the IEEE 802.3.af/at/bt POE++ standards.
This POE adapter is compatible with both Passive POE and Active POE implementations.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 84*47.0*37.1mm(exclude plug)

24W Detachable Plug POE Injector

A proficient manufacturer, STARWELL aims to offer you 24W Detachable Plug POE Injector. We promise to provide you with the best after-sale support and prompt delivery.
The poe transmission rates of 10/100/1000M/2.5G/5G/10G bps, in accordance with the IEEE 802.3.af/at/bt POE++ standards. The POE pin configuration options include 4,5(+) and 7,8(-) for Midspan, 1,2(+) and 3,6(-) for Endspan, and 1,2,4,5(+) with 3,6,7,8(-) for both configurations.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2*RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 82.7*47.0*32.5mm(exclude plug)
