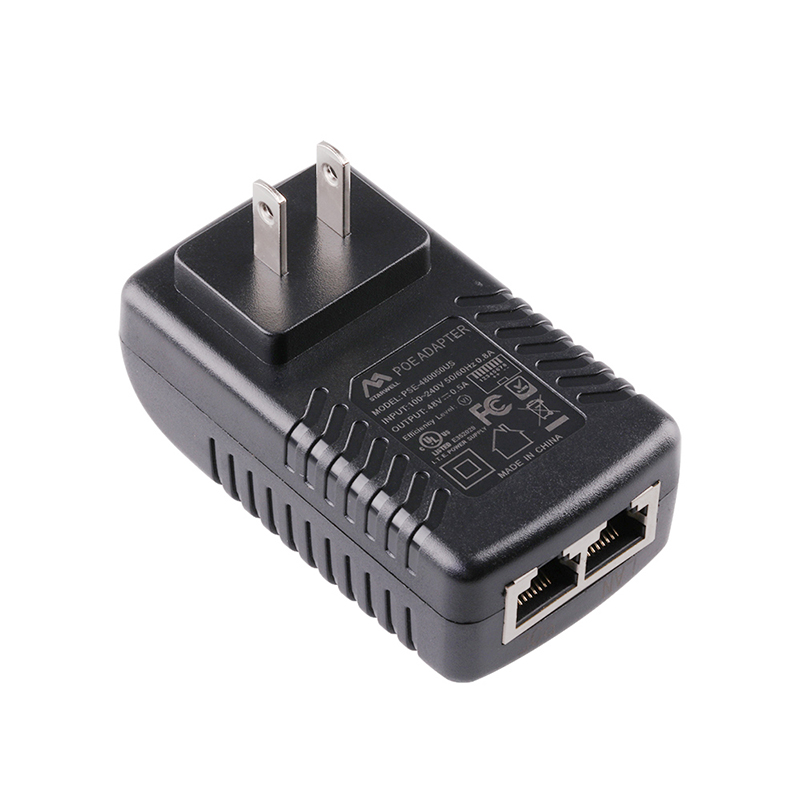

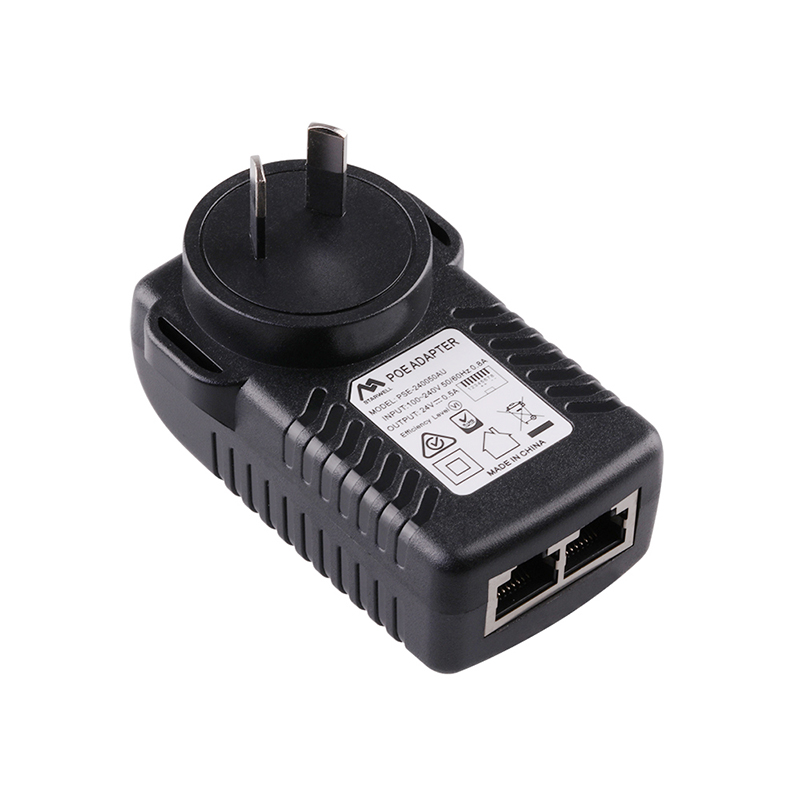

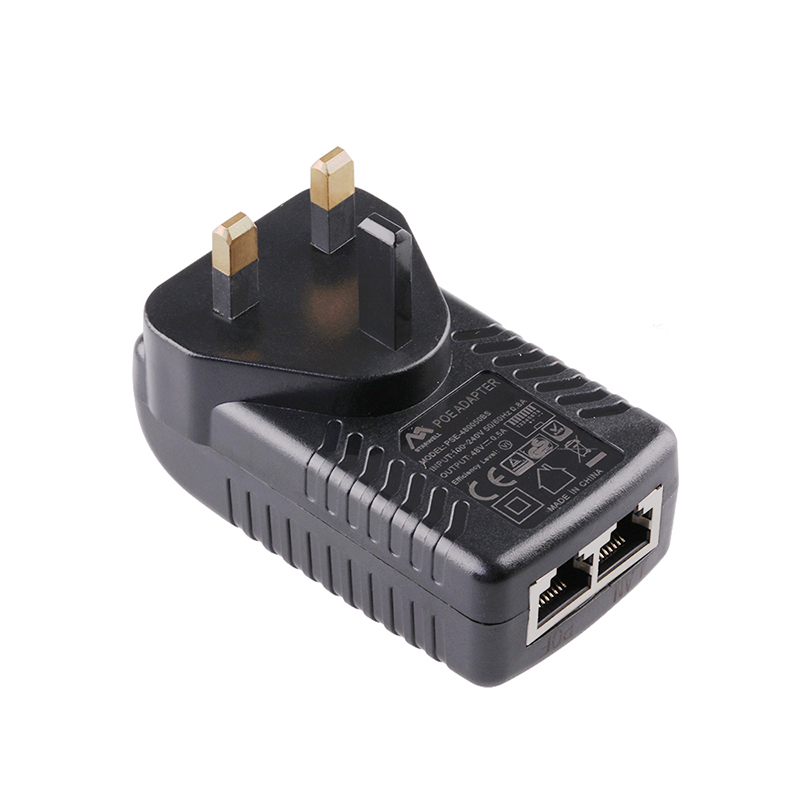

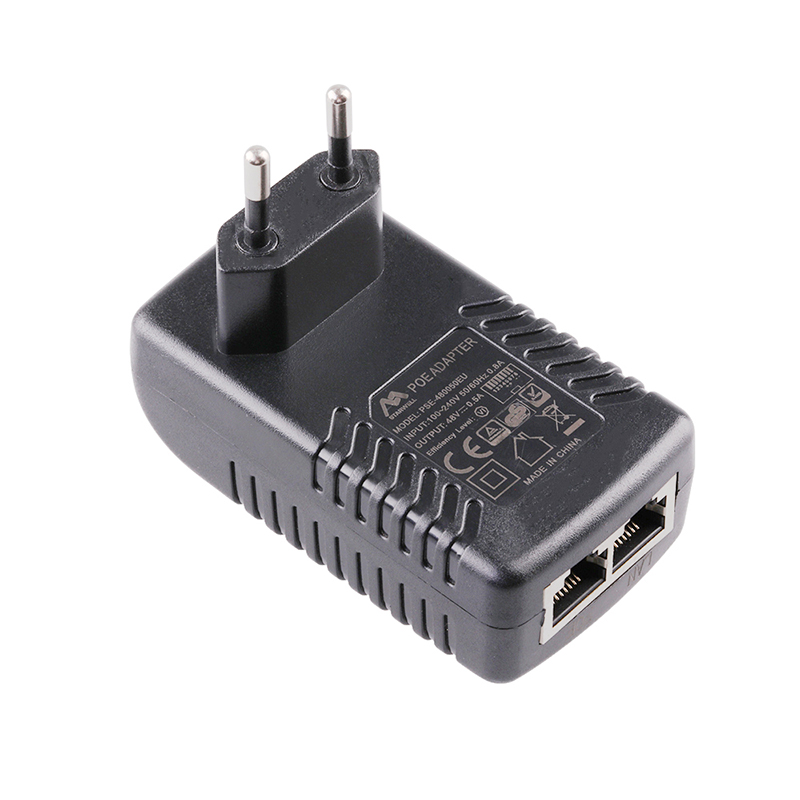

24W Wall Mounted POE Injector

STARWELL is one of professional leader China 24W Wall Mounted POE Injector manufacturers with high quality and reasonable price. It supports various transmission rates including 10/100/1000M/2.5G/5G/10G, complying with the IEEE 802.3.af/at/bt POE++ standards.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Plug typpe: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps (optional)
size: 8446.9*31.7mm(exclude plug)

Product Details

STARWELL is a renowned and professional 24W Wall Mounted POE Injector manufacturer based in China. They are known for producing high-quality products at reasonable prices.

Our POE injectors are designed to support a wide range of transmission rates, including 10/100/1000M/2.5G/5G/10G. This flexibility allows for seamless integration with different Ethernet devices, providing reliable power and data transmission.

In terms of standards compliance, STARWELL's POE injectors adhere to the IEEE 802.3.af/at/bt POE++ standards. This ensures compatibility with a variety of POE-enabled devices, providing efficient power delivery and enabling functionality such as remote device management and power monitoring.

STARWELL's commitment to quality is reflected in their manufacturing processes and rigorous testing procedures. They strive to deliver products that meet or exceed industry standards, ensuring reliable performance and longevity.

With their focus on high-quality manufacturing, competitive pricing, and adherence to industry standards, STARWELL has established itself as a trusted provider of POE injectors in the market. Their products are widely used in applications such as security systems, IP cameras, wireless access points, and VoIP phones, among others.

STARWELL 24W Wall Mounted POE Injector Specification:

Item		5W 12W 18W 24W POE Power Adapter, POE injector, Power Over Ethernet for router, Power Over Ethernet adaptor
Model		PSE-xxxyyyw
INPUT		100-240VAC 50/60Hz
Output		12V	15V	18V	24V	48V	56V
		0-2A	0-1.6A	0-1.33A	0-1.0A	0-5A	0.4A
Features	Ripple & Noise	<120mV
	Energy star level	Eup 2.0, Doe VI, CEC VI, CoC VI
	Efficiency	>88%
	Installing	Available for the system of Safety Class I/II
Environment	Operation Temp	-10 ~ +65℃, 10 ~ 95% RH non-condensing
	Storage Temp	-20 ~ +85℃ (Refer to "Derating Curve")
	Storage Humidity	20 ~ 90% RH non-condensing
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
	Cooling Method	by NTC (natural cooling)
Safety&EMC	Safety Standard	UL62368, ETL62368, EN62368, EN61558
	Safety Approvals	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us.
	EMC Stardard	EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
	MTBF	5K hrs min. MIL-HDBK-217F (25℃)
POE funciton	Protocol	Compatible with IEE802.3af/IEEE802.3at
	Protocol type	Passive POE / Active POE (optional)
	POE pin	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678-
	Data Speed	10/100/1000M/2.5G bps ( optional )
Machanicals	DC PORT	2*RJ45 :10/100/1000Mbps, Port 1: LAN, Port 2: POE
	Dimension	84x46.99x37.1mm (LxWxH) exclude plug
	Packing	100g; 100pcs/12.0Kg/0.056CBM
