Product Details

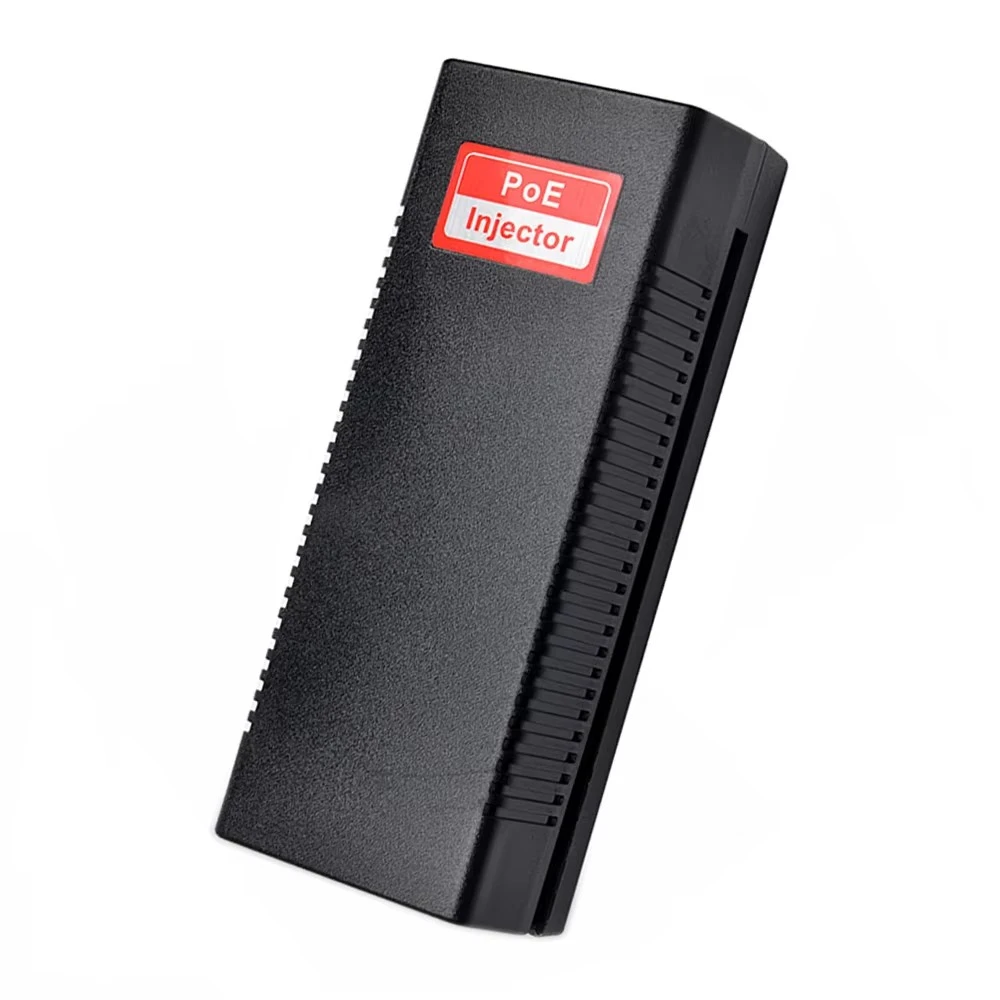

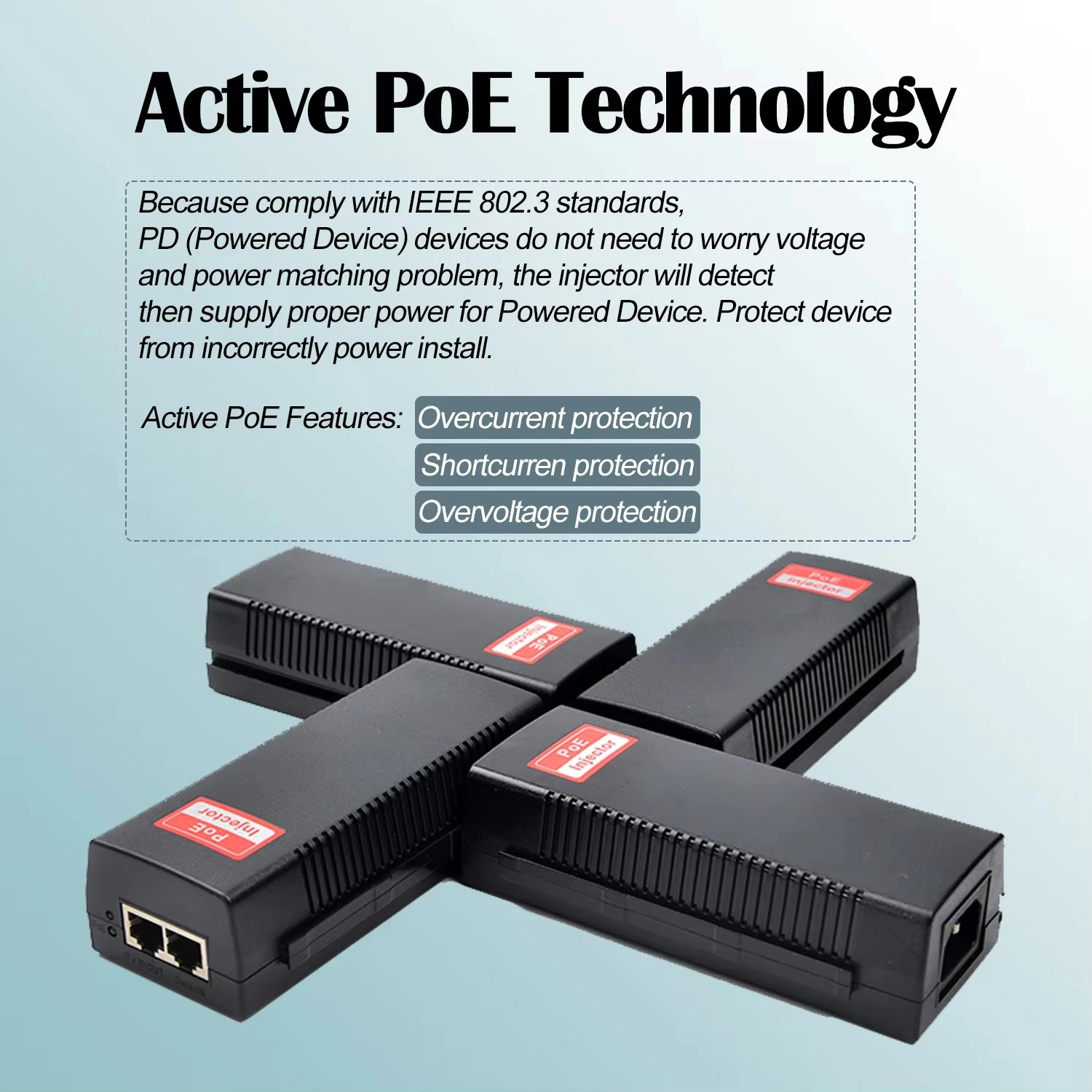

As a professional power supply manufacturer in China, Starwell introduces the Active 90W PoE Injector, which supports both Active and Passive modes. Equipped with intelligent power detection circuitry, it automatically identifies the power requirements of connected devices and adjusts its output accordingly; furthermore, its built-in fail-safe protection mechanism ensures the safety of non-standard terminals.

Product Specification:

Input Voltage AC 100-240V ~ 50/60Hz (Universal Input).

* Up to 90W of Power on3BT * Safe on Low Power Devices Receive Only the Power They Need * Safe and Reliable Power to WLAN Access Points

* POE Pin: 1,2+/3,6- 4,5+/7,8- * Automatic Detection and Protection of Non–standard Ethernet Terminals * Supports 10/100/1000Base-T LAN environment * Unique interlocking feature for easy installation

* CE FCC ROHS certificate

* Weight: 400g

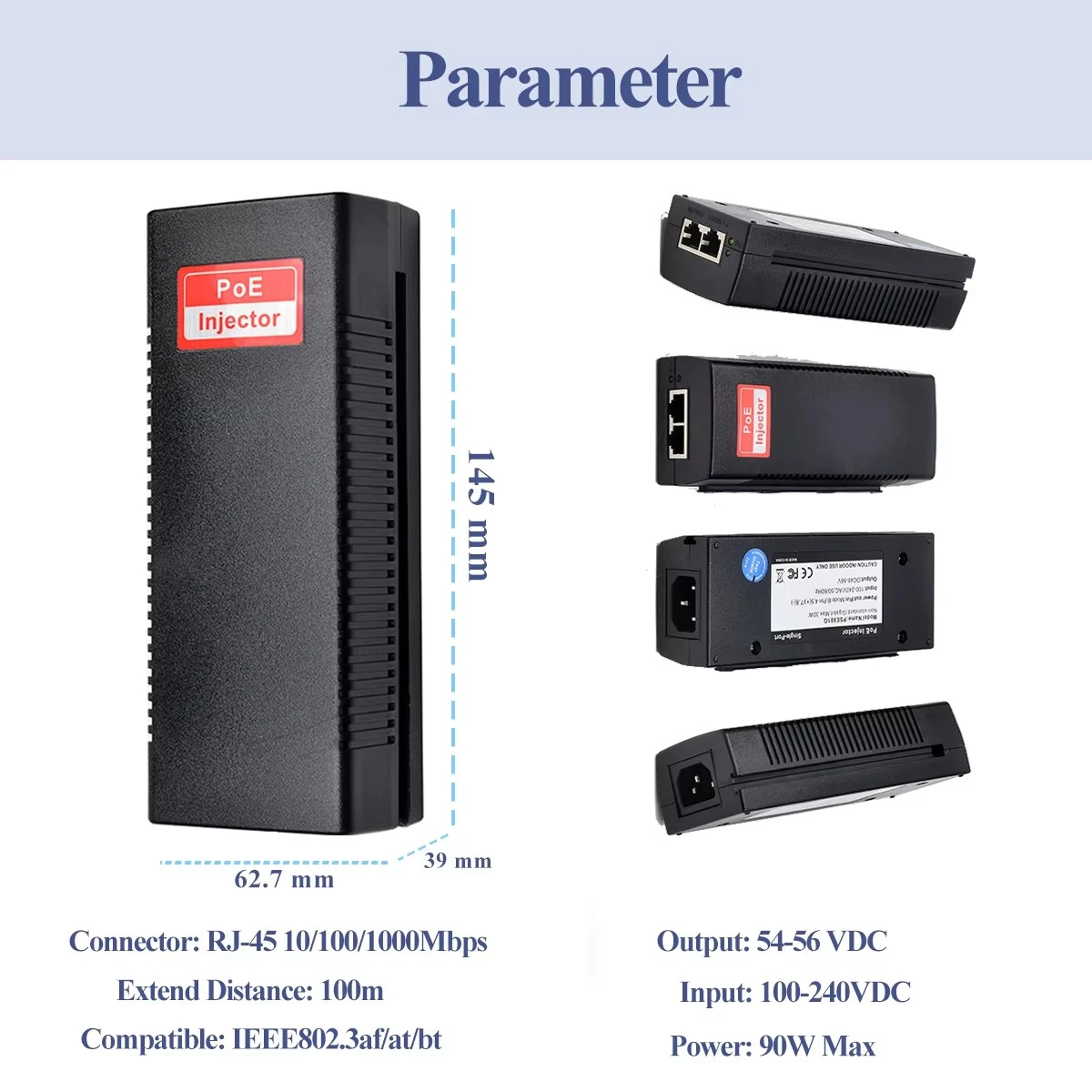

* Size: 39*62.7*145mm

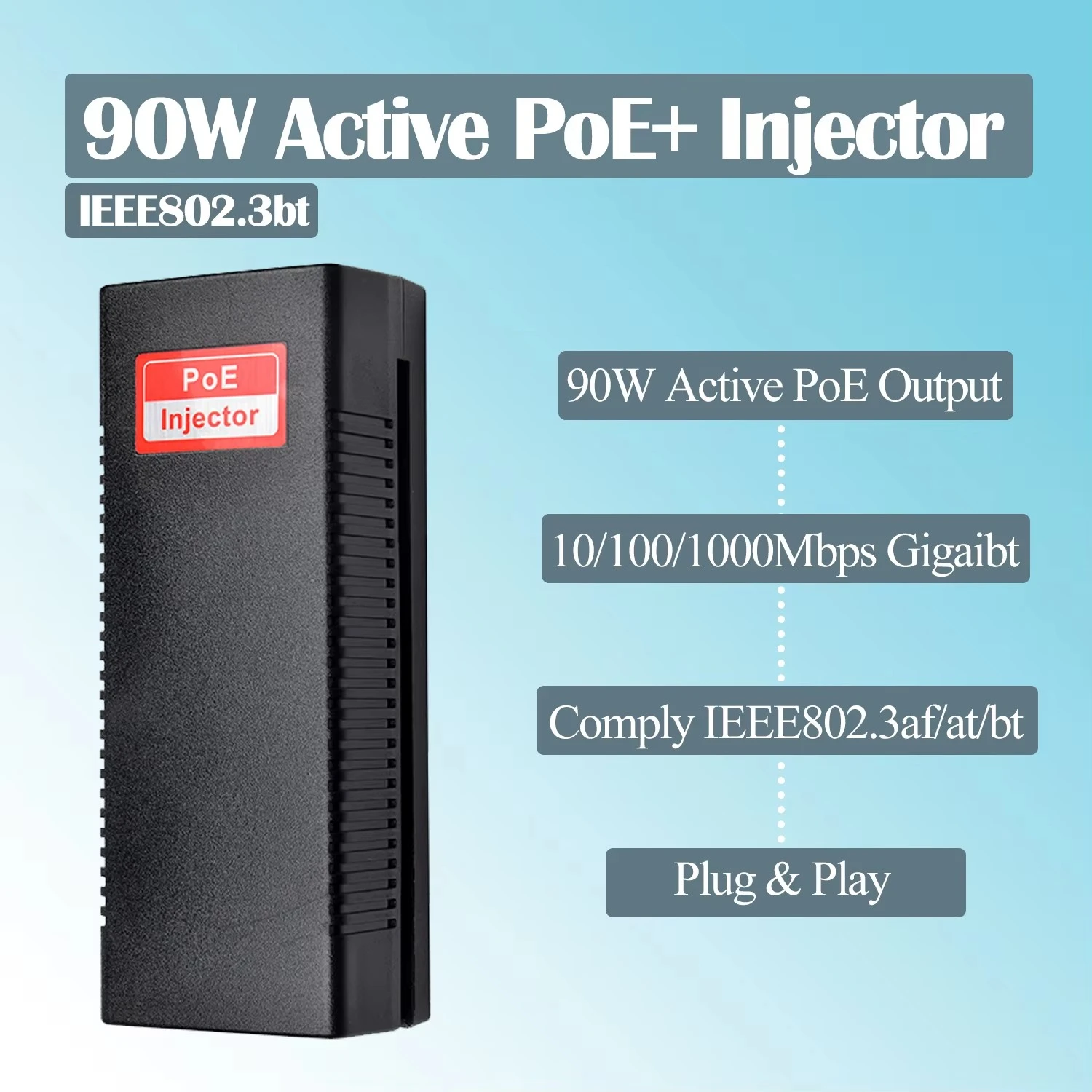

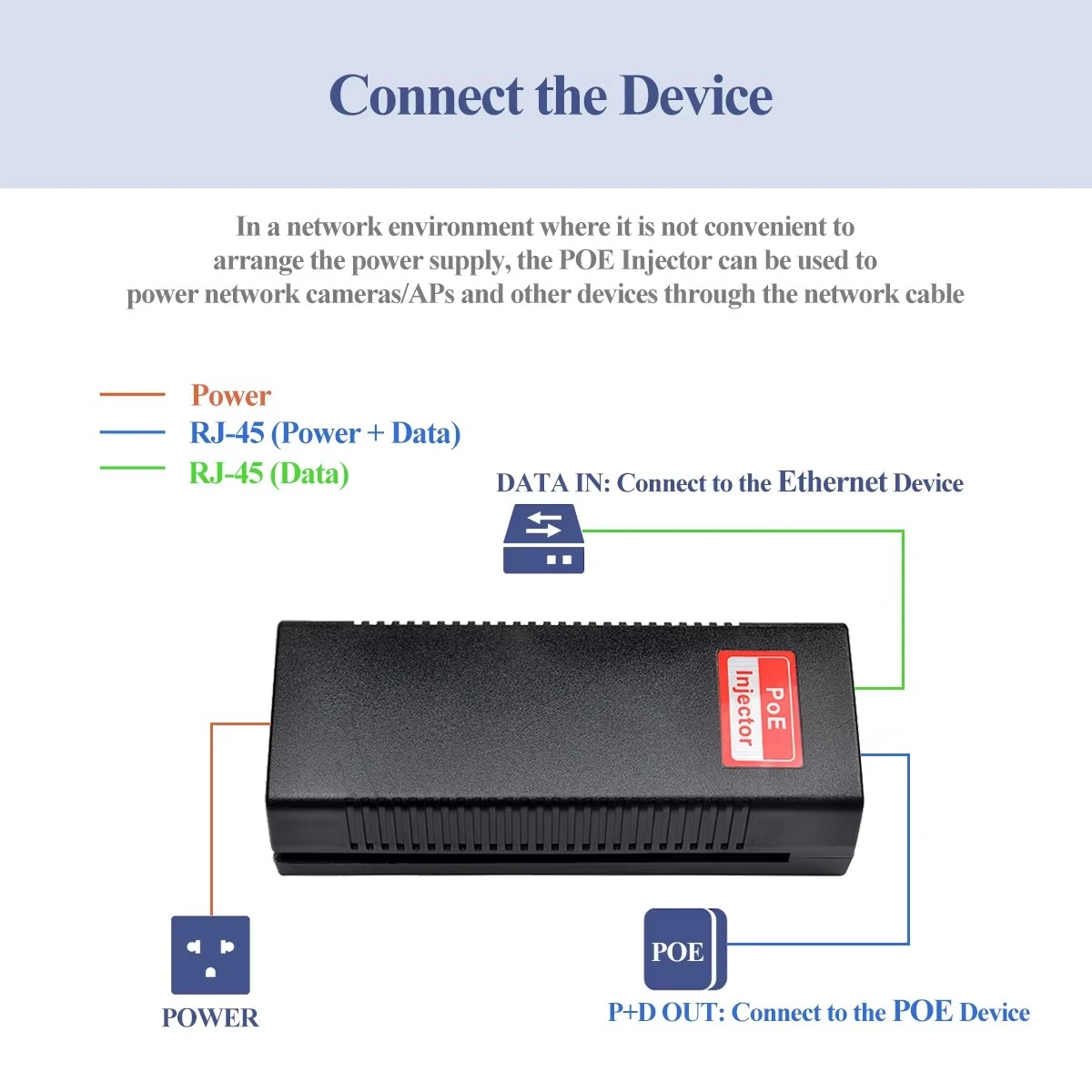

The STARWELL OEM PoE Injector Gigabit 48V 90W PoE Injector for IP Cameras is a high-performance Gigabit Power over Ethernet (PoE) solution designed for small to medium network environments. It features:

Ports:

Ethernet input (data only)

Ethernet Output (data + power)

Power Delivery:

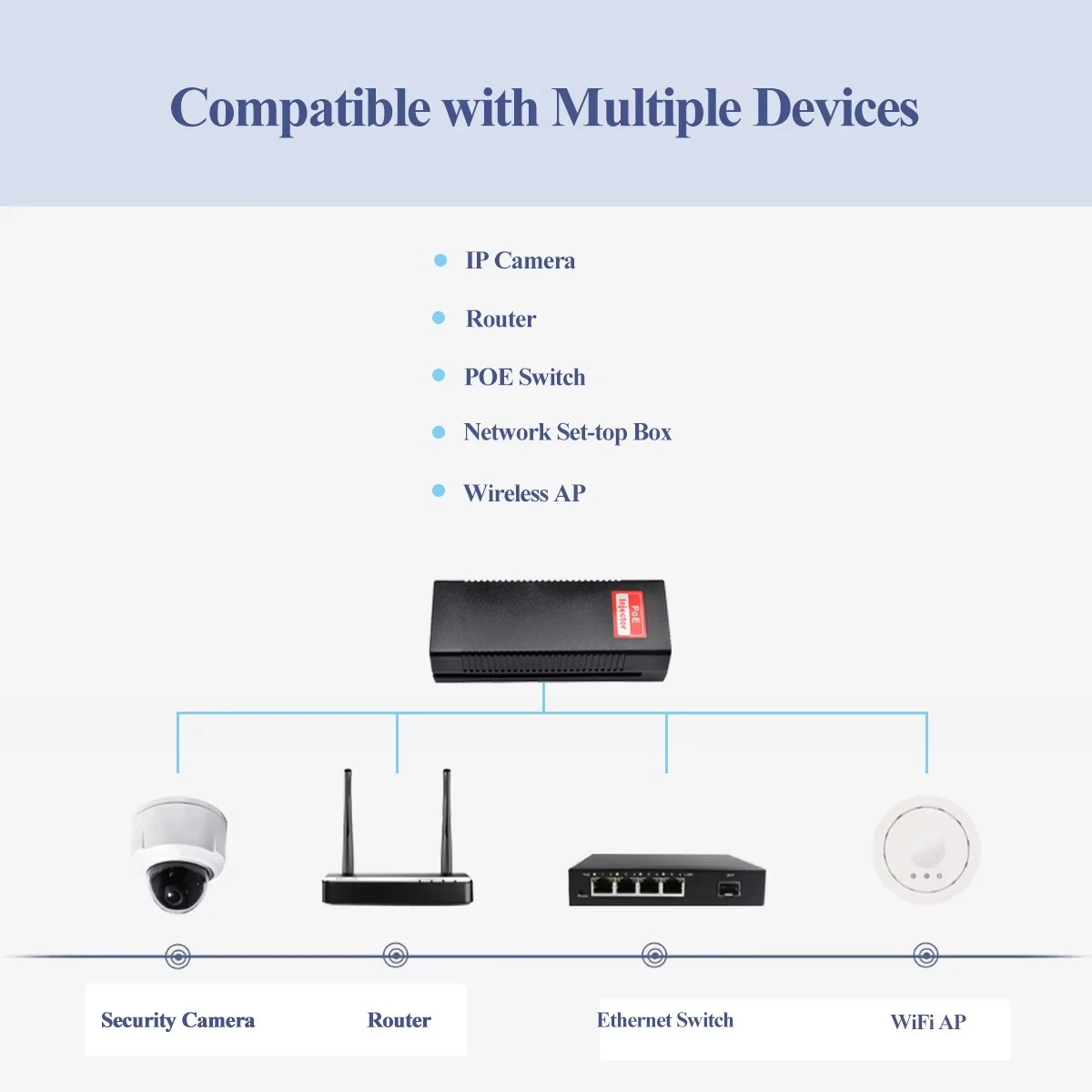

Supplies remote power to devices such as wireless access points, PTZ IP cameras, and videophones

Eliminates the need for separate AC power adapters, reducing installation complexity

Standards Compliance:

Fully compliant with IEEE 802.3bt PoE standard

Supports 10/100Base-T and emerging 1000Base-T networking devices (e.g., Wi-MAX, IEEE 802.11n wireless APs)

Deployment Advantages:

Easily integrate with non-PoE networking equipment using a PoE splitter

Enables flexible placement of devices without relying on nearby power outlets

Reduces installation costs and downtime

Applications

* Supports APs of brands such as Huawei, Ruijie, ARUBA, Cisco, H3C, ZTE, and TP-LINK. Indoor access point

* Supports: Hikvision, Dahua, Wave, Axis, and other network HD cameras

* Urban intelligent traffic monitoring system (ITS), safe city, wireless city

* Highway monitoring system, electronic road monitoring, snapshot system

* Security monitoring system for large factories and mines, network multi-function system

* Remote multimedia teaching/campus monitoring, video conferencing system

* Wireless AP, wireless communication, video monitoring

Hierarchical sequence diagram and power description * This model supports IEEE802.3af/at/bt power classification, specific categories, and event classification tables

Power distribution	(1) event	(3) event	(5) event
12.95W	Class0	-	-
3.84W	Class1	-	-
6.49W	Class2	-	-
15.4W	Class3	-	-
30W	-	class4	-
38.7W	-	-	class5
51W	-	-	class6
71W	-	-	class7
90W	-	-	class8
* Class 0-4, 2 or 4 pairs of wires can be used for power supply; * Class5-8, please use 4 pairs of wires for power supply; * Class0-8, the judgment is based on the connected PD.

Power Classification

* Under IEEE 802.3bt standard, power processing is divided into two basic categories "type 3" and "type 4"In short, the power requirement of type 3 is as high as 60W, and that of type 4 is as high as 90W.

Define criteria

Cable requirements

Grading parameters

Power Supply Characteristics

IEEE802.3af

（PoE）

CAT5 cable

Maximum power required for

Class0 devices is 0~12.95W

1. The DC voltage ranges from 38 to 57V, with a typical value of 38V 2. Typical operating current is 10~350mA; typical output power: 15.4W 3. The overload detection current is 350~500mA 4. Provide 4 Class Power Requests for PD Devices ranging from 3.84 to 12.95W

The maximum power required

for Class1 devices is 0~3.84W

The maximum power required

3.85W~6.49W

The maximum power requiredfor Class2 devices is

for Class3 devices is

6.5W~12.95W

IEEE802.3at

(PoE Plus)

CAT5 cable or CAT6

cable

Maximum power required for

Class4 devices is 13W~25.5W

1. The DC voltage ranges from 44 to 57V, with a typical value of 48V 2. Typical operating current is 10~600mA; typical output power: 30W 3. Class4 rating supported by electrical equipment

IEEE802.3bt

CAT6 cable

Maximum power required for

type 3 devices is 50W~60W

1. The DC voltage ranges from 48 to 57V, with a typical value of 50V 2. Typical operating current is 600~1250mA; typical output power: 60W

Maximum power required for

type 4 devices is 60W~90W

1. The DC voltage ranges from 48 to 57V, with a typical value of 52V 2. Typical operating current is 1250~1800mA; typical output power: 90W

Starwell 90W POE Injector Specification:

Product Name	PoE Injector
Standard	IEEE802.3af, IEEE802.3at, IEEE802.3bt
Port definition	PoE: 10/100/1000M network+power supply LAN: connect to common router, switch, and Internet
Network media	10BASE-T/100BASE-T /1000BASE-T：Cat5e and above UTP (≤ 100 meters)
	The maximum transmission distance is 100 meters, plug and play, no management required

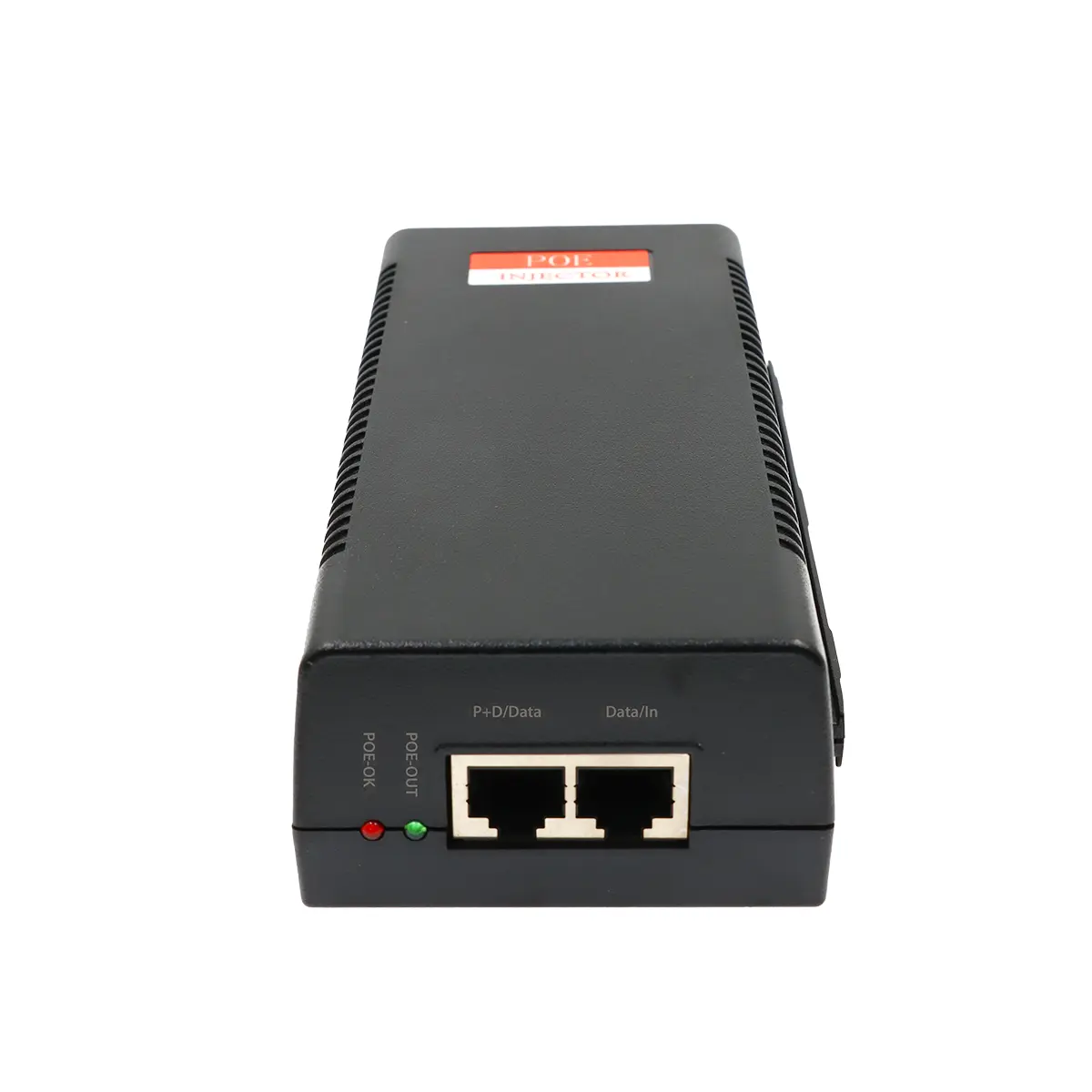

PoE-OK	Red LED power indicator light
PoE-Out	Green LED indicates output indicator light
Input voltage	AC 100V~240V 47Hz~63Hz
Output Power	IEEE802.3bt（Downward compatibility）;52V/1.73A，Max 90W
Usage environment	Working temperature: -40℃~65℃ storage temperature: -40℃~80℃ working humidity: 10% ~90% non condensing storage humidity: 5%~90% non condensing
PoE type	End connection method/intermediate bridging method
Installation method	Wall mounted
PoE power supply method	Supports end access method (1/2+, 3/6-) and intermediate cross method (4/5+, 7/8-)
Product size (L x W x H)	1707040mm

FAQ

Q1: What is the warranty for your PoE products?

A1: We offer a 1-year warranty. In fact, we focus on quality, so we rarely have products requiring repair. If any damage occurs, we provide free lifetime repair, except in cases such as water damage or a scrap IC. Please note that freight costs are to be covered by the customer.

Q2: Can you print our logo on the products?

A2: Yes, OEM and ODM orders are welcome.

Q3: How do you ship products from your company?

A3: Shipping options include DHL, UPS, FEDEX, air freight, sea freight, or delivery to your China-based forwarder. Our products do not contain batteries and are considered normal goods, supporting all standard transport methods.

Q4: What is the delivery time?

A4: For small quantities in stock, we can ship immediately within 1 day. For large quantities, the delivery time is typically 4–6 weeks. Please confirm the delivery date with our customer service team.

Q5: What certificates do you have for your factory?

A5: We hold CE, FCC, ROHS, CB, UL, UKCA, and SAA certificates.

Q6: What payment terms do you offer?

A6: We accept 30% in advance with 70% before shipment, or 100% in advance. Payment methods include T/T, Alibaba, PayPal, and others.
