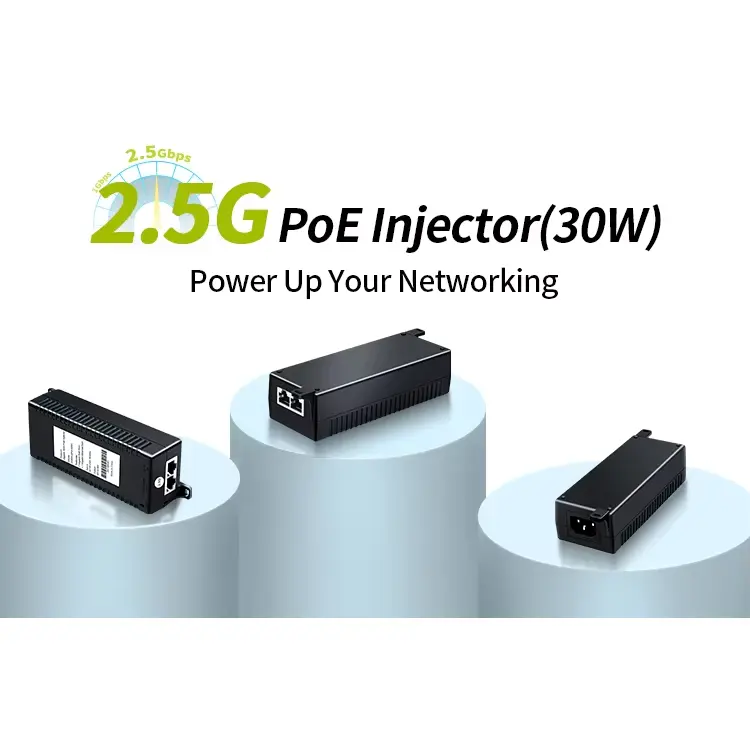

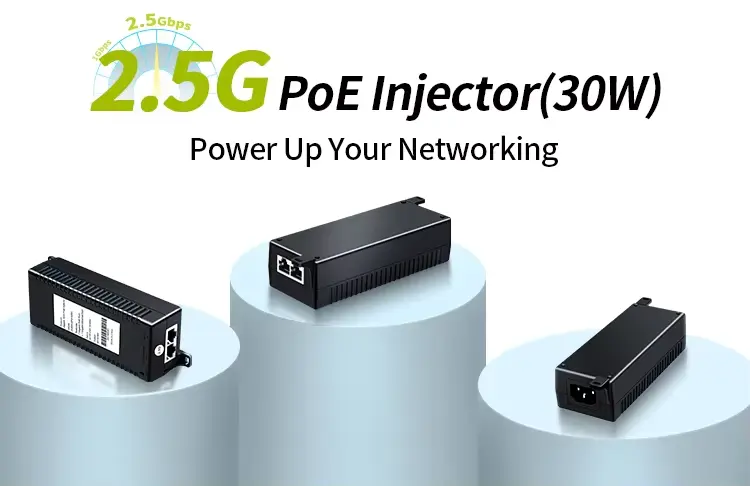

2.5G Single Port 30W POE Injector

Starwell, a professional manufacturer and supplier based in China, proudly presents the 2.5G Single Port 30W PoE Injector. Designed for modern high-bandwidth applications, this quality power over Ethernet injector combines ultra-fast 2.5G data transmission with reliable 30W power delivery.
Features
1. Support 1x2.5G POE Port+1x2.5G Ethernent Port
2. Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,Standards
3. Ethernet Port Supports 10/100/1000Mbps/2.5G adaptive and PoE functions
4. Support Port Auto Flip (Auto MDI/MDIX)
5. Compatible with IEEE802.3af(15.4W), IEEE802.3at(30W) IEEE802.3bt(90W) POE++(60W)
6. Support AC 100-240 V power supply
7. working temperature -10~50°C
8. Support wall mount

Send Inquiry

Product Details

As a professional manufacturer in China, Starwell would like to provide you high quality 2.5G Single Port 30W POE Injector. By combining ultra-fast 2.5G connectivity with versatile 30W power output (compatible with higher standards), it provides a future-proof solution for powering Wi-Fi 6 access points, high-definition PTZ cameras, and other demanding network devices. Designed for classy, simple integration, it offers plug-and-play functionality backed by CE, RoHS, and FCC certifications.

Key Features

1. Blazing-Fast 2.5G Data Transmission

Stay ahead of the bandwidth curve with support for 2.5Gbps data speeds, fully backward compatible with 10/100/1000Mbps devices.

High Performance: Ideal for bandwidth-intensive applications like 4K video streaming and Wi-Fi 6 access points.

Standards Compliance: Complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3bz (2.5GBase-T) standards.

2. Versatile Power Output

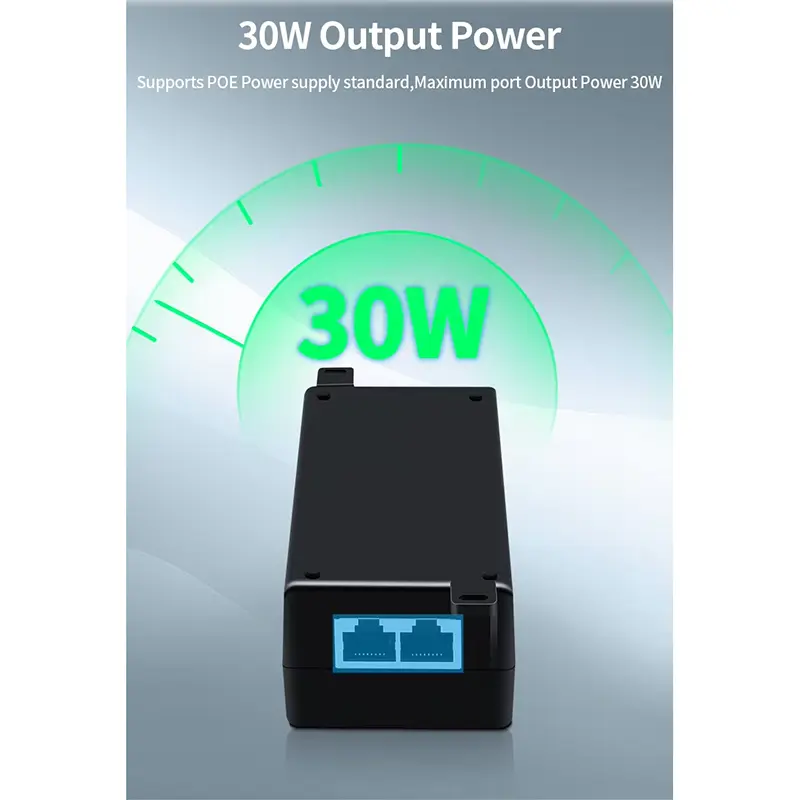

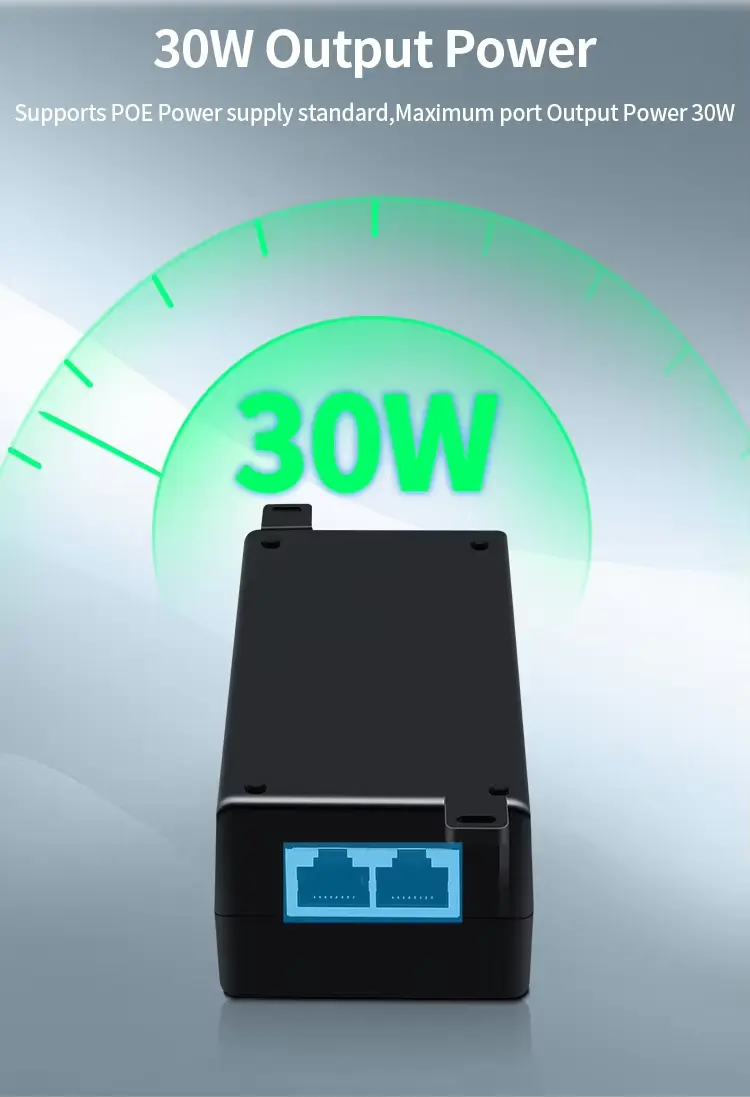

This 30W Poe Injector supports multiple PoE standards, making it a flexible choice for various devices.

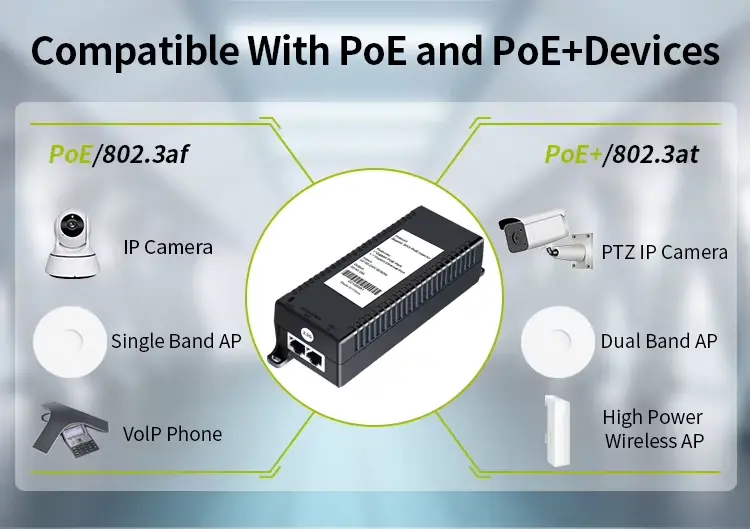

Power Compatibility: Compatible with IEEE802.3af (15.4W), IEEE802.3at (30W), and even IEEE802.3bt (90W) / PoE++ (60W) devices.

Auto-Sensing Technology: Intelligently detects the power required by your device and delivers safely.

3. Robust & Reliable Design

Built for continuous operation in demanding environments.

Durable Construction: High-Performance 30W Poe Injector features seamless ultrasonic bonding for better protection against dust and physical stress.

Wide Temperature Range: Operates reliably from -10°C to +50°C.

Global Compatibility: Supports AC 100-240V input for worldwide use.

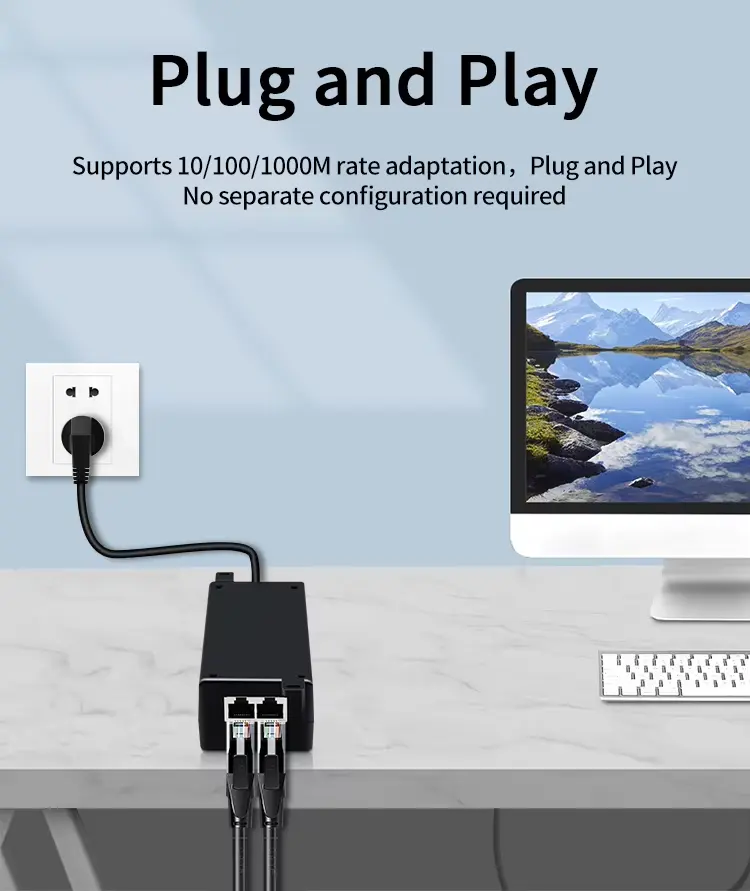

4. Plug-and-Play Simplicity

No complex configuration required.

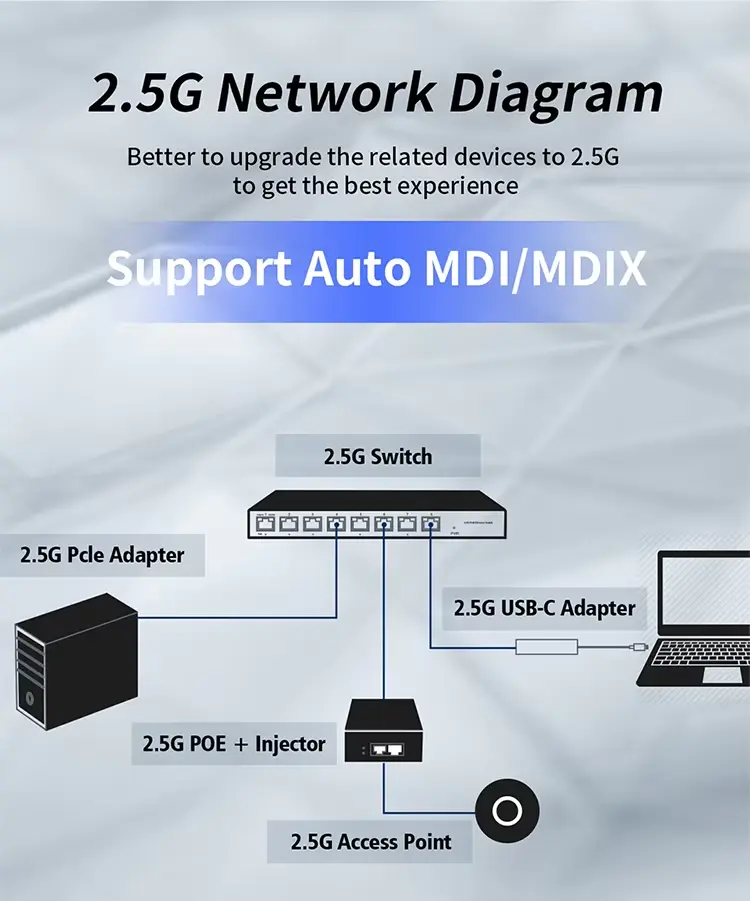

Auto MDI/MDIX: Supports port auto-flip, eliminating the need for crossover cables.

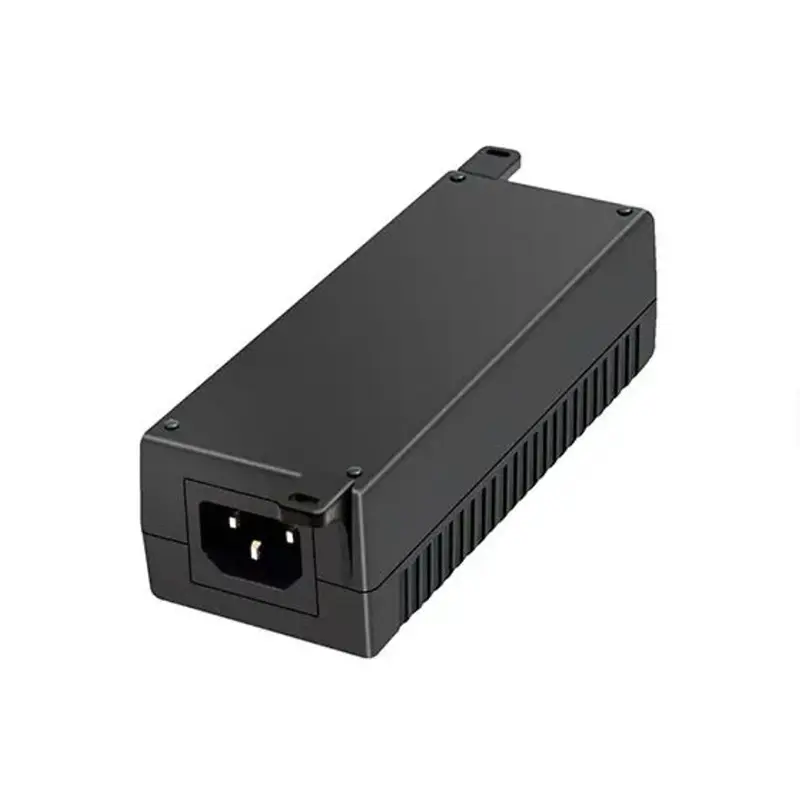

Wall-Mountable: Compact design allows for easy installation on walls or desks.

Applications

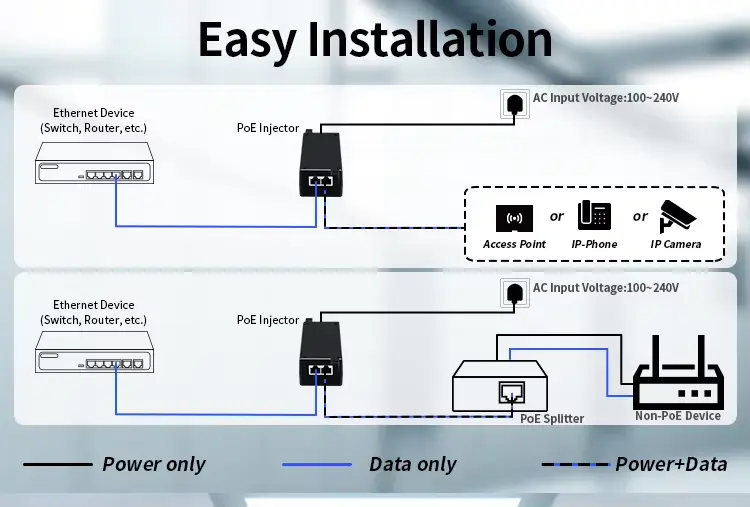

Wi-Fi 6/6E Access Points: Ensure high-speed data without power outlet limitations.

PTZ IP Cameras: Reliable power for pan-tilt-zoom security cameras.

VoIP Phones: Simplify desk setups with single-cable power and data.

IoT Gateways: Stable connectivity for smart building automation.

Thin Clients & POS Systems: Ideal for retail and office environments.

Why Choose Starwell?

Direct Factory Pricing: Competitive costs without compromising on quality.

Bulk Orders Welcome: Reliable stock and supply for projects of any scale.

Global Certifications: CE, RoHS, SAA, FCC, and more ensure worldwide compliance.

Customization Available: Logo printing available for orders of 5000+ units.

Warranty Support: 2-5 years warranty with a defective rate of less than 0.2%.

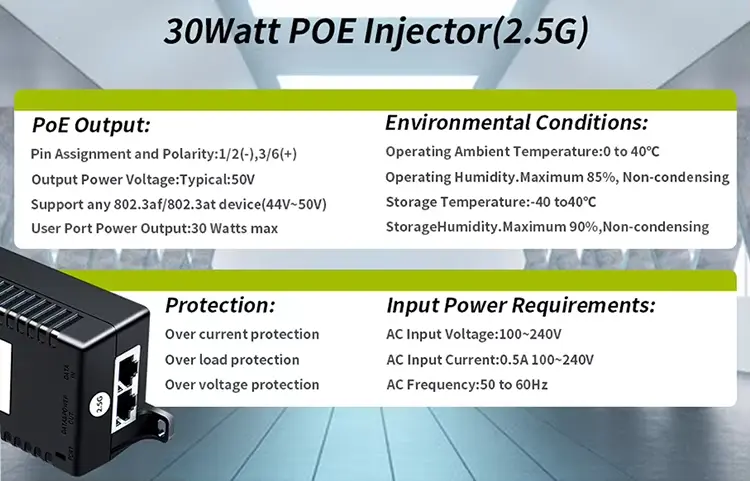

Technical Specifications

Item		5W 12W 18W 24W 30W 60W 90W POE Power Adapter
Model		PSE-xxxyyyw
INPUT		100-240VAC 50/60Hz
OUTPUT		12W	24W	36W	60W	90W
		12V1A, 24V0.5A	24V1A, 48V0.5A	48-56V 0.75A	48-56V 1.25A	48-56V 1.8A
Features	Ripple & Noise	<200mV
	Energy star level	Eup 2.0, Doe VI, CEC VI, CoC VI
	Efficiency	>88%
	Installing	Available for the system of Safety Class I/II
Environment	Operation Temp	-10 ~ +65°C, 10 ~ 95% RH non-condensing
	Storage Temp	-20 ~ +85°C (Refer to "Derating Curve")
	Storage Humidity	20 ~ 90% RH non-condensing
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
	Cooling Method	by NTC (natural cooling)
Safety&EMC	Safety Standard	UL 62368, ETL 62368, EN 62368, EN 61558
	Safety Approvals	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us.
	EMC Stardard	EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
	MTBF	50K hrs min. MIL-HDBK-217F (25°C)
POE Funciton	POE Protocol	IEE802.3af(15.4W) IEEE802.3at(25.4W) IEEE802.3bt(90W) POE++(60W)
	Network Protocol	IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3bz(2.5GBase-T) IEEE802.3x(Flow control)
	Protocol type	Passive POE / Active POE (optional)
	POE PIN	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 pairs: 1245+ 3678-
	Data Speed	10/100/1000M/2.5G/5G/10G bps ( optional )
	Network Medium	10Base-T: Cat3,4,5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) 2.5GBase-TX: Cat6 or above UTP(≤100m)
Machanicals	DC PORT	110/100/1000M/2.5G/5G/10G Ethernet Port 110/100/1000M/2.5G/5G/10G POE Port
	Dimension	84x46.99x37.1mm (LxWxH) exclude plug
	Packing	100g; 100pcs/12.0Kg/0.056CBM

FAQ

Q1: Can I place a sample order for power supplies, LED drivers, or chargers?

A: Yes, sample orders are welcome to test and evaluate quality. Mixed samples are also accepted.

Q2: What is your lead time?

A: Samples typically take 3–5 days to prepare. For mass production, lead time is usually 2–4 weeks, depending on order quantity.

Q3: Is there a minimum order quantity (MOQ)?

A: We offer low MOQs. Sample orders can be as low as 1 piece for testing purposes.

Q4: How do you ship products, and how long does delivery take? A: We offer both air and sea shipping. Sea freight generally takes 25–35 days for delivery, depending on the destination.

Q5: How do I place an order for power supplies?

A: The process is simple:

1. Let us know your requirements or application.

2.We’ll provide a quote based on your needs or our recommendations.

3.After sample approval, you place a deposit to confirm the formal order.

4.We begin production accordingly.

Q6: Can I have my logo printed on the products? What is the MOQ for custom branding?

A: Yes, logo printing is available. Please notify us before production and confirm the design based on our sample. The MOQ for OEM logo printing is 5,000 pieces.

Q7: Do you offer a warranty?

A: Yes, we offer a 2 to 5-year warranty depending on the product.

Q8: How do you handle product defects?

A: Our products are manufactured under a strict quality control system, with a defective rate of less than 0.2%. During the warranty period, we will send replacement units with your next order for small quantities. For defective batch products, we will repair and reship them, or discuss a recall solution based on the actual situation.
