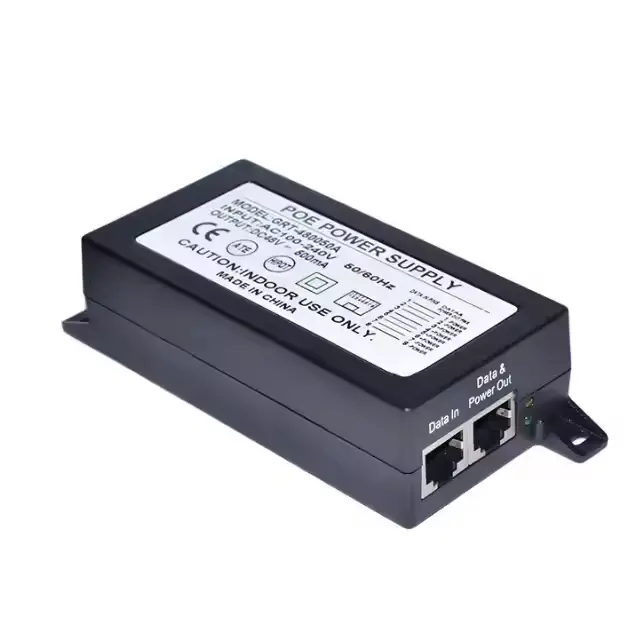

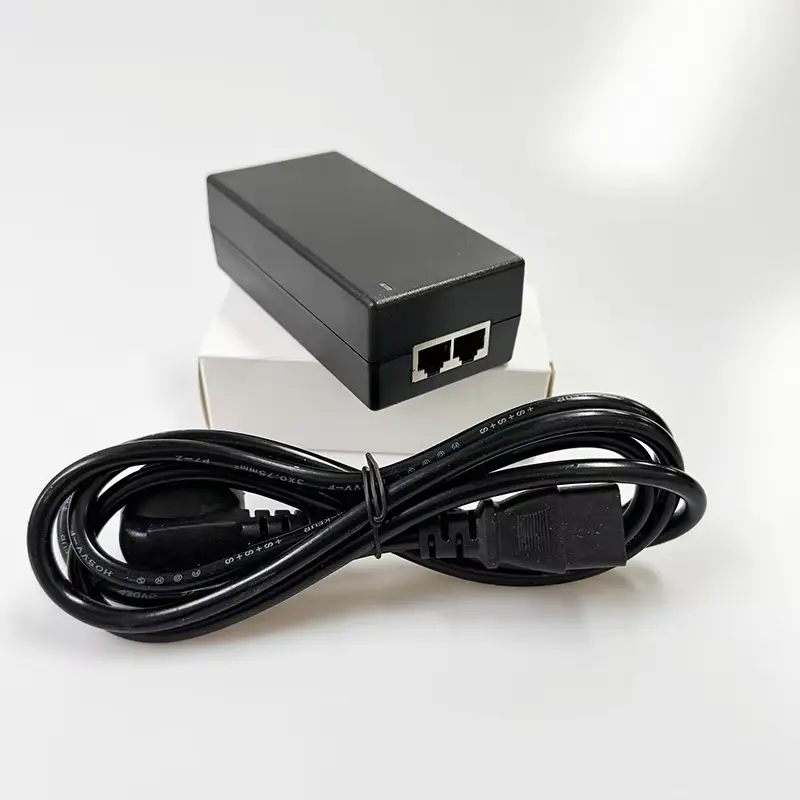

24W Desktop POE Injector Passive Type

As a professional manufacturer in China, Starwell would like to provide you quality 24W desktop POE injector passive type, which is a cost-effective and efficient solution for powering network devices through Ethernet cables. Unlike standard IEEE 802.3af/at PoE, this passive PoE adapter delivers direct power without handshake negotiation, making it ideal for devices that support fixed voltage input.
Features
Universal input: 100-240VAC 50-60Hz
Output power: 24 Watts Max
Plug type: US/EU/UK /AU /IN plugs
Warranty: 3 years
Standard :Passive
Certificate: CE/FCC/CB

Send Inquiry

Product Details

High quality 24W desktop POE injector passive type is offered by China manufacturer Starwell. With stable 24W output and support for both 24V 1A and 48V 0.5A configurations, this passive PoE power adapter is widely used in wireless APs, outdoor bridges, CCTV security systems, and point-to-point transmission equipment. Its compact desktop design and plug-and-play functionality ensure easy installation in various indoor networking environments.

What is 24W desktop POE injector passive type?

This Indoor 24W Poe Repeater Standard 10/100/1000Mbps POE Extender is an economical power supply solution tailored for wireless network coverage and security monitoring systems. As an indoor PoE repeater power supply device, it can be used in conjunction with standard 10/100/1000Mbps PoE extenders to achieve long-distance transmission of network signals. This power supply adopts passive power supply technology, eliminating the need for complex handshake negotiation processes, and directly supplies power to remote devices through Ethernet cables. It is particularly suitable for wireless APs, outdoor bridges, and point-to-point transmission devices that support passive PoE power supply.

Key Features

1. Stable 24W Power Output (24V / 48V Options)

Provides reliable 24W output with two voltage options:

24V 1A for wireless devices

48V 0.5A for high-speed network equipment

2. Passive PoE Technology – No Negotiation Required

This passive PoE injector uses direct power transmission without protocol handshake, reducing system complexity and improving compatibility with specific networking equipment.

3. Gigabit & 2.5G Ethernet Support

Supports:

10/100/1000Mbps

2.5G Ethernet

Ensures smooth data transmission for HD video surveillance and high-bandwidth wireless applications.

4. Plug-and-Play Desktop Design

Compact indoor desktop structure

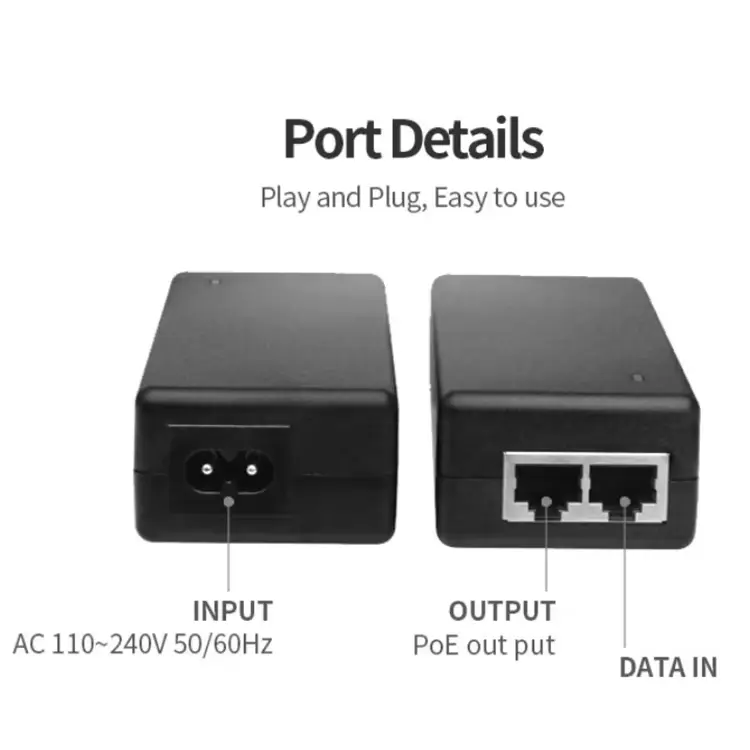

Standard RJ45 interface

No configuration required

Perfect for quick deployment in small networks and surveillance systems.

5. Multiple Safety Protections

Built-in protections include:

Over-voltage protection (OVP)

Over-current protection (OCP)

Short circuit protection

Ensures safe and stable operation in long-term use.

Specification

Input Rated Voltage :	100Vac~240Vac
InputFrequency Range:	47Hz~63Hz
InputInrush Current :	0.8 A max
Efficiency :	85%(MIN)at Rated Voltage
Output:	24V
Output power :	24W
Ripple and Noise :	<120Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection for power adapter
Leakage Current:	<5mA
DC cable length:	1.5 meters
Operating Temperature:	0°C----+60°C
Storage Temperature:	-20°C----+85°C
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN60950-1 UL60950-1 ESD (EN61000 3-3) CAS (60950 ITE/TE) FCC Part 15 subpart B Class B AN/NZS CISPR 22:2006

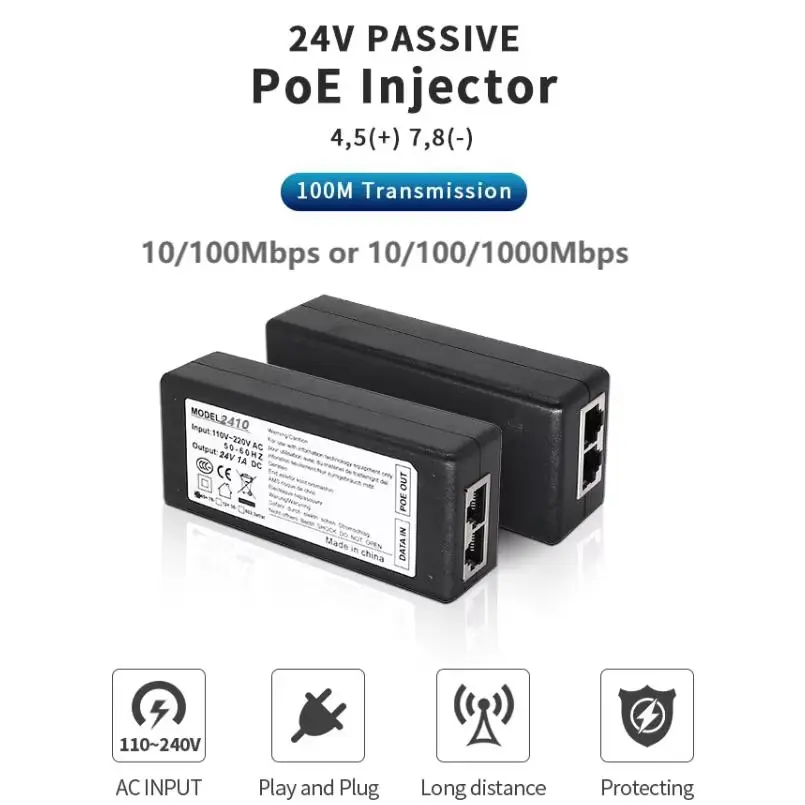

Data connector	RJ45 +24V pins4&5, Power Return pins7&8
Futures:	Compliant with Isolation and Channel Data and Power carried over one Ethernet Cable

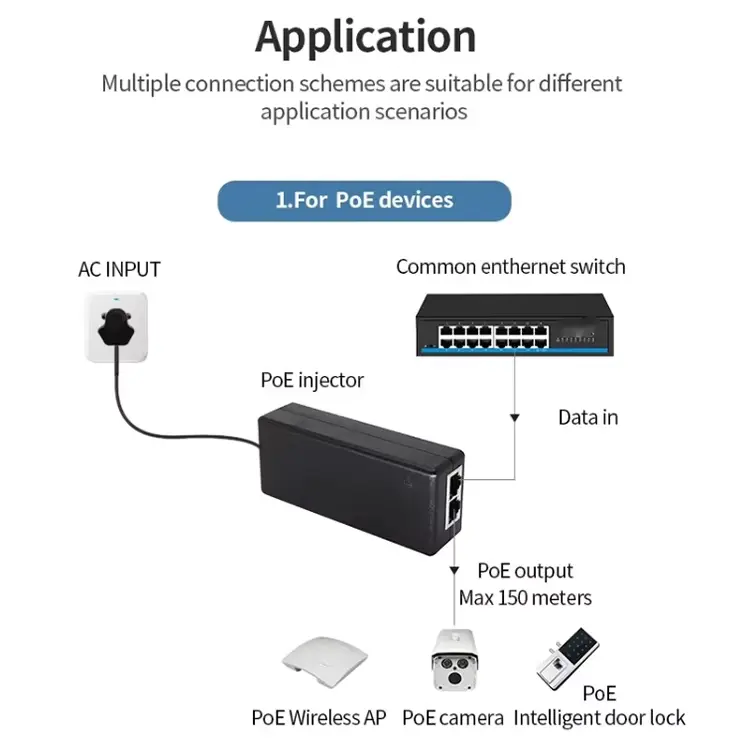

Application:	IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc
