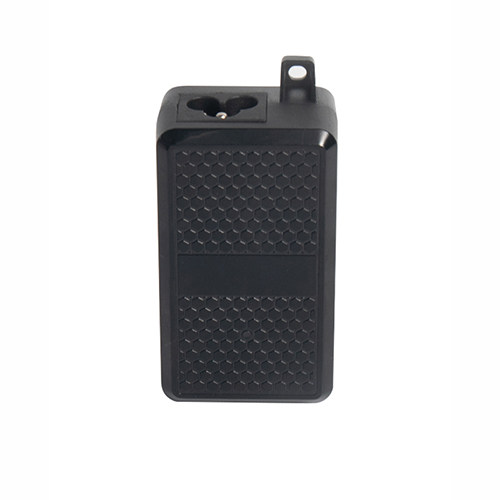

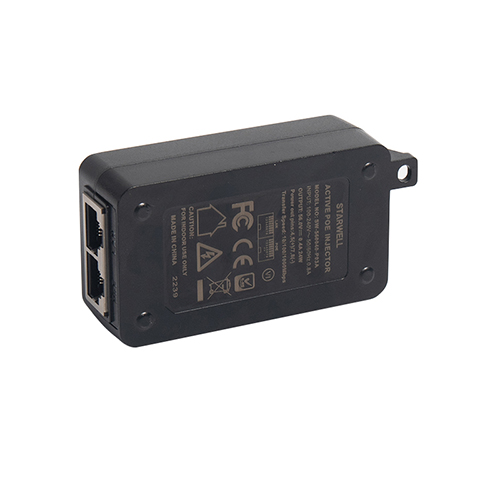

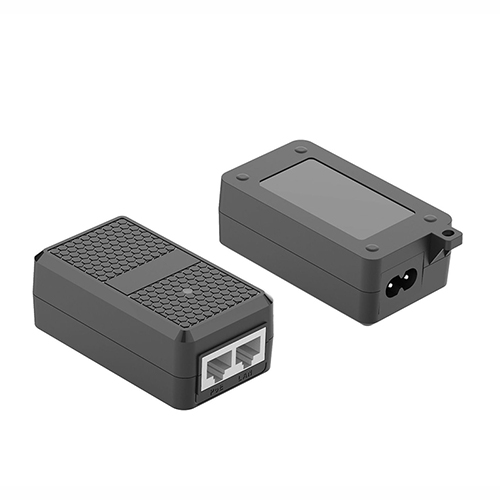

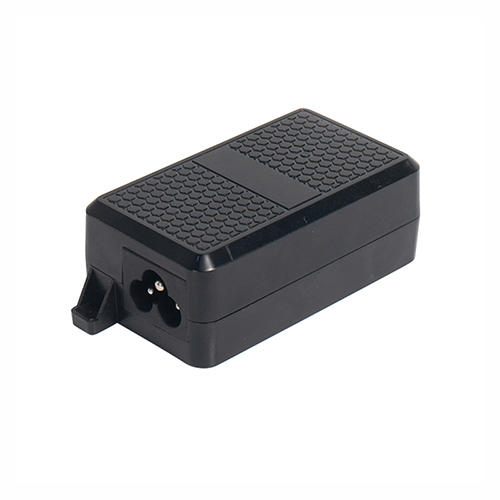

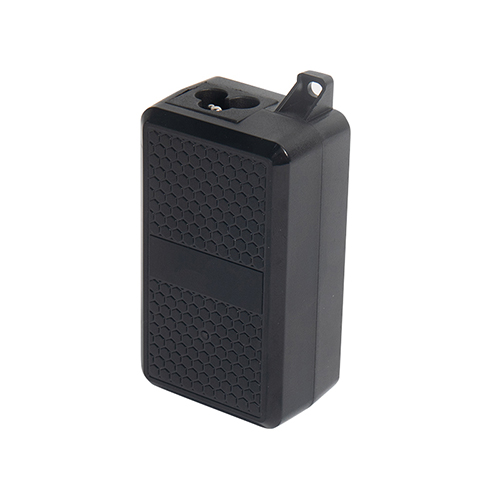

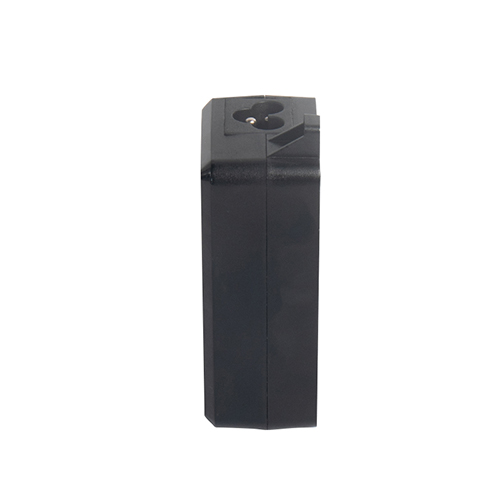

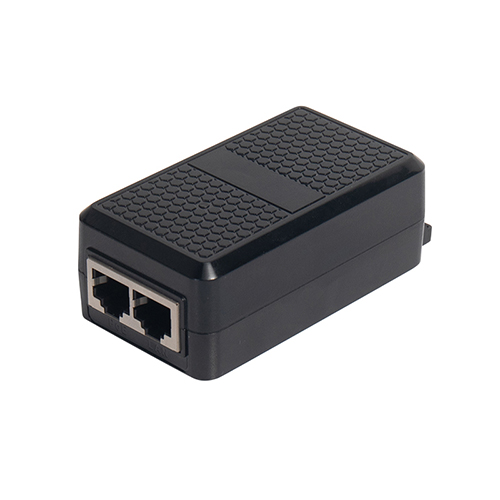

24W Desktop POE Injector

24W Desktop POE Injector is a standard Gigabit Ethernet PoE adapter manufactured by STARWELL. This 24W Desktop POE Injector can provides 1G/2.5G/5G Gigabit PoE port and 1/2.5/5 Gigabit uplink port, supports 1/2/4/5+, 3/6/7/8-, 52V POE power supply, and is suitable for devices that support 1/2/4/5+, 3/6/7/8- power supply at the receiving end. The product is mainly used for POE network power supply, suitable for security monitoring, wireless coverage, bridge relay and other application scenarios.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A
Inlet typpe: C6 /C8 avaliable
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 8446.9*31.7mm(exclude plug)

Product Details

The 24W Desktop POE Injector is a standard Gigabit Ethernet PoE (Power over Ethernet) adapter manufactured by STARWELL. This PoE injector is designed to provide power and data transmission capabilities for Ethernet devices. It is commonly used in various application scenarios such as security monitoring, wireless coverage, and bridge relay.

The 24W Desktop POE Injector features a Gigabit PoE port that can deliver power and data at 1G/2.5G speeds. It also includes a 1/2.5 Gigabit uplink port for seamless connectivity to the network. This allows for high-speed data transmission and efficient power delivery to connected devices.

In terms of power supply, the PSE-24W supports 1/2/4/5+ and 3/6/7/8- pin configurations, delivering 52V POE power to connected devices. It is compatible with devices that support 1/2/4/5+ and 3/6/7/8- power supply at the receiving end. This ensures reliable and stable power delivery to PoE-enabled devices, eliminating the need for separate power cables.

The 24W Desktop POE Injector is optimized for POE network power supply, providing a convenient and efficient solution for powering various devices over the Ethernet network. Its versatility makes it suitable for a wide range of applications, including security monitoring systems, wireless coverage setups, and bridge relays.

In summary, the 24W Desktop POE Injector by STARWELL is a reliable and feature-rich device that offers high-speed data transmission and efficient power delivery for PoE-enabled devices. It is a versatile solution suitable for various application scenarios that require reliable and centralized power supply over the Ethernet network.

STARWELL 24W Desktop POE Injector Specification:

Item		5W 12W 18W 24W POE Power Adapter, POE injector, Power Over Ethernet for router, POE injecter
Model		PSE-xxxyyyw
INPUT		100-240VAC 50/60Hz
Output		12V	15V	18V	24V	48V	56V
		0-2A	0-1.6A	0-1.33A	0-1.0A	0-5A	0.4A
Features	Ripple & Noise	<120mV
	Energy star level	Eup 2.0, Doe VI, CEC VI, CoC VI
	inlet	C8 C6 inlet optional
	Installing	Available for the system of Safety Class I/II
Environment	Operation Temp	-10 ~ +65℃, 10 ~ 95% RH non-condensing
	Storage Temp	-20 ~ +85℃ (Refer to "Derating Curve")
	Storage Humidity	20 ~ 90% RH non-condensing
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
	Cooling Method	by NTC (natural cooling)
Safety&EMC	Safety Standard	UL 62368, ETL 62368, EN 62368, EN 61558
	Safety Approvals	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us.
	EMC Stardard	EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
	MTBF	5K hrs min. MIL-HDBK-217F (25℃)
POE funciton	Protocol	Compatible with IEE802.3af/IEEE802.3at
	Protocol type	Passive POE / Active POE (optional)
	POE pin	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678-
	Data Speed	10/100/1000M/2.5G/5G/10G bps ( optional )
Machanicals	DC PORT	2*RJ45 :10/100/1000M/2.5G/5G/10G bps, Port 1: LAN, Port 2: POE
	Dimension	84x46.99x37.1mm (LxWxH) exclude plug
	Packing	100g; 100pcs/12.0Kg/0.056CBM
