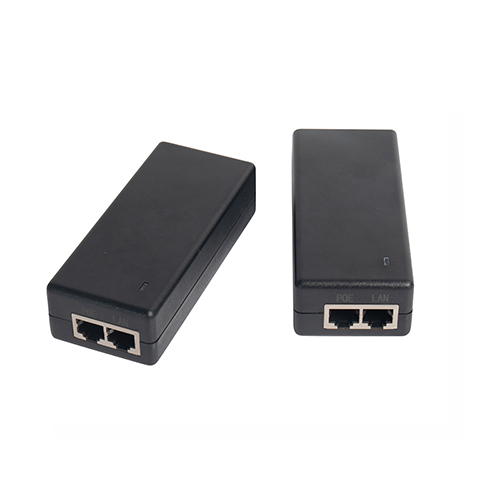

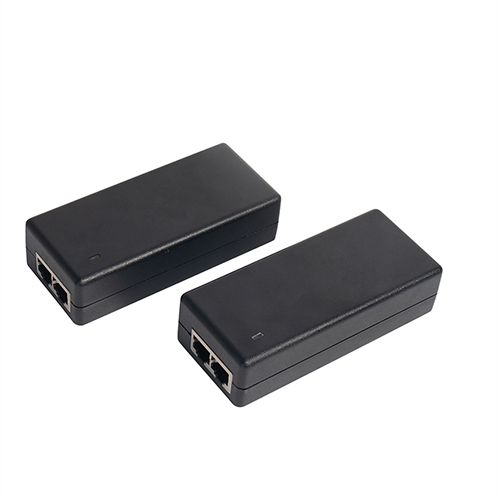

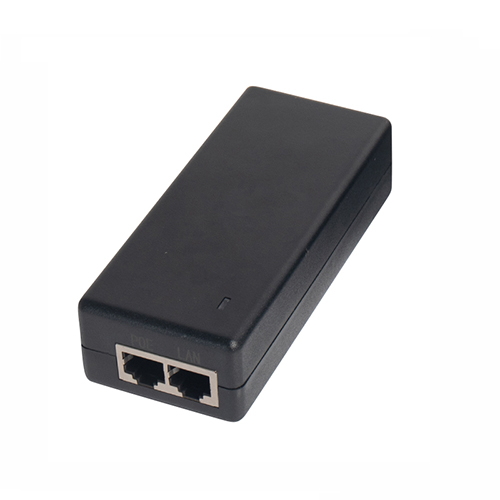

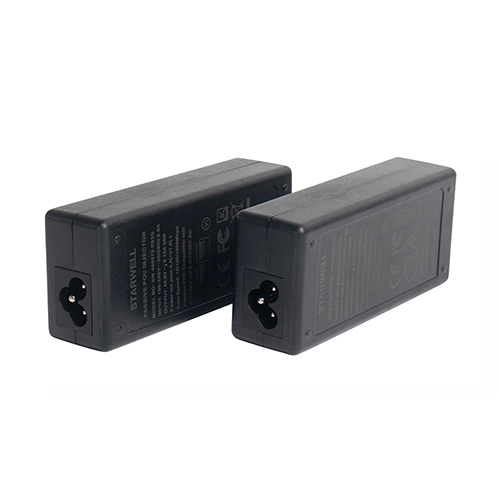

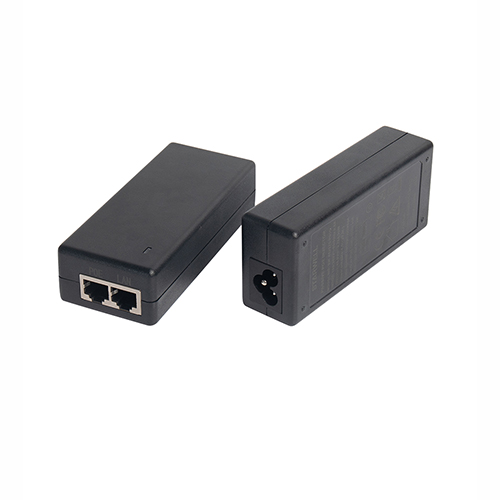

36W Desktop POE Injector

High quality 36W Desktop POE Injector is offered by China manufacturers STARWELL Buy 36W Desktop POE Injector which is of high quality directly with low price.

Features:
input: 100-240VAC
output: 48V/0.75A, 56V/0.65A
Inlet typpe: C6 /C8 avaliable
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/at&IEEE802.3bt, POE++
Data Speed: 10/100/1000M/2.5G/5G/10G bps(optional)
size: 11550.0*33.0mm(exclude plug)

Product Details

The 36W Desktop POE Injector, a standard Gigabit Ethernet PoE adapter manufactured by STARWELL, is designed to provide power and data transmission capabilities for Ethernet devices. It features a Gigabit PoE port for power and data delivery at 1G/2.5G speeds, along with a 1/2.5 Gigabit uplink port for seamless network connectivity. With support for different pin configurations, it delivers 56V POE power to connected devices and is compatible with devices supporting 1/2/4/5+ and 3/6/7/8- power supply at the receiving end. This eliminates the need for separate power cables and ensures reliable power delivery. The 36W Desktop POE Injector is a versatile solution suitable for various applications, including security monitoring, wireless coverage, and bridge relays. It offers high-speed data transmission and efficient power delivery, making it a reliable and feature-rich choice for centralized power supply over the Ethernet network.

STARWELL 36W Desktop POE Injector Specification:

Item		36W POE Power Adapter, POE injector, Power Over Ethernet for router, Power Over Ethernet adaptor
Model		PSE-30W
INPUT		100-240VAC 50/60Hz
Output		12V	15V	18V	24V	48V	56V
		0-3A	0-2.4A	0-2.0A	0-1.5A	0.75A	0.5A
Features	Ripple & Noise	<120mV
	Energy star level	Eup 2.0, Doe VI, CEC VI, CoC VI

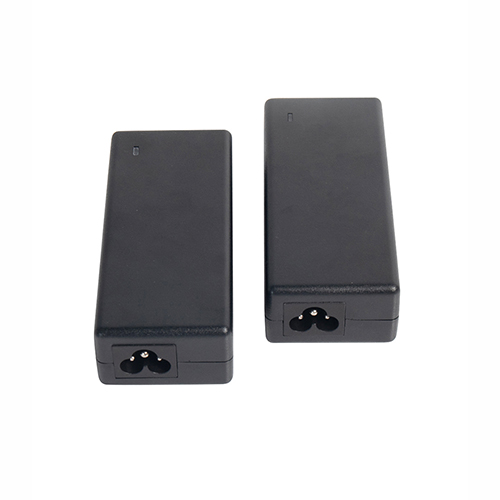

	Inlet type	C6, C8 avaliable.
	Installing	Available for the system of Safety Class I/II
Environment	Operation Temp	-10 ~ +65℃, 10 ~ 95% RH non-condensing
	Storage Temp	-20 ~ +85℃ (Refer to "Derating Curve")
	Storage Humidity	20 ~ 90% RH non-condensing
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
	Cooling Method	by NTC (natural cooling)
Safety&EMC	Safety Standard	UL 62368, ETL 62368, EN 62368, EN 61558
	Safety Approvals	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us.
	EMC Stardard	EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
	MTBF	5K hrs min. MIL-HDBK-217F (25℃)
POE funciton	Protocol	Compatible with IEE802.3af/IEEE802.3at/IEEE802.3bt/POE++
	Protocol type	Passive POE / Active POE (optional)
	POE pin	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678-
	Data Speed	10/100/1000M/2.5G/5G/10G bps ( optional )

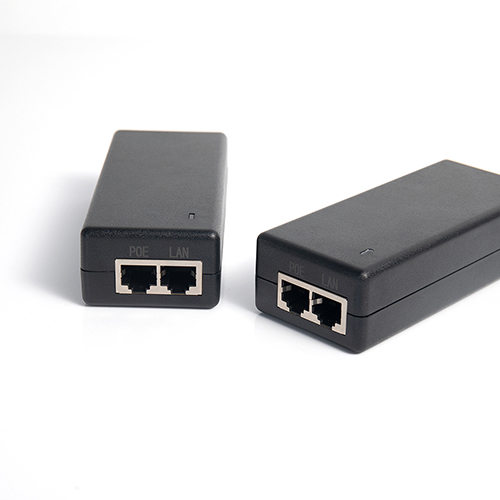

Machanicals	DC PORT	2*RJ45 :10/100/1000Mbps, Port 1: LAN, Port 2: POE
	Dimension	115x50x33mm (LxWxH) exclude plug
	Packing	100g; 100pcs/12.0Kg/0.056CBM
