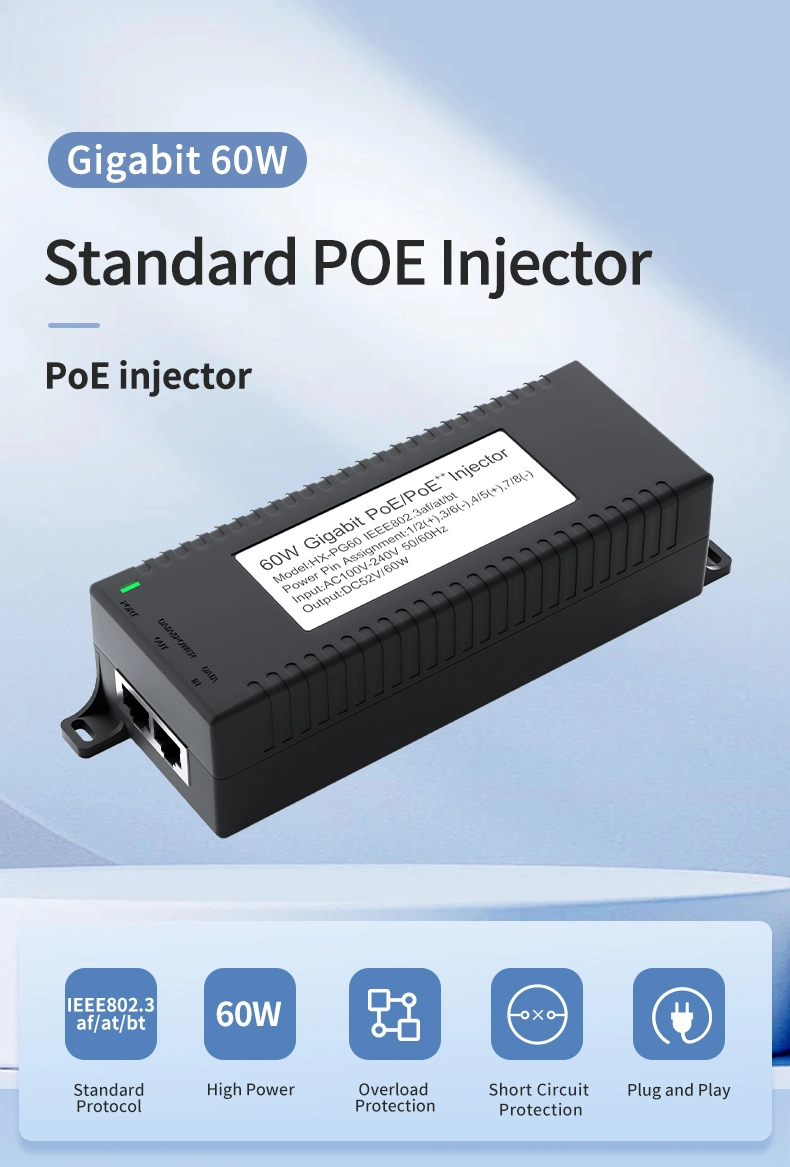

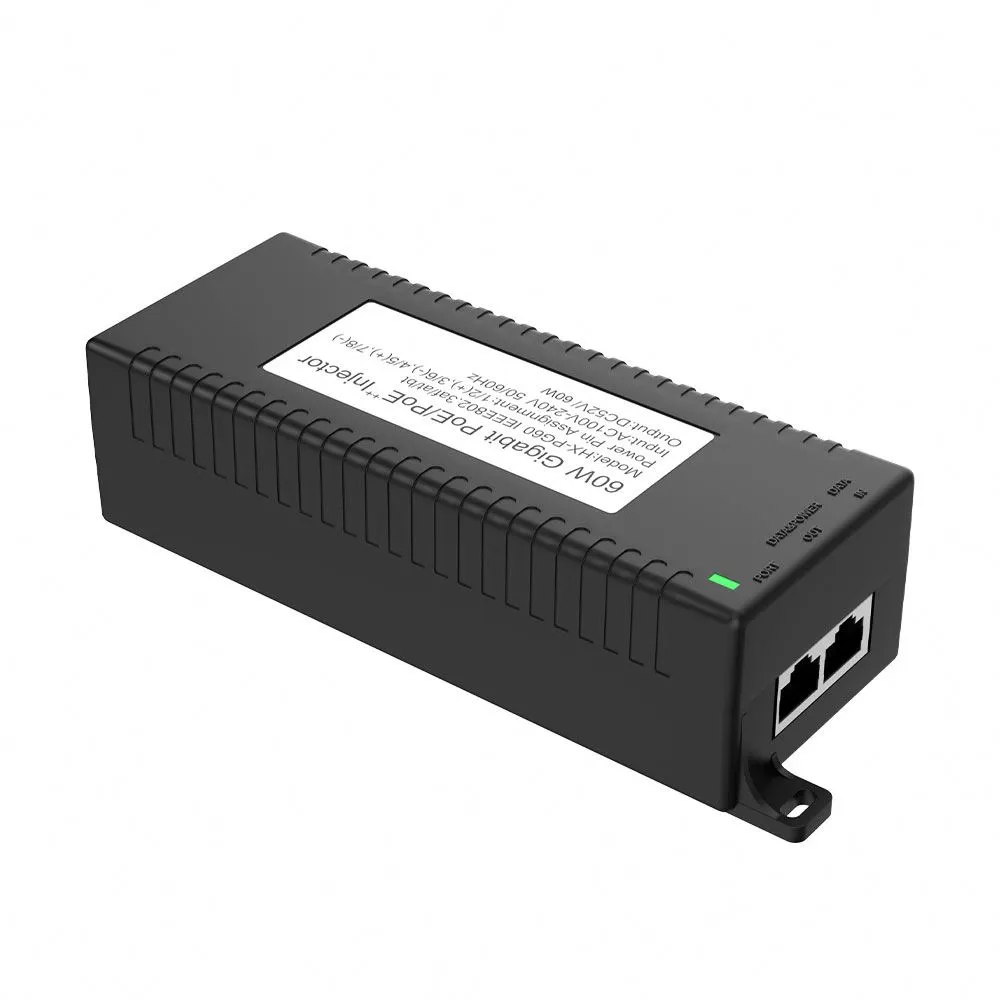

60W desktop POE injector with IEEE802.3AF/AT/BT

As a professional power supply manufacturer in China, Starwell introduces a 60W desktop POE injector with IEEE802.3AF/AT/BT. Supporting a maximum power output of 60W, it provides stable power and data transmission for devices such as PTZ dome cameras and wireless access points (APs). This plug-and-play product features built-in over-current, over-voltage, and short-circuit protection, ensuring safe and stable power delivery.
Features
Universal input: 100-240VAC 50-60Hz
Output power: 60 Watts Max

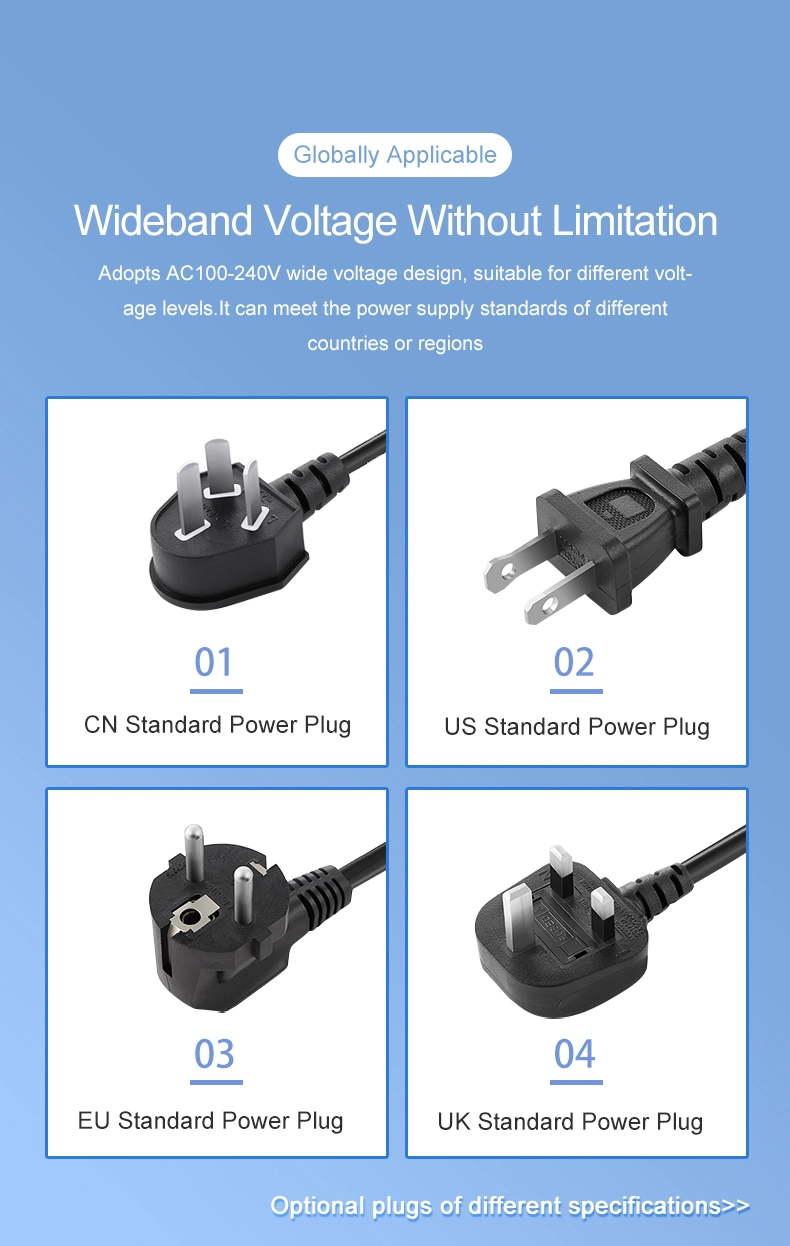

Plug type: US/EU/UK /AU /IN plugs
Warranty: 3 years
Standard :IEEE802.3AF AT BT
Certificate: CE/FCC/CB

Send Inquiry

Product Details

Purchase quality 60W desktop POE injector with IEEE802.3AF/AT/BT from Starwell, a professional PoE injector manufacturer in China. It strictly adheres to the IEEE 802.3af/at/bt international standards and is designed to simultaneously transmit power and data through Ethernet cables for network devices. It supports up to 60W of power output and can perfectly accommodate and drive high-power PoE-enabled devices such as PTZ dome cameras, high-definition cameras, wireless APs, and video phones. The injector features a compact desktop design and comes with a direct power plug for plug-and-play convenience without the need for additional configuration. It is equipped with an intelligent circuit protection mechanism that effectively prevents overcurrent, overvoltage, and short circuits, ensuring a stable and safe power supply for terminal devices in various installation environments.

Specification

Product Name	Gigabit 60W Standard POE Injector
Input Voltage	AC100-240V
Output Voltage	DC52V/60W
POE Protocol	IEEE802.3af/at/bt

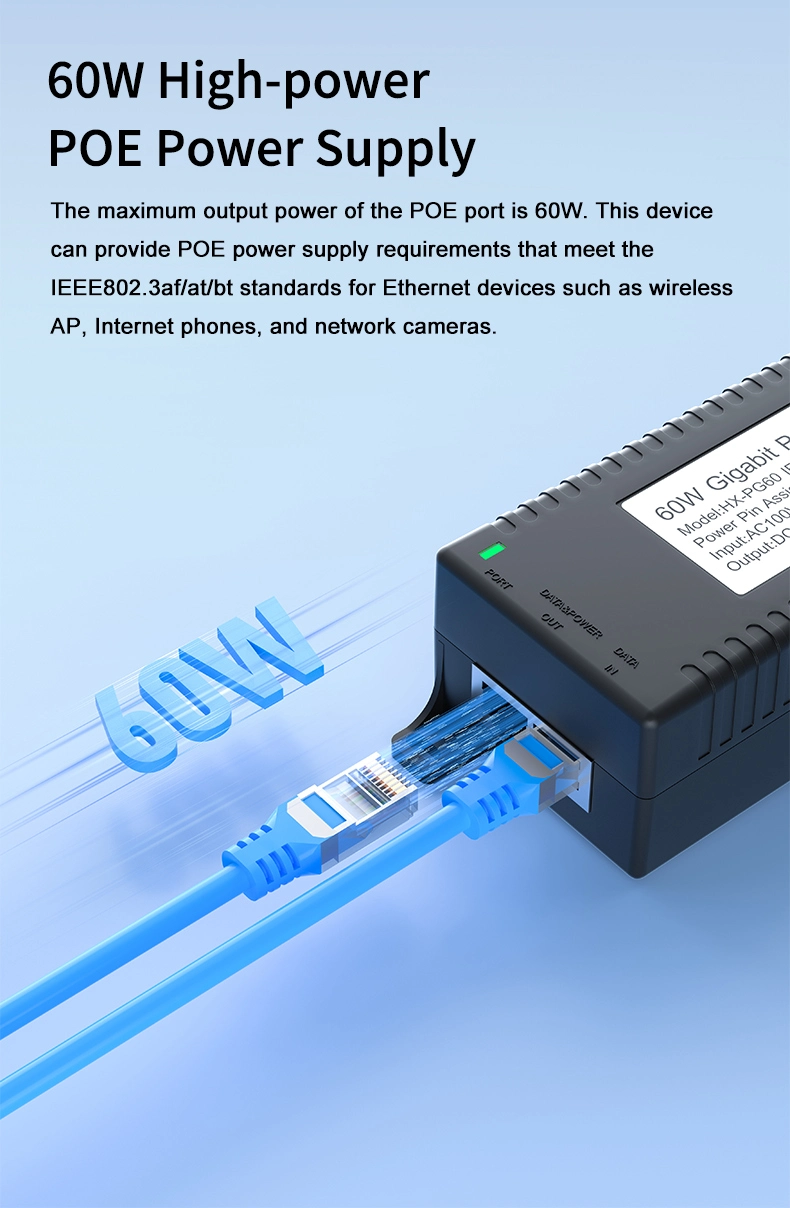

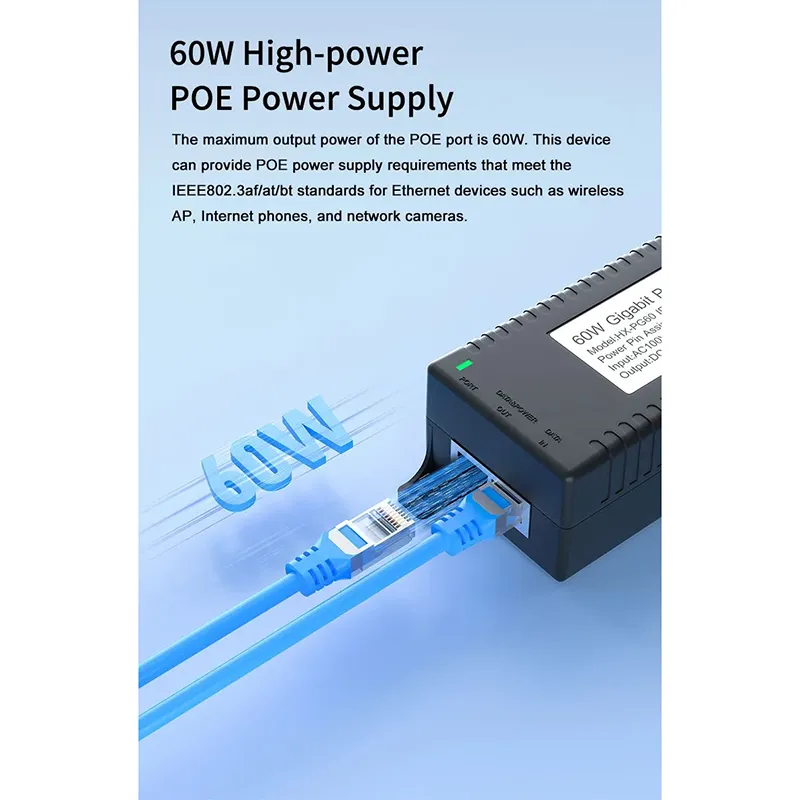

POE Power	60W
Network Transmission	1/2,3/6,4/5,7/8
Power Supply Wire Core	1/2(+),3/6(-),4/5(+),7/8(-)

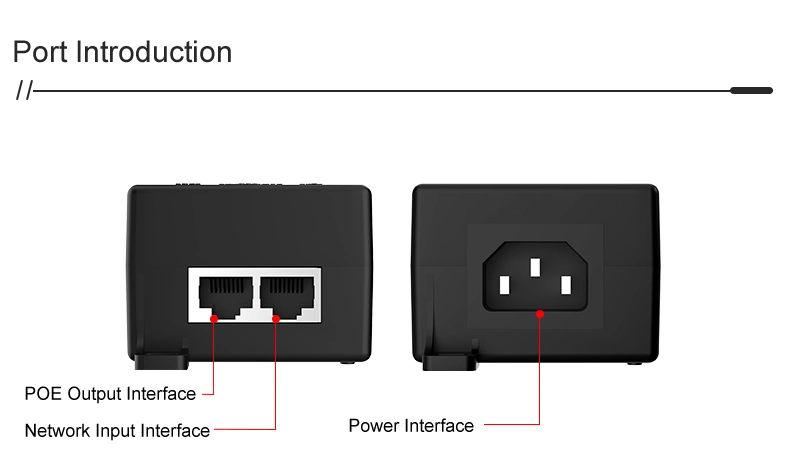

Fixed Ports	1Gigabit POE Port/1Gigabit RJ45 Network Port/ 1*AC Power Interface
Transmission Medium	CAT5E, CAT6 or Above
Working Temperature	-10°C~60°C

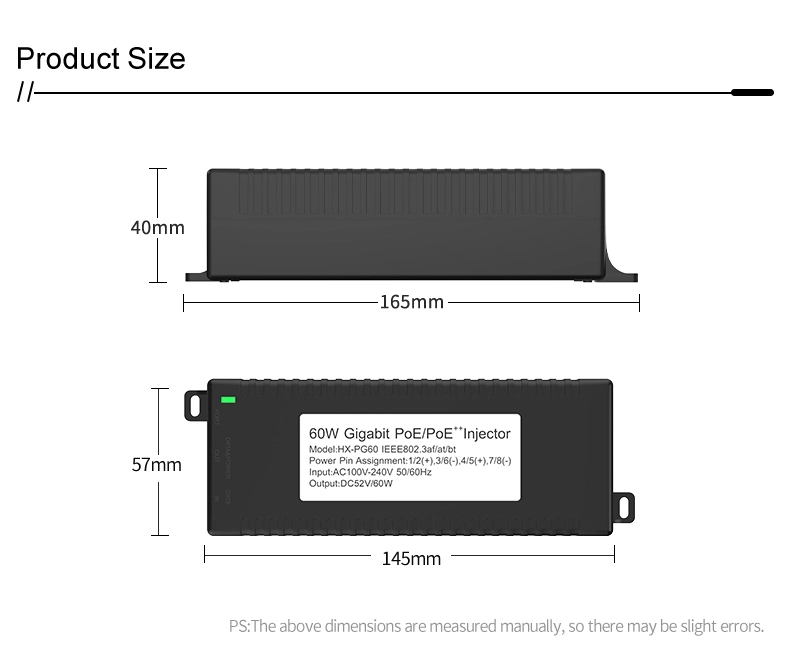

Appearance Size	1455740mm
Product Weight	0.5KG

Product Features

1. High-Efficiency Power and Data Transmission

High-Voltage Output Design: Features a 56V output to effectively minimize line loss and enhance power delivery efficiency over long distances.

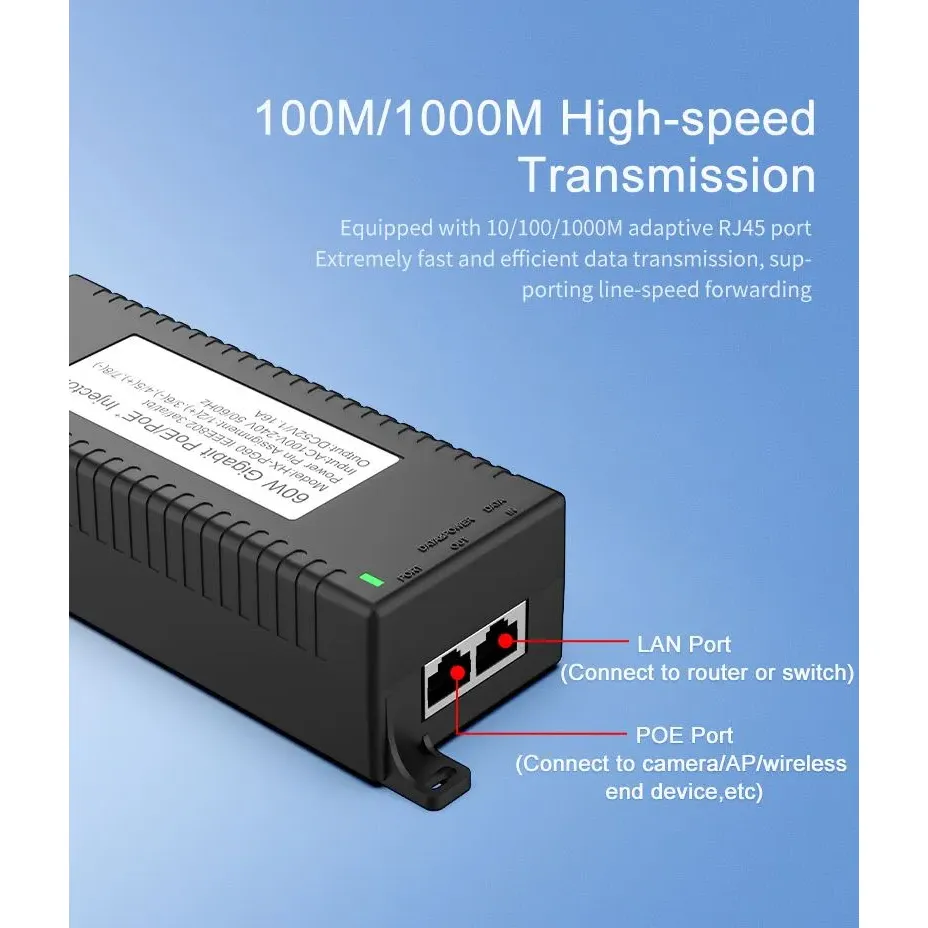

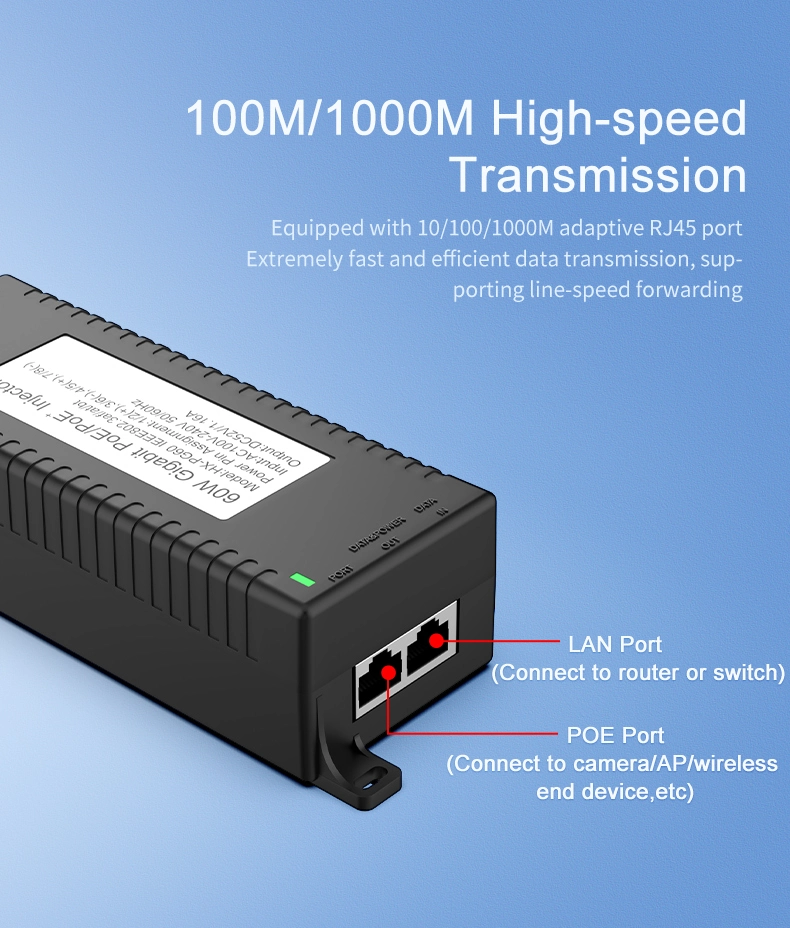

High-Speed Data Transmission: Supports 1000Mbps Gigabit speeds and is compatible with 10/100/1000Base-T networks.

Intelligent PoE Communication: Active PoE devices utilize a handshake protocol to verify that the terminal supports PoE before supplying power, thereby safeguarding non-PoE devices.

2. High Reliability and Safety Protection

Intelligent Circuit Protection: Includes protection against overcurrent, overvoltage, overheating, and short circuits to ensure stable device operation.

Durable Design: Engineered to withstand various complex installation environments, guaranteeing long-term, stable power delivery.

Quality Assurance: Backed by a 3-year warranty for your peace of mind.

3. Design and Usability

Compact Desktop Design: Space-saving and suitable for use on office desktops or within cabinet environments.

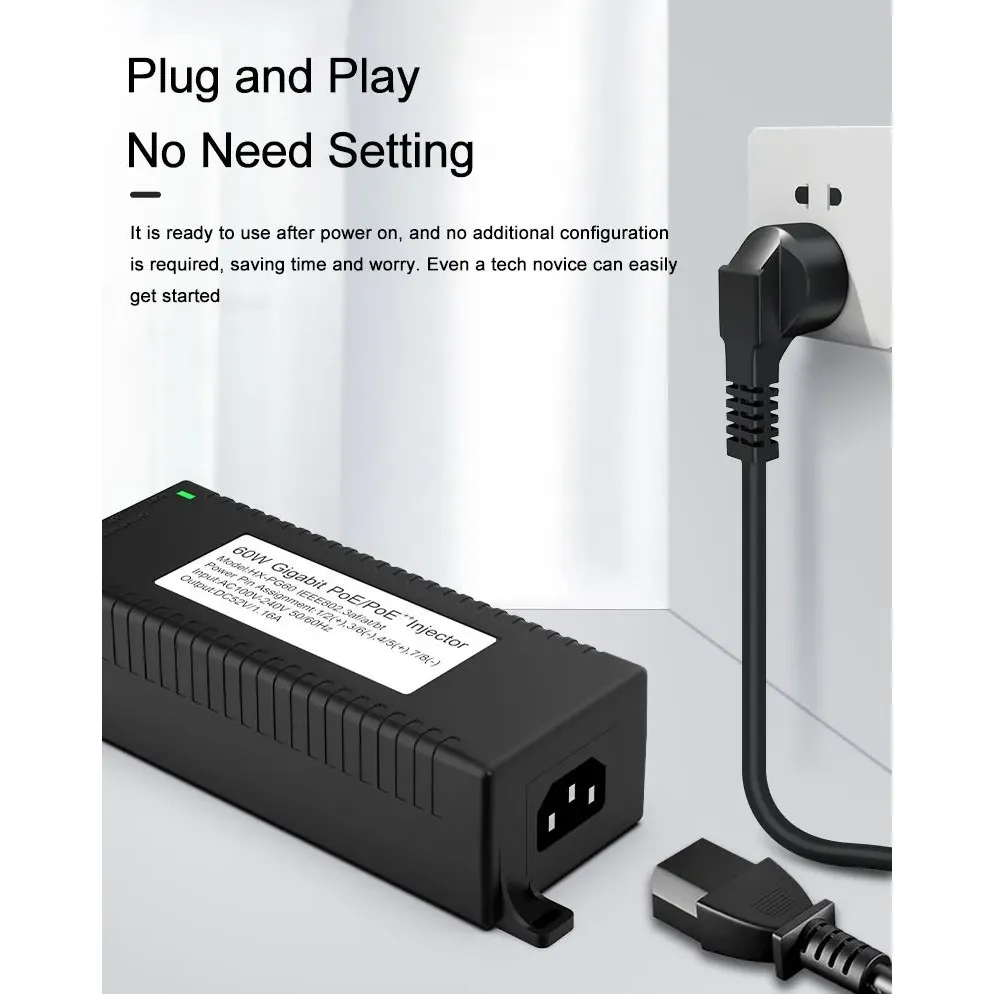

Plug-and-Play: Equipped with standard RJ45 ports and a direct power plug, requiring no additional configuration or software setup.

Flexible Application: 60W Gigabit Active PoE Splitter IEEE802.3af 1000Mbps Speed for IP Camera Wireless AP can be paired with a Gigabit PoE Splitter to provide power to non-standard devices, thereby expanding its range of application scenarios.

Applications

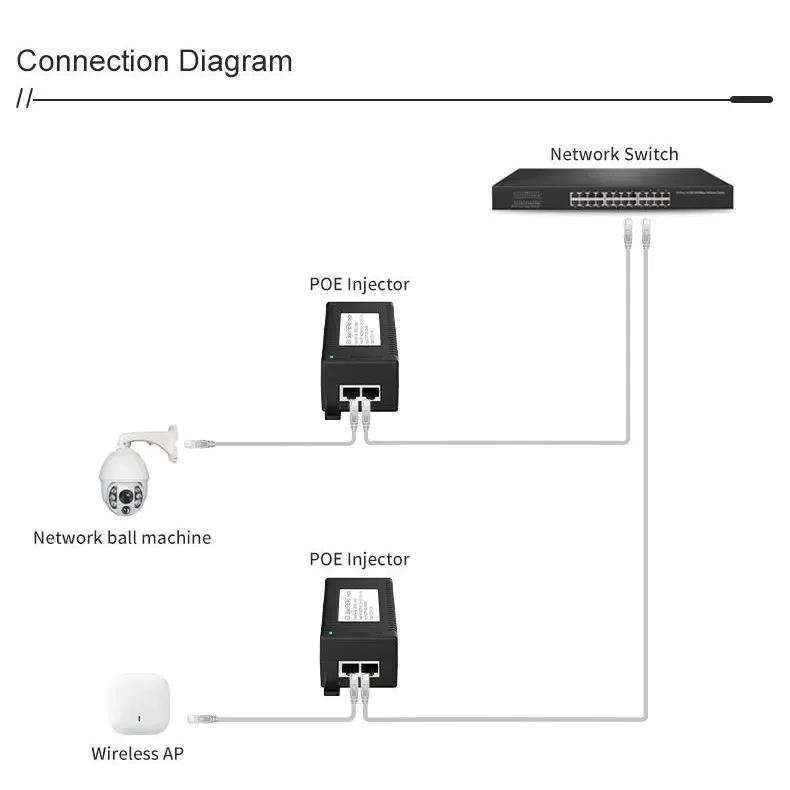

Security Surveillance: Gigabit 60W desktop POE injector for IP Camera Security and Network Device provides stable power to IP cameras and PTZ cameras.

Wireless Networking: Delivers reliable PoE power to wireless access points (APs), ensuring smooth network operation.

Office Equipment: Powers video phones and high-power PoE terminal devices.
