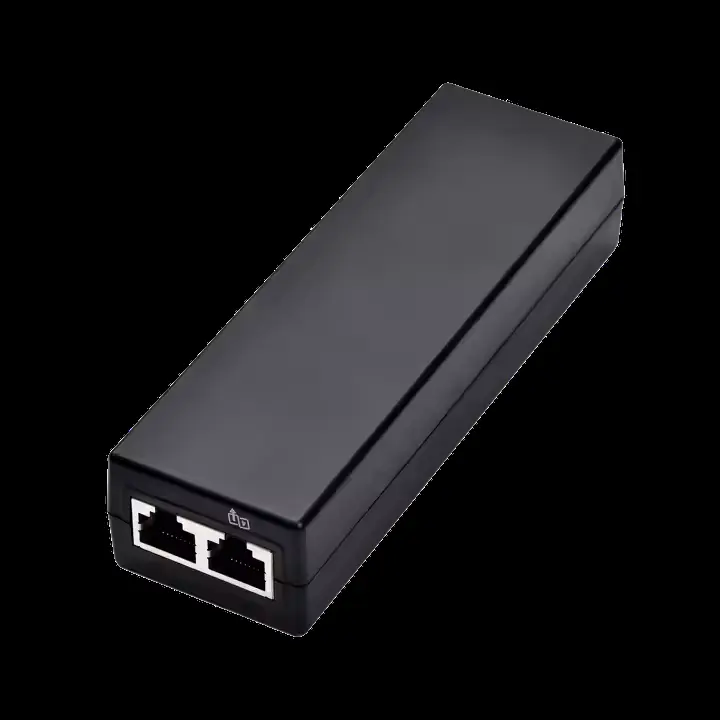

802.3afat 48V 30W 1000Mbps Gigabit Ethernet PoE Injector

Wholesale 802.3afat 48V 30W 1000Mbps Gigabit Ethernet PoE Injector with SAA CE ROHS which manufactured by Starwell.We offer cheap price and good quality PoE Injector.
Features
1. Support 1x2.5G POE Port+1x2.5G Ethernent Port
2. Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,Standards
3. Ethernet Port Supports 10/100/1000Mbps/2.5G adaptive and PoE functions
4. Support Port Auto Flip (Auto MDI/MDIX)
5. Compatible with IEEE802.3af(15.4W), IEEE802.3at(30W) IEEE802.3bt(90W) POE++(60W)
6. Support AC 100-240 V power supply
7. working temperature -10~50°C
8. Support wall mount

Send Inquiry

Product Details

As a professional power supply manufacturer in China, Starwell introduces its 802.3afat 48V 30W 1000Mbps Gigabit Ethernet PoE Injector. This device supports 10/100/1000Mbps/2.5G auto-negotiation and features multiple protection circuits against overcurrent, overvoltage, and short circuits. With an operating temperature range of -20°C to 50°C, it is suitable for various network devices such as IP cameras, wireless APs, and VoIP phones. The product has obtained certifications including CE, FCC, and RoHS, and comes with a 3-year warranty.

Product Features

Power & Data Integration: Delivers stable 48V power and full 1000Mbps data over a single Ethernet cable, eliminating extra wiring and power outlets for a cleaner deployment.

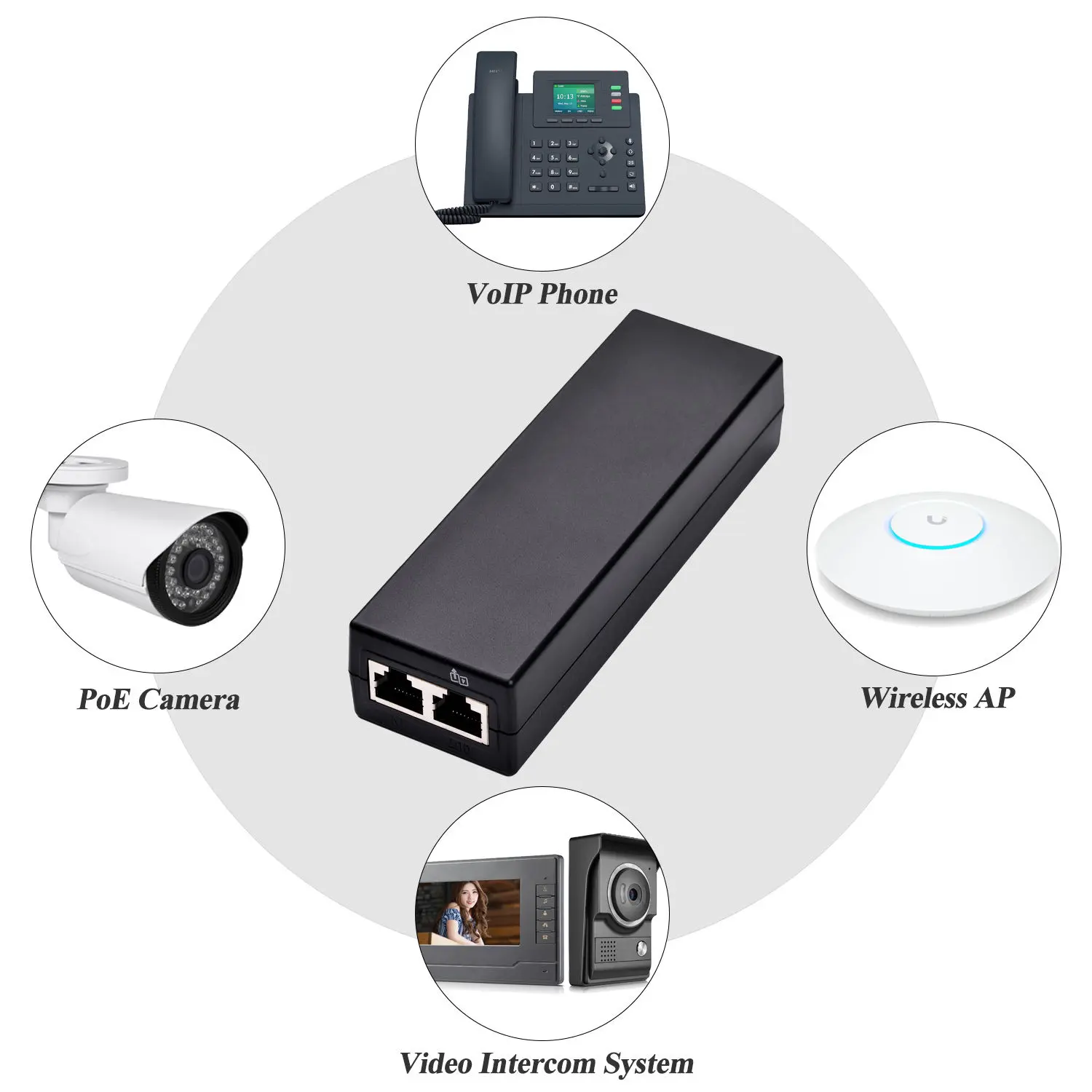

High Power Output: Supports up to 30W output, efficiently powering and connecting network devices such as IP cameras, wireless APs, and VoIP phones.

Smart Power Management: Features auto-sensing technology to safely detect and match power requirements, protecting connected equipment from damage.

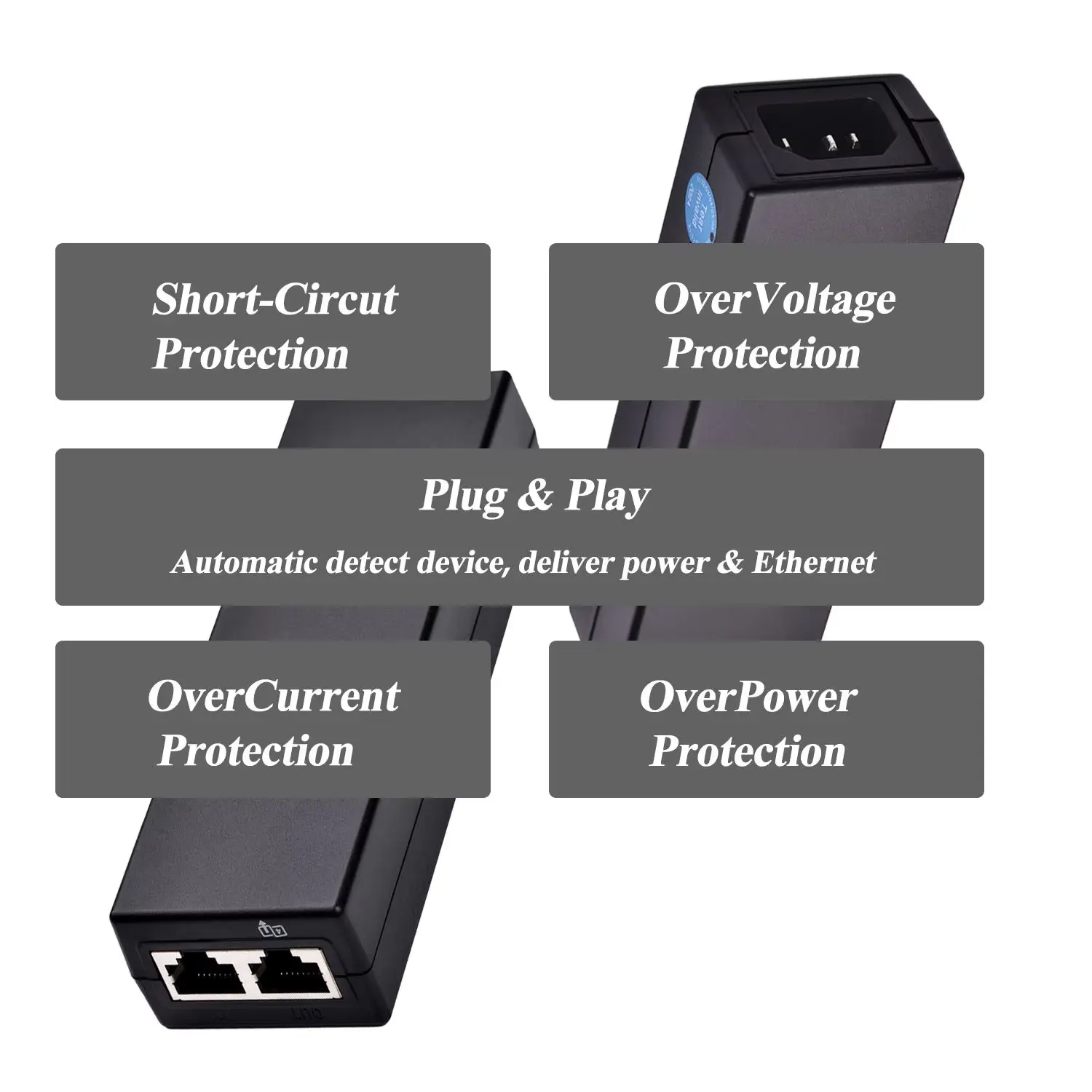

Comprehensive Protection: Built-in safeguards include over-current, over-voltage, and short-circuit protection, ensuring reliable and secure operation.

Long-Distance Performance: Supports transmission up to 100 meters while maintaining full gigabit speed and steady power delivery.

Easy & Versatile Use: Plug-and-play simplicity with a compact design, ideal for home, office, and light industrial networking applications.

General parameter
Product name	30W gigabit POE injector
Model	HR-BTG-N601

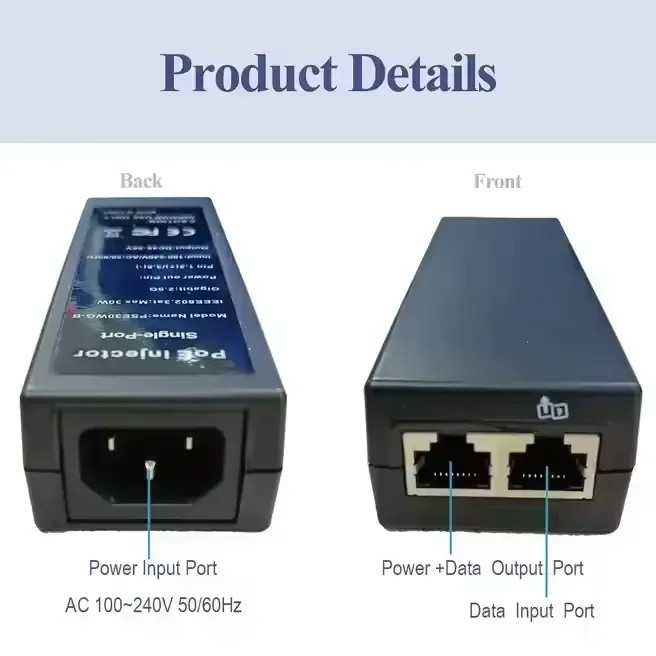

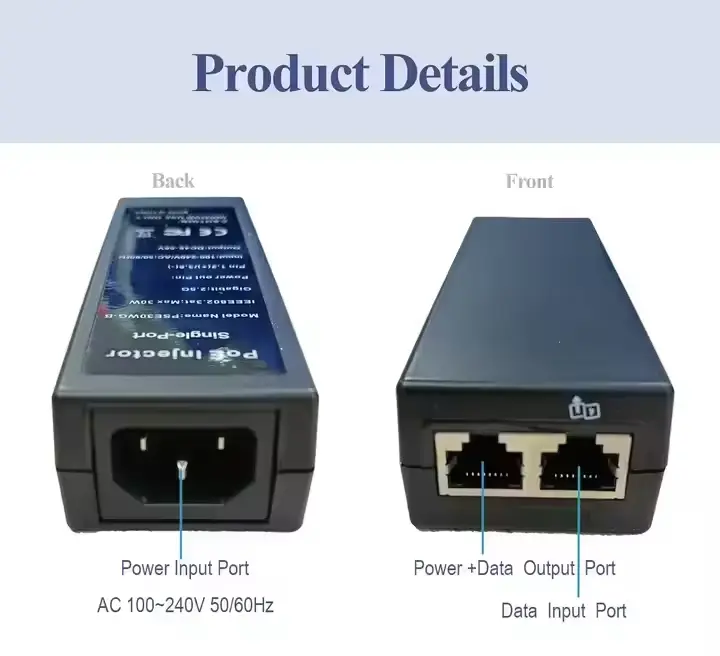

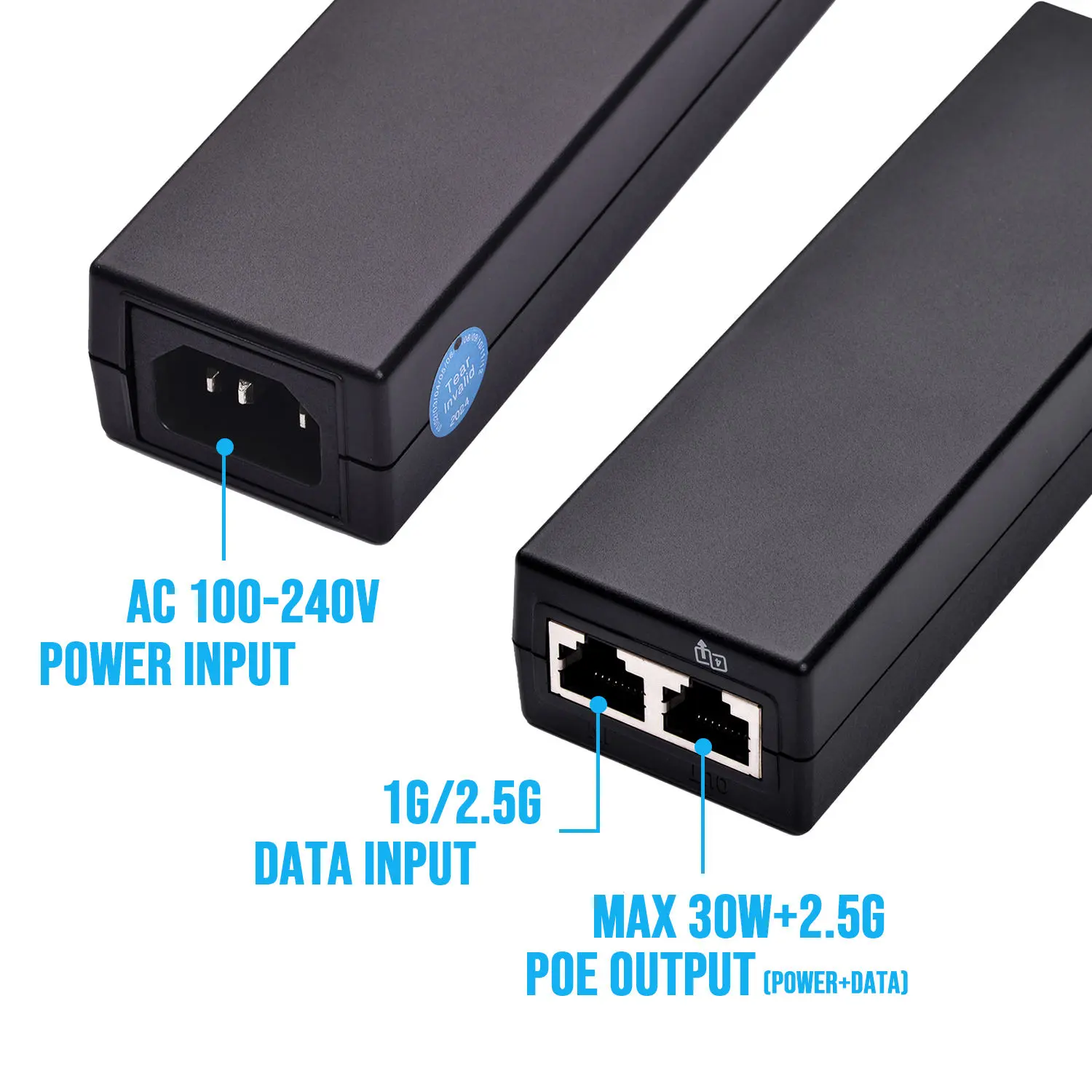

Connector Type	1* gigabit POE port + 1* gigabit Ethernet port
POE Parameters	POE Standard:IEEE802.3af /IEEE802.3at/IEEE802.3bt
	Each port Max:15.4 W (IEEE 802.3af) Each port Max:30 W (IEEE 802.3at) Each port Max:60 W (IEEE 802.3bt)
	POE port output : DC 52V
	POE power supply core :1/2- 3/6+ ;4/5+ 7/8-
Network Media	10BASE-T: Cat5 UTP(≤250 m) 100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m)
LED indicator	PWR	Lighting:Powered Un-Light:No Power
	POE power 30%/60%90%	Lighting:Current power state Un-Light:Power usage is below scale
Power Supply	Power input: AC 100-240 V working frequency: 50/60 Hz Working power:52V/1.25A
Working Environment	Operating Temperature: -20~50℃ Storage Temperature: -40~85℃ Humidity: 5%~95 % ( non-condensing)
Testing standard	EN61000-4-2 (ESD) IEN61000-4-5 (Surge) EN61000-4-3 (RS) EN61000-4-6 (CS) EN61000-4-4 (EFT) FCC Part 15/ CISPR32 /EN55032: CLASS A IEC 60068-2-27 Shock IEC 60068-2-32 Free fall IEC 60068-2-6 Vibration
Mechanical Structure	Shell protect grade: IP20 Installation: Wall mount Product Dimension (L×W×H):187 mm× 95mm×40 mm Package Dimension (L×W×H):245 mm× 190mm× 60mm
Package Contents	1. 60W gigabit POE injector:1pcs 2. User Guide:1pcs 3. Certificate .warranty card:1pcs
Certification	CE,FCC,CCC,RoHS
MTBF	100,000 hours
Warranty	3 years

FAQ

Q1: Can I place a sample order for power supplies, LED drivers, and chargers?

A: Yes, sample orders are welcome for testing and quality verification. Mixed samples are also acceptable.

Q2: What is the lead time?

A: Samples typically take 3–5 days. Mass production usually takes 2–4 weeks, depending on the order quantity.

Q3: Is there a minimum order quantity (MOQ)?

A: We offer a low MOQ. For sample orders, 1 piece is available.

Q4: How do you ship the goods, and how long does delivery take?

A: Both air and sea shipping are available. Sea freight usually takes 25–35 days for delivery.

Q5: How do I place an order for power supplies?

A: The process is as follows:

Let us know your requirements or application.

We will provide a quote based on your needs or our recommendations.

The customer confirms the samples and places a deposit for the formal order.

We then arrange production.

Q6: Can I have my logo printed on the product? What is the MOQ for logo printing?

A: Yes, logo printing is available. Please inform us formally before production and confirm the design based on our sample. The MOQ for OEM logo printing is 5,000 pieces.

Q7: Do you offer a warranty for your products?

A: Yes, we offer a 2–5 year warranty depending on the product.

Q8: How do you handle defective products?

A: Our products are manufactured under a strict quality control system, with a defective rate of less than 0.2%. During the warranty period, for small quantities, we will send replacements with your next order. For defective batch products, we will repair and resend them, or we can discuss a solution including a recall based on the actual situation.
