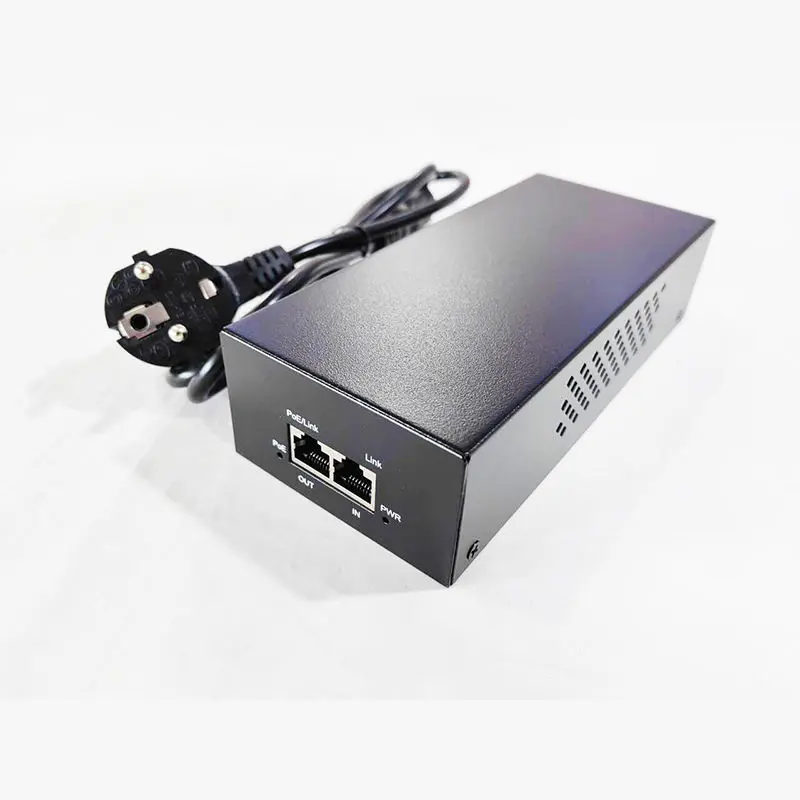

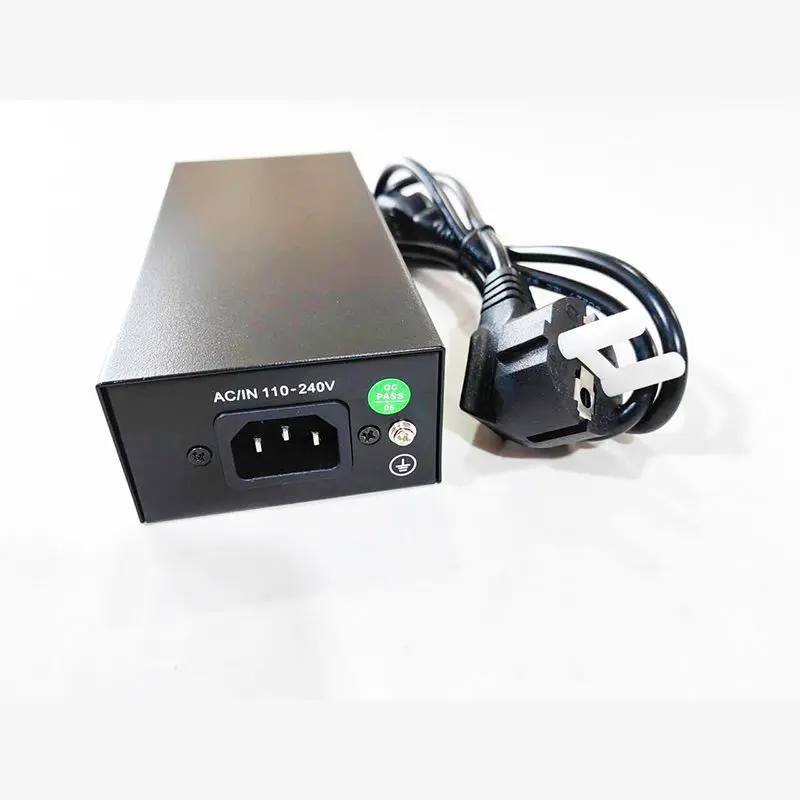

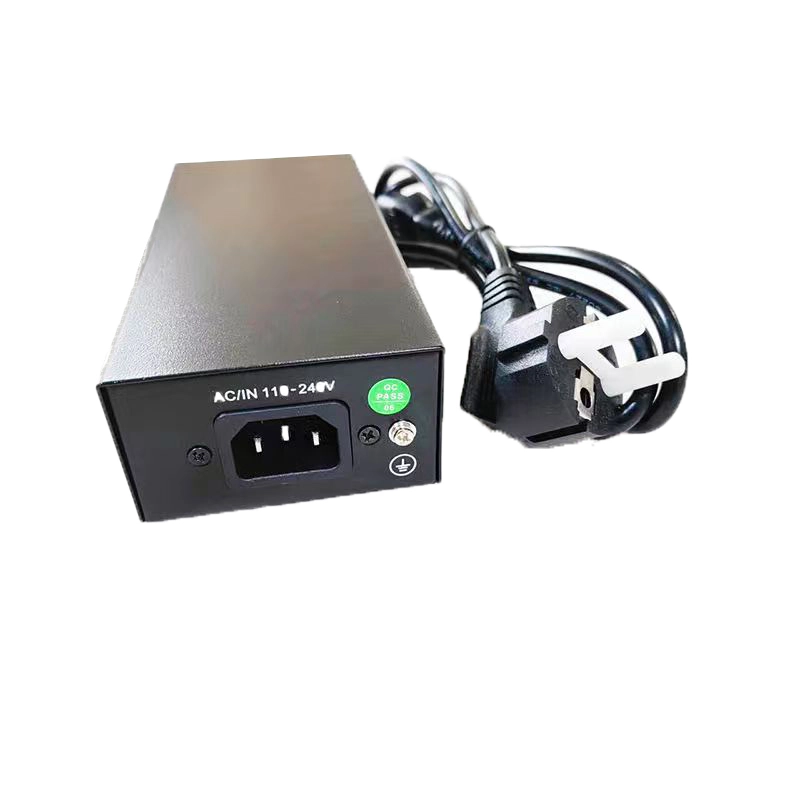

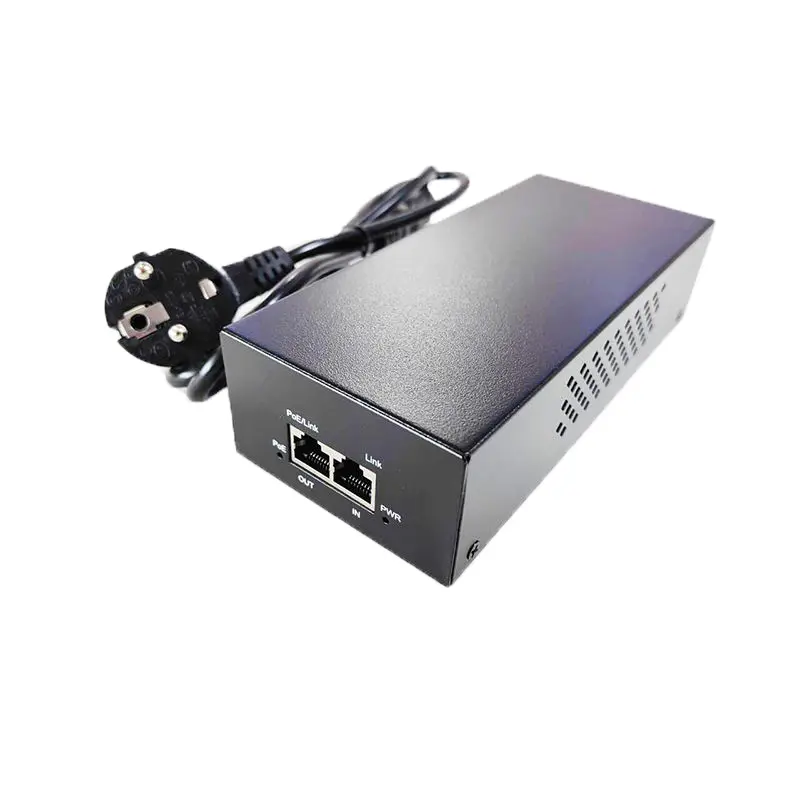

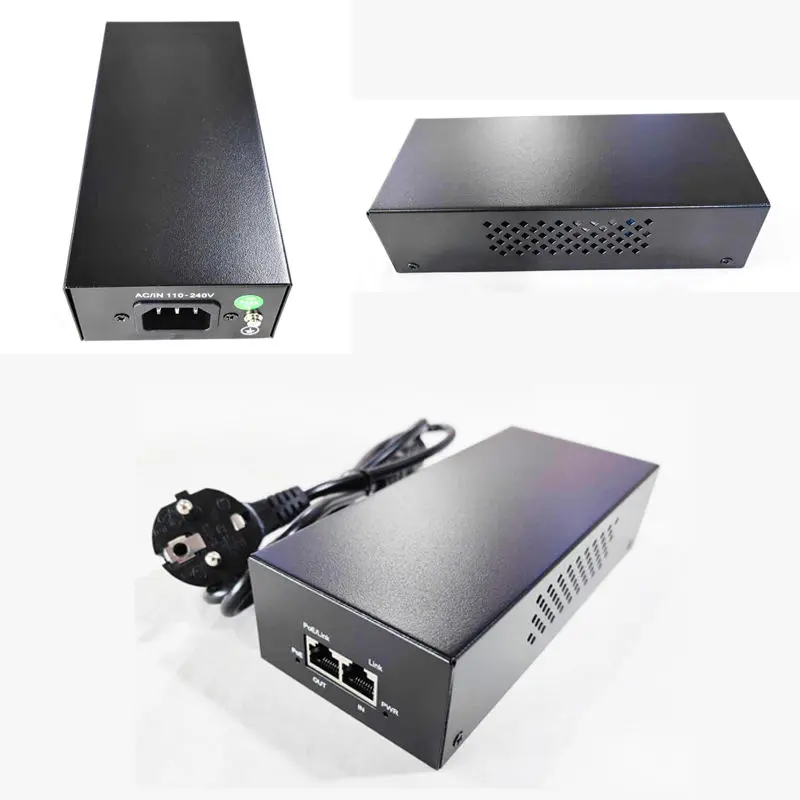

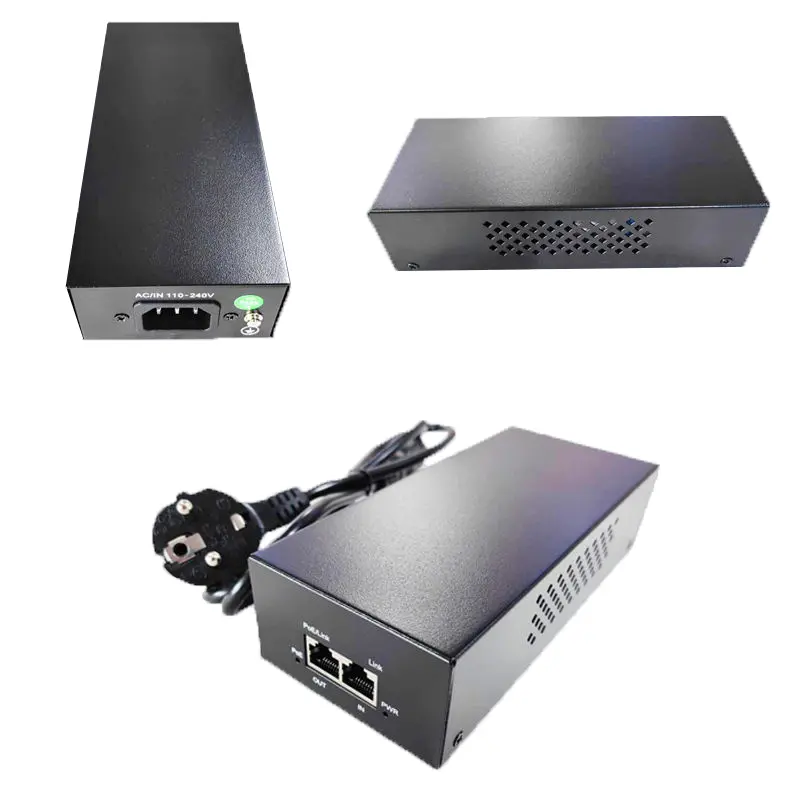

48V 90W PoE Injector PoE Adapter

Wholesale quality 48V 90W PoE Injector PoE Adapter with SAA CE ROHS manufactured by Starwell, a professional manufacturer in China. We offer cheap price and good quality 48V 90W POE Injector IEEE802.3af/at/bt PoE++ 10/100/1000Mbps/1G/2.5G.
Features
1. Support 1x2.5G POE Port+1x2.5G Ethernent Port
2. Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,Standards
3. Ethernet Port Supports 10/100/1000Mbps/2.5G adaptive and PoE functions
4. Support Port Auto Flip (Auto MDI/MDIX)
5. Compatible with IEEE802.3af(15.4W), IEEE802.3at(30W) IEEE802.3bt(90W) POE++(60W)
6. Support AC 100-240 V power supply
7. working temperature -10~50°C
8. Support wall mount

Send Inquiry

Product Details

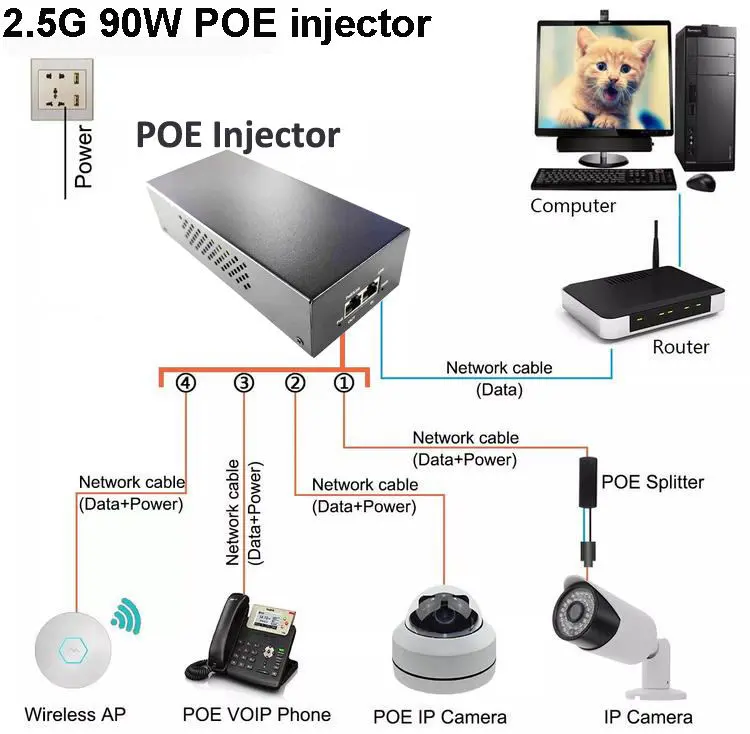

Starwell factory’s 48V 90W PoE Injector PoE Adapter, a high-performance solution designed for reliable power and data delivery over Ethernet. Fully compliant with IEEE802.3af/at/bt PoE++ standards, this injector ensures stable 2.5G high-speed data transmission and can power high-demand devices like IP cameras, wireless APs, network switches, and IP terminals. Its compact, plug-and-play design simplifies installation in home, office, and industrial networks, offering safe and efficient PoE power supply with minimal setup.

Why Choose Starwell 48V 90W PoE Injector PoE Adapter?

· Reliable Performance: Stable high-speed data and power transmission for professional network setups.

· Wide Compatibility: Works with various PoE standards and network devices.

· Easy Deployment: Plug-and-play design minimizes installation time and reduces complexity.

· Certified Quality: CE, FCC, CCC, RoHS certifications and rigorous reliability testing ensure durability and safety.

· Long Lifespan: Designed for 100,000+ hours of operation with low power consumption.

Product Name	90W 2.5G POE injector
Model Number	SST-BT2.5G-90W
Port	1* support POE function+1* Ethernet port
POE specification	PoE Standard：compatible with IEEE802.3af /IEEE802.3at/IEEE802.3bt
	Max：15.4 W (IEEE 802.3af) Max：30 W (IEEE 802.3at) Max：90 W (IEEE 802.3bt)
	POE output: DC 52V
	POE pin :1/2-；3/6+ or 4/5+；7/8-
Network interface	10BASE-T: Cat5UTP(≤250m) 100BASE-TX: Cat5 and above UTP(≤100m) 1000BASE-TX: Cat5 and above UTP(≤100m)
LED Indicators	PWR	On：working Off：no power
	POE Power 30%/60%90%	On：power status Off：Power usage is below proportional value
Power	Input: AC 110-264 V Frequancy： 50/60 Hz Output：52V/1.85A
Working Environment	Working temperature: -20～50℃ Storing temperature: -40～85℃ Humidity: 5%~95 %
Standard test	EN61000-4-2 （ESD）Contact8KV，Air 15KV IEN61000-4-5 （Surge）Common mode 6KV, differential mode 1KV EN61000-4-3 （RS） EN61000-4-6 （CS） EN61000-4-4 （EFT） FCC Part 15/ CISPR32 /EN55032： CLASS A IEC 60068-2-27 Impact test IEC 60068-2-32 Free fall test IEC 60068-2-6 Vibration test
Physical structure	Shell protection level: IP20 Installation: wall mount Product Size (L×W×H)：187 mm× 95mm×40 mm Package Size (L×W×H)：254 mm× 190mm× 60mm
Packing list	1. 90W Gigabit POE injector：1set 2. Manual：1PCS 3. Certificate of conformity, warranty card：1PCS
Certificate	CE、FCC、CCC、RoHS
Service life	100,000 hours
Warranty	3 years

FAQ

Q1: Can I place a sample order for power supplies, LED drivers, and chargers?

A: Yes, sample orders are welcome for testing and quality verification. Mixed samples are also acceptable.

Q2: What is the lead time?

A: Samples typically take 3–5 days. For mass production, the lead time is 2–4 weeks depending on the order quantity.

Q3: Is there a minimum order quantity (MOQ)?

A: We offer a low MOQ. For sample orders, 1 piece is available.

Q4: How do you ship the goods, and how long does delivery take?

A: Both air and sea shipping are available. Sea freight usually takes 25–35 days for delivery.

Q5: How do I place an order for power supplies?

A: The process is as follows:

Let us know your requirements or application.

We will provide a quote based on your needs or our recommendations.

The customer confirms the samples and places a deposit for the formal order.

We arrange production accordingly.

Q6: Can I have my logo printed on the product? What is the MOQ for logo printing?

A: Yes, logo printing is available. Please inform us formally before production and confirm the design based on our sample. The MOQ for OEM logo printing is 5,000 pieces.

Q7: Do you offer a warranty for your products?

A: Yes, we offer a 2–5 year warranty depending on the product.

Q8: How do you handle defective products?

A: Our products are manufactured under a strict quality control system, with a defective rate of less than 0.2%. During the warranty period, for small quantities, we will send replacements with your next order. For defective batch products, we will repair and resend them, or we can discuss a solution including recall based on the actual situation.
