Product Details

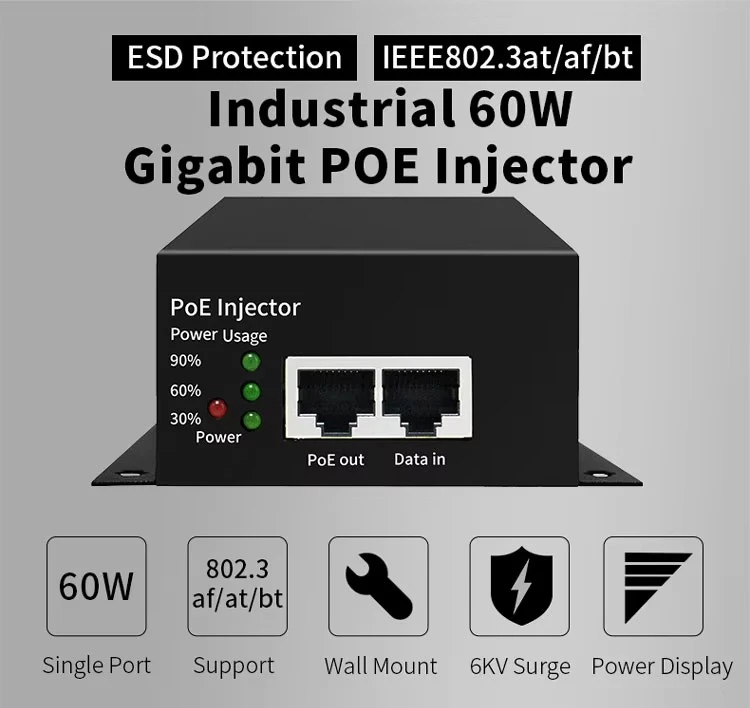

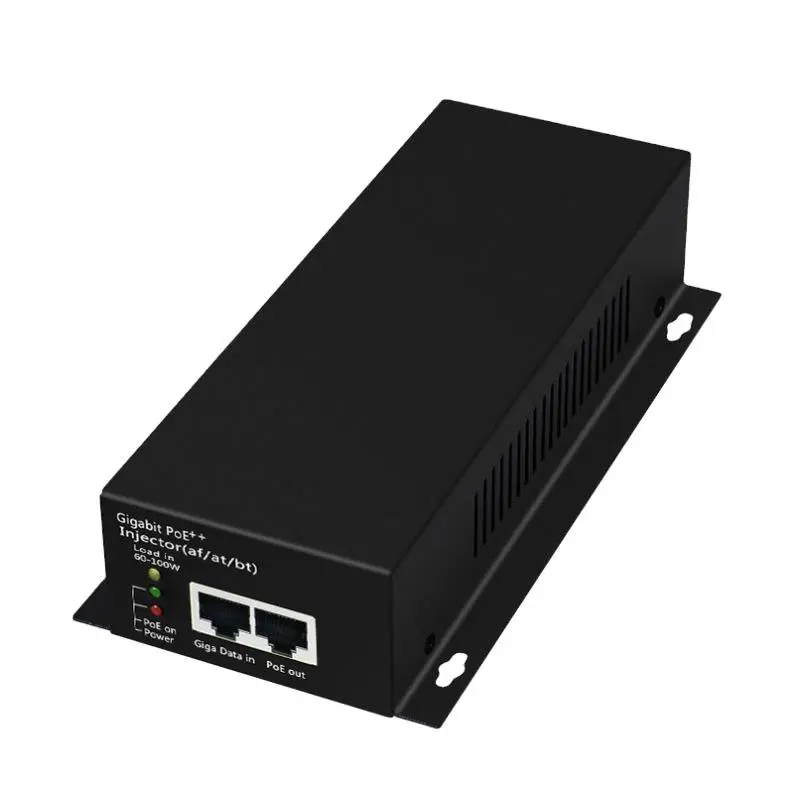

High quality Active 60W POE Injector is offered by China manufacturer Starwell. It features one 10/100/1000Mbps data input port and one PoE (Data+Power) output port. It fully supports the alternative polarity requirements of 802.3bt, utilizing all four pairs (1/2+,3/6- & 4/5+,7/8-) for simultaneous data transmission and 48V DC power supply.

Engineered for versatility, this injector is backward compatible with 802.3af/at devices. It is ideal for powering PTZ cameras, high-performance wireless access points, and video conferencing equipment. The product provides a simple plug-and-play solution, eliminating the need for additional electrical outlets and reducing installation complexity in enterprise and industrial applications.

STARWELL presents the Gigabit 60W Standard PoE Power Supply, a high-performance desktop PoE injector engineered to deliver both power and data over a single Ethernet cable. This IEEE802.3af/at/bt compliant adapter provides up to 60W of power, making it the ideal solution for powering high-consumption network devices such as PTZ cameras, high-performance wireless access points, and video conferencing systems.

Product Features:

* Compliant with IEEE802.3bt standard protocol classification Class 8. * Reduce the demand for bulky power adapters and cables, and lower wiring costs. * Wide AC voltage input range of 100-240V. * Supports network bandwidth of 10/100/1000Mbps.

* POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4 paris 1,2,4,5(+) 3,6,7,8(-) Protocol: Compatible with IEE802.3af/at&IEEE802.3bt, POE++

* Each port Max: 15.4W ( IEEE 802.3af )

Each port Max:30 W (IEEE 802.3at)

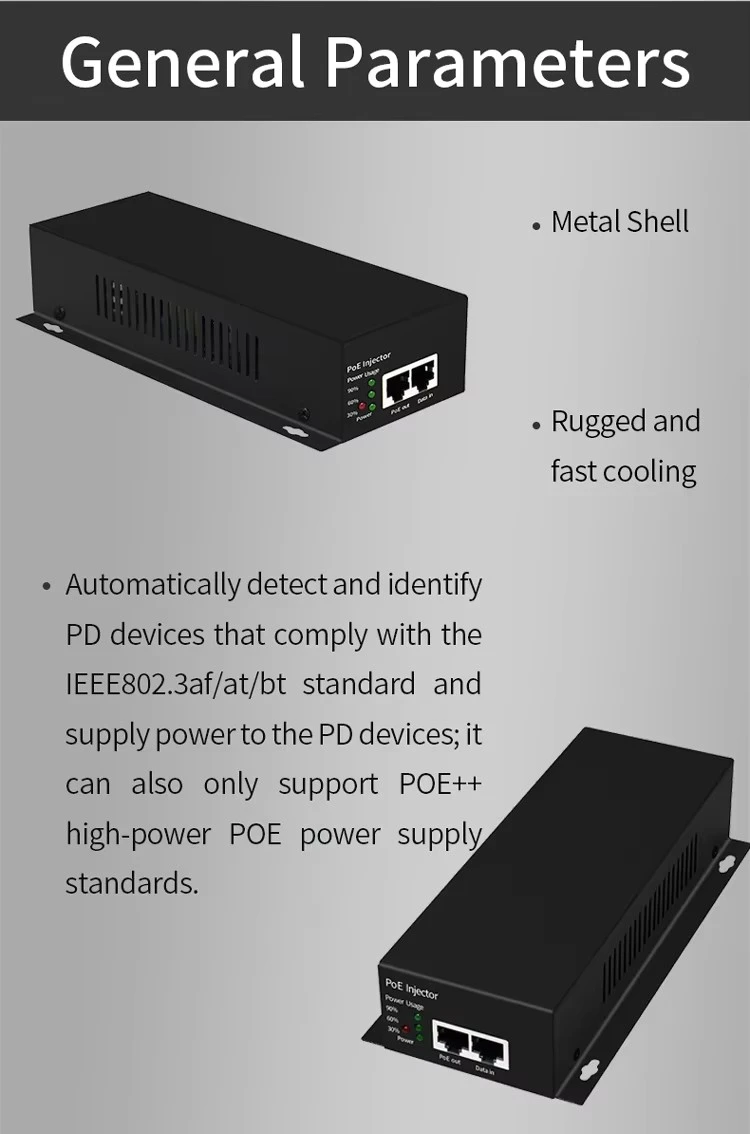

Each port Max:60 W (IEEE 802.3bt) * Upper limit classification Class 8. * Automatically detect power supply devices (PD) with valid signatures. * Support automatic detection and power matching for Class 2, 3, and 4 devices. * It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge.

* Remote power supply, up to 100 meters.

* Unique interlocking function for easy installation.

* Built in power supply, plug and play, no need for management.

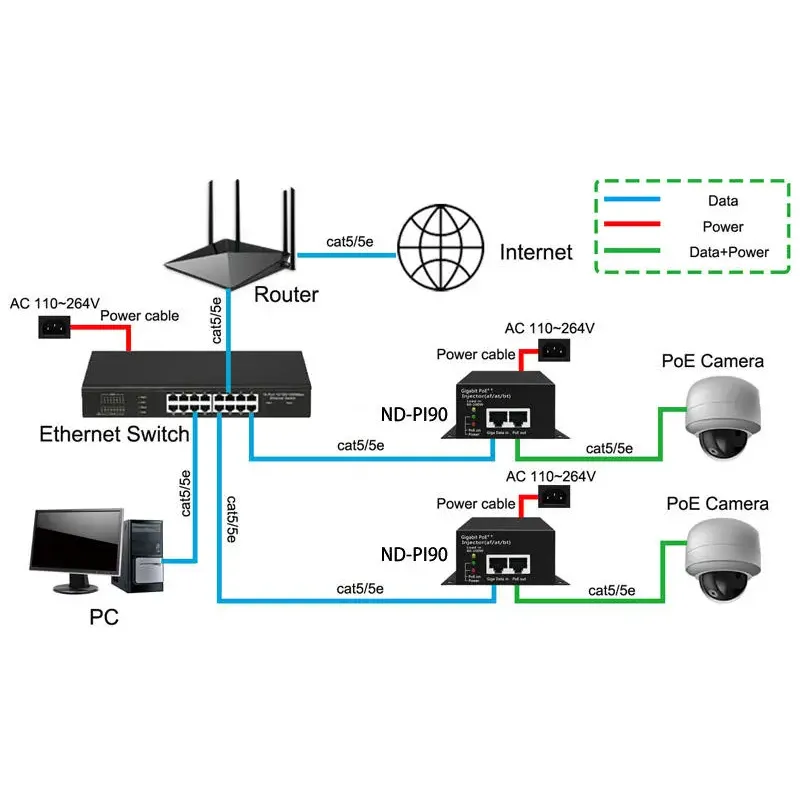

High-Speed Data Transmission Equipped with one Gigabit PoE port and one Gigabit RJ45 uplink port, this Active 48V POE injector supports 1000Mbps data transmission over Cat5e, Cat6, or higher cabling. It utilizes all four twisted pairs (1/2,3/6,4/5,7/8) for simultaneous power and data delivery, ensuring seamless connectivity and signal integrity for bandwidth-intensive applications.

Reliable Power Performance With an input voltage range of AC100-240V and a stable DC48V1.25A output, the battery powered POE injector delivers clean and consistent 48V PoE power to connected devices. It supports the power line core configuration of 1/2,4/5(+) and 3/6,7/8(-), ensuring broad compatibility with various PoE-powered devices at the receiving end.

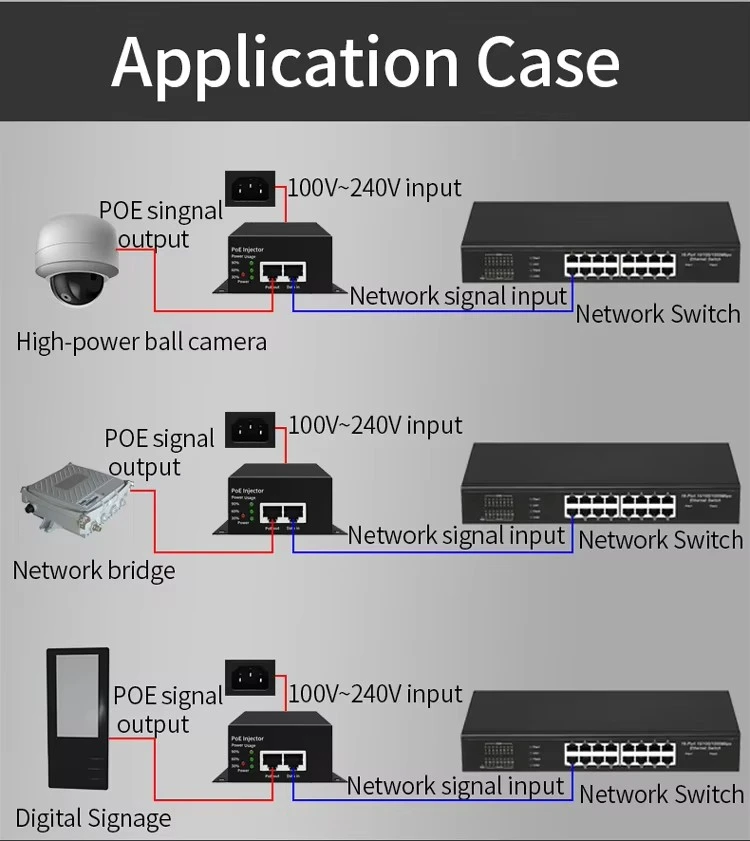

Built for Versatile Applications Designed for reliability in diverse environments, the unit operates flawlessly in temperatures ranging from -10°C to 60°C. Its plug-and-play design requires no configuration, enabling quick deployment in security monitoring systems, wireless coverage setups, bridge relays, and other PoE networking applications. Trust STARWELL to simplify your network installation while delivering robust performance and efficiency.

The PoE products provides standard PoE, PoE+, PoE++ and other specifications to provide stable power supply and data transmission for wireless AP, network camera, IP phone and other equipment, simplify wiring and reduce costs.

Our products strictly refer to international standards and high industry standards from design to proofing to mass production, and comply with international standards such as CE, FCC, RoHS,ETL etc. to ensure compatibility and compliance in the global market.

Starwell 60W Active POE Injector Specification:

Product name	60W gigabit POE injector
Model	SW-xxxyyy-P06z

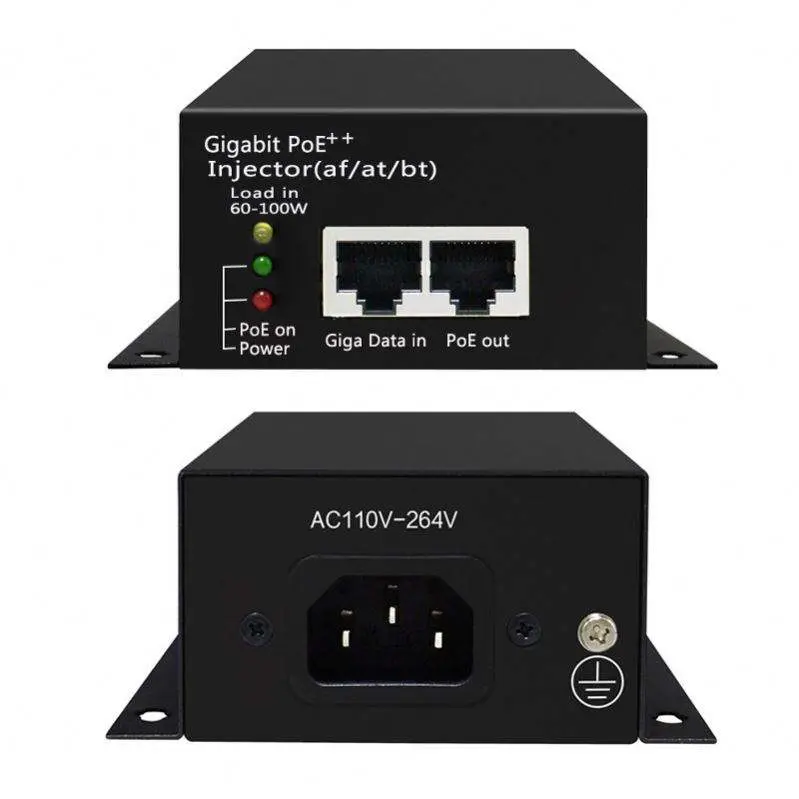

Connector Type	1* gigabit POE port + 1* gigabit Ethernet port
POE Parameters	POE Standard:IEEE802.3af /IEEE802.3at/IEEE802.3bt
	Each port Max:15.4 W (IEEE 802.3af) Each port Max:30 W (IEEE 802.3at) Each port Max:60 W (IEEE 802.3bt)
	POE port output : DC 52V
	POE power supply core :1/2- 3/6+ ;4/5+ 7/8-
Network Media	10BASE-T: Cat5 UTP(≤250 m) 100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m)

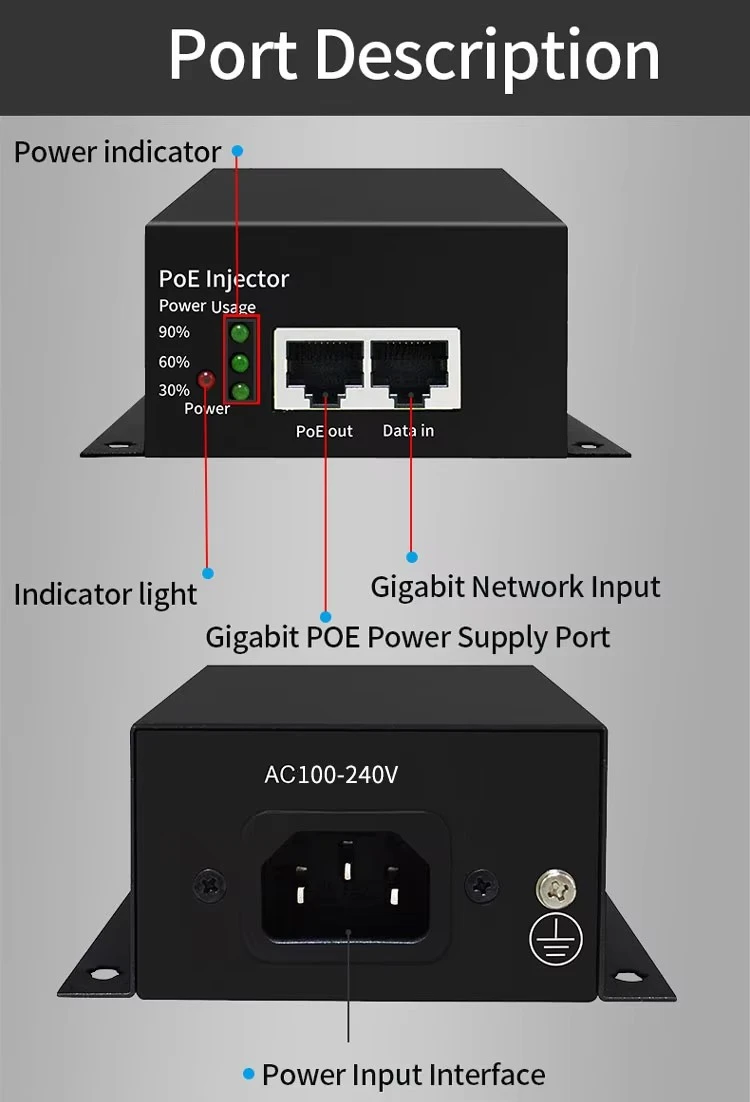

LED indicator	PWR	Lighting:Powered Un-Light:No Power
	POE power 30%/60%90%	Lighting:Current power state Un-Light:Power usage is below scale

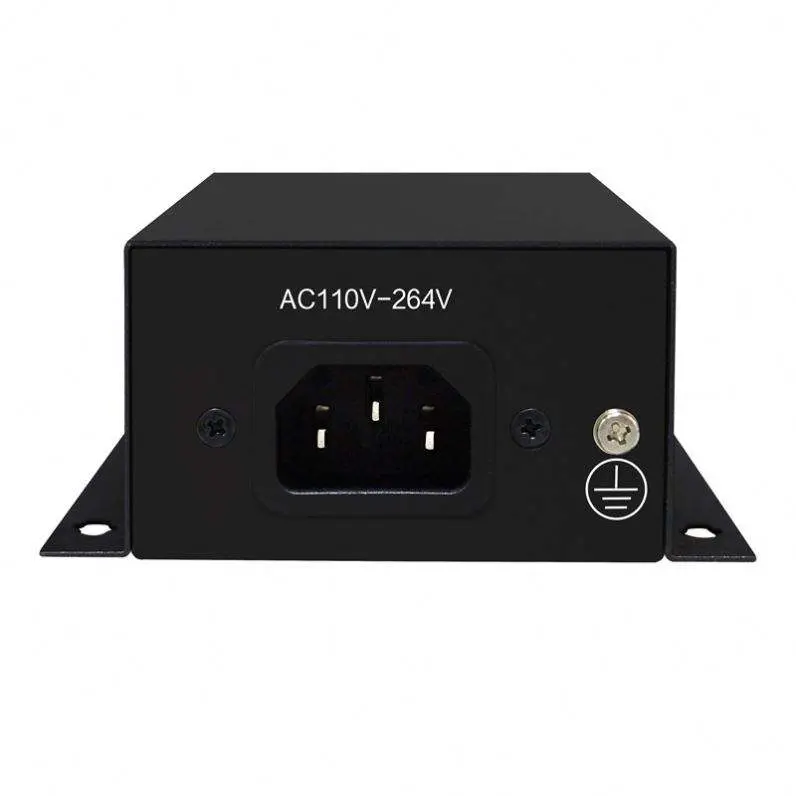

Power Supply	Power input: AC 100-240V working frequency: 50/60 Hz Working power: 48V/1.25A
Working Environment	Operating Temperature: -20~50℃ Storage Temperature: -40~85℃ Humidity: 5%~95 % ( non-condensing)

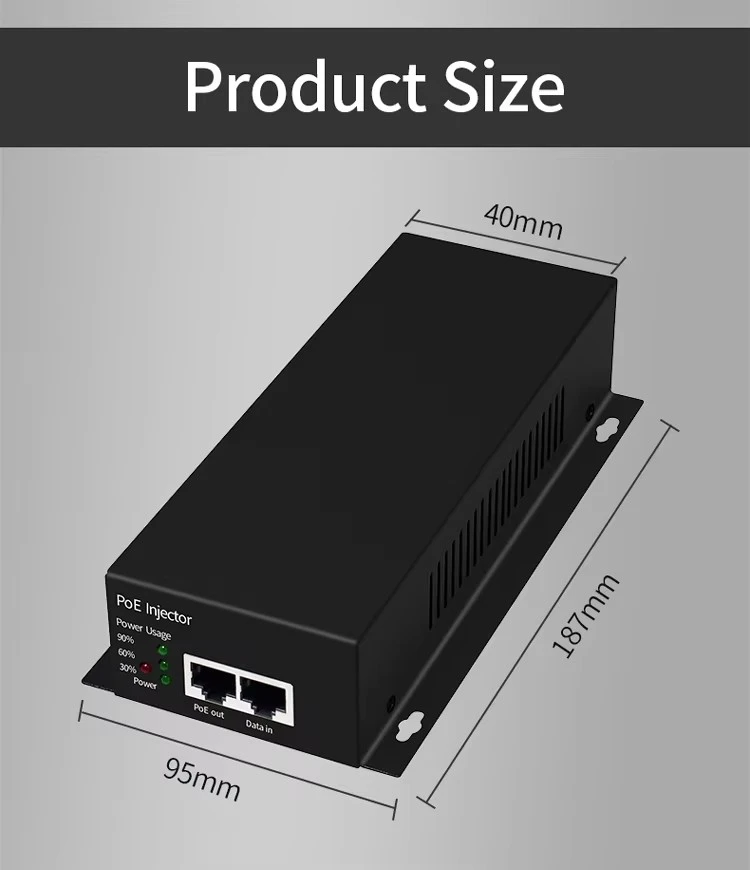

Mechanical Structure	Shell protect grade: IP20 Installation: Wall mount Product Dimension (L×W×H):187 mm× 95mm×40 mm Package Dimension (L×W×H):245 mm× 190mm× 60mm
Package Contents	1. 60W gigabit POE injector:1pcs 2. User Guide:1pcs 3. Certificate .warranty card:1pcs
Certification	CE,FCC,CCC,RoHS
MTBF	100,000 hours
Warranty	3 years
