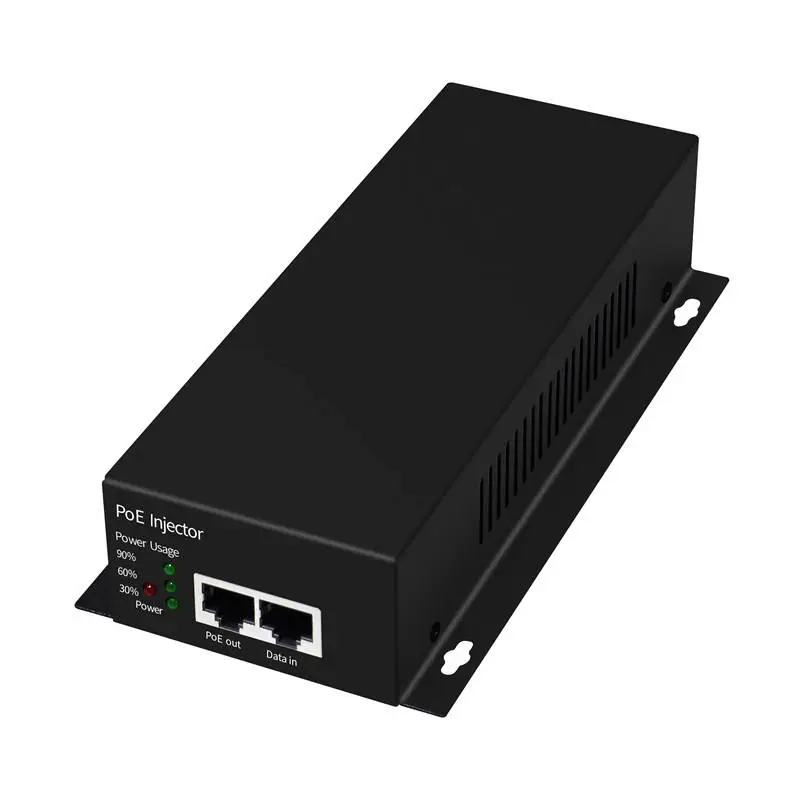

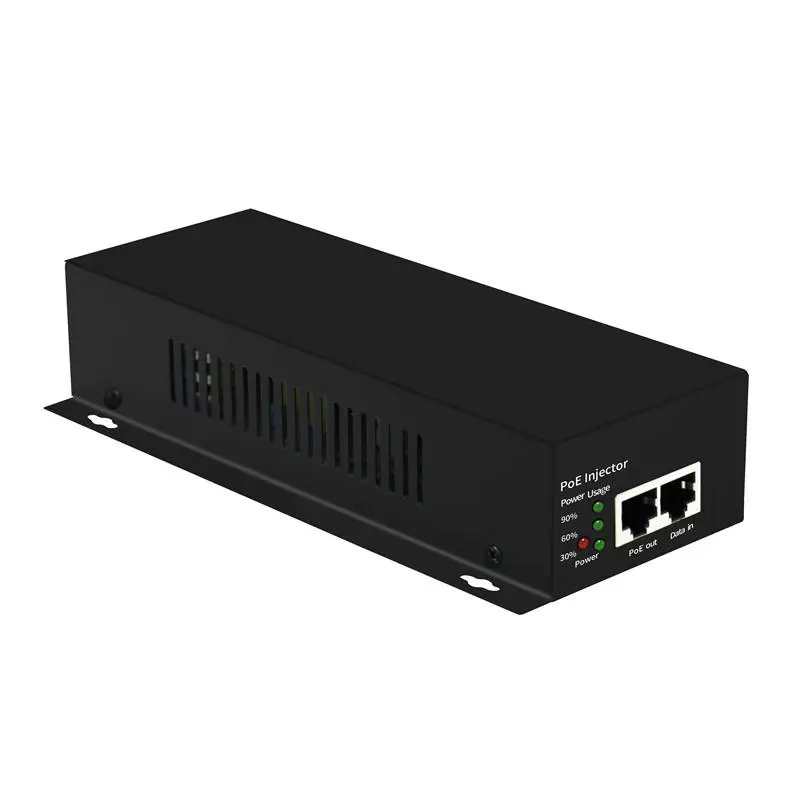

90W Metal Case IEEE802.3bt Gigabit PoE Injector

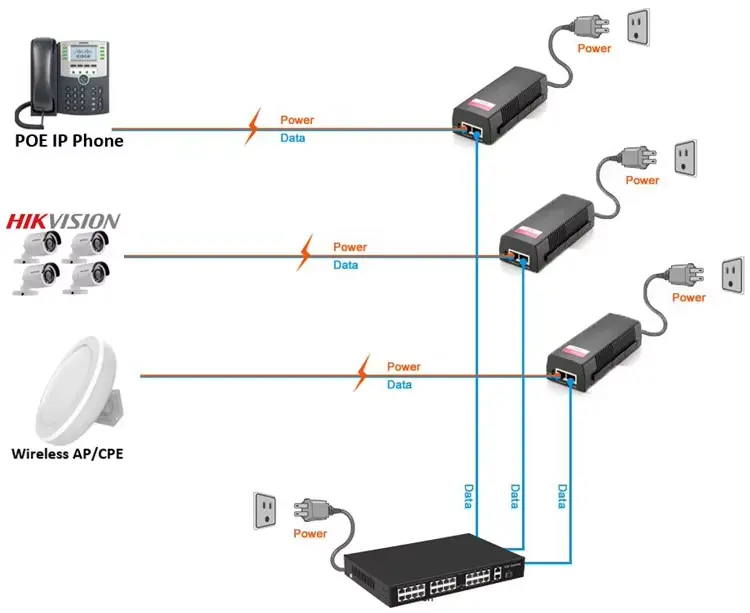

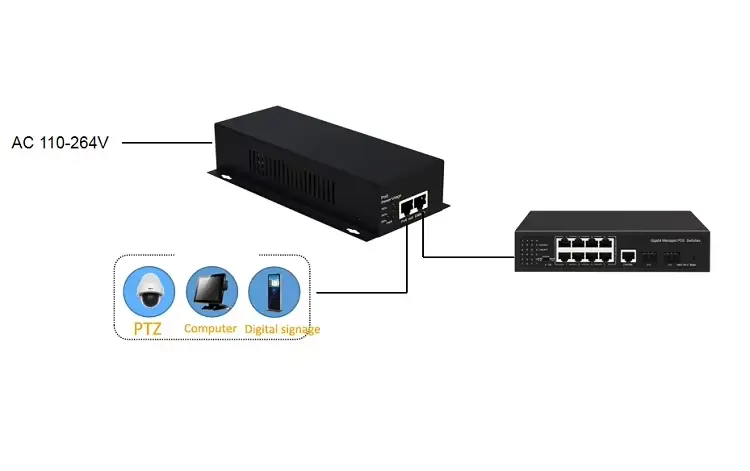

Starwell factory’s quality 90W Metal Case IEEE802.3bt Gigabit PoE Injector is engineered to deliver high-bandwidth data and robust power simultaneously to demanding network devices via a single Ethernet cable. Designed to support the latest PoE standards, it is ideal for powering PTZ (Pan-Tilt-Zoom) IP cameras, multi-radio wireless access points, outdoor bridges, digital signage, and thin clients. By eliminating the need for local power sources, it offers unparalleled deployment flexibility and cost efficiency.

Send Inquiry

Product Details

As a professional power supply manufacturer in China, Starwell has introduced a 90W Metal Case IEEE802.3bt Gigabit PoE Injector that fully complies with the IEEE 802.3bt standard. It supports a 52V output, delivers a maximum power of 90W per port, and is backward compatible with the 802.3af/at standards.

Product Specification

Product Name	90W Gigabit POE injector
Model Number	SST-BTG-90W
Port	1* support POE function+1* gigabit port
POE specification	PoE Standard：compatible with IEEE802.3af /IEEE802.3at/IEEE802.3bt
	Max：15.4 W (IEEE 802.3af) Max：30 W (IEEE 802.3at) Max：90 W (IEEE 802.3bt)
	POE output: DC 52V
	POE pin :1/2-；3/6+ or 4/5+；7/8-
Network interface	10BASE-T: Cat5UTP(≤250m) 100BASE-TX: Cat5 and above UTP(≤100m) 1000BASE-TX: Cat5 and above UTP(≤100m)

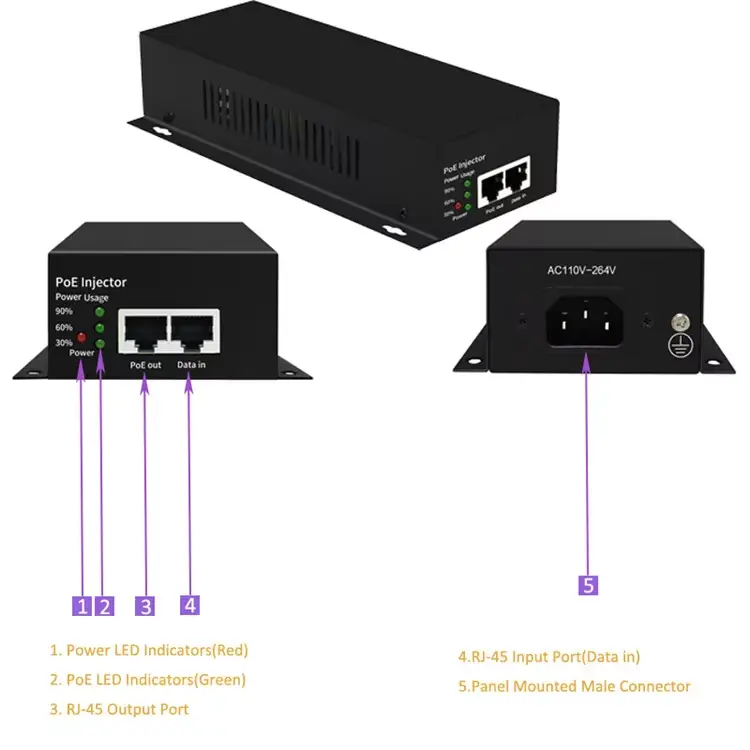

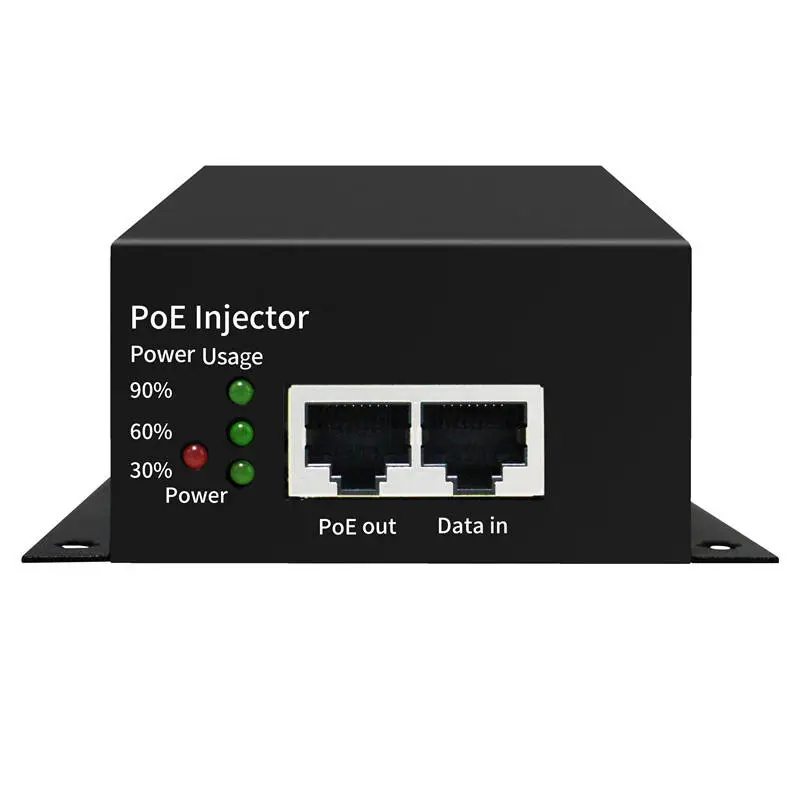

LED Indicators	PWR		On：working Off：no power
LED Indicators		PWR	On：working Off：no power
		POE Power 30%/60%90%	On：power status Off：Power usage is below proportional value

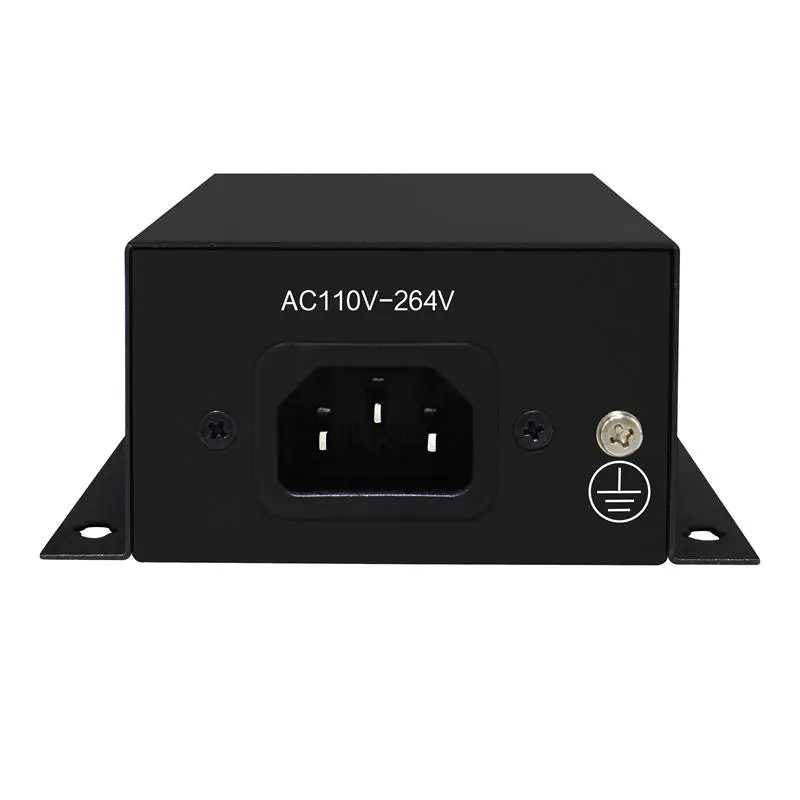

Power		Input: AC 110-264 V Frequancy： 50/60 Hz Output：52V/1.85A
Working Environment		Working temperature: -20～50℃ Storing temperature: -40～85℃ Humidity: 5%~90 %
Standard test		EN61000-4-2 （ESD）Contact8KV，Air 15KV IEN61000-4-5 （Surge）Common mode 6KV, differential mode 1KV EN61000-4-3 （RS） EN61000-4-6 （CS） EN61000-4-4 （EFT） FCC Part 15/ CISPR32 /EN55032： CLASS A IEC 60068-2-27 Impact test IEC 60068-2-32 Free fall test IEC 60068-2-6 Vibration test
Physical structure		Shell protection level: IP20 Installation: wall mount Product Size (L×W×H)：187 mm× 90mm×40 mm Package Size (L×W×H)：254 mm× 190mm× 60mm

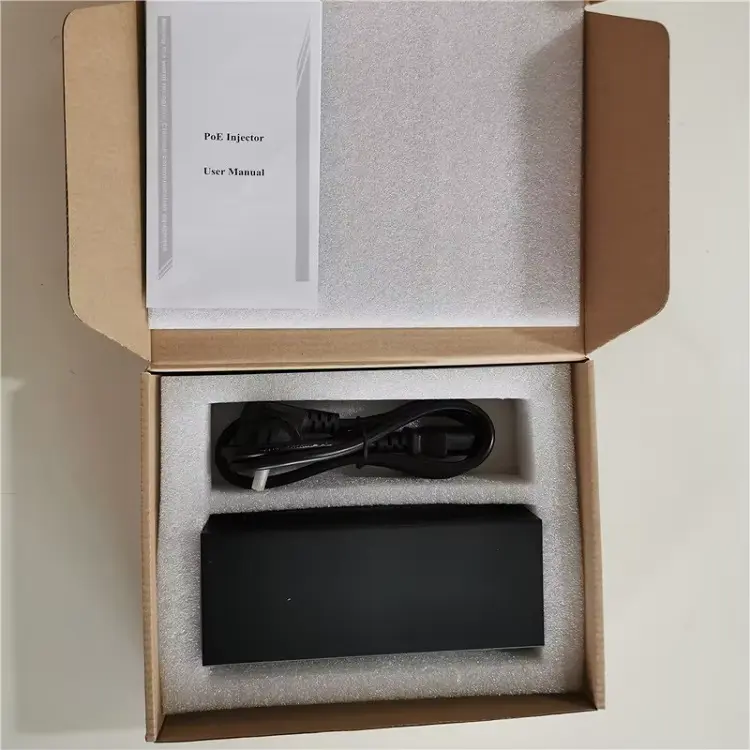

Packing list		1. 90W Gigabit POE injector：1set 2. Manual：1PCS 3. Certificate of conformity, warranty card：1PCS
Certificate		CE、FCC、CCC、RoHS
Service life		100,000 hours
Warranty		3 years

Features

High Power Density: Delivers full 90W output in a compact desktop form factor.

Dual-Voltage Operation: Supports various PD (Powered Device) input requirements (typically 48V-56V).

Advanced Protection: Built-in safeguards for Over Current (OCP), Over Voltage (OVP), and Short Circuit (SCP).

LED Indicators: Power and Link/Activity status LEDs for easy network diagnostics.

Thermal Management: Efficient heat dissipation design with no moving parts for silent operation.

Safety & Compliance: Certified to CE, FCC, RoHS, and UL/ETL standards (where applicable).

Important Note (High-Power Application)

Power Budget: Ensure your powered device (PD) requires ≤ 90W. The injector will only supply the power the device negotiates.

Cabling Requirement: For full 90W delivery over longer distances (up to 100m), it is highly recommended to use Cat6a (or higher) Ethernet cable to minimize power loss and heat generation.

Compatibility: If your device is a legacy 48V passive device (non-802.3bt), confirm that this specific model supports Passive PoE mode or if it strictly requires 802.3bt negotiation.
