60W Constant Voltage 0/1-10V Dimmable LED Driver
  • 60W Constant Voltage 0/1-10V Dimmable LED Driver60W Constant Voltage 0/1-10V Dimmable LED Driver

60W Constant Voltage 0/1-10V Dimmable LED Driver

Starwell factory’s high quality 60W Constant Voltage 0/1-10V Dimmable LED Driver is special aluminum shell welding process, aluminum shell and internal heat conduction silica gel heat dissipation, more stable use, all raw materials are first-line brands, and imported chips exceed The deep dimming design matches the intelligent dimming system of various brands in the market Anti surge voltage 2KV, smooth dimming, no stroboscopic, low noise in dimming process

Send Inquiry

Product Details

As a professional LED Driver manufacturer in China, Starwell would like to provide you CE-certified 60W Constant Voltage 0/1-10V Dimmable LED Driver, wehich is designed for deep and smooth dimming and integrates seamlessly with most intelligent dimming systems on the market. The driver provides flicker-free illumination and minimal noise during adjustment. It also provides strong protection against voltage surges up to 2kV, making it a durable and versatile choice for professional lighting applications.

Specification

Model

PE-IL60DV24

PE-IL60DV12

OUTPUT

Output Voltage

24Vdc

12Vdc

Max Output Voltage

2.5A

5A

No load output voltage

24Vdc

12Vdc

Load power range

0-2.5A

0-5A

Output Power

0-60W

0-60W

Strobe Level

No Flicker

Dimming Range

0~100%，LEDstart at 0.03%possible.

PWM Dimming Frequency

>3600Hz

Current Accuracy

±3%

Power down mode

memory function when power down

INPUT

Dimming Interface

DALI (IEC62386)Signal control current < 2mA

Input Voltage Range

100-250Vac

Frequency

50/60Hz

Input Current

<0.7A ac100v

Power Factor

PF>0.99/110V  ac(at full load)

THD

230Vac@THD <10% (at full load)

Efficiency(typ.)

89%

87%

Standby Power

0.4W

Inrush Current(typ.)

cold start180A/220ns@230Vac  ac

Anti Surge

L-N: 2kV

Leakage Current

<0.25mA/230Vac

ENVIRONMENT

Working Temperature

ta: 45°C  tc: 80 °C

Working Humidity

20 ~ 95%RH, non-condensing

Storage Temp., Humidity

-40 ~ 80°C, 10~95%RH

Temp.Coefficient

±0.03%/°C(0-50)°C

Vibration

10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.

Over Load Protection

Shut down the output when rated power≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers.

Non-load Protection

output Constant Voltage.

SAFETY & EMC

Withstand Voltage

I/P-O/P: 3750Vac

Isolation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Safety Standards

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emission

EN55015, EN61000-3-2 Class C, IEC61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6,8,11,  EN61547

Strobe Test Standard

IEEE 1789

OTHERS

Dimension

235×37×27mm(L×W×H)

Packing

240×47×33mm(L×W×H)

Weight(G.W.)

350g±10g


Fatures:

1. Dali standard interface complies with Dali 144 standards

2. Dali2 certification, Dali member

3. Digital control output is adopted, and there is no stroboscopic

4. International general AC input 100-250V range

5. Natural air cooling, moisture-proof, heat conduction, silica gel heat dissipation process

6. Self developed depth dimming curve

7. Multiple protection functions

8. Special aluminum welding process, ultra small volume design

9. Comply with ERP standard, and the standby power consumption is less than 0.5W


Application:

1. LED light strip

2. Villa intelligent lighting

3. It can be connected to Dali intelligent lighting system

4. Museum lighting


Dimensions :

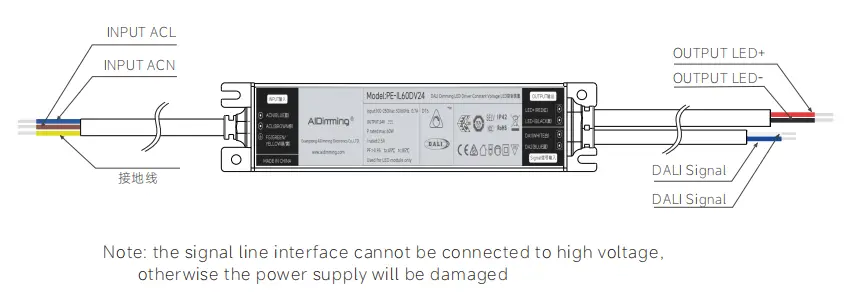

Wiring:


Instructions for use:

Unless otherwise specified, all specifications and parameters are measured at rated load of 230 VAC input and 25 ℃ ambient temperature.

Wire according to the product identification, and pay attention to the positive and negative and input and output direction. Note:

Note 1: Please check whether the input and output terminals are correct after power-on;

Note 2: Please connect the load to the DC output terminal first, and then connect the power supply after confirming that there is no error; in the constant voltage mode, if the power is powered on in an open circuit, please disconnect the power supply first, and then connect the LED after the electric energy stored in the output terminal is released;

Note 3: This power driver is used for LED lamps. The input voltage range of this product is AC 100- 250 V. When it is used within the specified output voltage and current range, when the ambient temperature is-20 ℃ to +45 ℃, and the surface cannot be covered with heat insulation cotton and other objects that hinder the heat dissipation of the product, this product enjoys a five-year free warranty under the environment that meets the use conditions of this product.

1. If the power supply does not light up after the first electrical connection of the equipment, disconnect the AC input terminals and check:

(1) of a. Check for poor contact at the DC output terminals.

(2) the dc output terminal is negative.

(3) check whether the ac input terminal is poor contact, troubleshooting after electricity test.

(4) connection signal reading data is set to shut down after the boot

2. When the device is electrically connected, the LED lights up, but the LED lights flash. Please cut off the ac input power supply, check the dc output:

(1) the power supply design parameters are consistent with the actual use of LED lamps and lanterns.

(2) If you have any other questions or problems during the use of the product, please contact our company in time to communicate and feed back the bad information. We will actively assist you to solve the problem.


Abnormal situation and the corresponding processing method:


The Digital Addressable Lighting Interface (DALI) Dali slave sends data only when requested by the master, i.e. in response to a command.

In the same Dali network, there are at most 64 slave units, each with a separate short address.

You can also assign a dependent unit to a group. Up to 16 groups can exist simultaneously, and slave units can belong to different groups.

Each unit can set up to 16 scenes. Dali Protocol Main Features

1) Asynchronous serial communication

2) 1200 baud, Manchester code

3) Two-wire differential signal

4) High when differential voltage is greater than 9.5V

5) Low when differential voltage is less than 6.5V

6) Communication processing by host unit

7) Dali bus can connect 64 slave devices

8) Each slave can be individually addressed. Dali electrical characteristics In idle state, Dali bus is high, controlled by slave unit.



1) Do not interfere with the host when the output is high

2) When the output is low, the Dali bus can be directly shorted to each other.

3) Dali bus maximum current is 250mA

4) Two-way communication cannot be carried out simultaneously.

5) The maximum length of the data line is 300 meters, otherwise the voltage drop must not exceed 2V
