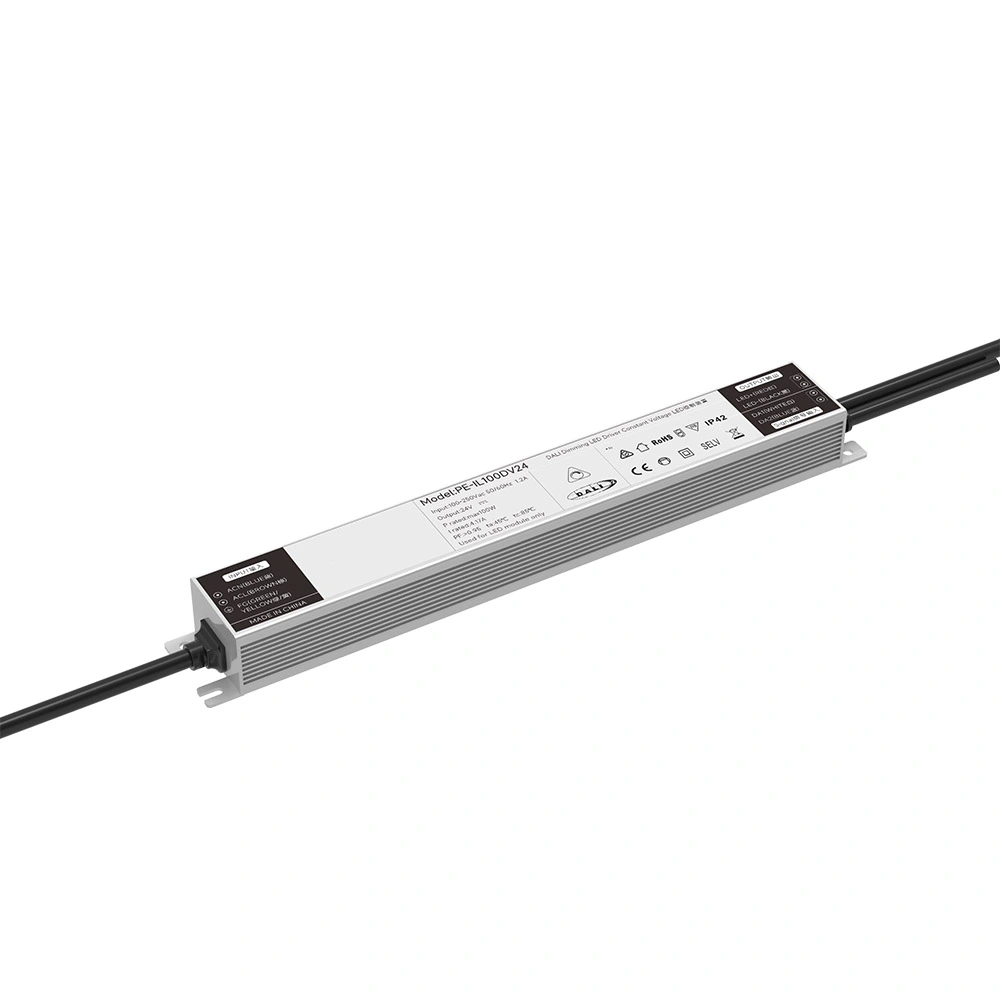

0-10V Dimming Constant Voltage Led Driver
  • 0-10V Dimming Constant Voltage Led Driver0-10V Dimming Constant Voltage Led Driver

0-10V Dimming Constant Voltage Led Driver

STARWELL factory’s high-quality 100W 0-10V Dimming Constant Voltage Led Driver is engineered for professional lighting applications requiring precise control and reliable operation. It features a selectable 12V/24V DC output and industry-standard 0-10V dimming interface for smooth, flicker-free brightness adjustment from 100% down to 0%, compatible with most modern dimming systems. Housed in a robust aluminum casing with an IP42 ingress protection rating, this driver is built for durability and effective heat dissipation in indoor environments where it may be exposed to light dust or minor moisture. Its compact design facilitates easy installation in confined spaces.

Send Inquiry

DATASHEET

Product Details

As a professional Led Driver manufacturer in China, STARWELL would like to provide you CE-certified 0-10V Dimming Constant Voltage Led Driver, whose key advantages include high efficiency, stable output, and comprehensive protections (short circuit, over-voltage, over-temperature). It is an ideal, cost-effective power solution for a wide range of LED installations, including strip lights, signage, panel lights, and low-voltage landscape lighting. We ensure quality with a comprehensive warranty and dedicated technical support.


Product Features:

 1. Flicker-free dimming, super compatible with dimming drivers.

 2. Digital control, no flicker output.

 3. International AC input 100- 250 V range.

 4. Natural air-cooling, moisture-proof, heat conduction, silicone heat dissipation process.

 5. Self-developed depth dimming curve.

 6. Multiple protective functions.

 7. Special aluminum alloy welding process, ultra-small volume design.

 8. ERP compliant, standby power consumption less than 0.5W


Starwell high-performance Constant Voltage Dimmable LED Driver Series is engineered to deliver exceptional lighting control and reliability for commercial, industrial, and architectural applications. Available in 60W, 100W, and 150W power ratings with user-selectable 12V or 24V DC output, this versatile driver provides the perfect power solution for a wide array of LED installations including strip lighting, signage, cabinet lighting, and landscape illumination.


Technical Features & Dimming Capabilities:

The Constant Voltage 0-10v Dimmable Led Driver's intelligent circuitry supports universal dimming compatibility through multiple control interfaces: 0-10V, 1-10V, PWM signal, and 100K potentiometer. This extensive compatibility ensures seamless integration with virtually all mainstream dimming systems on the market, from simple wall dimmers to sophisticated building management systems (BMS) and professional lighting controls (DALI, DMX gateways). Experience smooth, flicker-free dimming performance across the entire range from 100% to 0% brightness.

Reliability & Build Quality:

We are so confident in the durability and performance of our drivers that we back them with an industry-leading 5-Year Full Warranty.

Premium Components: Utilization of first-tier brand capacitors and fully isolated design for ultimate safety and stability.

Robust Protection: Comprehensive safeguards including Over Load Protection (OLP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).

Superior Performance: High efficiency (up to 90%), low ripple & noise, and excellent load regulation ensure optimal LED performance and longevity.



Application & Ordering Information:

This driver series is IP42 rated for indoor use and housed in a compact metal casing for effective heat dissipation. For detailed specifications, wiring diagrams, and to request a competitive wholesale quotation, please contact our sales team. Let us provide you with a reliable, long-term lighting power solution.


Starwell Constant Voltage 0-10V Dimmable Led Driver Specification:

Model

PE-IL100AV24

PE-IL100AV12

OUTPUT

Output Voltage

24Vdc

12Vdc

Max Output Current

4.15Vdc

8.3A

Non-load Output Voltage

24.4Vdc

12.2Vdc

Output Current

0-4.15A

0-8.3A

Output Power

0-100W

0-100W

Strobe Level

No Flicker

Dimming Range

0~100%，LED start at 0.3%possible.

PWM Dimming Frequency

>3600Hz

Current Accuracy

±3%

Power down mode

No signal maximum brightness output

INPUT

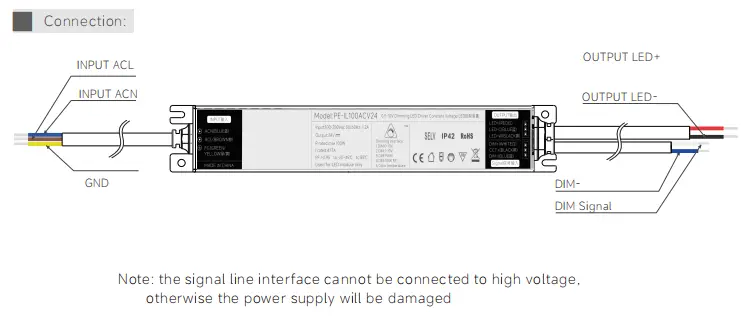

Dimming Interface

0-10V 1-10V signal interface current <2ma / PUSH(P1 P2)

Input Voltage Range

100-250Vac

Frequency

50/60Hz

Input Current

<1.2A ac100v

Power Factor

PF>0.98/100V ac(at full load)

THD

230Vac@THD <10% (at full load)

Efficency(typ.)

91%

Inrush Current(typ.)

cold start 2A/760ns@230Vac

Anti Surge

L-N: 2kV

Leakage Current

<0.25mA/230Vac

ENVIRONMENT

Working Temperature

ta: -25 to 45°C; tc: 85 °C

Working Humidity

20 ~ 95%RH, non-condensing

Storage Temp., Humidity

-40 ~ 80°C, 10~95%RH

Temp.Coefficient

±0.03%/°C(0-50)°C

Vibration

10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.

Over Load Protection

Shut down the output when rated power≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers.

Non-load Protection

output Constant Voltage.

SAFETY & EMC

Withstand Voltage

I/P-O/P: 3750Vac

Isolation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Safety Standards

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emission

EN55015, EN61000-3-2 Class C, IEC61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6,8,11, EN61547

Strobe Test Standard

IEEE 1789

OTHERS

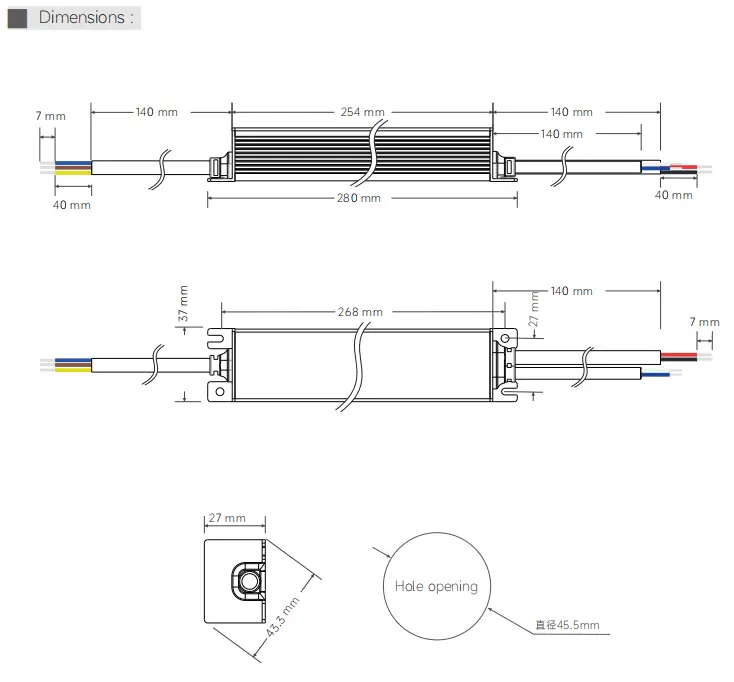

Dimension

280*37*27mm(L×W×H)

Packing

Box

Weight(G.W.)

450g±10g


FAQ:

1. How about your goods’ quality?

    100% burn-in tests, full-round tests.

    All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.

2. What is your warranty? And if I got wrong ones, how will you do with it?

    3 years. If any wrong, we will replace in your next order, or refund.

3. What is your minimum order quantity?

   The MOQ is 1pcs.

4. Which payment terms you can accept?

    We accept T/T, Western Union, Paypal, etc.

5. What are the shipping ways you can offer?

    By air/sea/land, from Shenzhen port, Hongkong, Guangzhou.

6. How about your delivery time?

Sample: 3-7 working days according the order.

Mass order: 18-25 working days

7. Can you make OEM?

    Of course, OEM ODM provided.

More information, please feel free to contact us.
