Product Details

Experience seamless, flicker-free dimming performance with STARWELL high quality 150W Constant Voltage 0-10V Dimming LED Driver—the ideal power solution for commercial and residential LED lighting systems. Engineered to deliver stable DC output with ultra-low ripple, this driver ensures consistent brightness and extended LED lifespan, eliminating premature bulb burnout caused by voltage fluctuations.

Equipped with a standard 0-10V dimming interface, it supports smooth brightness adjustment from 1% to 100%, compatible with most leading dimmers on the market. Boasting high energy efficiency up to 95% and a wide AC input range of 100-277V, it adapts effortlessly to global voltage standards, perfect for international projects.

Built with robust aluminum housing, the High-Performance Constant Votage Dimming Led Driver features over-voltage, over-current, short-circuit, and over-temperature protection, ensuring reliable operation even in harsh environments. Compact, lightweight, and easy to install, it suits recessed, surface, or pendant LED fixtures, from retail store lighting to office panel lights and hotel downlights.

Compliant with CE, FCC, and UL certifications, our 150W LED driver combines premium performance with uncompromising safety—your trusted choice for professional-grade lighting installations.

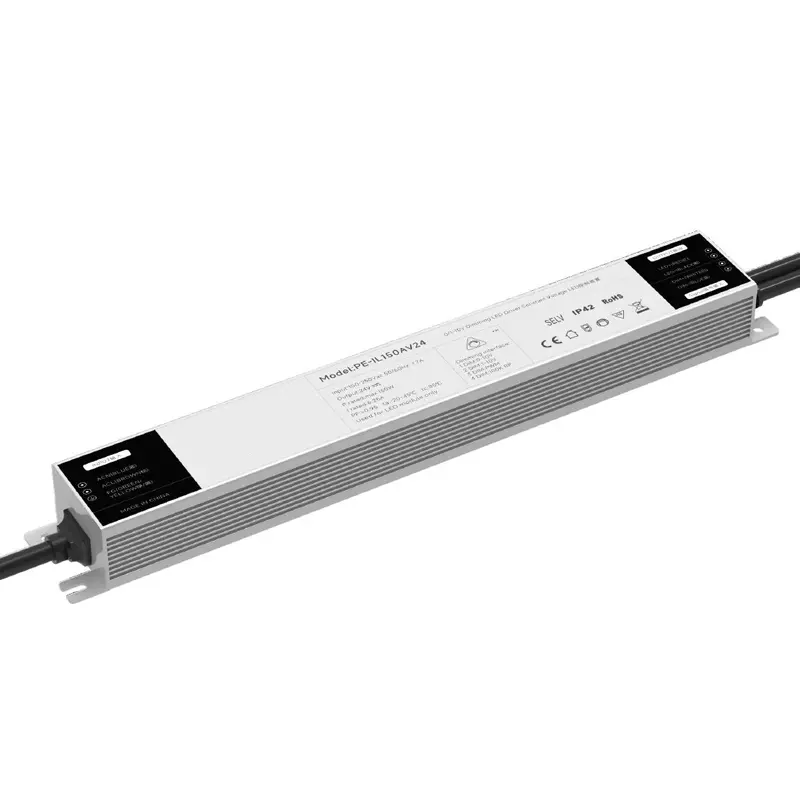

Model		PE-IL150AV24	PE-IL120AV12
OUTPUT	Output Voltage	24Vdc	12Vdc
	Max Output Current	6.25Vdc	10A
	Non-load Output Voltage	24.4Vdc	12.2Vdc
	Output Current	0-6.25A	0-10A
	Output Power	0-150W	0-120W
	Strobe Level	No Flicker
	Dimming Range	0~100%，LED start at 0.3%possible.
	PWM Dimming Frequency	>3600Hz
	Current Accuracy	±5%
	Power down mode	No signal maximum brightness output
INPUT	Dimming Interface	0-10V 1-10V signal interface current <2ma / PUSH(P1 P2)
	Input Voltage Range	100-250Vac
	Frequency	50/60Hz
	Input Current	<1.7A ac230v
	Power Factor	PF>0.98/230V ac(at full load)
	THD	230Vac@THD <8% (at full load)
	Efficency(typ.)	87%
	Inrush Current(typ.)	cold start30A@230Vac
	Anti Surge	L-N: 1.5kV
	Leakage Current	<0.25mA/230Vac
ENVIRONMENT	Working Temperature	ta: 45°C tc: 80 °C
	Working Humidity	20 ~ 95%RH, non-condensing
	Storage Temp., Humidity	-40 ~ 80°C, 10~95%RH
	Temp.Coefficient	±0.03%/°C(0-50)°C
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
	Over Load Protection	Shut down the output when rated power≥102%, auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
	Non-load Protection	output Constant Voltage.
SAFETY & EMC	Withstand Voltage	I/P-O/P: 3750Vac
	Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789

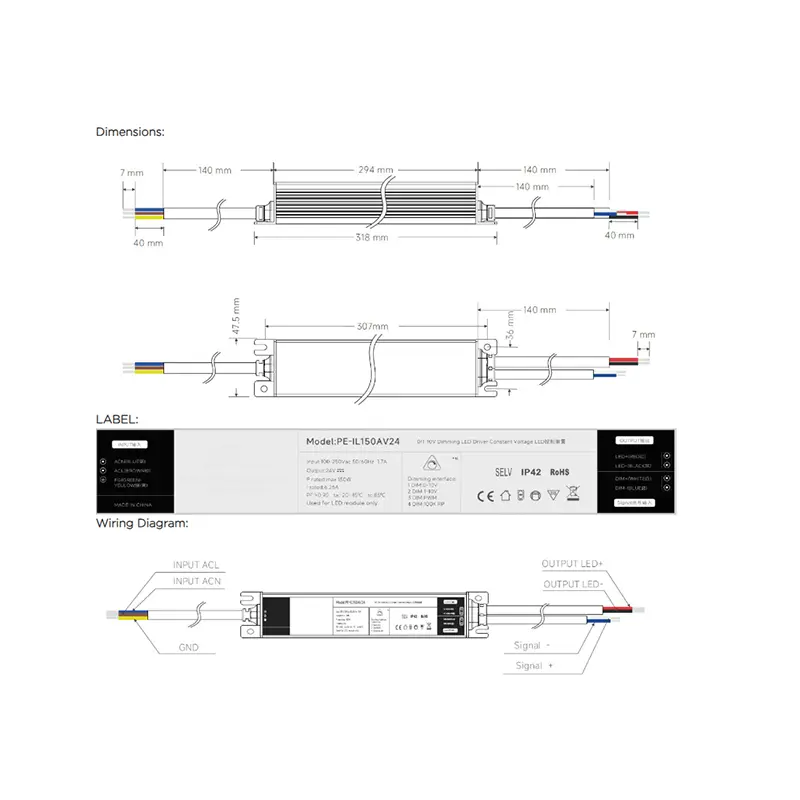

OTHERS	Dimension	294(318)×47.5×32mm(L×W×H)
	Packing	Box
	Weight(G.W.)	750g±10g

Series	Model	Input	Power	PF	Output Voltage	Output Current
PE-IL60AV	PE-IL60AV12	AC100V-250V	60W	0.98PF	12V	5.0A
PE-IL60AV	PE-IL60AV24	AC100V-250V	60W	0.98PF	24V	2.5A
PE-IL100AV	PE-IL100AV12	AC100V-250V	100W	0.98PF	12V	8.3A
PE-IL100AV	PE-IL100AV24	AC100V-250V	100W	0.98PF	24V	4.16A
PE-IL150AV	PE-IL150AV12	AC100V-250V	150W	0.98PF	24V	5.0A
PE-IL150AV	PE-IL150AV25	AC100V-250V	150W	0.98PF	12V	10.0A

Q1:Can I have a sample order for power supply,LED driver and charger?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2.What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-4 weeks for order quantity more than.

Q3.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available.

Q4.How do you ship the goods and how long does it take to arrive?

A: Airline and sea shipping also optional.ship by sea usually takes 25-35 days to arrive.

Q5.How to proceed an order for power supply?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?with logo printing,what's the MOQ for mass? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.the MOQ for logo OEM is 5000pcs.

Q7: Do you offer guarantee for the products? A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
