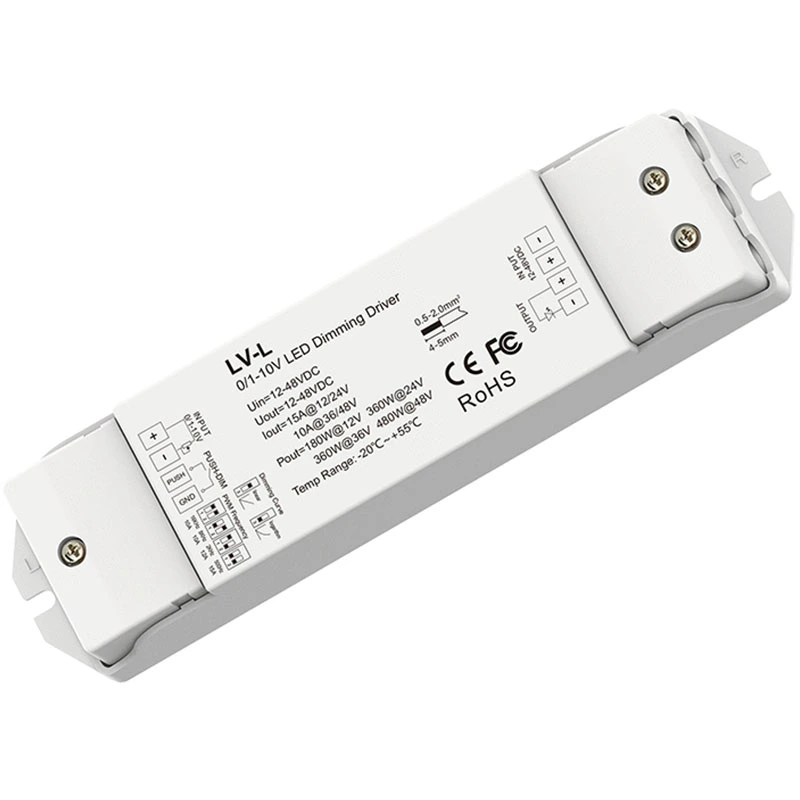

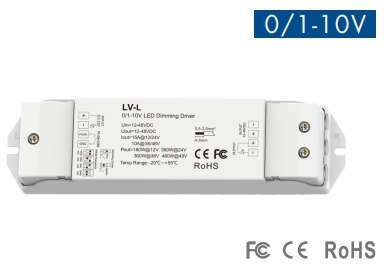

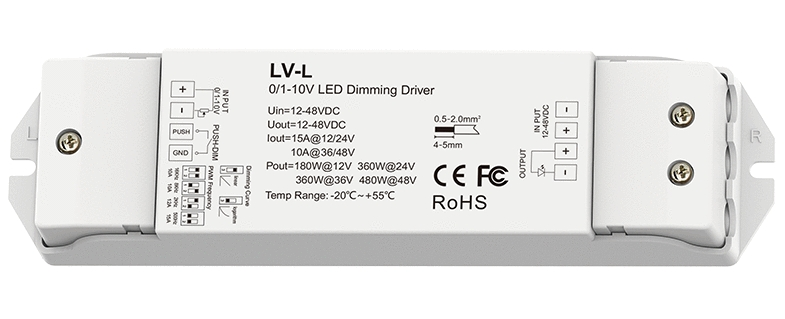

480w Push Dim Constant Voltage 0-10V Dimming Driver

High quality 480w Push Dim Constant Voltage 0-10V Dimming Driver is offered by Starwell, a professional supplier in China. We recommend the number of LED drivers connected to 0/1-10V dimmer does not exceed 50 pieces, the maximum length of the wires from dimmer to LED driver should be no more than 50 meters.

If the LED driver be used with Push-Dim interface prior to using the 0/1-10V interface, the 0/1-10V signal should change over 10% to return 0/1-10V control.

Product Specification

Push Dim Function

The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

 ● Short press: Turn on or off the lights.

 ● Long press (1-6s): Long press to stepless dimming, every other long press, the brightness level moves in the opposite direction.

 ● Dimming memory: Even during a power outage, the lights return to their previous dimming levels when turned off and on again.

 ● Synchronization: If multiple controllers are connected to the same button switch, press and hold for more than 10 seconds, the system synchronizes and all lights in the group dim to 100%. This means that no additional synchronization lines are required in large installations. We recommend that the number of controllers connected to the push-button switch should not exceed 50 pieces and that the maximum length of wire from the push-button to the controller should not exceed 50 meters.

Packing and Shipping:

Packaging

 1. Plain grey carton

 2. Support custom

Delivery

 1. FedEx/DHL/UPS/TNT samples, door to door;

 2. Bulk cargo by air or sea, FCL; airport/port reception;

3. Customers who specify freight forwarders or negotiable modes of transport!

 FAQ:

Q1. Can I have a sample order?

 A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limited?

A: First order, 1pcs for sample checking is available. After samples, MOQ is 10pcs normally.

Q3. How do you ship the goods and how long does it take to arrive?

A:For small order, often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional for large quantity orders. It takes 15-30 days to arrive normally.

 Q4. Is it OK to print my logo on the products?

 A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you offer guarantee for the products?

 A: Yes, we offer 3-5 years warranty to our products.

Q6: How to deal with the faulty?

A: Firstly,our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,during the guarantee period,we will send new lights with new order for small quantity. For defective batch products,we will repair them and resend them to you or we can discuss the soluction includig re-call according to real situation.
