24V 30W 0-10V Constant Voltage Dimming Led Driver

STARWELL is a professional manufacturer and supplier of constant voltage 0-10V dimming LED drivers. With rich experience in the LED lighting accessory industry, STARWELL is committed to providing high-quality driving solutions. This high quality 24V 30W 0-10V Constant Voltage Dimming Led Driver is a high-performance LED driver featuring stable 24V constant voltage output, 30W maximum output power and 100-277V AC wide input voltage range. It supports precise 0-10V dimming mode with 0% to 100% smooth brightness adjustment, equipped with multiple protection mechanisms such as over-voltage, over-current, short-circuit and over-temperature, widely applicable to various indoor and outdoor lighting scenarios.

Send Inquiry

Product Details

STARWELL factory’s classy 24V 30W 0-10V constant voltage dimming LED driver can deliver a maximum output power of up to 30W and is specifically designed to achieve seamless dimming control from 0 to 10V. It features a stable voltage output with a ripple coefficient of ≤ 120mVp-p, ensuring the flicker-free lighting performance of LED fixtures. Its input voltage range is wide (100-240V AC, 50/60Hz), with a conversion efficiency of up to 88%, enabling energy-saving operation. It also complies with global voltage standards. This 0-10V LED driver is equipped with various protection functions to ensure reliable and safe use in various indoor and outdoor lighting applications.

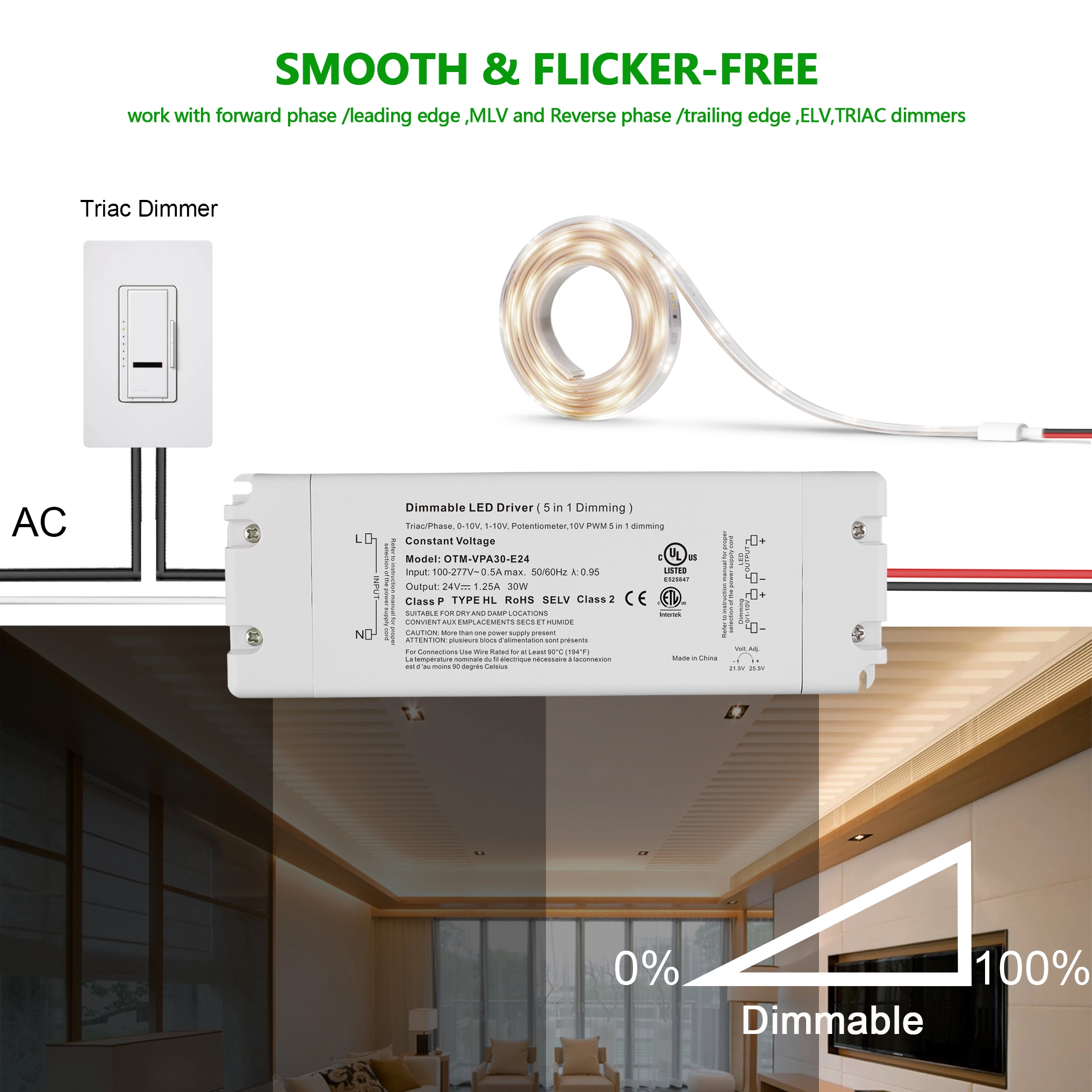

1. Precise 0-10V Dimming: The STARWELL 0-10V Dimming Led Driver supports smooth dimming from 0% to 100% brightness with a dimming resolution of ≤ 1%, which can adapt to diverse lighting scene requirements.

2. Stable Constant Voltage Output: The 0-10V constant voltage LED driver provides a 24V fixed output voltage with a voltage regulation rate of ± 2% and a ripple of ≤ 120mVp-p, which guarantees consistent LED performance.

3. High Efficiency & Energy Saving: The STARWELL high quality 30W 24V Triac Dimming Led Driver has a conversion efficiency of up to 88% and low power consumption with a no-load power of ≤ 0.5W, which helps reduce long-term energy costs.

4. Comprehensive Protection: STARWELL 0-10V LED driver is integrated with over-voltage, over-current, short-circuit and over-temperature protection functions, and has a working temperature range of -20℃ to +60℃, ensuring a long service life with an MTBF of ≥ 50,000 hours.

Product	0-10V led driver
Input Voltage	100-277V; 50/60Hz
Dimming	Triac 0-10V PWM 5 in 1
Output Current	1.25A
Output Power	30W
Power Factor (PF)	0.95
Driver Mode	constant voltage
Efficiency	81%-87%
Warranty	5-Year Warranty
