Ultra Slim Aluminum Casing 36w 100-240v Power Supply Adapter

Starwell factory’s Ultra Slim Aluminum Casing 36w 100-240v Power Supply Adapter is a high-quality constant-voltage switching power supply designed for demanding lighting applications. With an IP67 waterproof and dustproof rating, this driver is perfect for both indoor and outdoor environments. It features a compact, ultra-thin aluminum alloy shell for efficient heat dissipation and easy installation in narrow spaces.

Send Inquiry

Product Details

As a professional manufacturer in China, Starwell would like to provide you high quality Ultra Slim Aluminum Casing 36w 100-240v Power Supply Adapter. Supporting a wide input range of 100-265V AC, it delivers stable 12V/24V DC output, making it ideal for LED strips, mirror lights, and architectural lighting projects.

Product Parameter

Specification Item	Details
Input Voltage	AC 100-265V, 50/60Hz
Output Voltage	12V DC / 24V DC (Constant Voltage)
Output Power	36W (Max)
Output Current	3A (for 12V) / 1.5A (for 24V)
Efficiency	82% (Typ.)
PFC	0.6
Material	Aluminum Case

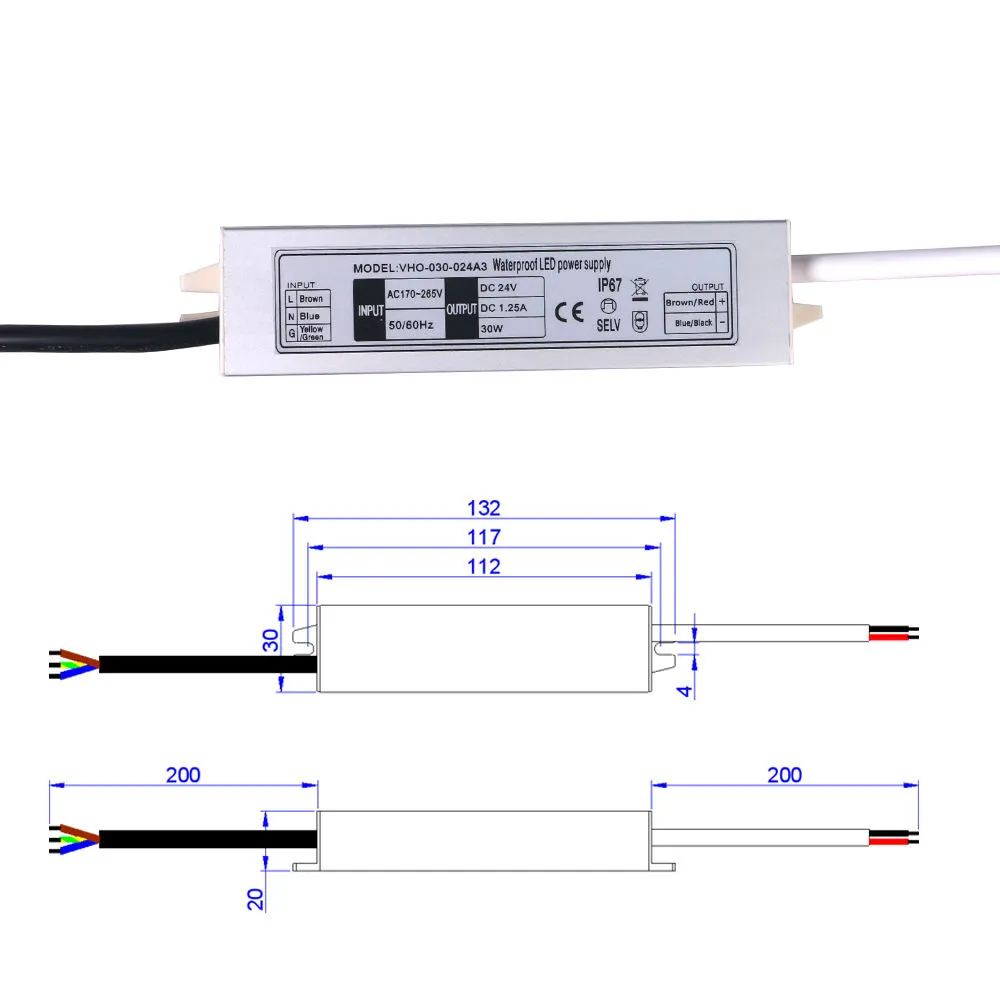

Dimensions	132 * 30 * 20 mm
Weight	0.2 kg
IP Rating	IP67 (Waterproof & Dustproof)
Certifications	CE, CB, RoHS, SAA, CCC, UKCA, ERP, BIS
Working Temp.	-20°C ~ +60°C
Specification Item	Details
Input Voltage	AC 100-240V / 220V, 50-60Hz
Output Voltage	24V DC (Constant Voltage)
Output Power	40W
Output Current	0~1.66A
Power Factor	High PFC (>0.9)
Efficiency	Up to 89%
Material	Aluminum Case
Dimensions	Slim / Ultra-thin design
IP Rating	IP67 (Waterproof & Dustproof)
Certifications	CE, RoHS (as per title of the provided file)
Working Temp.	-20°C ~ +60°C (Typical for such products)

Highlights at a glance

• IP67 Waterproof & Dustproof: Fully sealed aluminum casing provides superior protection against water and dust, ensuring reliable performance in outdoor and wet locations.

• Ultra Slim & Compact Design: Dimensions of only 132*30*20 mm allow for seamless integration into slim lighting fixtures and tight installation areas.

• Highly Efficient Performance: Offers energy conversion efficiency of 80%-89% (typical 82%), reducing energy consumption and heat generation.

• Dual Output Options: Available in 12V (3A) and 24V (1.5A) constant voltage outputs to meet various LED lighting requirements.

• Comprehensive Protection: Built-in safeguards against short circuits, overloads, and over-voltage for long-term operational safety.

• Wide Compatibility: Certified by CE, CB, RoHS, SAA, CCC, UKCA, ERP, and BIS, ensuring global standard compliance.
