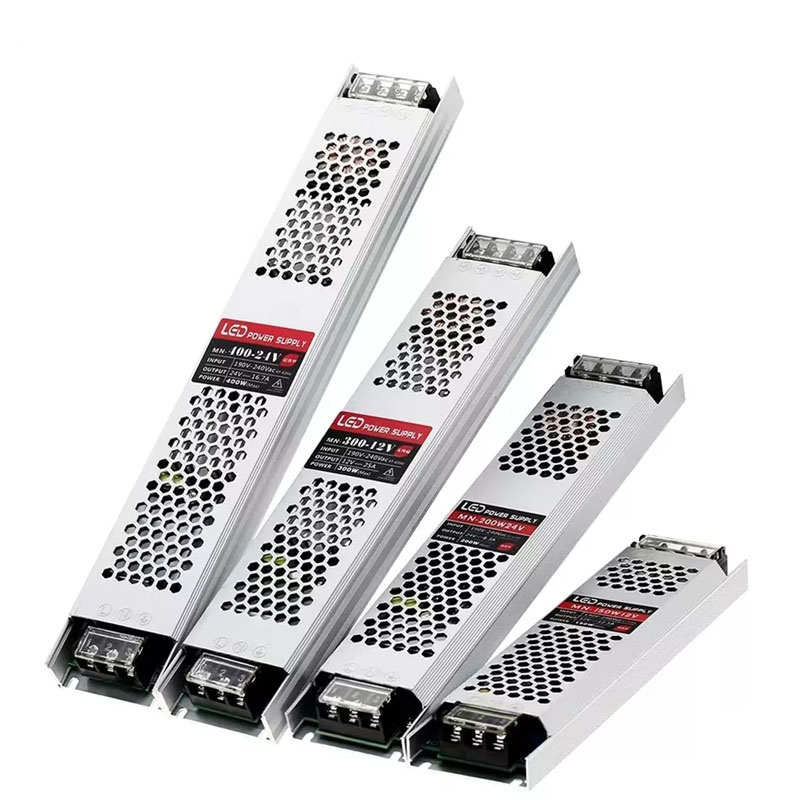

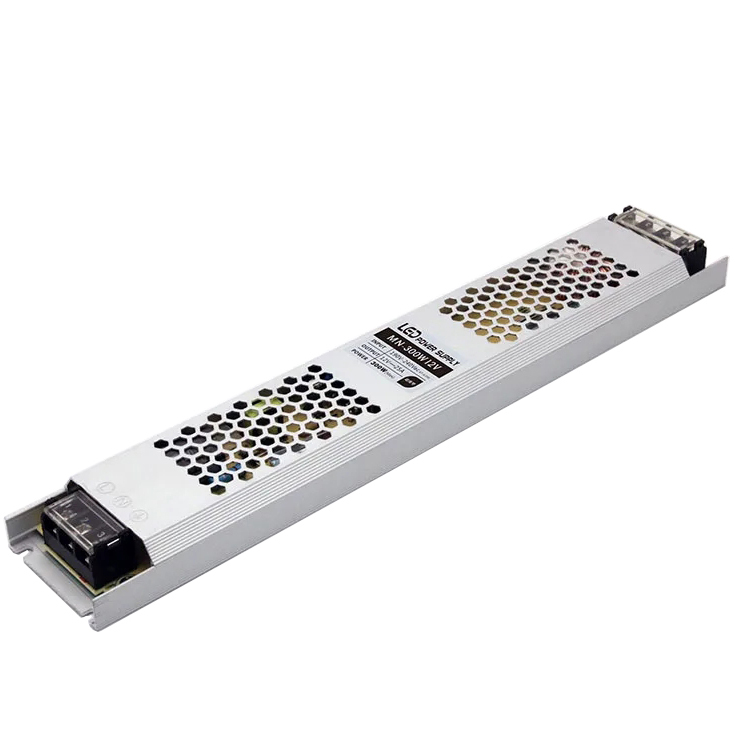

Advantages of Starwell's 300W Ultra Thin Switching Power Supply:
Slim and compact design: The 300W Ultra Thin Switching Power Supply features a slim and compact design, making it suitable for various applications where space is limited. Its small form factor allows for easy installation and integration into different lighting fixtures.
High-quality power supply: Starwell's power supply is built with high-quality components, ensuring reliable performance and longevity. It is designed to deliver stable power to LED lights, resulting in reduced energy consumption, brighter illumination, and an extended lifespan for the LED lights.
Compatibility with LED dimmers: The power supply is compatible with a wide range of LED dimmers, allowing for flexible control of the lighting output. This compatibility enables users to adjust the brightness and create the desired ambiance in their lighting installations.
Energy-efficient and environmentally friendly: Starwell's power supply is designed to be energy-efficient, meeting stringent energy efficiency standards. By reducing energy consumption, it helps lower electricity costs and minimizes the environmental impact of lighting systems.
Additional information:
STARWELL ISO9001 factory: The 300W Ultra Thin Switching Power Supply is manufactured in STARWELL's ISO9001 certified factory, ensuring adherence to international quality standards and rigorous production processes.
3-year warranty: The power supply comes with a 3-year warranty, providing assurance of its quality and performance.
Global certifications: STARWELL's power supply may have obtained various global certifications, indicating its compliance with safety and performance standards in different regions.
Overall, Starwell's 300W Ultra Thin Switching Power Supply offers the advantages of a slim design, high-quality performance, compatibility with dimmers, energy efficiency, and potentially global certifications. It is a reliable choice for powering LED lighting installations in various applications.
Features
● Semi-gable
● Aluminium Casing
● Ultra-low start up temp.(-30℃)
● Ultra-light and easy to install
● High efficiency up to 90%
● High reliability
● Wide input Voltage 180 ~ 264Vac
● Size: L307 ×W53 ×H21mm
300W Ultra Thin Switching Power Supply Specifications
ITEM | FUNCTION | WCB-300W12V | WCB-300W24V |
Output Characteristics |
DC Output Voltage | 12V | 24V |
Output Current | 12V25A power supply | 24V12.5A power supply | |
Rated Power | 200W | 200W | |
Ripple & Noise | <200mVp-p | <200mVp-p | |
Output Voltage range | 11.4~12.6V | 22.8~25.2V | |
Output Voltage Tolerance | ±3% | ||
Line Regulation | 1% | ||
Load Regulation | 2% | ||
Setup and Rise Time | 3.0S,20mS@115Vac,1.5S,20mS@230Vac | ||
Input Characteristics | Typical Input Voltage | 200~240Vac 50Hz | |
Max Input Voltage Range | 180~264Vac 50Hz | ||
Typical Efficiency | 85% | 85% | |
Maximum Input Current | Max 3.0A @ 230Vac; | ||
Inrush Current | Less than 50A/230Vac, cold start | ||
Leakage Current | <0.75mA/240Vac | ||
Protection Characteristics | Overload Protection | 110%~150% of rated load. | |
Short Circuit Protection | Protection Type : Hiccup mode, Auto-recovery | ||
Signal | DC OK Signal | LED light to indicate PSU turn on | |
Ambient | Ambient Temperature | -30~60℃ (Reference To Derating Curve) | |
Working Humidity | 20~90% RH non-condensing | ||
Storage Temp. and Humidity | -30~70℃,10~95% RH 无冷凝 | ||
Withstand Vibration | 10~500Hz,5G 10min./cycle,60min.each along X,Y,Z | ||
Safety | Withstand Voltage |
Input-FG:1500Vac Input-Output: 1500Vac Output-FG: 500Vac |
|
Isolation Resistance |
Input-FG: > 100M Ohm 500Vdc @ 25℃& 70RH Input-Output: > 100M Ohm 500Vdc @ 25℃& 70RH Output-FG: > 100M Ohm 500Vdc @ 25℃& 70RH |
||
Packing | Unit Weight | 0.29Kg/PCS | |
Unit Dimension | L307 ×W53 ×H21mm | ||
Packing And Weight | 45PCS/BOX | ||
Packing Box Dimension | L 390 ×W 335 ×H 190mm | ||
Application |
Ultra Thin LED POWER SUPPLY, LED DRIVER, LED Switching power supply LED power adapter, Led strip power supply, LED SMPS, aluminum switch mode power supply, LED LAMP DRIVER, LED LIGHTING POWER SUPPLY, |
