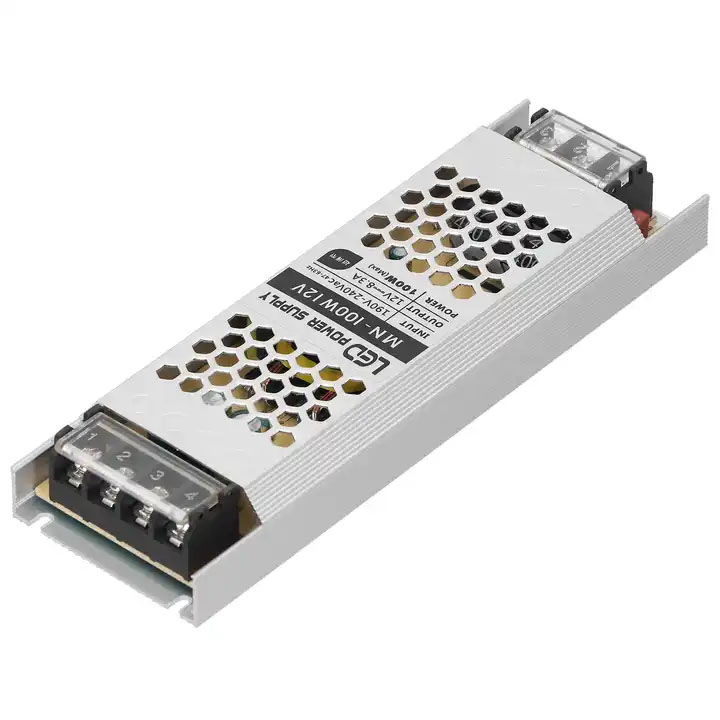

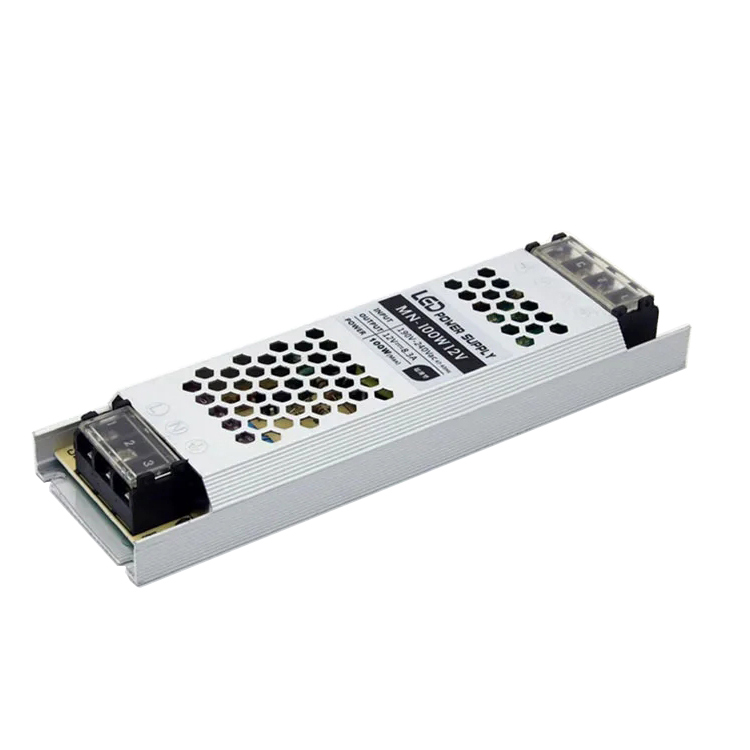

The 100W ultra thin switching power supply, manufactured by STARWELL, a reputable Chinese supplier, offers several advantages:
Lightweight: The power supply is designed to be lightweight, making it easy to transport and install. Its reduced weight contributes to the overall convenience during handling and mounting processes.

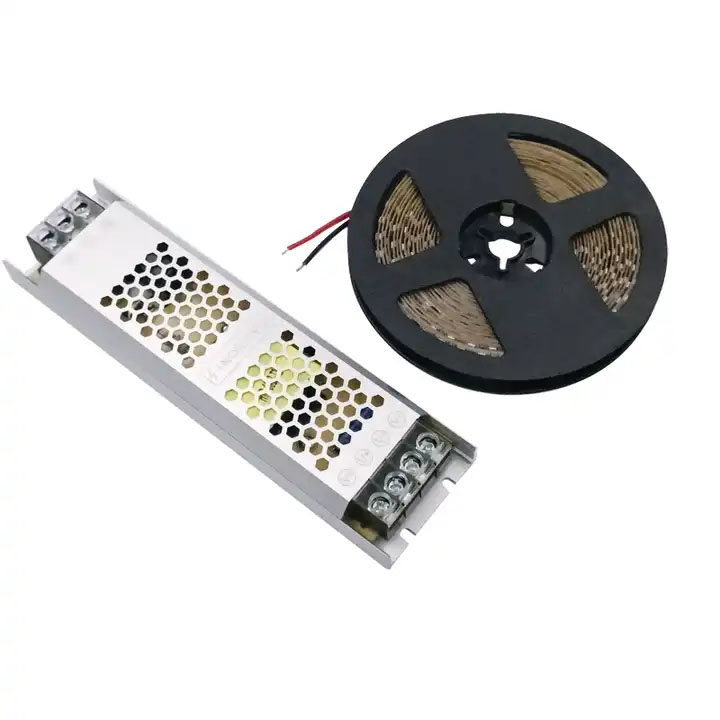

Versatile Applications: The slim and lightweight design allows for versatile applications. The power supply can be seamlessly integrated into various lighting fixtures, signage, displays, and other electronic devices without adding excessive bulk or weight.
Enhanced Aesthetics: The power supply's slim profile contributes to a sleek and modern appearance of the lighting fixture or device. It enables a more streamlined design, enhancing the overall aesthetics of the product.
STARWELL is known as a high-quality supplier from China, offering ODM and OEM services. Their LED power supply products are designed to meet diverse requirements and are widely used in commercial, residential, and industrial lighting applications.
In summary, the 100W ultra thin switching power supply by STARWELL combines a lightweight design, versatility for various applications, and improved aesthetics. It is a reliable choice for integrating LED lighting into different settings, enhancing both functionality and visual appeal.
100W ultra thin switching power supply Specification:
ITEM | FUNCTION | WCB-100W12V | WCB-100W24V |
Output Characteristics |
DC Output Voltage | 12V8.3A power supply | 24V4.2A power supply |
Rated Power | 100W | 100W | |
Ripple & Noise | <200mVp-p | <200mVp-p | |
Output Voltage range | 11.4~12.6V | 22.8~25.2V | |
Output Voltage Tolerance | ±3% | ||
Line Regulation | 1% | ||
Load Regulation | 2% | ||
Setup and Rise Time | 3.0S,20mS@115Vac,1.5S,20mS@230Vac | ||
Input Characteristics | Typical Input Voltage | 200~240Vac 50Hz | |
Max Input Voltage Range | 180~264Vac 50Hz | ||
Typical Efficiency | 85% | 86% | |
Maximum Input Current | Max 1.5A @ 230Vac; | ||
Inrush Current | Less than 50A/230Vac, cold start | ||
Leakage Current | <0.75mA/240Vac | ||
Protection Characteristics | Overload Protection | 110%~150% of rated load. | |
Short Circuit Protection | Protection Type : Hiccup mode, Auto-recovery | ||
Signal | DC OK Signal | LED light to indicate PSU turn on | |
Ambient | Ambient Temperature | -30~60℃ (Reference To Derating Curve) | |
Working Humidity | 20~90% RH non-condensing | ||
Storage Temp. and Humidity | -30~70℃,10~95% RH 无冷凝 | ||
Withstand Vibration | 10~500Hz,5G 10min./cycle,60min.each along X,Y,Z | ||
Safety | Withstand Voltage |
Input-FG:1500Vac Input-Output: 1500Vac Output-FG: 500Vac |
|
Isolation Resistance |
Input-FG: > 100M Ohm 500Vdc @ 25℃& 70RH Input-Output: > 100M Ohm 500Vdc @ 25℃& 70RH Output-FG: > 100M Ohm 500Vdc @ 25℃& 70RH |
||
Packing | Unit Weight | 0.15Kg/PCS | |
Unit Dimension | L168 ×W53 ×H21mm | ||
Packing And Weight | 100PCS/BOX | ||
Packing Box Dimension | L 350 ×W 250 ×H 290mm | ||
Application |
Ultra Thin LED POWER SUPPLY, LED DRIVER, LED Switching power supply LED power adapter, Led strip power supply, LED SMPS, aluminum switch mode power supply, LED LAMP DRIVER, LED LIGHTING POWER SUPPLY, |
