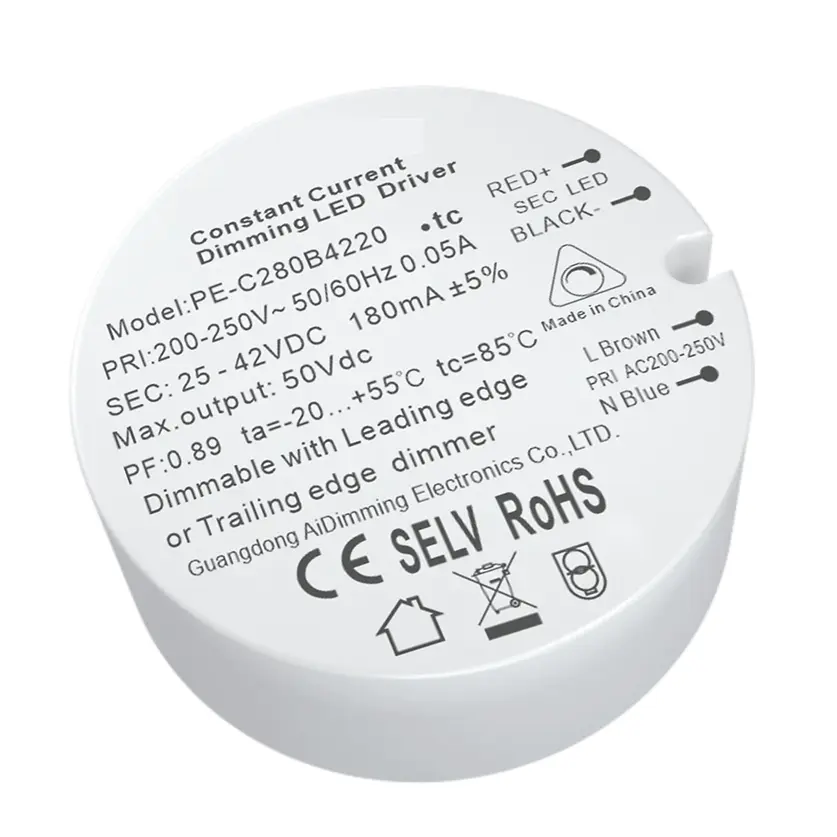

Product Details

As the professional manufacturer, Starwell would like to provide you high quality 8.4W constant current triac dimmable LED driver, which is suitable for RPC MOSFET dimmer and FPC TRAIC dimmer.

Specification

Model		PE-C280B2435	PE-C280B4220	PE-C280B0670	PE-C280B1270	PE-C280B2430
OUTPUT	Output Voltage	12-24Vdc	25-42Vdc	2.5-6Vdc	6-12Vdc	12-24Vdc
	Max Output Voltage	24Vdc	42Vdc	6Vdc	12Vdc	24Vdc
	Non-load Output Voltage	27Vdc	43Vdc	8Vdc	15Vdc	27Vdc
	Output Current	350mA	200mA	700mA	700mA	300mA
	Output Power	4.2W~8.4W	5W~8.4W	1.75W~4.2W	4.2W~8.4W	3.6W~7.2W
	Strobe Level	Lower flicker(8%)
	Dimming Range	2~100%，
	PWM Dimming Frequency
	Current Accuracy	±5%
	Ripple & Noise	=500mv p-p
INPUT	Dimming Interface	Triac Leading edge/Tralling edge
	Input Voltage Range	200-250Vac
	Frequency	50/60Hz
	Input Current	<0.08A	<0.08A	<0.08A	<0.08A	<0.08A
	Power Factor	PF>0.9(at full load)	PF>0.9(at full load)	PF>0.88(at full load)	PF>0.88(at full load)	PF>0.88(at full load)
	THD	230Vac@THD <20% (at full load)
	Efficiency(typ.)	77%	79%	77%	77%	77%
	Inrush Current(typ.)	Cold start0.8A	Cold start0.8A	Cold start1.54A	Cold start0.8A	Cold start0.8A
	Anti Surge	L-N: 1.5kV
	Leakage Current	<0.25mA/230Vac
ENVIRONMENT	Working Temperature	tc: 55°C tc: 85°C
	Working Humidity	20 ~ 95%RH, non-condensing
	Storage Temp., Humidity	-40 ~ 80°C, 10~95%RH
	Temp. Coefficient	±0.03%/°C(0-50)°C
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
	Over Load Protection	Shut down the output when rated power≥102%, auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
	Non-load Protection	Shut down the output if no load, auto recovers when load back to normal.
SAFETY & EMC	Withstand Voltage	I/P-O/P: 3750Vac
	Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety Stanards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emision	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789
OTHERS	Dimension	43.2×0.5mm(D×H)
	Packing	PE bag
	Weight(G.W.)	42g±5g

Fatures:

● LED phase-cut dimming driver, dimming range 2-100%

● Suitable for RPC MOSFET dimmer and FPC TRAIC dimmer

● Active PFC

● Protections: short circuit/over voltage/over current

● Silica gel heat conduction technology,natural cold wind

● Ultra small volume

● Suitable for LED home lighting and commercial lighting

● Safe no load protection device

● Economic and convenient installation

● conform to the world lighting equipment safety standards

● Protection class II

● Three years warranty

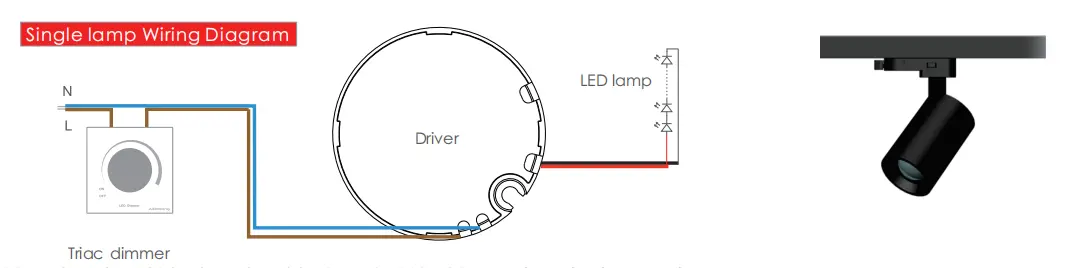

Wiring Diagram:

Wiring:

The output wire: 20AWG red and black PVC cable, length 200-230mm, wire stripping requirement: 5-7mm

The input wire: 20AW Brown Blue VDE double insulated wire, length 150-160mm, wire stripping requirement: 5-7mm

The use of guidance:

1. Please pay attention to the distinction between input and output, connect correctly, then power on

2. Please connect first the load of the DC output, open the power supply afer checking; in the constant curent mode, if power on atopen circuit, please tum off the power supply and can't connect the LED untilthe electic energy stored by the output release , or itmay damage the LED;

3. This type of power supply is only limited to the use of the LED lamps and lanterns,the input votage range is AC200-250v, theheat insulation cotton and other items that obstruct the heat dissipation of the product, which confoms to the product under theSpe cified output voltage, current range, the use environment temperature is -20-45 dearees,and the surace can not cover theconditions of the environment, this product enjoys three yearsof free warranty.

The abnormal conditions and the corresponding treatment methods:

1. The LED lamp doesn't bright after the dimming driver is connected at the frst time ,please tumn off the AC input and check as folow:.

a) Whether or not DC output bad contact:

b) Whether DC output polarity is reversed, or the LED board is welded anti;

c) Whether AC input is bad contact: test after eliminating these failures.

2. The device has good connection, LED lights, but the LED ficker, please tum off the AC input, then check the DC output.

a) overoad.under load.

b) Whether or not the parameters and actual parameters match.

3. Please fimely communicate with us if you any questions in the using, we willtry our best to solve the problems with you.
