60W Constant Voltage DALI CCT Dimming LED Driver

Wholesale 60W constant voltage DALI CCT dimming led driver with SAA CE ROHS which manufactured by Starwell, a professional Dimmable LED Driver manuifacturer in China. We offer cheap price and good quality 60W constant voltage DALI CCT dimmable led driver.

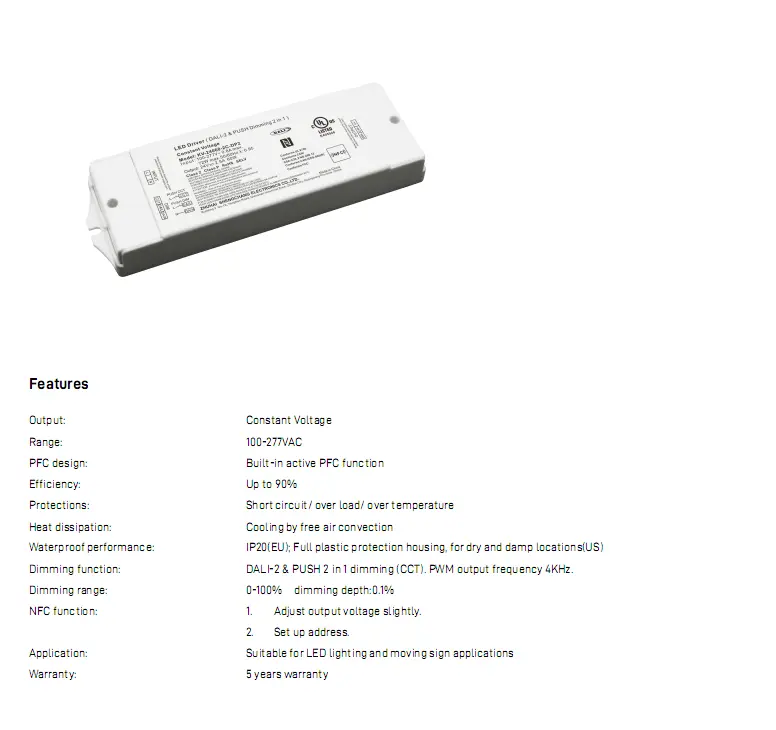

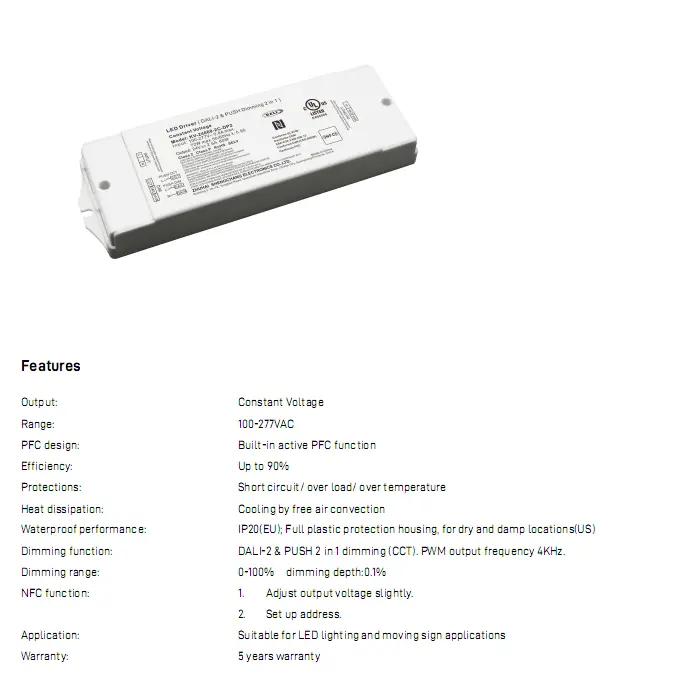

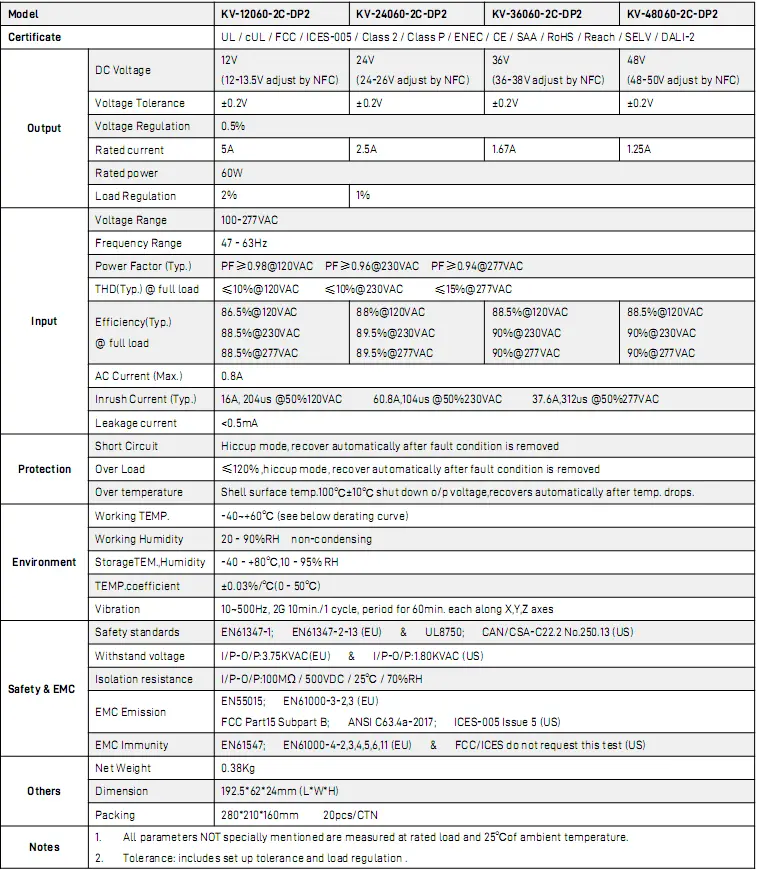

Features
Output: Constant Voltage
Range: 100-277VAC PFC
design: Built-in active PFC function
Efficiency: Up to 90%
Protections: Short circuit/ over load/ over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: IP20(EU);
Full plastic protection housing, for dry and damp locations(US)

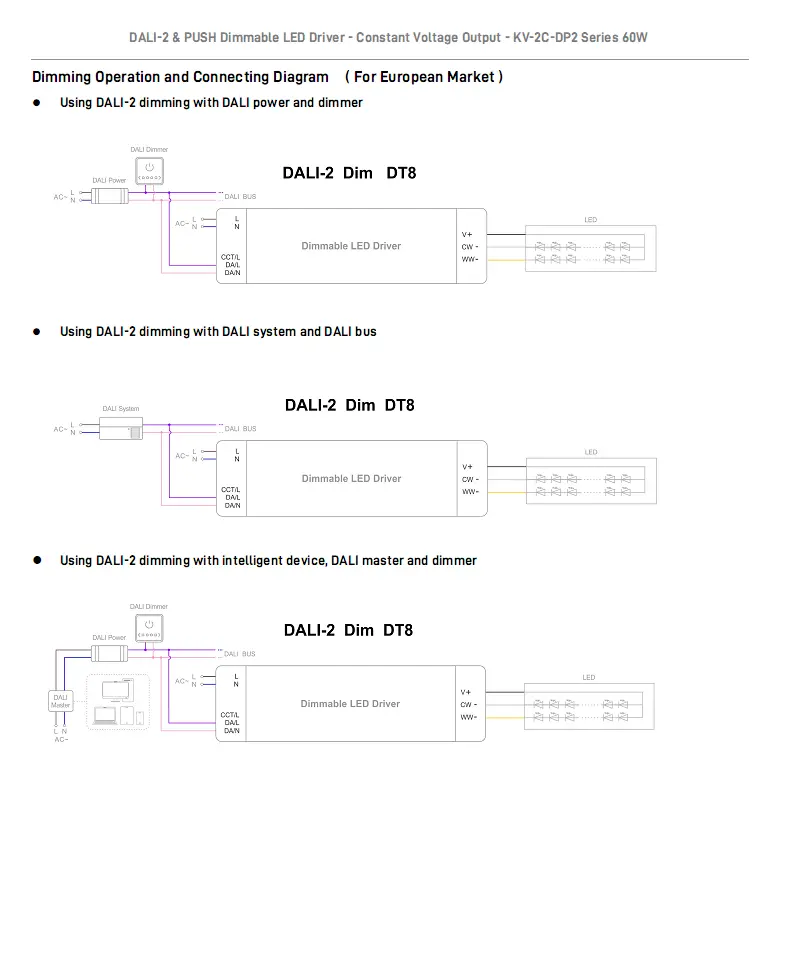

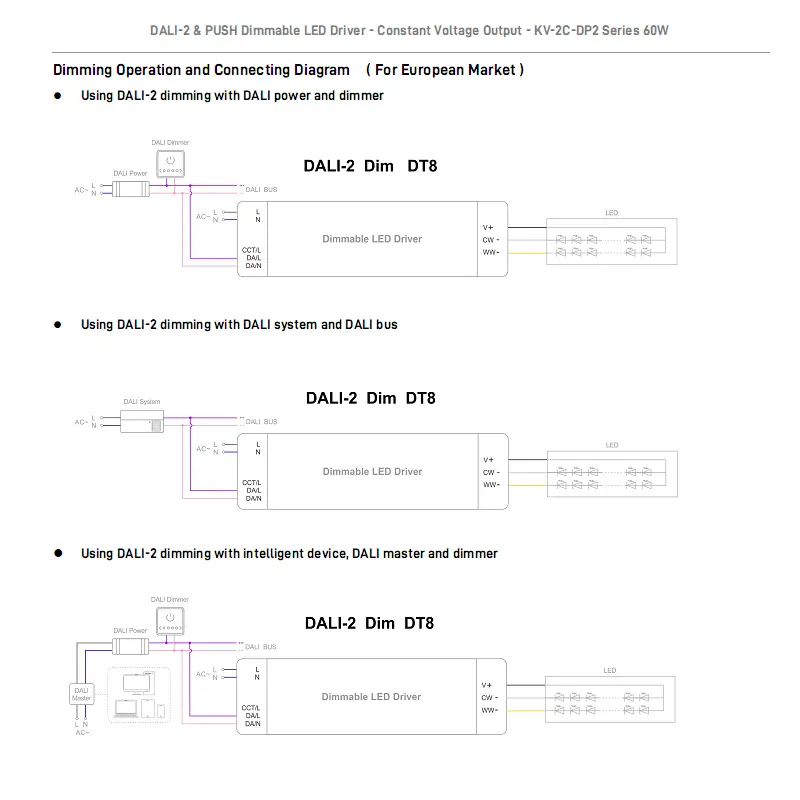

Dimming function: DALI-2 & PUSH 2 in 1 dimming (CCT).
PWM output frequency 4KHz. Dimming range: 0-100% dimming depth:0.1%
NFC function: 1. Adjust output voltage slightly. 2. Set up address.
Application: Suitable for LED lighting and moving sign applications
Warranty: 5 years warranty

Product Details

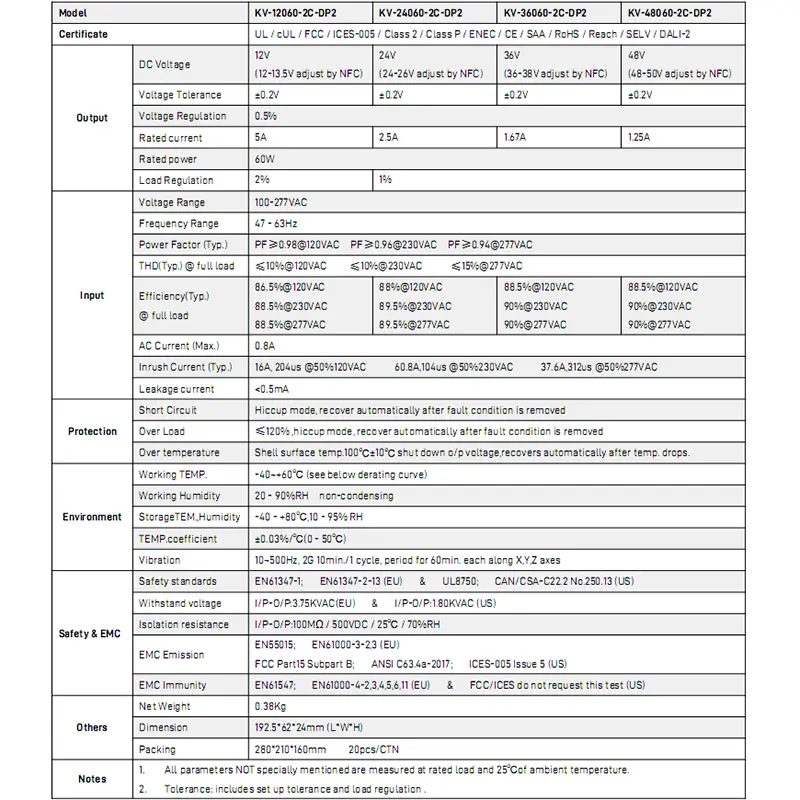

Starwell factory’s high quality 60W Constant Voltage DALI CCT Dimming LED Driver is a professional power solution for tunable white LED lighting, compliant with IEC 62386 DALI-2 DT8 protocol. It accepts 100-240VAC wide input, with standard 12V/24V DC constant voltage output, delivering stable power up to 60W for LED strips and panels.

Adopting DALI digital dimming, it supports 0.1%-100% smooth flicker-free dimming and precise CCT adjustment from 2700K to 6500K, keeping brightness consistent during color temperature shifts. Built-in active PFC boosts efficiency up to 88%, with low no-load power consumption. It features soft start, overvoltage, overcurrent and short-circuit protection, ensuring safe operation.

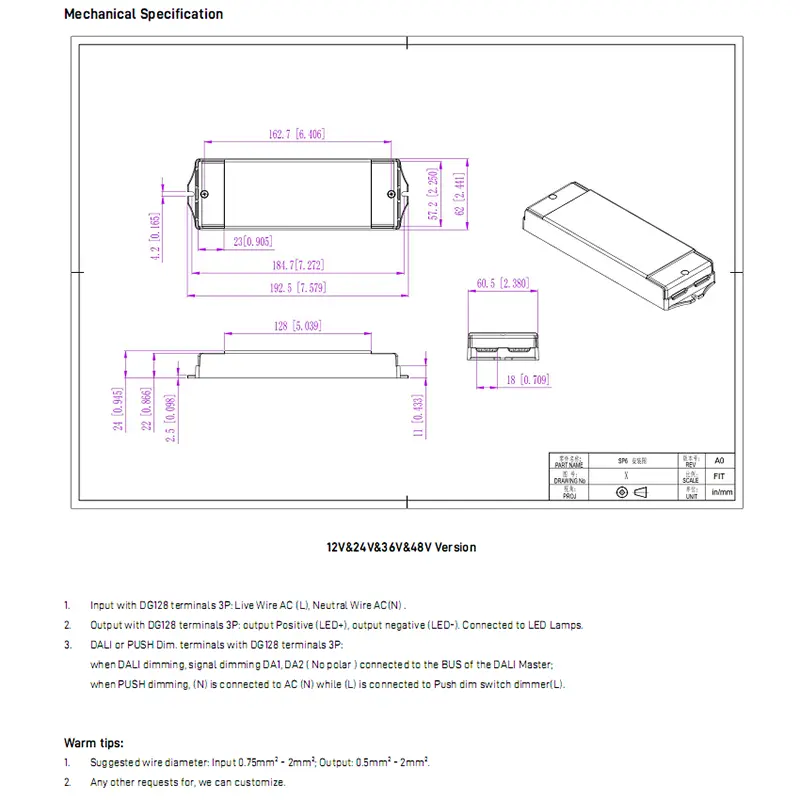

Housed in a compact, flame-retardant case, it suits indoor commercial lighting such as offices, hotels and shopping malls. With reliable performance and easy DALI bus integration, it enables intelligent lighting control and scene management, ideal for high-quality tunable white lighting projects.

FAQ

Q1:Can I have a sample order for power supply,LED driver and charger?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2.What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-4 weeks for order quantity more than.

Q3.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available.

Q4.How do you ship the goods and how long does it take to arrive?

A: Airline and sea shipping also optional.ship by sea usually takes 25-35 days to arrive.

Q5.How to proceed an order for power supply?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?with logo printing,what's the MOQ for mass? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.the MOQ for logo OEM is 5000pcs.

Q7: Do you offer guarantee for the products? A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
