100W DALI Constant Voltage CCT Dimming LED Driver
  • 100W DALI Constant Voltage CCT Dimming LED Driver100W DALI Constant Voltage CCT Dimming LED Driver
  • 100W DALI Constant Voltage CCT Dimming LED Driver100W DALI Constant Voltage CCT Dimming LED Driver
  • 100W DALI Constant Voltage CCT Dimming LED Driver100W DALI Constant Voltage CCT Dimming LED Driver
  • 100W DALI Constant Voltage CCT Dimming LED Driver100W DALI Constant Voltage CCT Dimming LED Driver
  • 100W DALI Constant Voltage CCT Dimming LED Driver100W DALI Constant Voltage CCT Dimming LED Driver

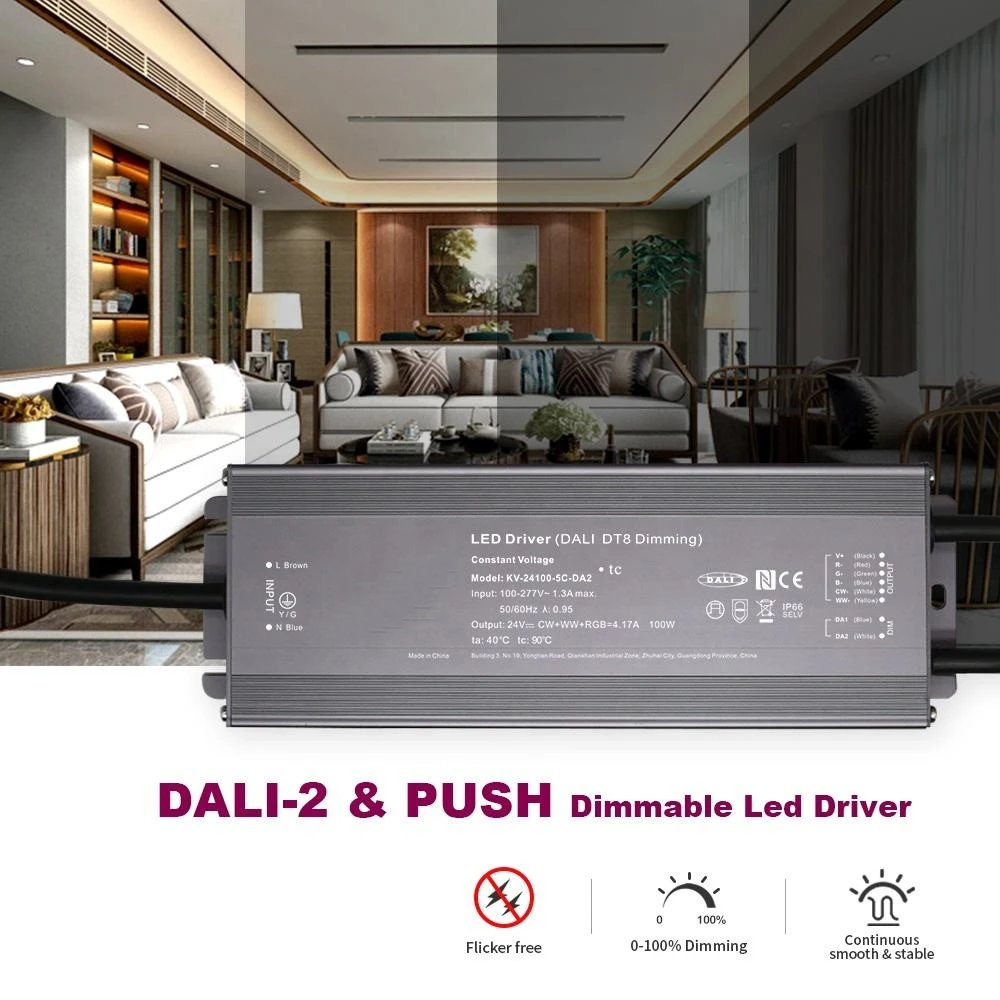

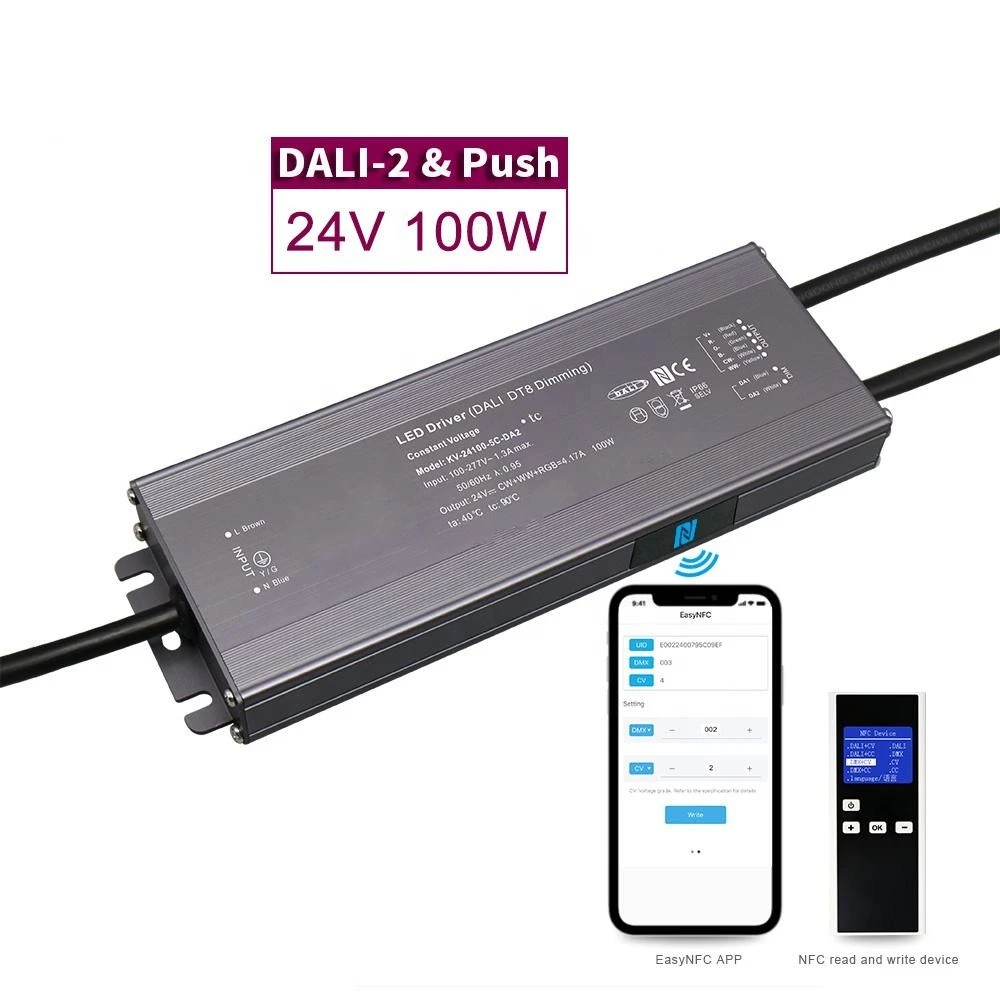

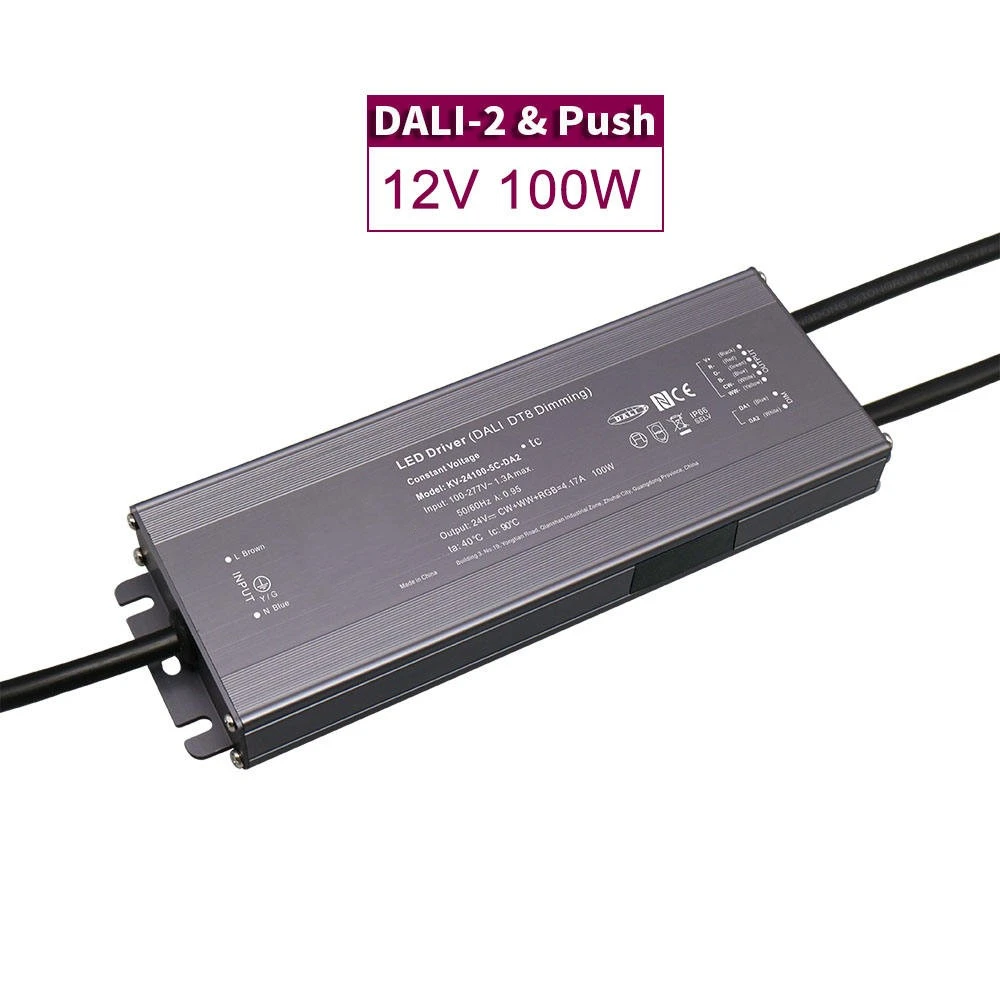

100W DALI Constant Voltage CCT Dimming LED Driver

STARWELL factory’s high quality 100W DALI Constant Voltage CCT Dimming LED Driver versatile, high-performance power for 12V or 24V LED systems. Engineered for global use, it accepts a wide 100-277VAC input and features efficient two-stage PFC with up to 89% efficiency. Built for demanding environments, its robust full aluminum housing provides superior IP66 waterproof protection (EU) and is rated for dry, damp & wet locations (US), ensuring reliable operation both indoors and outdoors.

Send Inquiry

DATASHEET

Product Details

Starwell, a professional LED driver manufaturer in China, our this 100W DALI Constant Voltage CCT Dimming LED Driver is DALI-2 certified, offering precise digital dimming from 0.1% to 100% for seamless light control. It includes essential protections against short circuit, overload, and over-temperature, with passive cooling via free air convection.

Combining universal compatibility, rugged construction, and intelligent dimming, this driver is an ideal, future-proof power solution for professional LED lighting and moving sign applications, guaranteeing performance and durability.



Elevate your lighting projects with our high-performance 100W Constant Voltage LED Driver, engineered for reliability, intelligence, and versatility. Designed to power sophisticated 12V or 24V LED systems, this driver is the robust heart of professional-grade installations.


Features:

Output: Constant Voltage

Range: 100-277VAC

PFC design: Two-stage PFC function

Efficiency: Up to 89%

Protections: Short circuit / Over load / Over temperature

Heat dissipation: Cooling by free air convection

Waterproof performance: IP66 can be used indoor and outdoor.(EU)

Full aluminum protection housing, for dry, damp & wet locations.(US) Design features: Linear design, perfect profile and it also conforms to the safety regulations. Dimming function: DALI-2 dimming

Dimming range: 0.1-100%

Application: Suitable for LED lighting and moving sign applications

Warranty: 5 years warranty

Others: High power factor PF>0.95, flicker-free dimming



Universal & Efficient Power Core Built for global compatibility, our driver accepts a wide universal AC input range of 100-277VAC, simplifying inventory and deployment for international projects. Its advanced two-stage PFC (Power Factor Correction) design ensures optimal energy utilization from the grid, achieving an impressive efficiency of up to 89%. This translates to lower energy waste, reduced operating costs, and a smaller carbon footprint for your sustainable lighting solutions.

Unmatched Durability for Any Environment We build for resilience. The durable waterproof IP66 DALI-2 DT8 CCT dimmable led driver features a sleek, linear full aluminum housing that serves as both a robust protective shell and an effective heat sink. This design allows for efficient cooling by free air convection, ensuring stable performance. It is rigorously protected against short circuit, overload, and over-temperature. Crucially, it boasts an IP66 waterproof rating (EU), making it completely dust-tight and protected against powerful water jets, and is certified for dry, damp, and wet locations (US). This duality makes it the perfect choice for a vast range of applications—from indoor architectural features and commercial spaces to challenging outdoor signage and facade lighting.

Advanced Digital Control with DALI-2 At the forefront of lighting intelligence, this driver is DALI-2 certified, ensuring full interoperability with any standard DALI control system. It provides incredibly smooth and precise digital dimming across an extensive range from 0.1% to 100%, enabling the creation of perfect ambiance, dynamic lighting scenes, and significant energy savings through light management. The dimming is flicker-free, enhancing visual comfort.

Ideal Application Scope This driver is specifically engineered for applications where performance cannot be compromised:

Professional Indoor Lighting: Museums, galleries, retail stores, offices, and hotels requiring reliable, dimmable light.

Architectural & Outdoor Lighting: Building facades, contour lighting, and landscape features exposed to the elements.

Commercial Signage & Moving Signs: Providing stable, constant voltage power for vibrant, always-on LED displays and signs.

Choose our 100W DALI-2 Driver for a future-proof foundation that combines smart control, robust protection, and versatile power in one compact, reliable unit.



Starwell DALI Constant Voltage DT8 Dimmable Led Driver Specification:

Model

KV-12100-XC-DP2A

KV-24100-XC-DP2A

Certificate

UL/FCC/CE/UKCA/ENEC/ICES-005/SAA/Class P/TYPE HL/SELV/ROHS/REACH









Output

DC Voltage

12V

24V

Voltage Tolerance

±4%

±2%

Voltage Regulation

≤1%

≤0.5%

Rated current

8.33A

4.17A

Rated power

100W

Load Regulation

±2%

±1%

















Input

Voltage Range

100-277VAC

Frequency Range

50 / 60Hz

Power Factor (Typ.) @ full load

>0.95

THD(Typ. ) @ full load

≤5%@120VAC ≤8%@230VAC ≤11%@277VAC

Efficiency(Typ.) @ full load

87%@120VAC 88%@230VAC

88%@277VAC

87%@120VAC 88%@230VAC

89%@277VAC

AC Current (Max.)

1.3A

Standby power

≤0.5W

Inrush Current (Typ.)

52A,150us@50%Ipeak 120VAC; 100A,256us@50%Ipeak 230VAC

120A,356us@50%Ipeak 277VAC

Leakage current

<0.5mA





Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over Load

105%~110% Hiccup mode, recovers automatically after fault condition is removed.

Over temperature

When the ambient temperature exceeds 50 °C ±5 °C, the output is turned off.







Environment

Working TEMP

-40~+50℃ (see below derating curve)

Working Humidity

20 - 95%RH non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95% RH non-condensing

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each















Safety & EMC



Safety standards

UL8750; CAN/CSA-C22.2 No.250.13

EN61347-1; EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU)

I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:1.88KVAC (US)

Isolation resistance

I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH

Surge Immunity Test

AC Power Line:Differential Mode 2 kV, Common Mode 4 kV



EMC Immunity

EN61547; EN61000-4-2,3,4,5,6,11

FCC/ICES do not request this test.

EMC Emission

EN55015; EN61000-3-2,3

FCC Part15 Subpart B; ICES-005 Issue 5



Others

Net Weight

1.65KG

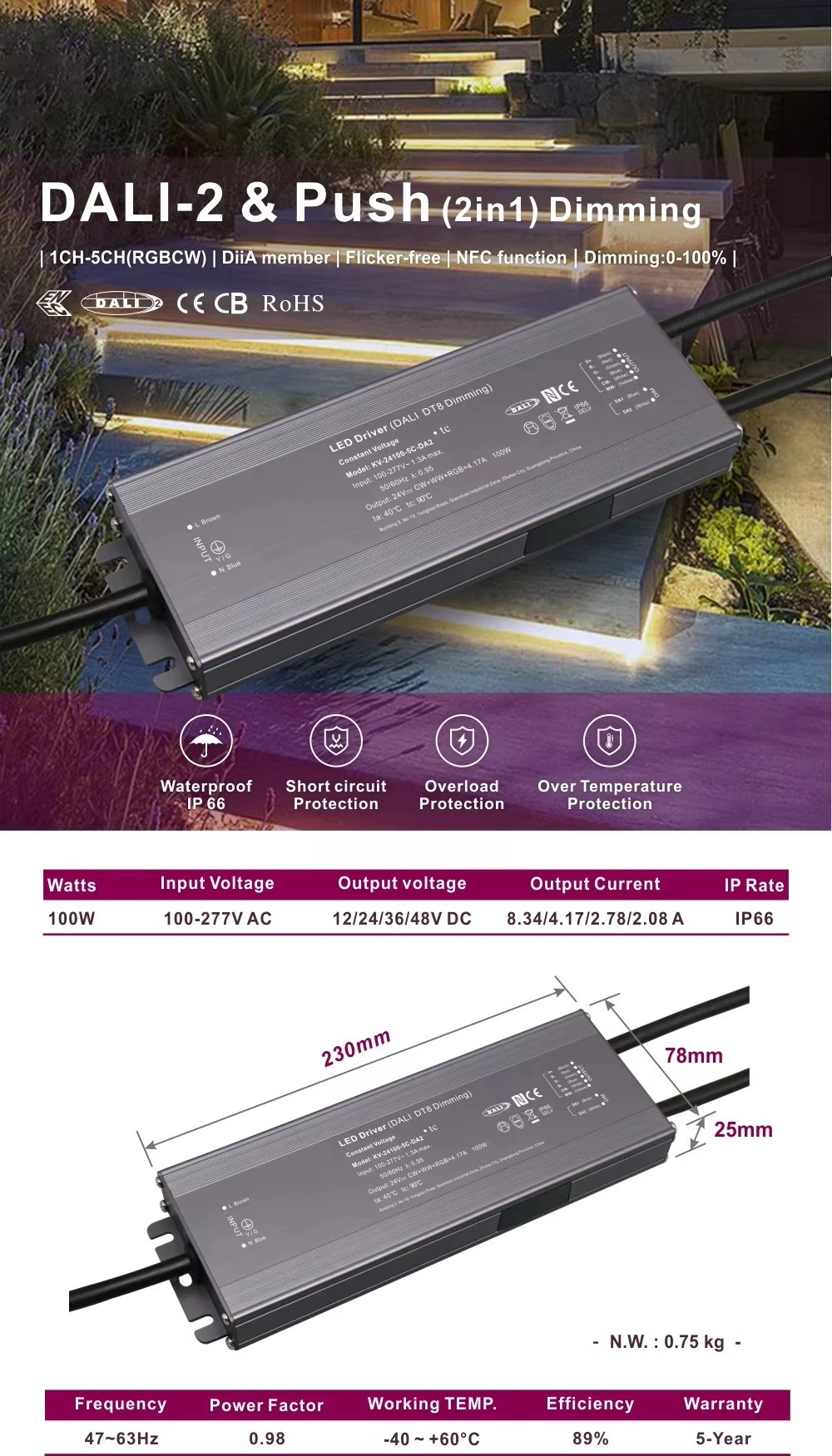

Dimension

232*78*25.1mm(L*W*H)

FAQ:

1. What is the lifespan of the power supply?
5-year warranty. During this term,you can get a new replacement if there are any questions about the quality.

2. What is the minimum quantity for mass purchase?
No MOQ.

3. Is it possible to customize this for my brand name?
Yes,we can provide personal customization ( logo,color,graphic,dimensions... ) for you.

4. What is the lead time for this product?
Usually,its lead time is within 7 days if it's stock. You can ask us for more details!

5. Do you have certifications for your products?
Yeah, we have CE, SAA, ROHS, UL, CB,TUV, UL, CCC...certificates.

6. What is the shipping method?
Usually, we ship by UPS, Fedex, DHL...If you have any special requirements for logistics, please inform us in advance.

7. Can I customize special product parameters?
Of course. We can customize product parameters for you,and you can tell us about the parameters in advance so that we can discuss it with our engineer.

8. Can you provide me with plug?
Yes, we have AU plug, US plug...
