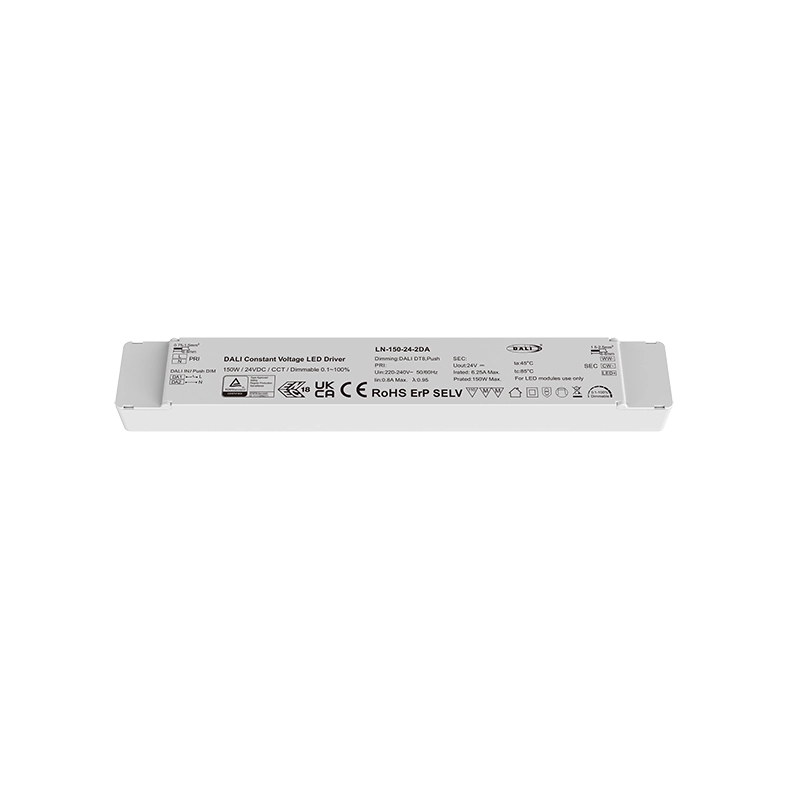

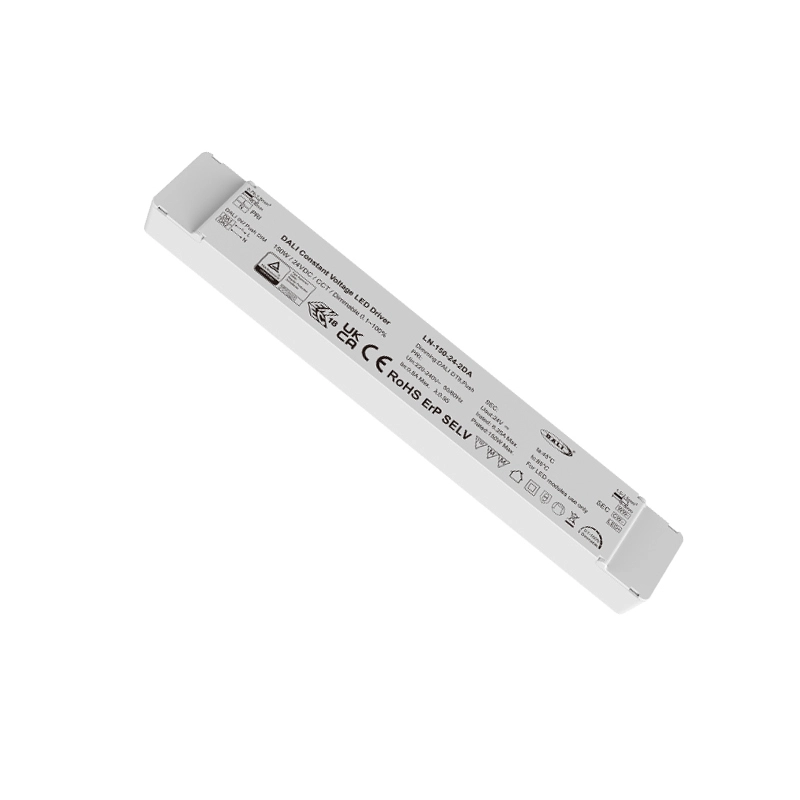

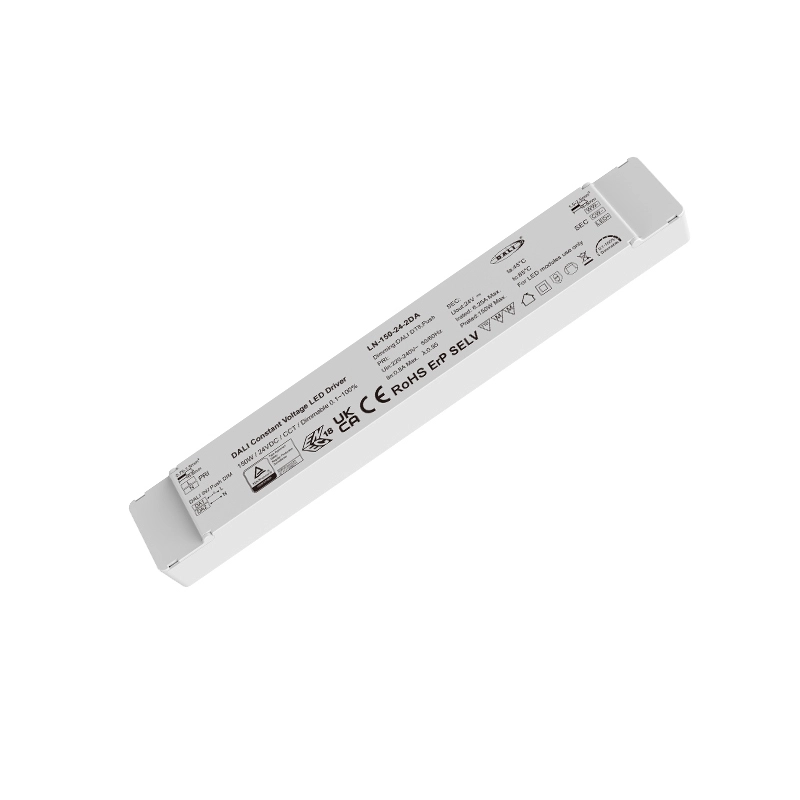

150W 24V DALI CCT Constant Voltage LED Driver

Starwell factory’s hot sale 150W 24V DALI CCT Constant Voltage LED Driver supports independent DALI CCT dual color temperature adjustment, enabling precise control of brightness and color temperature to meet diverse lighting needs. The product boasts 91% high efficiency, a power factor (PF) > 0.95, low harmonic distortion (THD) < 10%, and ultra-low standby power consumption (≤ 0.5W), meeting CE-Erp energy efficiency standards.

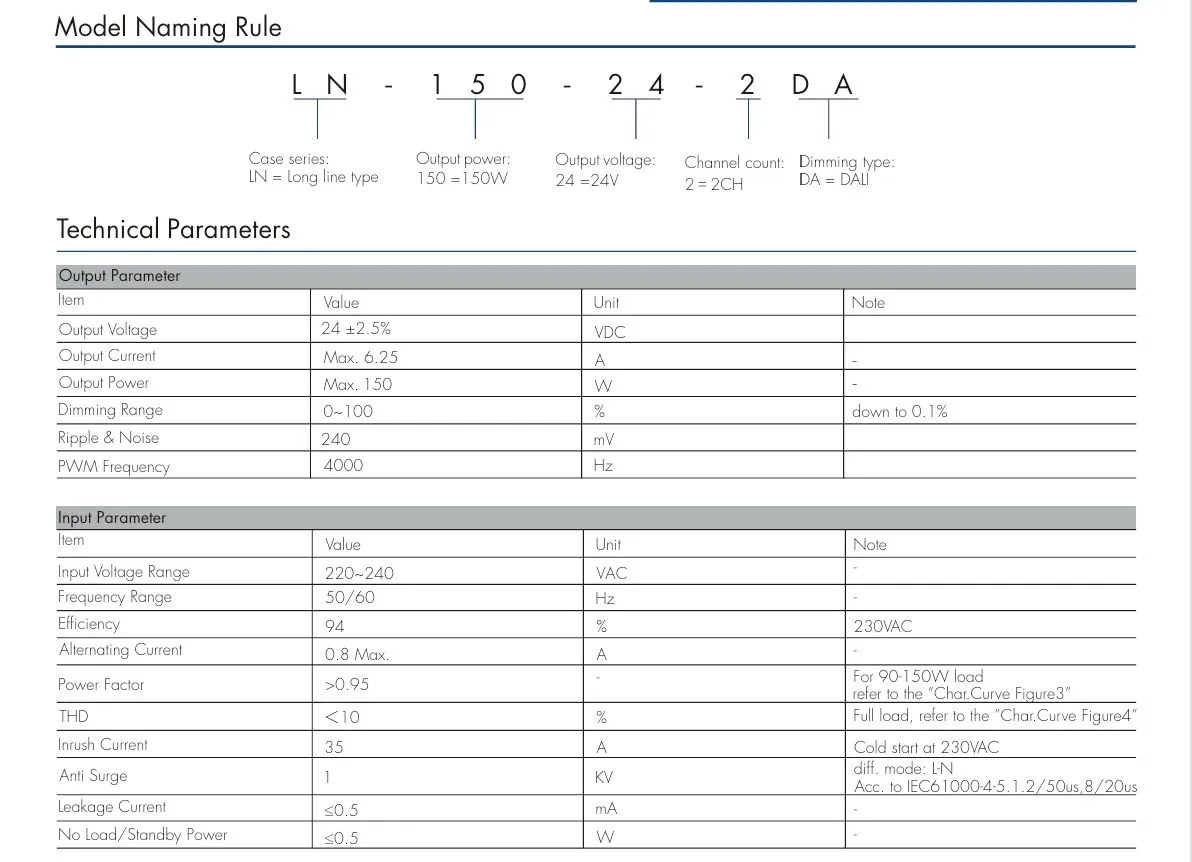

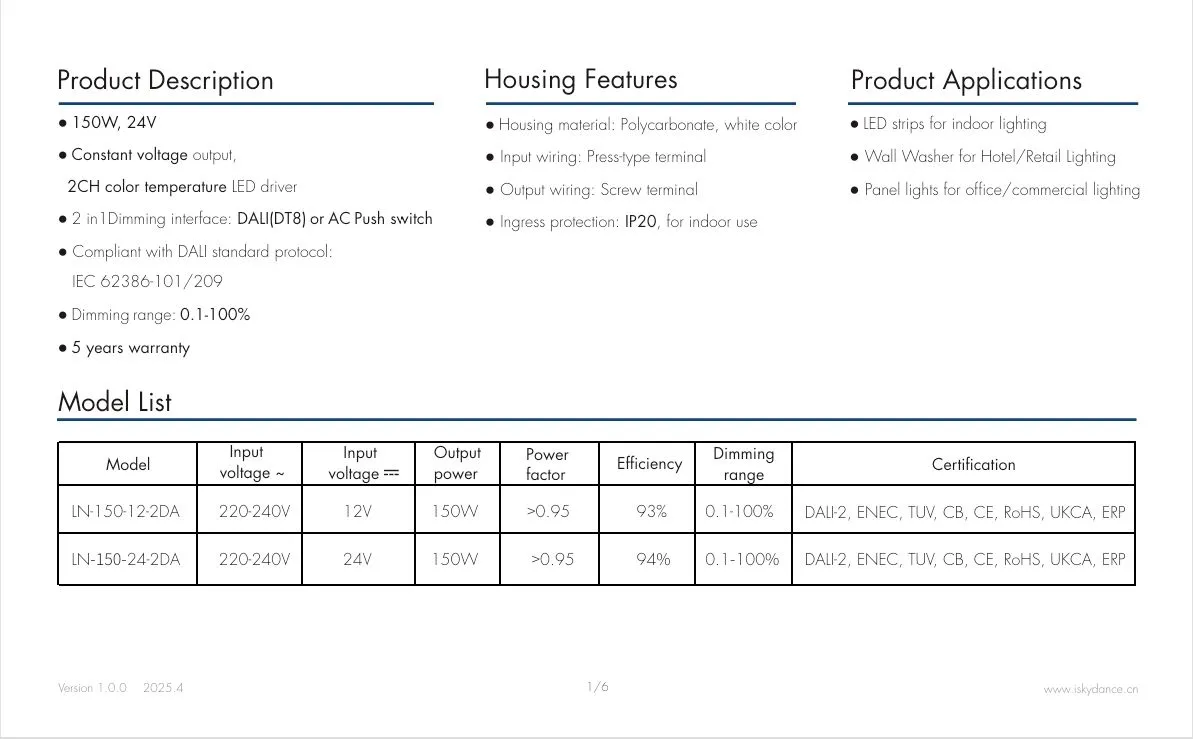

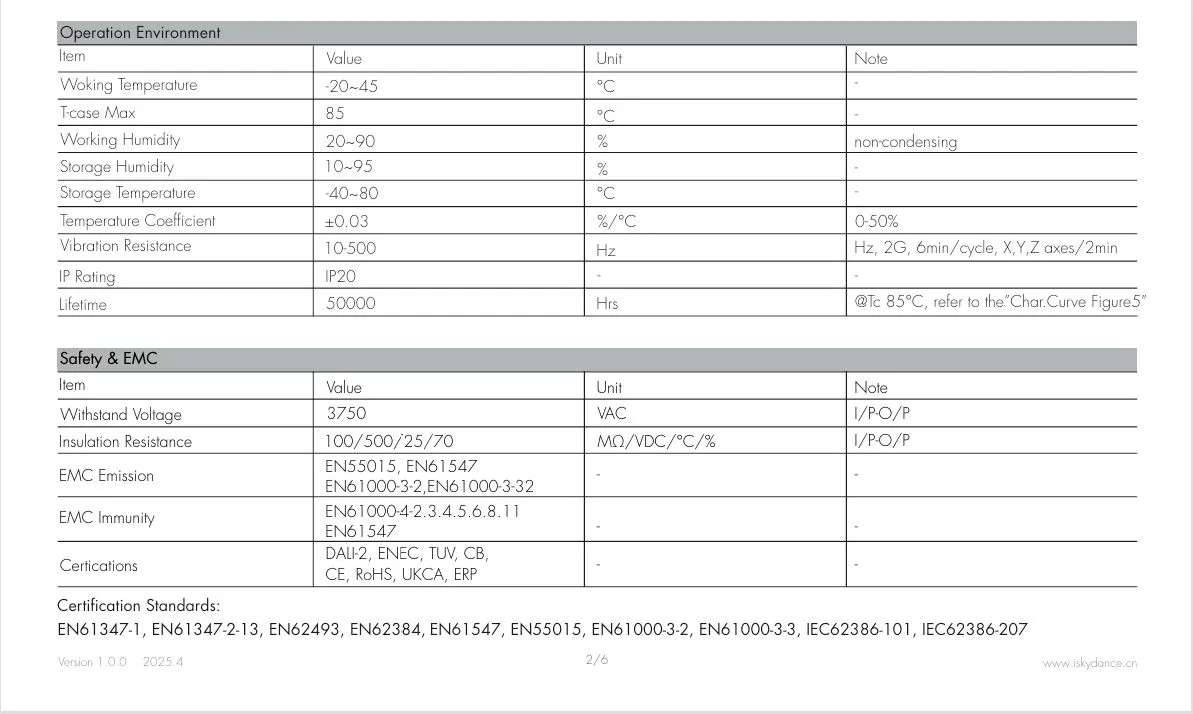

Product Specification

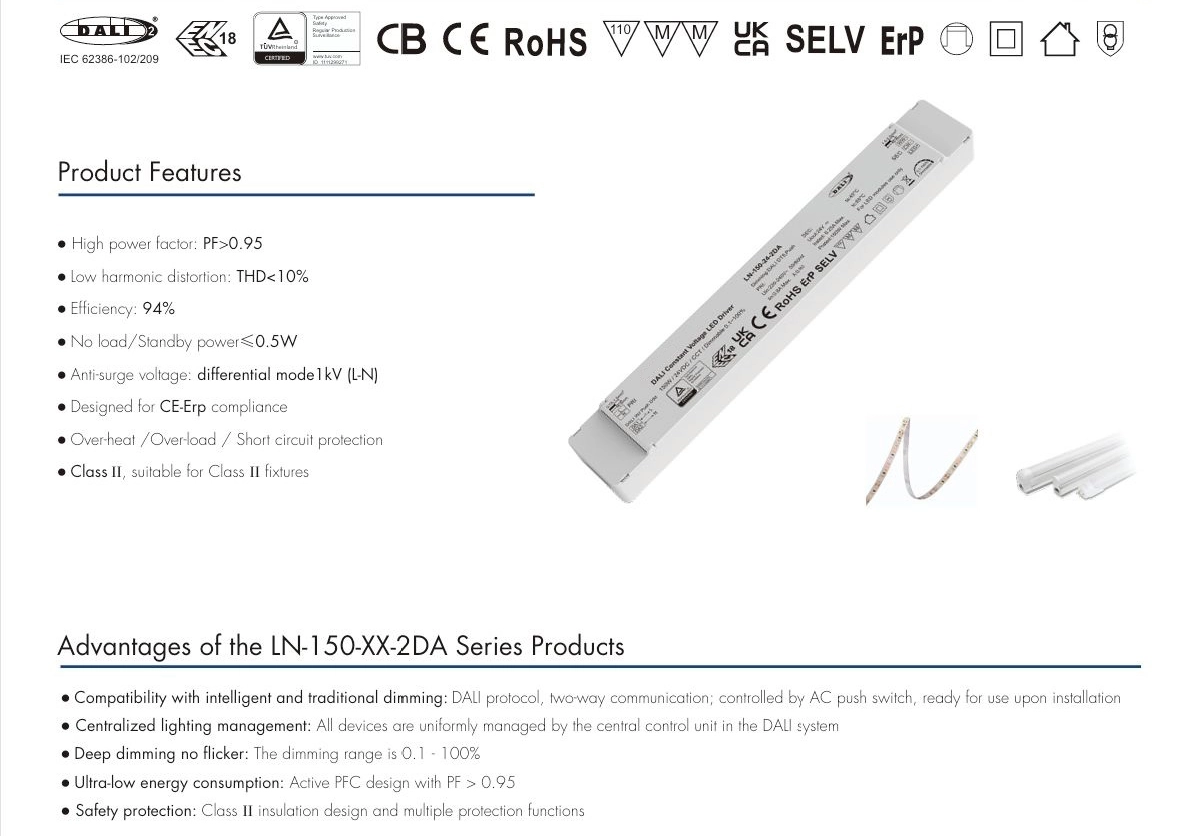

Product Features

● High power factor: PF>0.95

● Low Harmonic Distortion: THD<10%

● Efficiency: 91%

● Flicker-free parameters: Pst LM≤1, SVM≤0.4

● No load/Standby power≤0.5W

● Anti-surge voltage: differential mode1kV (L-N)

● Designed for CE-Erp compliance

● Over-heat /Over-load / Short circuit protection

● Suitable for Class II III fixtures

Basic insulation: The minimum insulation required for the normal operation of the equipment, used to isolate energized parts from accessible parts (e.g., shells, parts that may be touched by the human body) and to prevent direct contact with electric shocks.

Double insulation: 150W 24V DALI CCT Constant Voltage LED Driver is composed of basic insulation and additional insulation, forming two independent layers of insulation protection, even if one layer fails, the other layer can still prevent electric shock

Protection function Over Temperature: Current decrease when PCB temp >100°C, recovers automatically after fault condition is removed. Short Circuit: Shut down the output voltage,recovers automatically after fault condition is removed

Dimming interface  0/1-10V dimming: Dimming range 0-10V or 1-10V, dimming connector current consumption ≤ 0.3 mA, dimming curve refer to the “Char.curve Figure 6-7", CCT curve refer to the “Char. curve Figure 8". Push switch dimming: Voltage range 220~240VAC 50/60Hz.

Dimming range: 0.1-100%

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2012,sell to Western Europe(40.00%),North America(20.00%),Northern Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Mid East(5.00%),Oceania(2.00%),Southeast Asia(2.00%),South America(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dimmable LED Driver,LED Controller,Smart Home,OEM/ODM,DALI/DMX/Zigbee/Bluetooth
4. why should you buy from us not from other suppliers?
We has always been the first ODM/OEM choice of many global leading brands. With our rich experience and expertise in lighting control systems and IoT technologies, such as DALI, DMX 512, KNX, Zigbee, Z-Wave, Bluetooth, Wi-Fi, RF and etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
