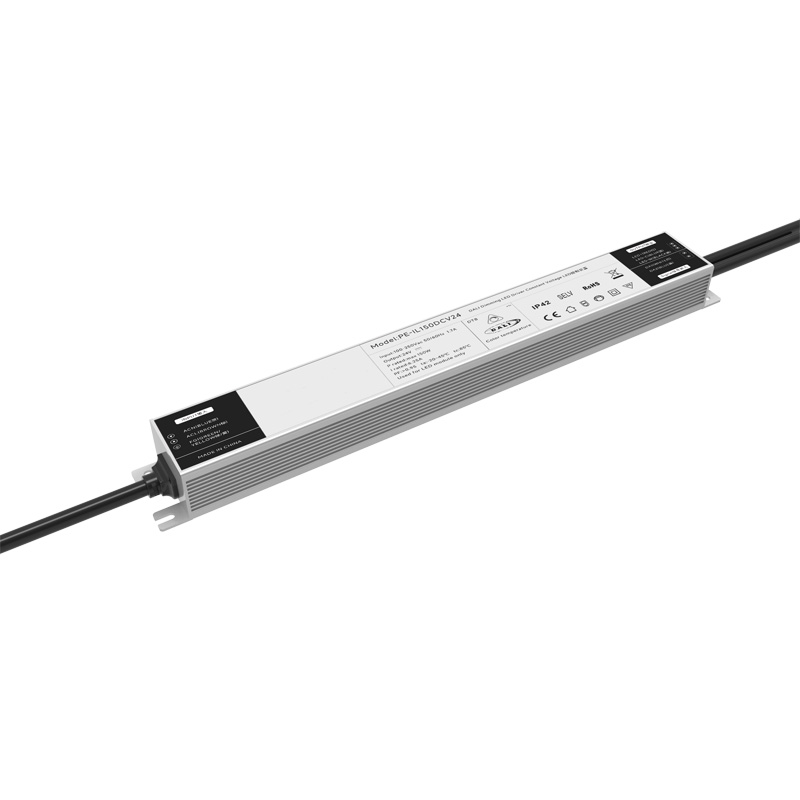

60W Constant Voltage DALI CCT Dimmable LED Driver

60W Constant Voltage DALI CCT Dimmable LED Driver

Being a proficient manufacturer, STARWELL aims to offer you 60W Constant Voltage DALI CCT Dimmable LED Driver. We promise to provide you with the best after-sale support and prompt delivery.
DALI CCT constant voltage LED driver combines the benefits of DALI protocol compatibility, constant voltage output, and adjustable color temperature control, making it suitable for applications where precise lighting control and customization are desired.

Send Inquiry


Product Details

STARWELL is one of leading China 60W Constant Voltage DALI CCT Dimmable LED Driver manufacturers, suppliers and exporters.

PE-IL60DCV adopts special aluminum shell welding process, aluminum shell and internal heat conduction silica gel heat dissipation, more stable use, all raw materials are first-line brands, and imported chips exceed The deep dimming design matches the intelligent dimming system of various brands in the market Anti surge voltage 2KV, smooth dimming, no stroboscopic, low noise in dimming process.

60W Constant Voltage DALI CCT Dimmable LED Driver Features:

1. Dali standard interface complies with Dali 144 standards

2. Dali2 certification, Dali member

3. Digital control output is adopted, and there is no stroboscopic

4. International general AC input 100-250V range

5. Natural air cooling, moisture-proof, heat conduction, silica gel heat dissipation process

6. Self developed depth dimming curve

7. Multiple protection functions

8. Special aluminum welding process, ultra small volume design

9. Comply with ERP standard, and the standby power consumption is less than 0.5W

10. Size: 210 (234) *37*27mm

60W Constant Voltage DALI CCT Dimmable LED Driver Model list:

DALI CCT constant voltage 12v/24v dimming

Series Dimming Model Input Power PF Output Voltage Output Current


DALI PE-IL60DCV24 AC100V-250V 60W 0.96PF THD<10% 24V 2.5A
PE-IL60DCV12 12V 5A


DALI PE-IL100DCV24 AC100V-250V 100W 0.96PF THD<10% 24V 4.17A
PE-IL100DCV12 12V 8.3A


DALI PE-IL150DCV24 AC100V-250V 150W 0.96PF THD<10% 24V 6.25A
PE-IL150DCV12 12V 10A

60W Constant Voltage DALI CCT Dimmable LED Driver Application:

1.Led light strip

2.Villa intelligent lighting

3.It can be connected to DALI intelligent lighting system

4.Museum lighting

60W Constant Voltage DALI CCT Dimmable LED Driver Specification:

Model PE-IL60DCV24 PE-IL60DCV12
OUTPUT Output Voltage 24Vdc 12Vdc
Max Output Voltage 2.5A 5A
No load output voltage 24Vdc 12Vdc
Load power range 0-2.5A 0-5A
Output Power 0-60W 0-60W
Strobe Level No Flicker
Dimming Range 0~100%,LEDstart at 0.03%possible.
PWM Dimming Frequency >3600Hz
Current Accuracy ±3%
Power down mode memory function when power down
INPUT Dimming Interface DALI Dt8 (IEC62386)Signal control current < 2mA
Input Voltage Range 100-250Vac
Frequency 50/60Hz
Input Current <0.7A ac100v
Power Factor PF>0.99/110V ac(at full load)
THD 230Vac@THD <8% (at full load)
Efficiency(typ.) 88% 87%
Standby Power 0.4W
Inrush Current(typ.) cold start180A/220ns@230Vac ac
Anti Surge L-N: 2kV
Leakage Current <0.25mA/230Vac
ENVIRONMENT Working Temperature ta: 45°C tc: 80 °C
Working Humidity 20 ~ 95%RH, non-condensing
Storage Temp., Humidity -40 ~ 80°C, 10~95%RH
Temp.Coefficient ±0.03%/°C(0-50)°C
Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION Over-heat Protection Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
Over Load Protection Shut down the output when rated power≥102%, auto recovers.
Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
Non-load Protection output Constant Voltage.
Withstand Voltage I/P-O/P: 3750Vac
Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards IEC/EN61347-1, IEC/EN61347-2-13
EMC Emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard IEEE 1789
OTHERS Dimension 235×37×27mm(L×W×H)
Packing 240×47×33mm(L×W×H)
Weight(G.W.) 350g±10g



Wiring diagram:

The abnormal conditions and the corresponding treatment methods:

Digital Addressable lighting Interface (DALI)

DALI slave unit will send data only master unit requests, that is, adopt command answering mode

There are 64 slave units at most in the same DALI network, each unit has a separate address(short address), A salve unit can also be assigned to a certain group, and a slave unit can belong to different group, salve unit can exist up to 16 groups at the same time, each unit can set 16 scenarios.

The main features of the DALI protocol

1)Asynchronous serial communication.

2)1200 baud rate, using the Manchester encoding format.

3)Two lies differential signal.

4)The high level when differential voltage is larger than 9.5V.

5)The low level when differential voltage is less than 6.5V.

6)The master unit controls communication process.

7)One DALI bus can connect with 64 slave units.

8)Each slave unit can be individually addressed.

DALI Electrical Specification

Under the idle state, from machine unit method to control the bus:

1)High Output power at ordinary time, not to interference in the hold signal.

2)Output low electricity at ordinary time, directly to the DALI bus short circuit to each other.

3)DALI bus maximum current of 250mA

4)Not a two-way communication at the same time.

5)Transmission cable up to 300 meters, or pressure drop is no more than 2v
