China 6.6KW OBC Battery Charger Suppliers, Manufacturers - Factory Direct Price

Product Details

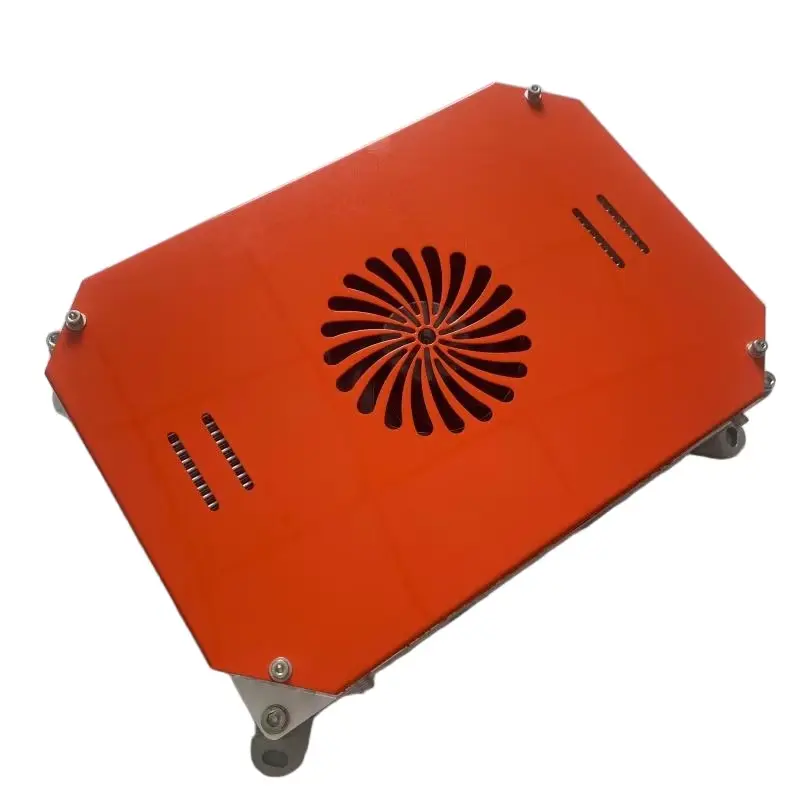

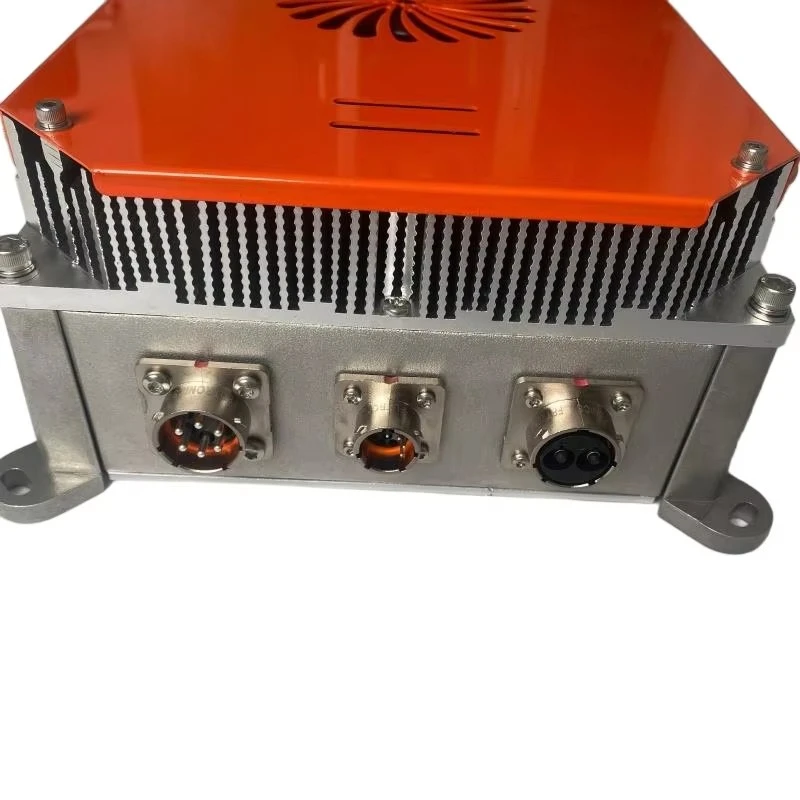

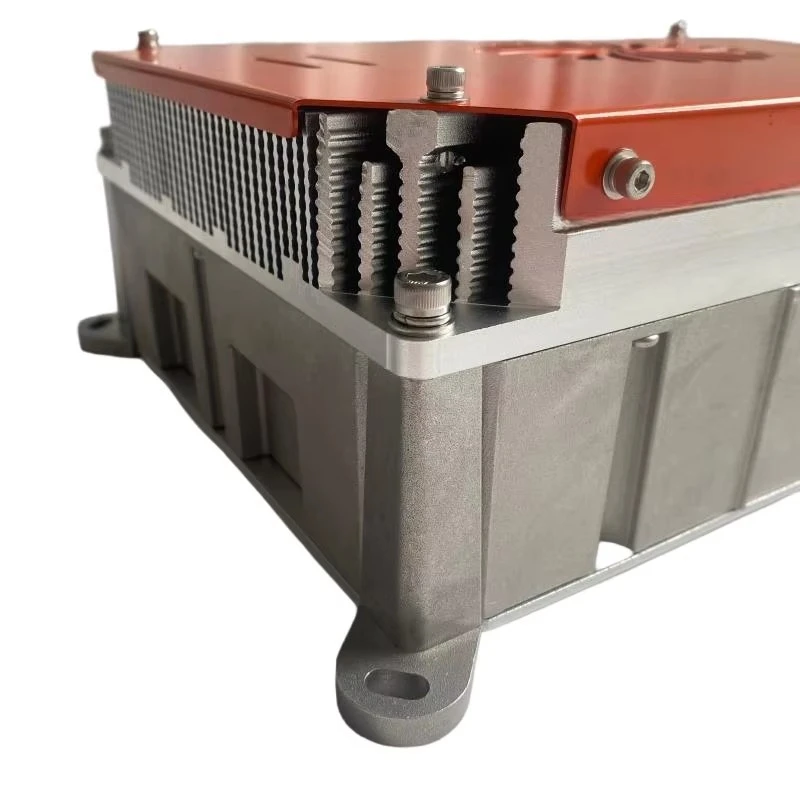

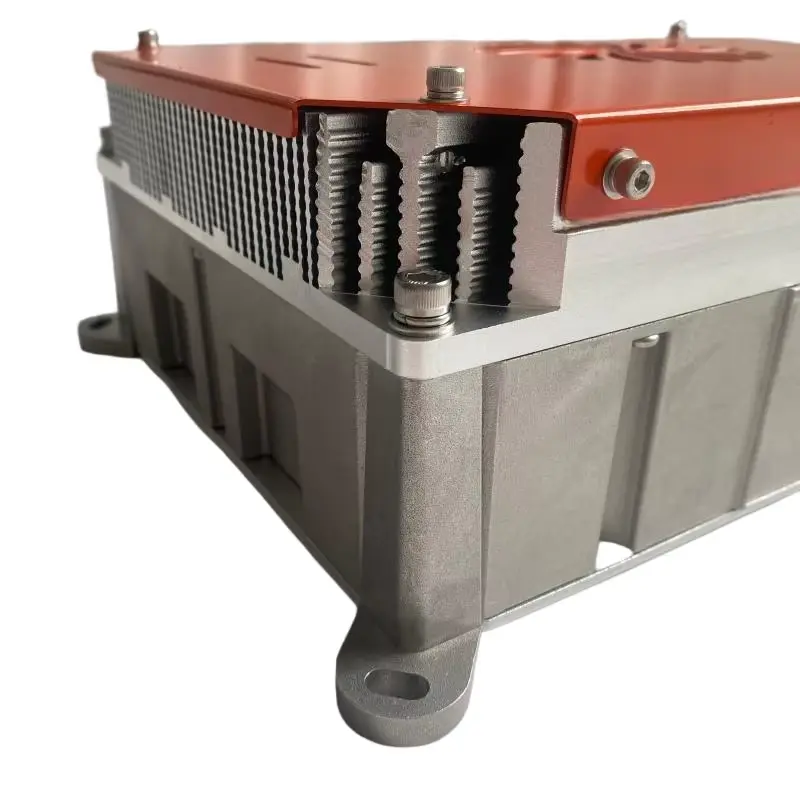

As a trusted China supplier, and factory, Starwell provides the advanced 6.6KW OBC Battery Charger designed for electric vehicles and industrial battery systems. This charger integrates high efficiency, intelligent protection, and durable design, making it a dependable choice for OEM and bulk buyers seeking long-term performance and safety.

The 6.6KW OBC Battery Charger is engineered to deliver consistent power supply for EV batteries, ensuring optimized charging cycles, extended battery life, and reliable operation even in harsh environments.

SPECIFICATION
Input	Rated input voltage	220V OR 380V OR 110V
	Inrush current	≤32A
	Input power factor	≥0.99（@220Vin,Pomax）
Output	Output method	Constant Voltage / Constant Current
	Output Power	6600W@220VAC/3300W@110VAC/6600W@380VAC
	Voltage regulation accuracy	≤1%
	Current regulation accuracy	≤5%
	Ripple voltage coefficient	≤1%
	Output response time	≤5S
	Typical efficiency	≥93%
Low Voltage output	Output method	Constant Voltage
	Output power	13.8V/27.6V
	Raged current	5A
	CV ccuracy	±2%
	Max current	5.5A±0.5A
	Output power	≥62.5W
	Ripple voltage coefficient	1%
Communi cation function	CAN Communication	Yes
	Baud rate	125Kbps、250Kbps、500Kbps(Optional)
	Terminating resistor	No

PROTECTION

	Input over voltage protection	YES
	Input under voltage protection	YES
	output over voltage protection	Output ceases when the output voltage exceeds the maximum limit by 1%.
	Output over voltage protection	Output ceases when the output voltage falls below the minimum limit by 5%.
Pprotection	Output over current protection	Output ceases when the output current exceeds the maximum limit by 1%.
Pprotection	Over temperature protection	Power output begins to decrease at 85°C; automatic shutdown at 90°C.
	Short circuit protection	Output disabled.
	Anti-reverse protection	Yes.
	Gound protection	≤100 mΩ
	CAN communication protection	Automatically stops output in the event of a CAN communication failure.

Safety Standards and Others

Safety Standards and Others	Withstand voltage	Input-to-Output: 2000 VAC ≤ 20 mA Input-to-Ground: 2000 VAC ≤ 24 mA Output-to-Ground: 2000 VAC ≤ 20 mA; all tests conducted for 1 minute
	Insulation resistance	Input, Output, and Signal terminals to Enclosure: ≥ 10 MΩ (Test Voltage: 1000 VDC)
	Electromagnetic immunity	Compliant with Clause 11.3.1 of GB/T 18487.3-2001
	Electromagnetic harassment	Compliant with Clause 11.3.1 of GB/T 18487.3-2001
	Harmonic current	满足 GB 17625.1-2003 6.7.1.1 条
	Current rise time	≤5 s, Overshoot ≤5%
	Turn off response time	100%到 10%≤50mS，100%到 0%≤200mS
	Protection level	IP67
	Vibration resistant	10–25 Hz at 1.2 mm amplitude; 25–500 Hz at 30 m/s²; 8 hours per direction.
	Noise	≤60dB(Class A)
	MTBF	150000H
	Working environment	Relative Humidity: 5%–95% (non-condensing)
	Operating temperature	-35℃ ~ +85℃
	Storage temperature	-55℃ ~ +100℃

Key Features

1. High Efficiency & Stable Output

· The 6.6KW OBC Battery Charger achieves up to 93% efficiency, reducing energy loss and improving charging performance.

· Supports constant voltage and constant current modes for precise battery management.

· Fast response time ensures smooth and stable charging output.

2. Robust Protection System

· Built-in intelligent protections including over-voltage, over-current, short circuit, and reverse polarity protection.

· The 6.6KW OBC Battery Charger automatically shuts down under abnormal conditions and safely recovers.

· Thermal protection reduces power at 85°C and shuts off at 90°C for maximum safety.

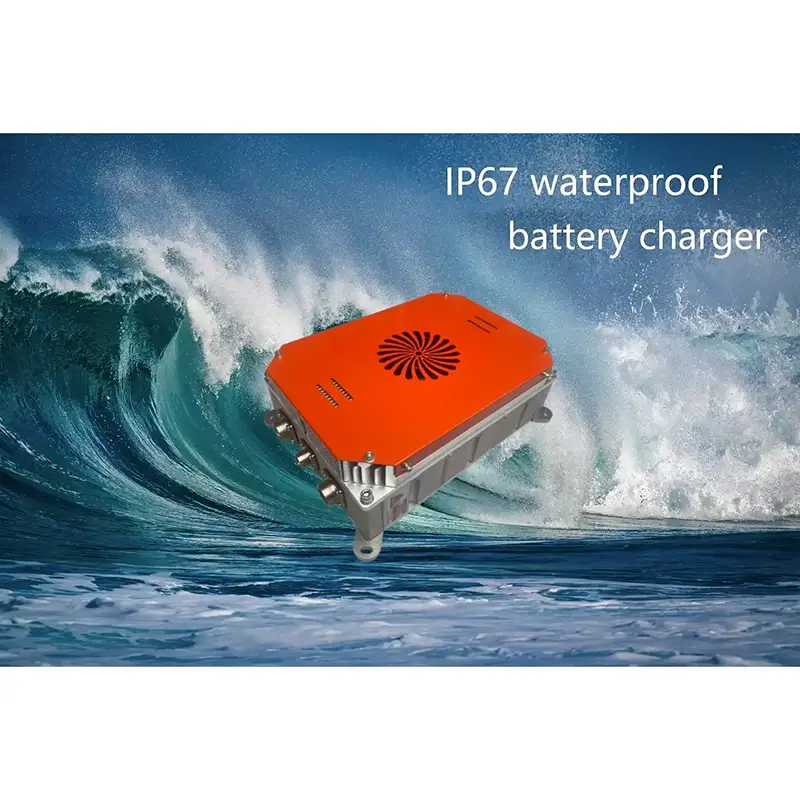

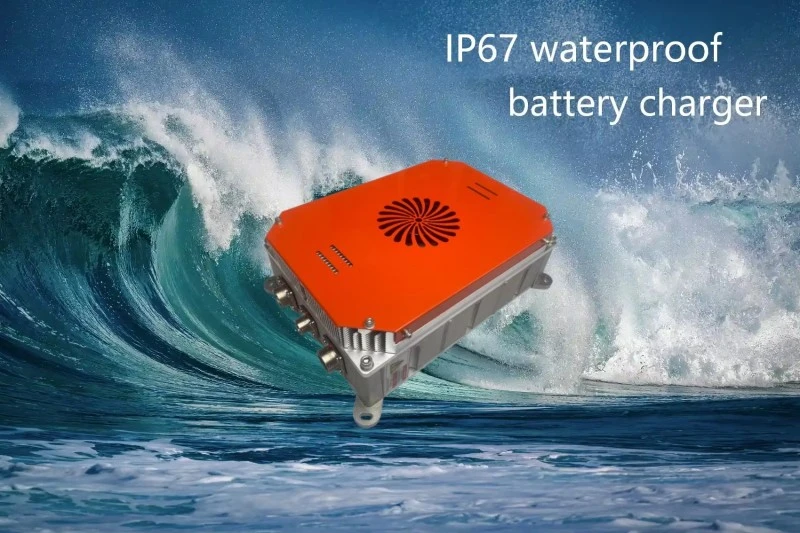

3. IP67 Sealed Design

· Fully potted structure ensures excellent waterproof, dustproof, and vibration-resistant performance.

· The 6.6KW OBC Battery Charger operates reliably even under short-term flooding conditions.

· Ideal for outdoor, industrial, and demanding environments.

4. Wide Voltage Compatibility

· Supports 110V, 220V, and 380V input, offering flexible application across global markets.

· High power factor ≥0.99 ensures efficient energy utilization and reduced grid impact.

1. Are you a manufacturer or trading company?

We are a manufacturer which has 8 years expearance in power supply/power adapter/ charger field.

2. Is your product in full current and full power ?

Yes, we will not do non-full current and non-full power product to customers.

3. Is your products safety ?

Yes. First, we utilize brand-new, fire-retardant materials; furthermore, our products have obtained numerous international certifications, including CE, RoHS, UL, FCC, TUV, GS, PSE, KC, CB, and BSMI.

4. What is your MOQ?

500pcs

5. What is your product warranty policy?

One year

6. What is the delivery time ?

Sample Orders: 2–3 business days after confirmation.

Bulk Orders: Typically 7–15 business days after confirmation; specific delivery times depend on your order quantity.

7. What service could you offer ?

OEM ODM are welcome

8. What is your payment method and trade term ?

By TT , Paypal , Western Union

For bulk order, 30% as deposit, 70% pay off before shipment

Hot Tags: 6.6KW OBC Battery Charger, China, Manufactures, Suppliers, Factory, In Stock, Bulk, Quality, Classy, CE

Send Inquiry

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Products

Contact Us

6.6KW OBC Battery Charger

Wholesale 6.6KW OBC Battery Charger which manufactured by STARWELL, a professional manufacturer in China. It delivers stable performance, IP67 protection, and cost-effective electric vehicle charging solutions.
