Product Details

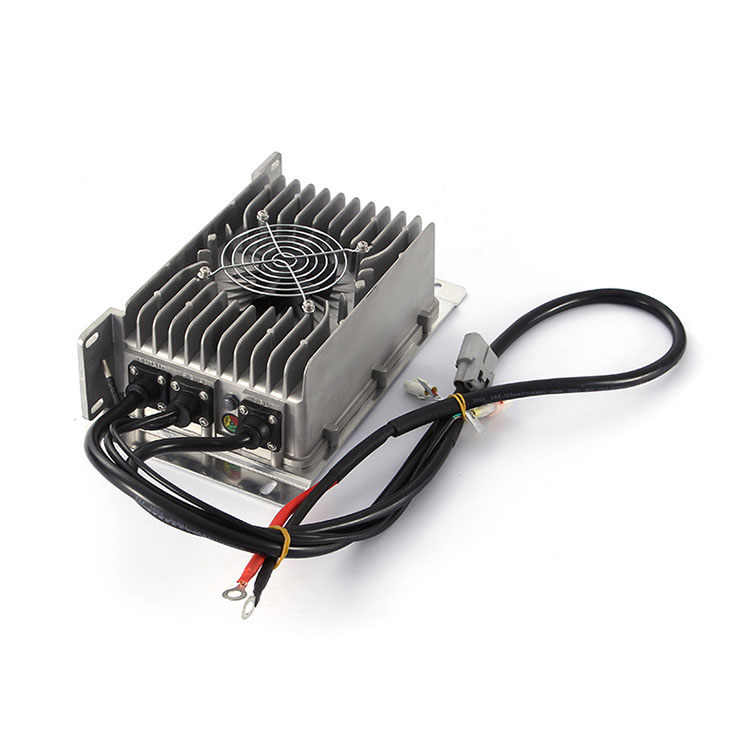

The 2KW OBC charger manufactured by STARWELL is a versatile charging solution designed for electric forklifts, sightseeing cars, electric vehicles, and power batteries. It is capable of charging lead-acid batteries, lithium batteries, and nickel-metal hydride batteries.

This OBC charger is equipped with a waterproof design, ensuring its durability and reliability in various environments. It supports CAN BUS communication protocol, allowing for seamless integration with compatible systems.

The charger incorporates an intelligent charging management system that adjusts charging parameters based on the battery's condition and requirements. This optimization enhances charging efficiency and extends battery lifespan.

With its 2KW power output, this OBC charger provides efficient and rapid charging capabilities, reducing charging time and maximizing productivity. It is a reliable solution for charging electric vehicles and power batteries in various industrial applications.

Technical parameter

AC input voltage range:90-264VAC;45-65Hz

AC Input Maximum Current:≤13.5A@100VAC;10.5A@220VAC

Power factor:≥0.99

Overall efficiency：94.0%

Noise：≤45dB

Grade of waterproof：IP67

Weight：4.4kg

Operating temperature：-30℃-+65℃

Storage temperature：-40℃-+95℃

CAN bus control is optional; Optional low voltage auxiliary 12V;three-color indicator lights can be attached to the outside; charging lock (charging process can be locked by relay vehicle power system). CC and CP can be added to meet the charging requirements of various occasions

It can be equipped with national standard or European standard charging post communication protocol.

Specification

Charger type	lifepo4 charger , Li-ion charger and lead acid charger
Input voltage	110V or 220V or 150v-300v
Output voltage	72V
Color	Silver / black / customized
Max Power	Can be customized
Control mode	Intelligent independent digital control chip
Customize charging way	Yes. (Pre-charging, automaticly shut off, over charging protection etc)
Efficiency	85-88%
Warranty	2 years
Case	Aluminum / plastic
Application	Electric motorcycles, sweeper, goft car, e-scooter, forklift, storage energy etc.

MODEL LIST:

Rated voltage of battery pack	Range of output voltage	Range of output current	Typical efficiency
48V	0~65V	0~60A	≥92%
72V	0~96V	0~44A	≥92%
104V	0~130V	0~32A	≥93%
144V	0~180V	0~22A	≥93%
360V	0~440V	0~9A	≥94%
