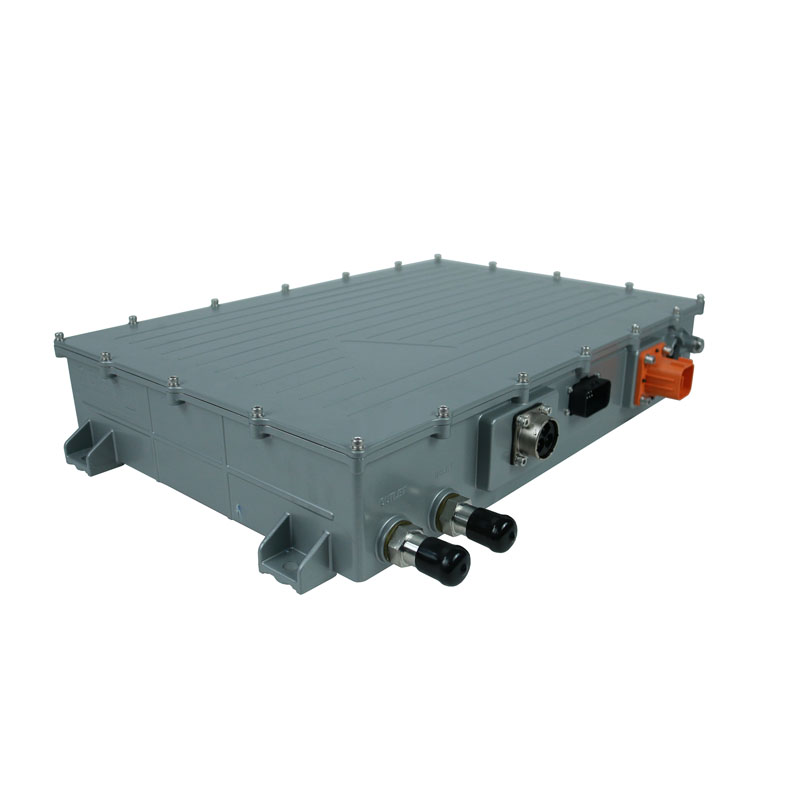

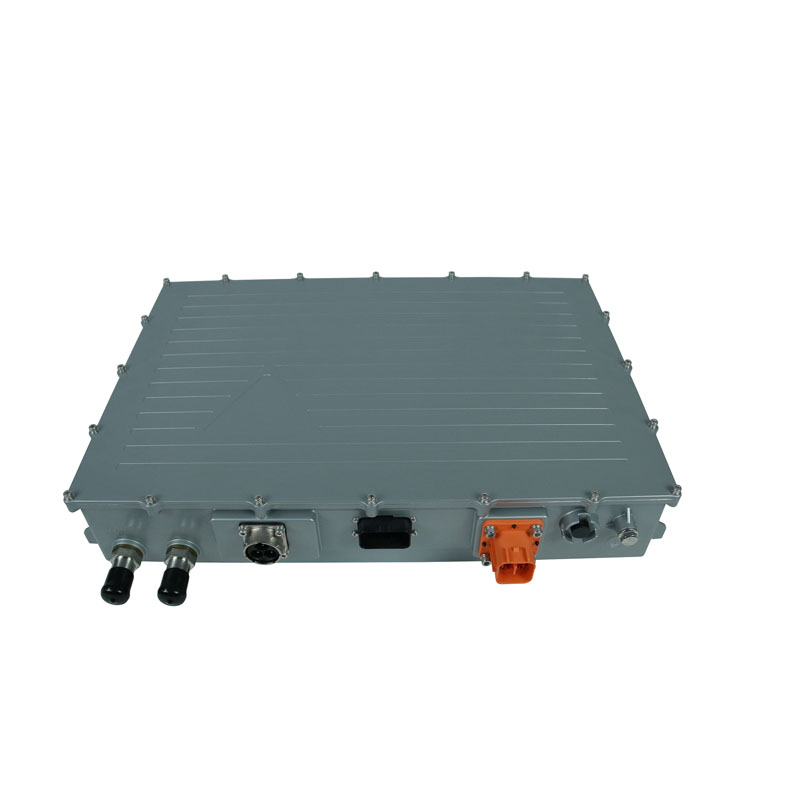

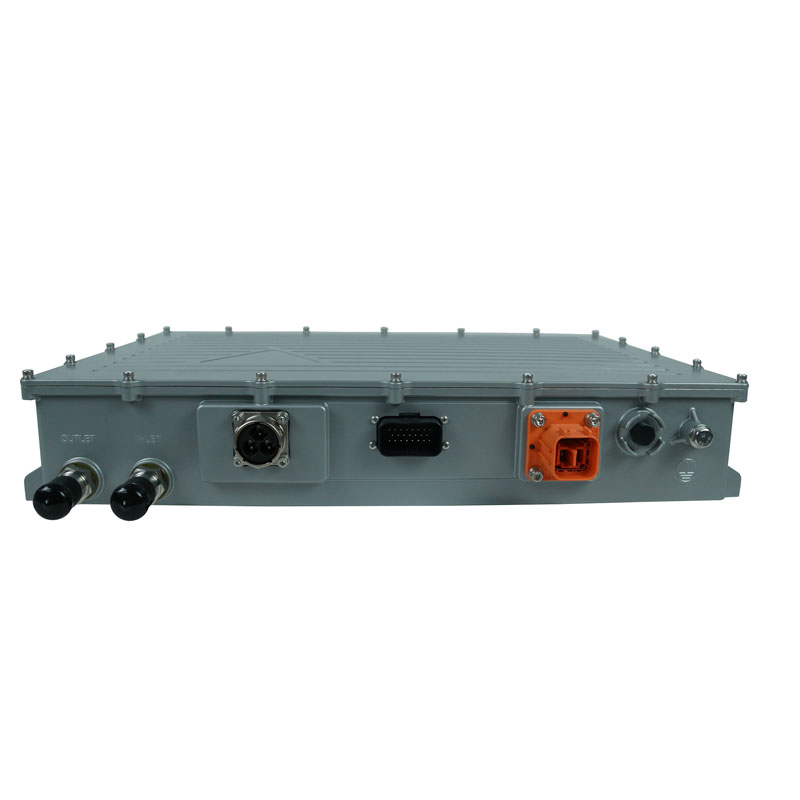

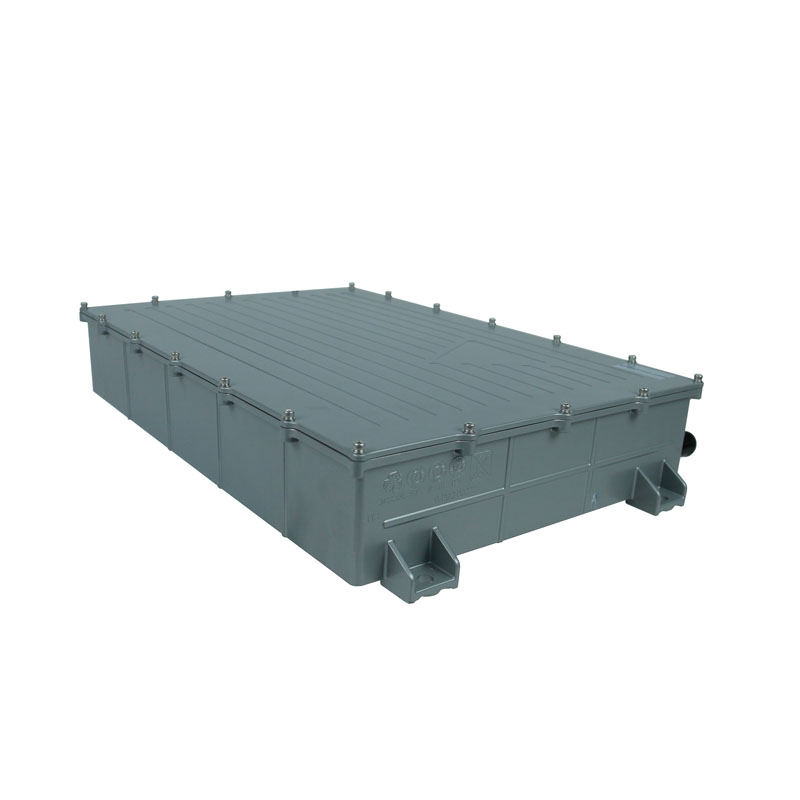

The SW-AS22000 series OBC (On-Board Charger) is specifically designed for larger power charger applications, such as buses and commercial trucks. It features a three-phase AC input and a wide output voltage range of 400VDC to 850VDC. The OBC is built to withstand harsh environments, including vibration, thermal shock, and extreme temperature ranges.

One of the notable features of the SW-AS22000 series is its liquid cooling system, which helps dissipate heat efficiently and ensures optimal performance. The OBC also comes with an IP67 enclosure, providing protection against dust and water ingress.

The OBC is programmable, thanks to the independent control unit embedded inside. This flexibility allows the charger to be customized to meet individual customer requirements. Additionally, the SW-AS22000 series has excellent multi-grid adaptability, making it compliant with international standards such as SAE J1772 and EN61851.

The 22kw OBC charger utilizes processor-driven charging algorithms, which optimize charging efficiency and contribute to a longer lifespan for both the battery charger and the high-voltage (HV) battery. These algorithms ensure that the charging process is tailored to the specific characteristics of the battery being charged, maximizing its performance and longevity.

In terms of application range, the PCHG-AS22000 series, manufactured by STARWELL, supports various battery types. This includes lead-acid batteries, lithium-ion batteries, ternary lithium-ion batteries, and lithium iron phosphate batteries. The 22kw OBC charger is specifically designed to charge these battery types effectively and safely.

Furthermore, the SW-AS22000 series supports communication via the CAN BUS protocol, allowing it to integrate with other vehicle systems for enhanced control and monitoring capabilities.

Main Feature

★Compliance with three phase AC input .

★Compliance with SAE J1772 and EN61851.

★Compact and lightweight construction.

★Constant power and constant current charging capable.

★Vibration-resistant and IP67 for on-board use.

★Firmware up-gradable over CAN bus.

★DC High Voltage Interlock Loop (HVIL) protection.

★Precise and efficient charging power.

Function and Feature:

Type	22KW on-board charger
Model	SW-AS22000
Rate Output Voltage	700V
Charging mode	Response mode (can communicate)

AC input	3-phase	Unit
Input voltage range	152– 465	V
Input frequency range	47 – 63	Hz
AC current THD	< 5	%
Power factor	> 0.99
Efficiency	> 94 @ from 50% to Max load	%
Max. input current (eff)	64	A
Max input power	22	kVA
INRUSH current	< 40 @ 380 Vac	A

DC output		Unit
Voltage programmable range	400 – 850	Vdc
Min. voltage Constant Power range	700	Vdc
Charging voltage accurancy	≤1	%
Charging current accuracy	≤5	%
Charging current ripple amplitude	≤1	%
Max. output power	11	KW
Max. charging current	18	Adc
Output response time	≤5	S
Pre-charging	internal

Charging function
Charge function	Charging according to BMS communication
Communication function	CAN bus control
Communication protocol (to BMS)	By SAE J1939/Defined by customer
CAN communication baud rate	250/500 kbps, without terminate resistor.
AC charge control	Compliant SAE J1772 and EN 61851 When SAE J1772 is enabled, the charger is fully compliant with SAE J1772 Power Station (EVSE SAE J1772 compliant, level 1 and 2). When EN 61851 is enabled, the charger is fully compliant with EN 61851 Power Station.
Wake-up	12V signal Hardwire wake up BMS wake-up command CP,CC signal wake up
