Product Details

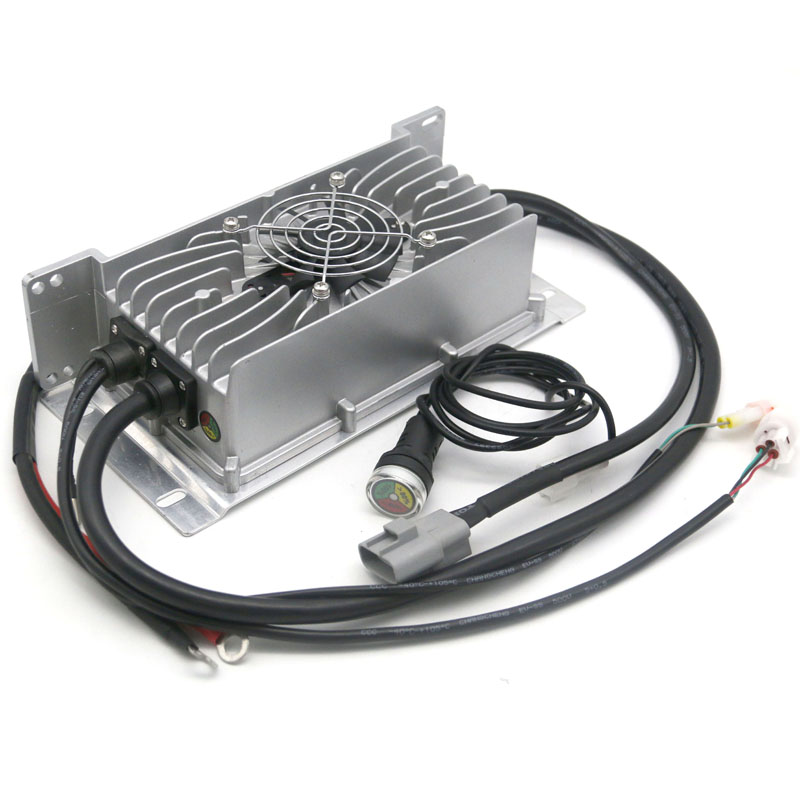

This 1.2KW OBC CHARGER is provide from STARWELL.The shell of this series of chargers adopts an integrated die-casting structure, ensuring strength and durability. The inner part of the charger utilizes a glue-filling process to prevent loose connections and damages to internal components, providing stable and reliable charging performance.

This charger is suitable for various types of batteries, including flooded batteries, sealed (VRLA gel) lead-acid batteries, lithium batteries, Ni-MH batteries, Ni-CD batteries, and more. It can be used for cyclic charging or floating charging of battery packs for electric cars, motorcycles, sightseeing cars, cycle charging cars, forklifts, communications equipment, electric power devices, ships, and other applications.

The charger incorporates multiple protection features such as overcharging protection, over-discharging protection, short circuit protection, over current protection, and more, ensuring the safety and stability of the batteries during the charging process. Additionally, it is equipped with an intelligent charging management system that adjusts and optimizes the charging based on the state and requirements of the battery, extending the battery's lifespan.

In addition to these functionalities, the charger exhibits high charging efficiency, providing fast charging and efficient energy conversion, thereby saving charging time and reducing energy consumption. It also offers adjustable charging currents and voltages to accommodate various battery charging requirements.

Overall, this charger is a powerful and versatile charging device suitable for battery management and charging needs of electric vehicles and power equipment. Whether for home use or commercial applications, it delivers reliable, efficient, and safe charging solutions.

Technical parameter

AC input voltage range:180-260VAC;45-65Hz

AC Input Maximum Current:≤6A@220VAC

Power factor:≥0.98

Maximum efficiency：93.0%（full load）

Noise：≤45dB

Grade of waterproof：IP67

Weight：3kg

Operating temperature：-30℃-+55℃

Storage temperature：-40℃-+95℃

CAN bus control is optional; three-color indicator lights can be attached to the outside; charging lock (charging process can be locked by relay vehicle power system). To meet the charging requirements of various occasions

SPECIFICATION:

NAME	lifepo4 charger , Li-ion charger and lead acid charger
Input voltage	110V or 220V or 150v-300v
Output voltage	48V
Color	Silver / black / customized
Max Power	Can be customized
Control mode	Intelligent independent digital control chip
Customize charging way	Yes. (Pre-charging, automaticly shut off, over charging protection etc)
Efficiency	85-88%
Warranty	2 years
Case	Aluminum / plastic
Application	Electric motorcycles, sweeper, goft car, e-scooter, forklift, storage energy etc.
