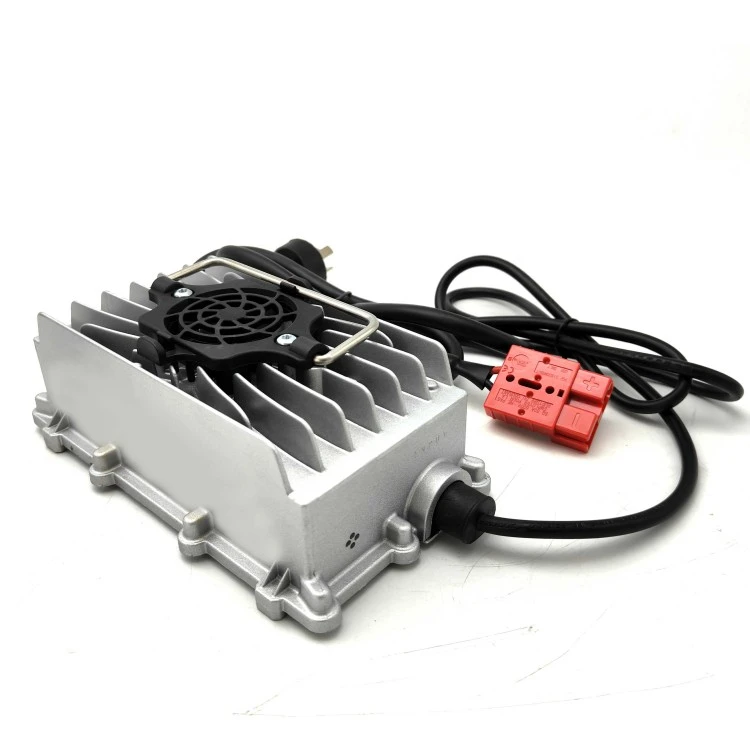

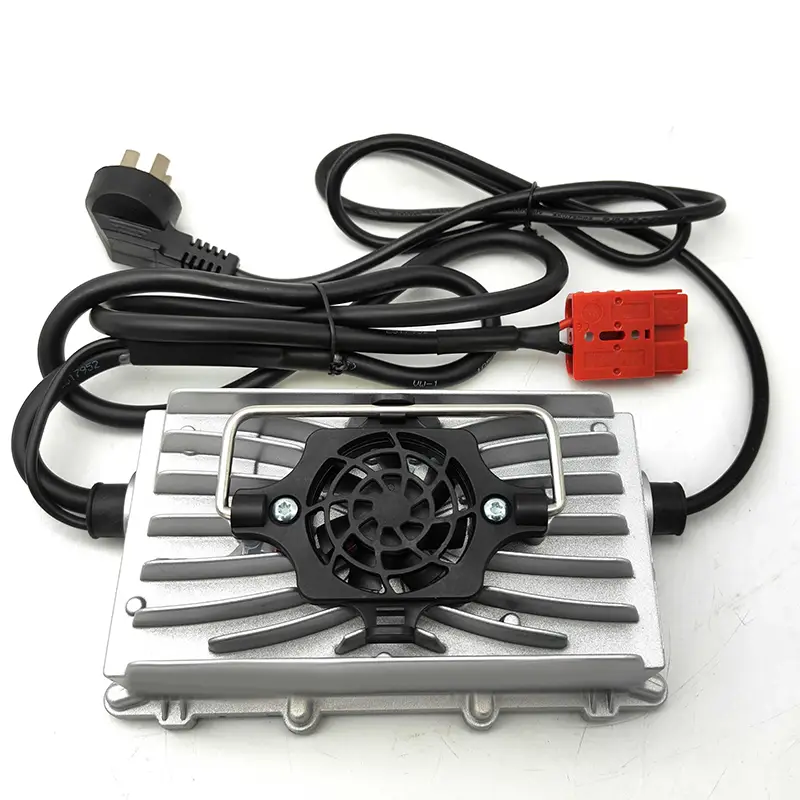

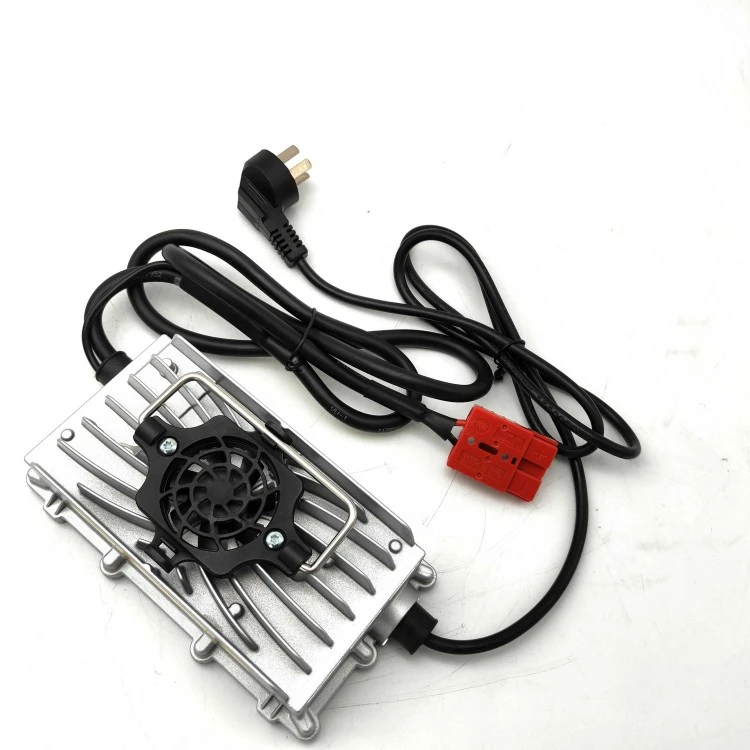

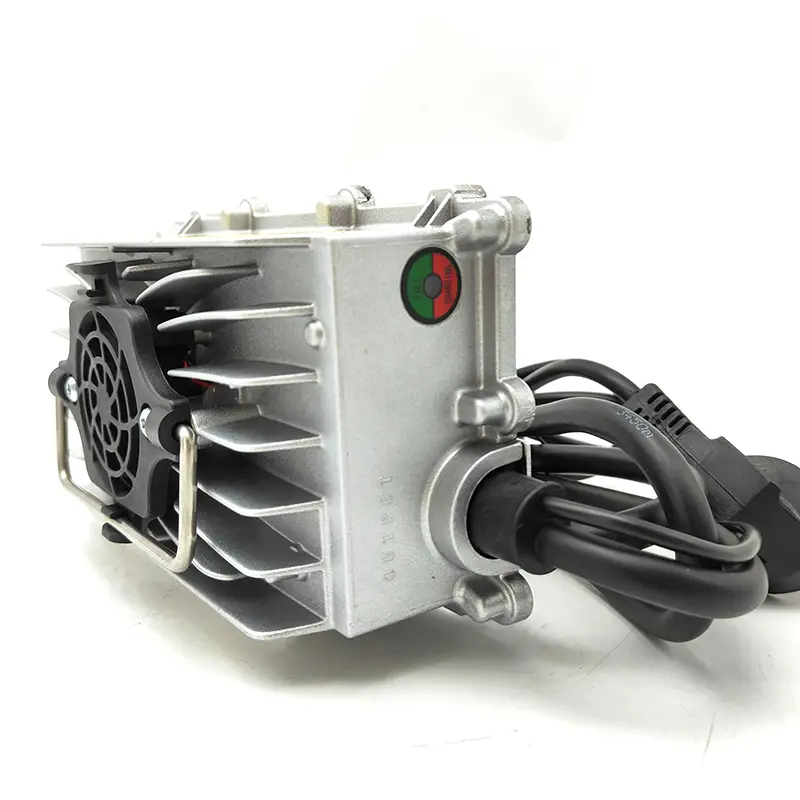

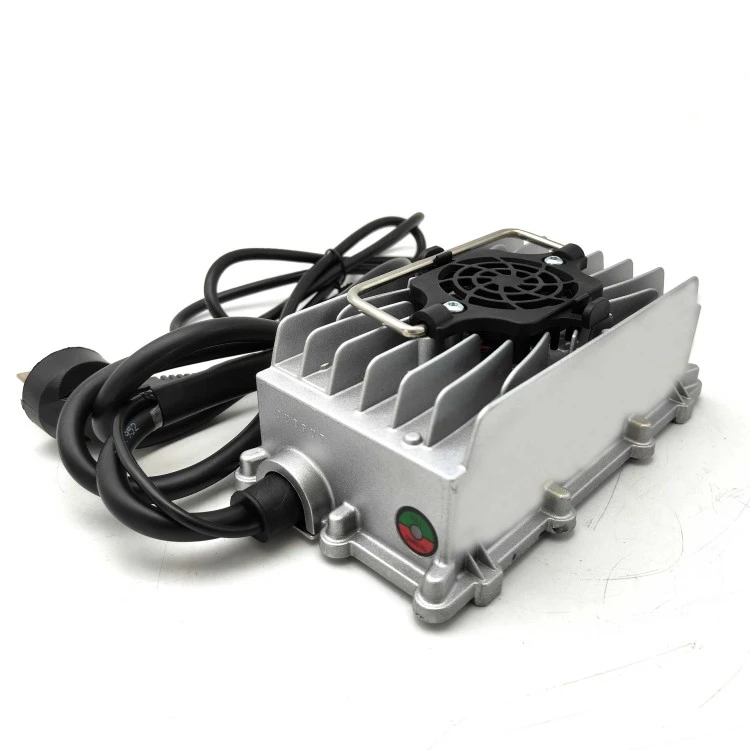

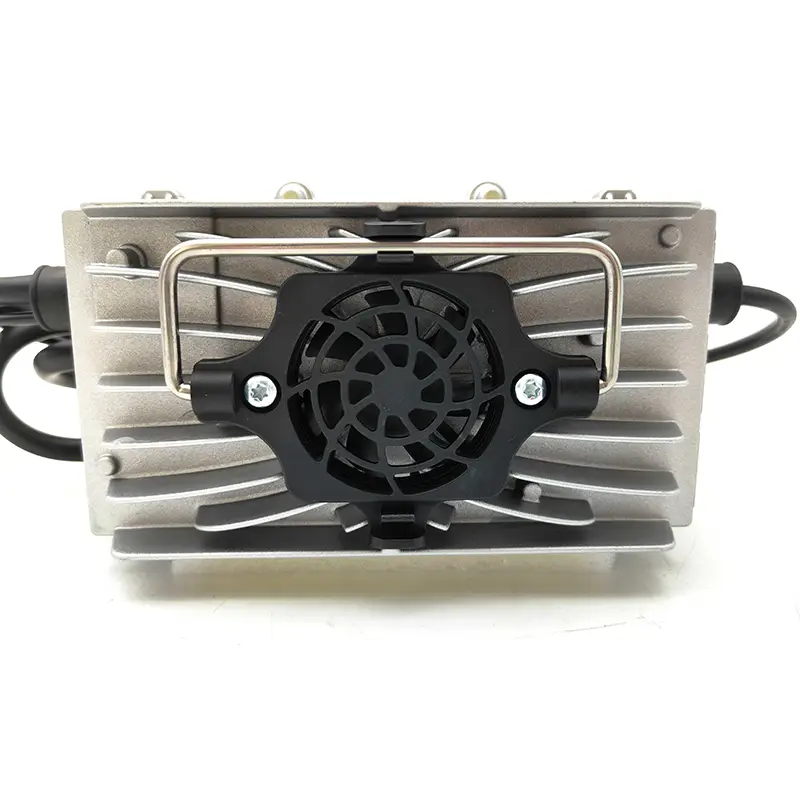

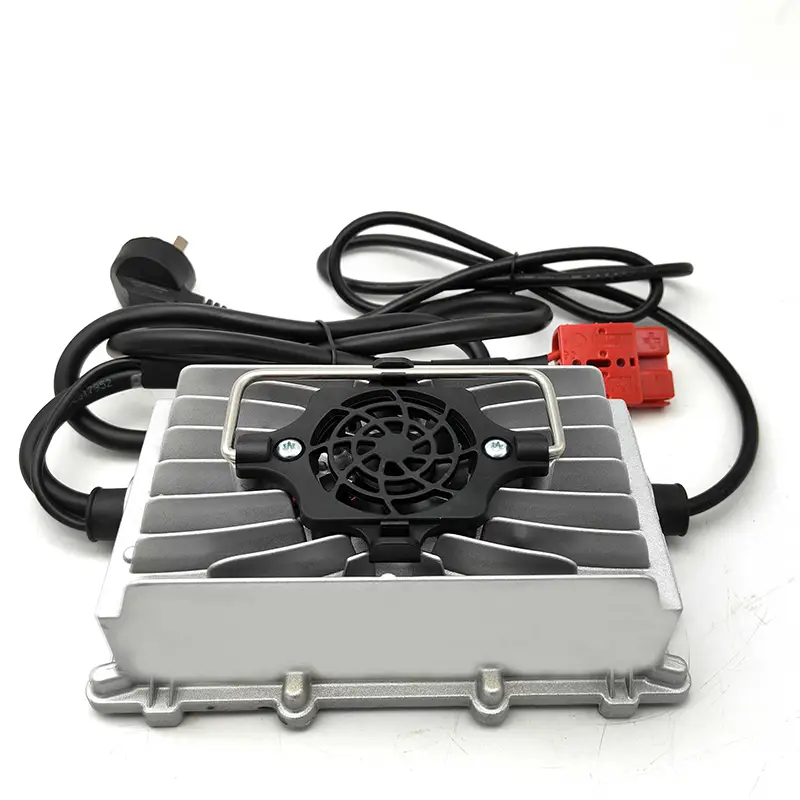

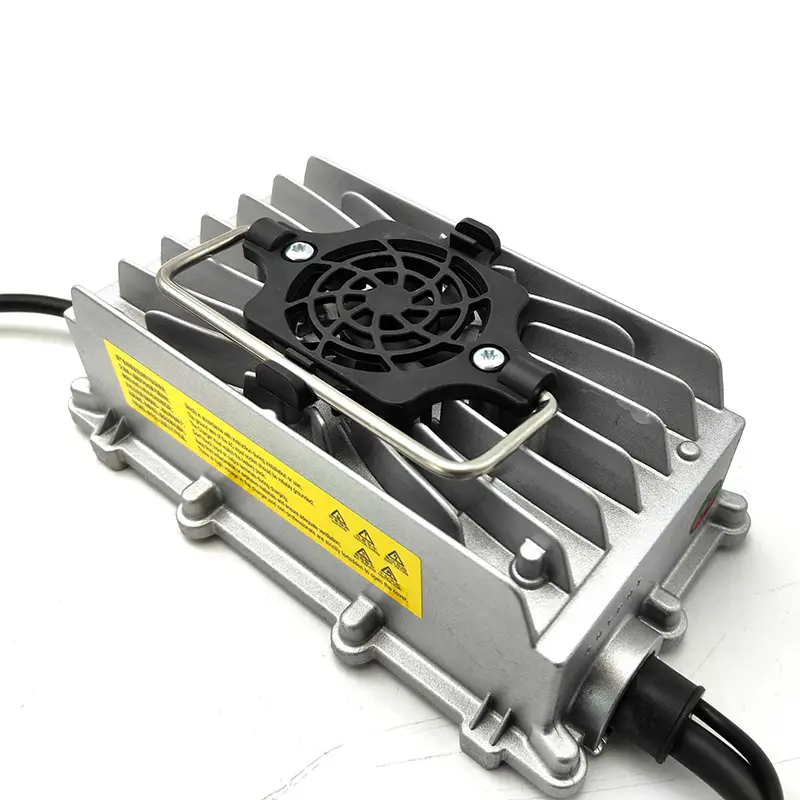

480W Lithium OBC Charger

High quality 480W Lithium OBC Charger is offered by a leading China manufacturer and supplier Starwell, is a high-performance on-board charger ideal for electric motorcycles, EV cars, and various battery systems, combining durability, IP65 waterproofing, and intelligent protection for efficient and safe charging in diverse environments.
Features
1.AC input voltage range:200-264VAC;50-60Hz
2. AC Input Maximum Current:2.5A@200VAC
3. Power factor>0.99
5.Noise: ≤45dB
6. Grade of waterproof: IP65
7. Weight: 1kg
8. Operating temperature: -30°C-+65°C
9. Storage temperature: -40°C-+95°C

Send Inquiry

Product Details

The 480W Lithium OBC Charger by Starwell, a reputable China factory and supplier, delivers a versatile and high-efficiency charging solution for electric motorcycles, EV cars, sightseeing vehicles, and industrial electric vehicles. Designed for multiple battery types—including lithium, lead-acid, Ni-MH, and Ni-CD batteries—this charger supports both cyclic and floating charging modes, ensuring fast recharge after deep discharge and maintenance charging during long-term standby. With its integrated die-casting structure and IP65 waterproof rating, the charger guarantees durability and stable operation in challenging outdoor and industrial environments.

Key Features

· Wide Compatibility: 480W Lithium OBC Charger supports 24V, 36V, 48V, 60V, and 72V lithium battery packs with output currents from 5A to 15A, meeting the requirements of different electric vehicles.

· Intelligent Protection: Built-in overvoltage, overcurrent, short circuit, reverse connection, and over-temperature protection ensure safety and reliability during charging.

· High Efficiency & Quiet Operation: Power factor >0.99, efficiency ≥99%, and noise ≤45dB make it energy-saving and user-friendly.

· Durable Construction: Integrated die-cast shell and glue-filled interior provide excellent mechanical stability and long-lasting performance.

· Environmental Adaptability: IP65 waterproof and dustproof, operating in temperatures from -30°C to +65°C, suitable for outdoor, dusty, and humid conditions.

· Advanced Functionality: Equipped with CAN BUS interface, triple-color indicator, charging interlock system, and 12V auxiliary power supply.

Specification

Technology Parameters	AC Input Voltage Range	200-264VAC;45-65Hz
	AC Input Max Current	2.5A@220VAC
	Efficiency	≥99.0%
	Noise	≤45dB
	Protection level	IP65
Output Voltage & Current	24V 15A ,36V 10A ,48V 8A ,60V 6A ,72V 5A
Safety	Active LLC technique is applied for a rapid respond on a fault; Quick active software self -protection and reliable passive hardware self-protection on VOLTAGE&CURRENT; Advanced charging strategy is integrated as a safeguard for battery system.
Reliability	The shell is shaped by integrated die casting technique. The active cooling fan is also designed to be a fan with a potting structure and a longer life. Products of Charger Series have been operating in all kinds of industrial environment (Wet. Hot. Cold. High altitude) for more than ten years, the design is proved to pass the verification.
Functions	CAN BUS Interface Triple Colors Indicator Charging Interlock System Auxiliary power supply 12V
Net Weight	1.0kg
Operating Temperature	-30℃~65℃
Storage Temperature	-40℃~95℃
Size	314198.298.2mm
protection Functions	Burnout Protection: Temperature of charger exceeds the limitation. The charge will low down the power load. Temperature of environment exceeds 65℃, the charger will stop charging and switch itself to standby mode until temperature of environment goes down. Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down with batteries when the batteries are connected reversely and will not damage the charger. NO-load Protection: There is no output when the batteries are not connected. Short Circuit Protection: The circuit inside the charger shuts down with batteries when output is short circuit. The charger will start charging only after troubleshooting and restart the charger. Automatic shutdown when fully charging: The charging automatically turns off after the battery is fully charged according to the charger’s judgment.
