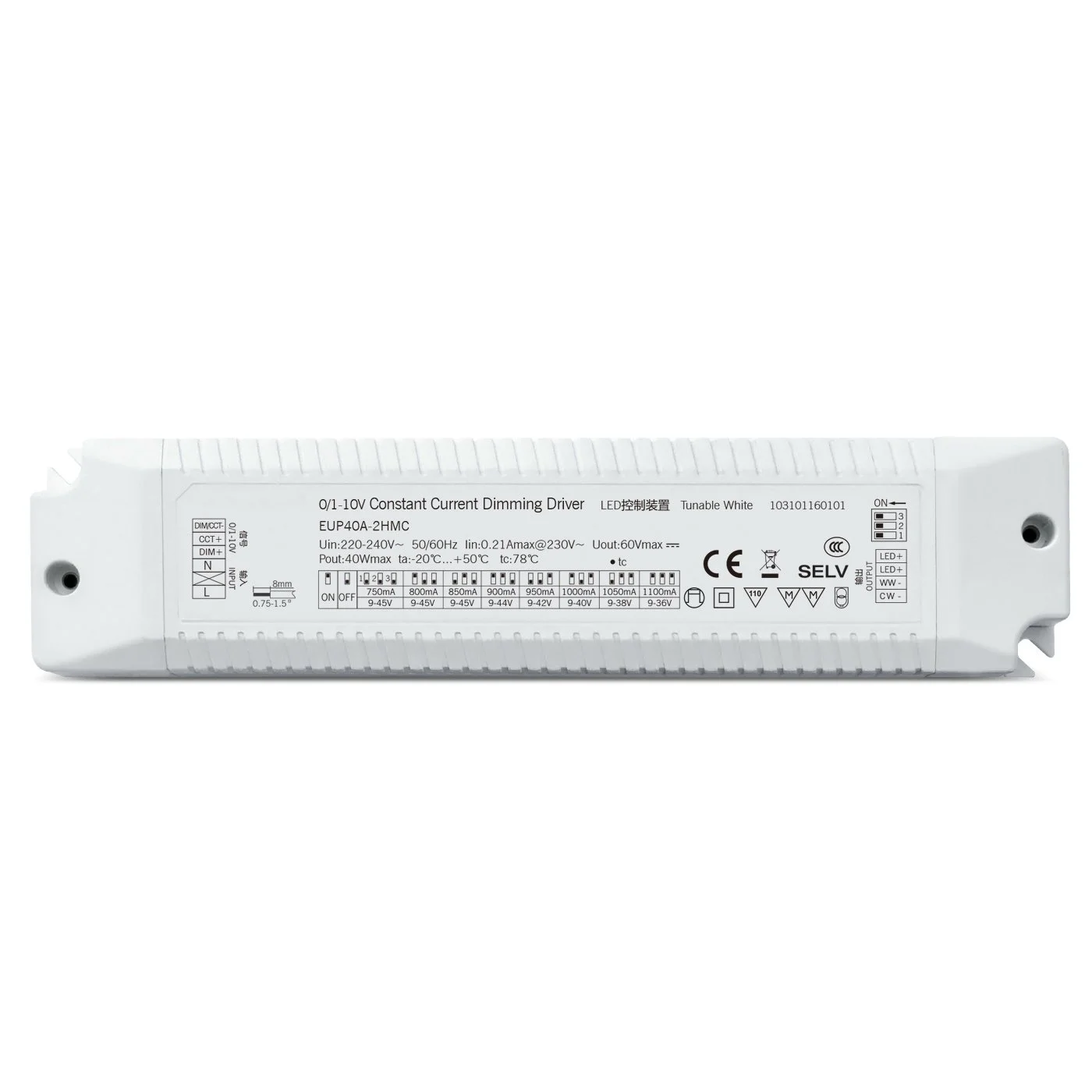

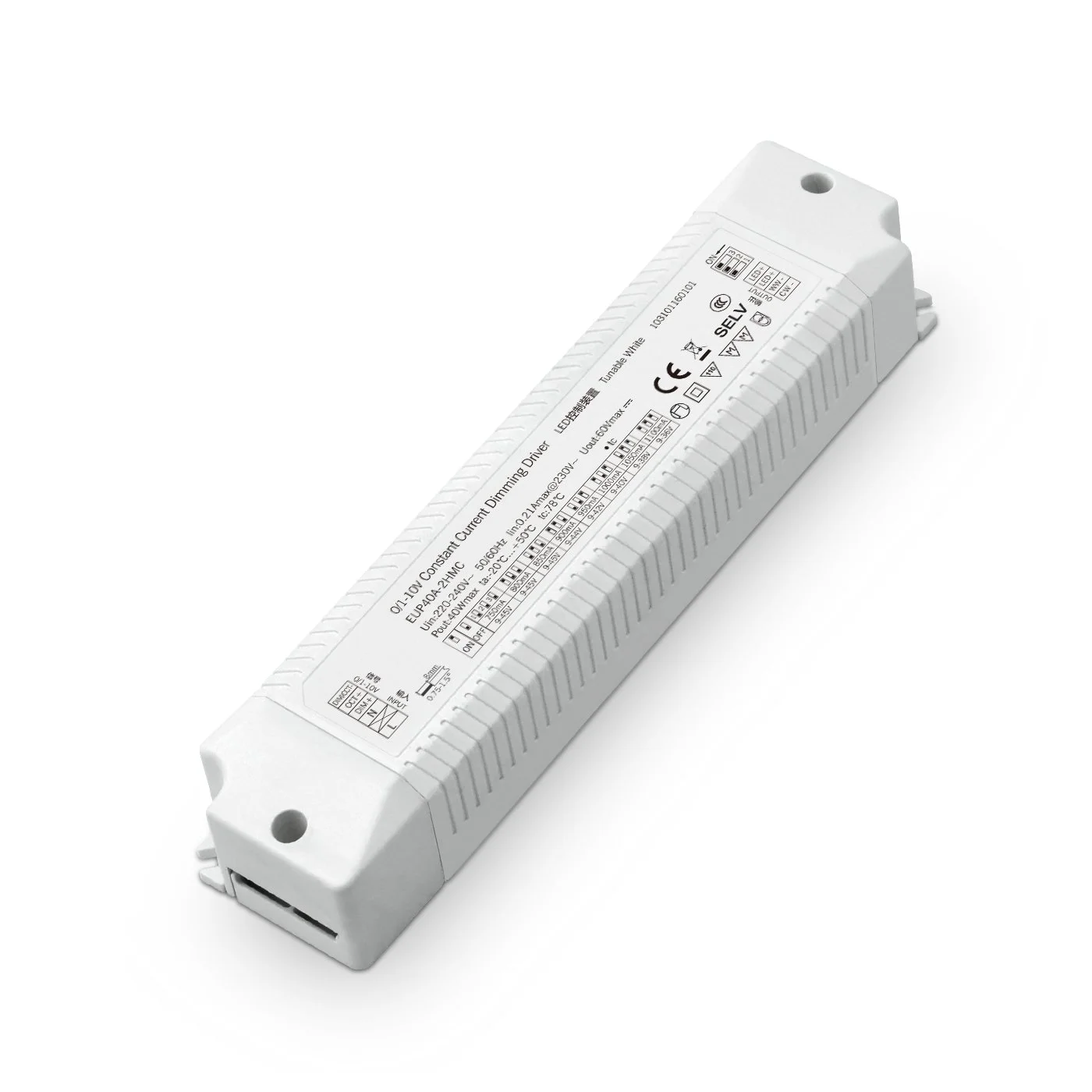

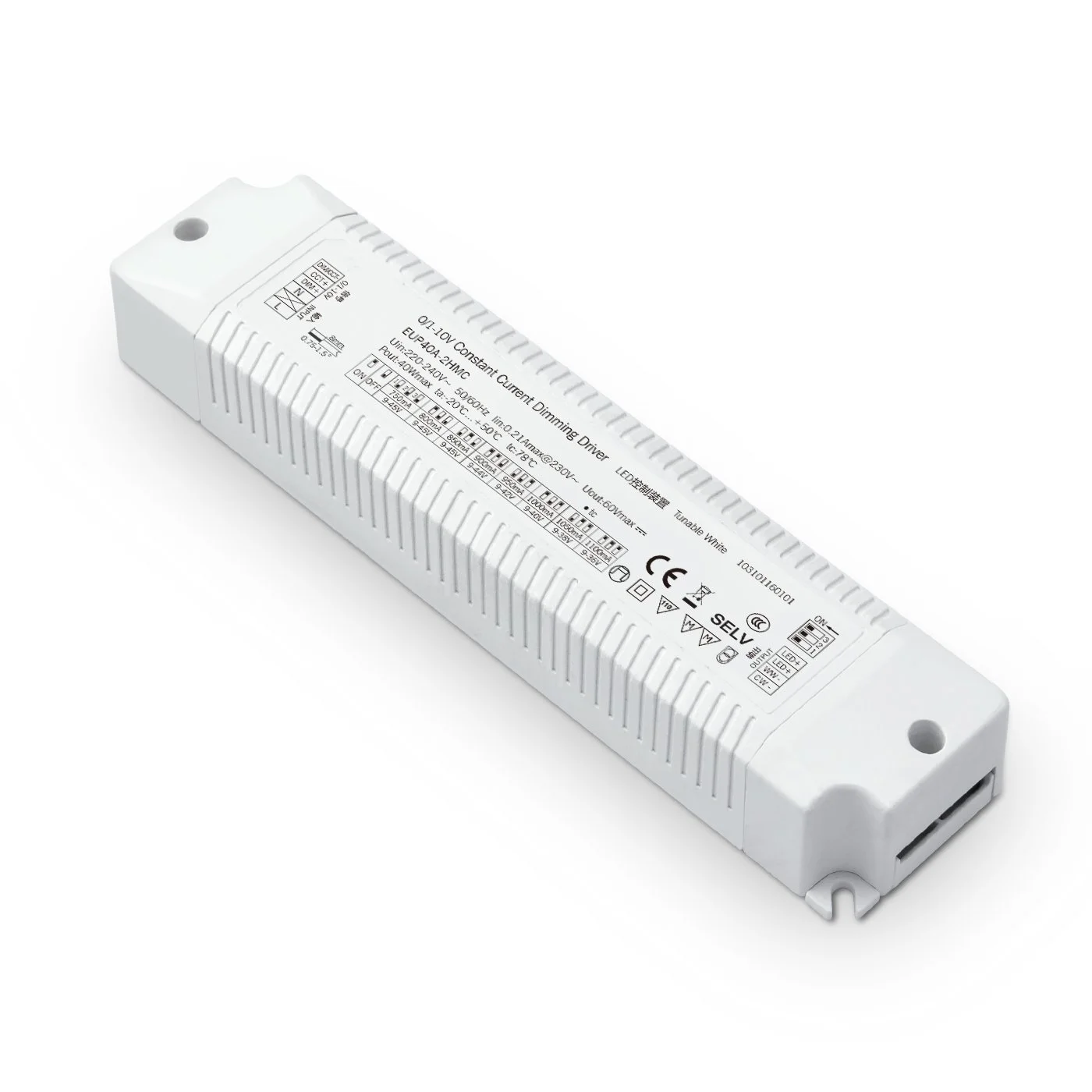

40W 0-10V Constant Current CCT Dimmable Led Driver

Starwell fatory’s durable 40W 0-10V Constant Current CCT Dimmable Led Driver adopts advanced constant current output technology, providing stable and reliable power supply for LED strips, modules and other lighting products, ensuring uniform and consistent light and extending the lifespan of the lamps. Its core feature lies in supporting both 0-10V analog dimming and CCT color temperature adjustment functions: through 0-10V control signals, users can smoothly and continuously adjust the brightness of the lamps from 0% to 100%; while the CCT adjustment function allows for free switching between cold white and warm white light, easily creating different lighting environments and atmospheres.

Features:
Dimmable type: 0-10V/1-10V.Dimming
Constant current design
Beautiful design,natural and smooth dimming,Flicker-Free
100% Full Load Aging Test
Working temperature:-25°C~+45°C
Protection grade: lP20
With short-circuit protection: hiccup mode,troubleshooting,power recovery
Safety standards:EN61347-1、EN61347-2-13
5-Year warranty

Send Inquiry

Product Details

Starwell high quality 40W 0-10VConstant Current CCT Dimmable Led Driver is a 40W 0-10V constant current CCT dimmable LED driver specifically designed for high-quality indoor lighting. As an efficient and stable power supply, it integrates constant current output, stepless dimming and color temperature adjustment, providing a precise and reliable power core for LED lamps. Its core feature lies in the adoption of an advanced constant current 0-10V CCT dimmable 40W control solution, ensuring uniform brightness and consistent color of the LED light source throughout the dimming range and effectively extending the service life of the lamps.

Specifically, this driver features outstanding AC-DC energy transfer efficiency, effectively converting input AC power into DC power suitable for LED operation, achieving a balance of energy conservation and stability. Users can independently and smoothly control the brightness and color temperature of connected fixtures via a standard 0-10V analog dimming signal. This means it not only supports stepless brightness adjustment from 0% to 100%, but also integrates Color Temperature Dimming functionality, allowing users to freely switch between warm 2700K yellow light and refreshing 6500K cool white light with a single button, creating a light environment atmosphere that suits different scenarios and times. Therefore, it is an ideal 40W indoor use LED lighting with color temperature dimming LED driver, especially suitable for commercial spaces, high-end homes, office environments, and hotel venues where light quality is strictly required.

Product Application

Classy 40W 0-10VConstant Current CCT Dimmable Led Driver are suitable for commercial lighting, high-end homes, museums, hotels and other scenarios with high requirements for light quality and dynamic control, and are ideal driver solutions for achieving intelligent and energy-saving lighting. This 40W 0-10V constant current CCT dimmable LED driver integrates high efficiency, flexible control and excellent performance, fully meeting the compound demands of modern LED lighting systems for precise dimming and color temperature management.

We are fully confident in the performance and durability of this product and offer a 5-year warranty to ensure peace of mind for users.

In summary, whether considering the completeness of functions, the accuracy of control, or the reliability of long-term use, this 0-10V constant current 40W CCT dimming LED driver is an outstanding choice for achieving intelligent and personalized lighting solutions. Choosing it means opting for a professional and reliable 40W 0-10V constant current CCT dimmable LED driver.

Specification

Product Name	0/1-10V constant current dimming driver
Material	PC
Input Voltage VAC	220-240V
Brand	Starwell
Output Voltage VDC	9-45V
Output Current & channel mA	750/800/850/900/950/1000/1050/1100mA *2
Output Power W	40W
IP Rate	IP 20
Dimming	0/1-10V
