0-10V CCT Dimming Led Driver
STARWELL factory’s high quality PE-N30ACA 0-10V CCT Dimming Led Driver is a high-performance, constant-current LED driver designed for professional and demanding lighting applications. Engineered with exceptional reliability, it boasts a comprehensive 5-year warranty for complete peace of mind.
Features:
1. Integrate multiple dimming and color matching interfaces
2.0-10v/1-10v adaptive
3. Digital control output is adopted, and there is no stroboscopic
4. International general AC input 100-250V range
5. Natural air cooling, moisture-proof, heat conduction and silica gel heat dissipation process
6. Deep dimming design
7. Multiple protection functions
8. Output fast voltage terminal, safe and convenient
9. Crimping design, convenient and fast
10. 8 gear current selection
Send Inquiry
DATASHEET
Product Details

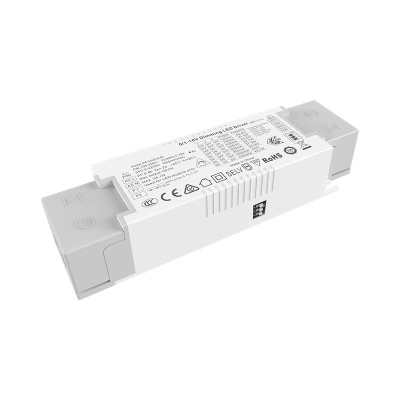

Starwell 0/1-10V Constant Current CCT Dimmable Led Driver
This classy 0-10V CCT Dimming Led Driver, manufactured by Starwell features a wide input voltage range of 25-42V DC and delivers a stable output of 350-700mA. It supports versatile 0/1-10V and PWM and 100K resistor dimming and tunable white (CCT) control, enabling seamless adjustment of both light intensity and color temperature for dynamic lighting environments.
Compliant with major international safety and quality standards, the PE-N30ACA carries CE, SAA, ENEC, and TUV certifications. This ensures its suitability for global markets and adherence to stringent electrical, efficiency, and safety regulations.
Built for durability and stable operation, this driver is an ideal power solution for high-quality architectural, commercial, and decorative LED lighting systems requiring precise dimming and color tuning performance.
Starwell high-performance 0/1-10V constant current CCT LED driver is designed to power sophisticated lighting systems requiring seamless dimming and precise color temperature adjustment. With a versatile output range of 3-44W, it offers exceptional compatibility for a wide array of LED modules and lighting fixtures.
Dual Dimming & CCT Control: Utilizing the industry-standard 0/1-10V protocol, this CE-certifided 4 In 1 Dimming Interface 0/1-10v.1-10v.10v Pwm. Resistor provides independent, smooth control over both light intensity (dimming) and color temperature (Tunable White). Create dynamic atmospheres—from focused, cool-white task lighting to relaxed, warm-white ambiance—all from a single, integrated driver.
Constant Current & Wide Compatibility: Delivers stable, flicker-free power to LED arrays, ensuring consistent light output and extending LED lifespan. The broad 3-44W power range makes it a versatile solution for various applications, from cove lighting and downlights to linear fixtures and architectural accents.
Compact & Reliable Design: Built with high-quality components and efficient thermal management in a compact form factor, ensuring reliable, long-term operation suitable for built-in installations.
Professional-Grade Performance: Enables the creation of Human-Centric Lighting (HCL) environments, adaptive lighting scenes, and energy-efficient designs, meeting the demands of modern commercial and residential projects.
Typical Applications:
Architectural and decorative lighting
Tunable White linear lights and panels
Commercial offices, retail spaces, and hospitality venues
Museums, galleries, and high-end residential lighting
Ideal for lighting designers, installers, and specifiers, this driver transforms standard LED lighting into an adaptable, intelligent system. It provides the essential foundation for achieving precise lighting moods, enhancing well-being, and delivering superior visual comfort.
Starwell Constant Current 0-10V CCT Dimmable Led Driver Specification:
|
Model |
PE-N30ACA42 |
PE-N45ACA42 |
|
|
OUTPUT |
Output Voltage |
25-42Vdc |
25-42Vdc |
|
Max Output Voltage |
42Vdc |
42Vdc |
|
|
Non-load Output Voltage |
53Vdc |
53Vdc |
|
|
Output Current |
350/400/450/500/550/600/650/700mA |
700/750/800/850/900/950/1000/1050mA |
|
|
Output Power |
8.75W~29.4W |
17.5W~44.1W |
|
|
Strobe Level |
Flicker free |
||
|
Dimming Range |
0 ~ 100%, LED dimming from 0.03% |
||
|
PWM Dimming Frequency |
>3600Hz |
||
|
Current Accuracy |
±3% |
||
|
Power down mode |
Active signal, no signal access, output the maximum set current |
||
|
INPUT |

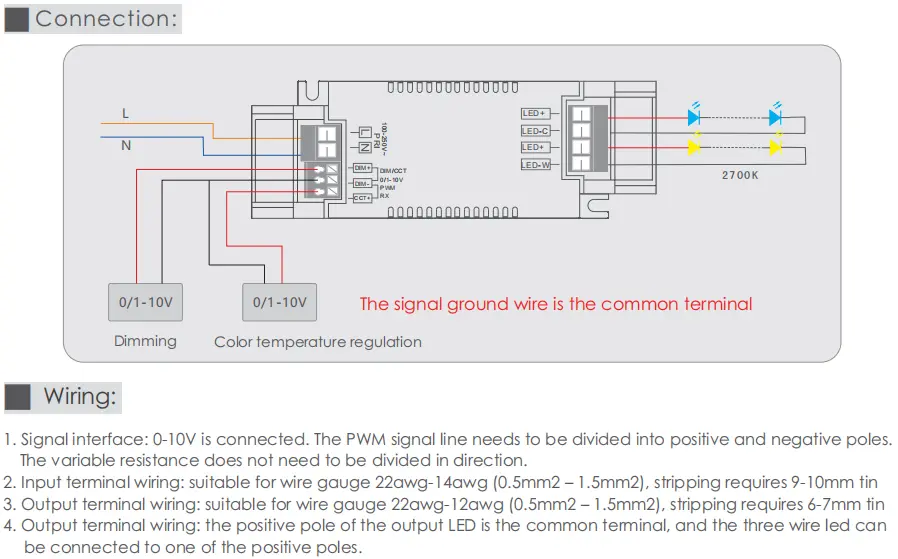

Dimming Interface |
0-10V 1-10V 10vpwm 100k potentiometer signal interface current < 0.1mA |
|
|
Input Voltage Range |
100-250Vac |
||
|
Frequency |
50/60Hz |
||
|
Input Current |
<0.3A ac110v |
<0.5A ac110v |
|
|
Power Factor |
PF>0.99/100V |
PF>0.99/100V |
|
|
THD |
230Vac@THD <10% (at full load) |
||
|
Efficiency(typ.) |
87% |
88% |
|
|
Inrush Current(typ.) |
cold start20A@230Vac |
cold start20A@230Vac |
|
|
Anti Surge |
L-N: 2kV |
||
|
Leakage Current |
<0.25mA/230Vac |
||
|
ENVIRONMENT |
Working Temperature |
ta: 45°C tc: 80 °C |
|
|
Working Humidity |
20 ~ 95%RH, non-condensing |
||
|
Storage Temp., Humidity |
-40 ~ 80°C°, 10~95%RH |
||
|
Temp.Coefficient |
±0.03%/°C(0-50)°C |
||
|
Vibration |
10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes. |
||
|
PROTECTION |
Over-heat Protection |
Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers. |
|
|
Over Load Protection |
Shut down the output when rated power≥102%, auto recovers. |
||
|
Short Circuit Protection |
Shut down automatically if short circuit occurs, auto recovers. |
||
|
Non-load Protection |
output Constant Voltage. |
||
|
SAFETY & EMC |
Withstand Voltage |
I/P-O/P: 3750Vac |
|
|
Isolation Resistance |
I/P-O/P: 100MΩ/500VDC/25°C/70%RH |
||
|
Safety Standards |
IEC/EN61347-1, IEC/EN61347-2-13 |
||
|
EMC Emission |
EN55015, EN61000-3-2 Class C, IEC61000-3-3 |
||
|
EMC Immunity |
EN61000-4-2,3,4,5,6,8,11, EN61547 |
||
|
Strobe Test Standard |
IEEE 1789 |
||
|
OTHERS |

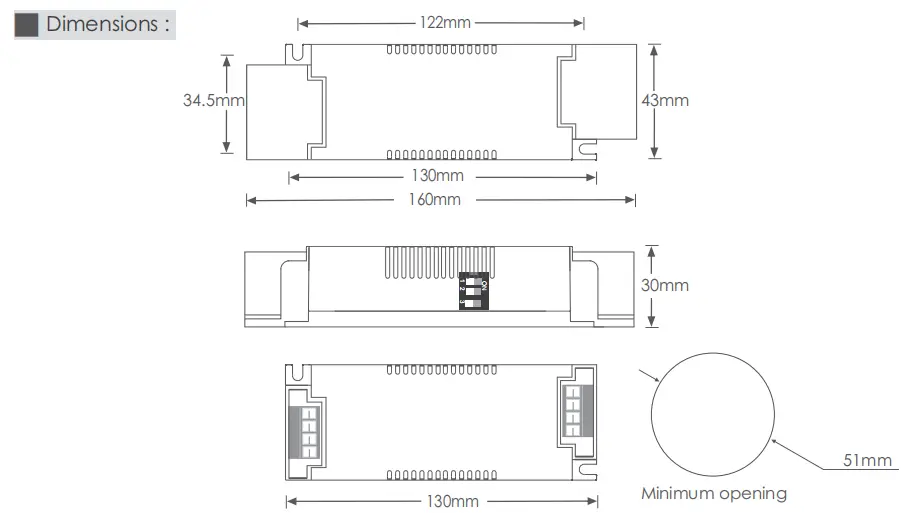

Dimension |
160(130)×43×30mm(L×W×H) |
|
|
Packing |
PE bag |
||
|
Weight(G.W.) |
245g±10g |
||
|
Remarks |
Conventional products are controlled by one way of brightness adjustment and one way of color temperature adjustment. Some intelligent systems in the market are controlled by two ways of brightness adjustment to mix color. Special instructions are needed, and our company has corresponding procedures The measured parameters are carried out under the input 230V AC environment of 25 degrees Constant current power supply, in the non dimming state, the output current is the maximum set value The voltage connected to the lamp shall be within the marked voltage range of the power supply This product adopts heat conduction silica gel heat dissipation process to balance the internal temperature and ensure the safety and reliability of the product Test distance of signal line: 1.5 square shielded wire, 200m with 20 power supplies. Due to the distance factor, the distance is lengthened, and the number of controls will be reduced |
||
