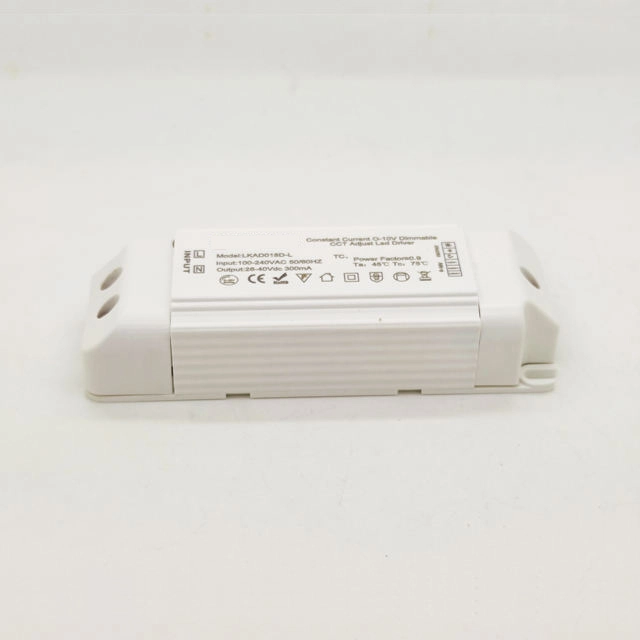

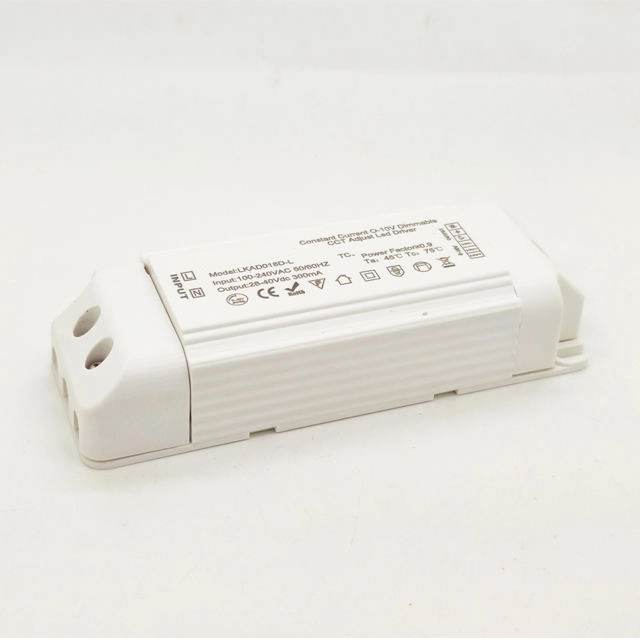

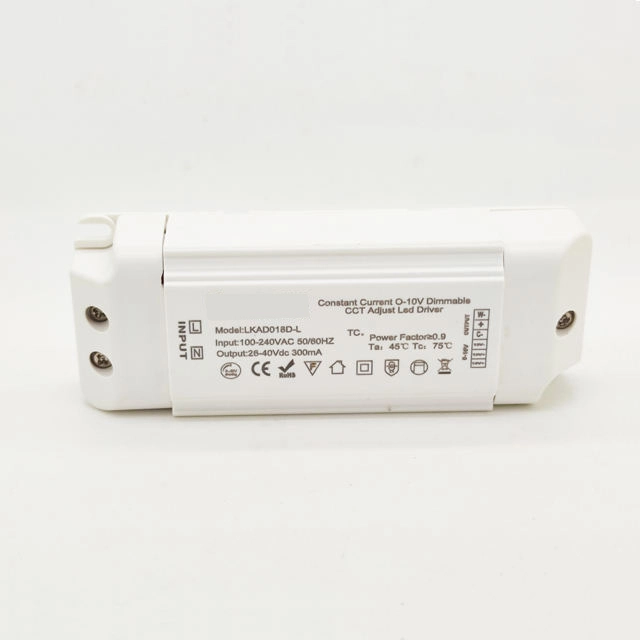

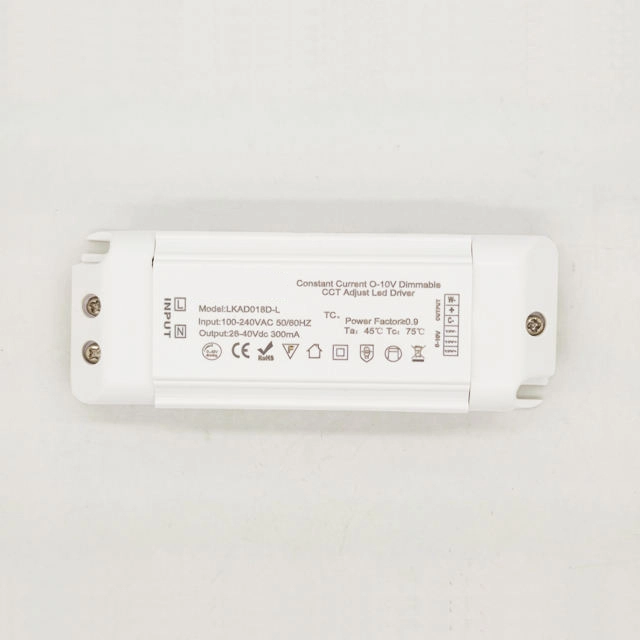

0-10V CCT Constant Current Led Driver

As a professional constant current 0-10V dimming led driver manufacturer in China, Shenzhen Starwell Technology Co., Ltd. would like to provide you classy 0-10V CCT Constant Current Led Driver with full voltage 100-277Vac Triac/ELV dimming interface,maintains CRI(color rendering indes). It can provide constant and accurate current for your connected LED lamp beads, ensuring that each lamp bead has uniform brightness and long life.It perfectly supports both CCT and CW types of luminaires.

Send Inquiry

Product Details

Product Specification

INPUT	Input Voltage	200-240VAC
	Input frequency	50/60Hz
	Power Factor	0.9
OUTPUT	.DC Voltage	10-42V
	Rated Current	700-1700mA
	Max. Power	60W
	SETUP Rise Time	<0.5s
PROTECTION	Short circiut	Recovers automatically after fault condition is removed
	Overload	Overload protected @110-130% above peak rating
	Over Temperature	Shut down o/p voltage . re-power on to recover
	IP Code	IP20
ENVIRONMENT	Working TEMP.	-30-+50℃ (refer to output load derating curve)
ENVIRONMENT	Storage TEMP.	-40-+80℃
Safety & EMC	Safety Standards	CE
Safety & EMC	EMC Test Stardands	CE
DIMENSION	162x45x31mm

Starwell factory’s high quality 0-10V CCT Constant Current Led Driver is designed to power and control LED modules that feature both tunable white (CCT) and fixed cool white (CW) channels. It utilizes the standard 0-10V analog dimming protocol for smooth, flicker-free brightness adjustment and color temperature tuning.

Compatibility: Specifically engineered for:

Tunable White (CCT) LED modules/strips (typically with two input pads: W+/W- for warm white and C+/C- for cool white, mixed to achieve CCT).

Separate Cool White LED fixtures or segments.

Protections: Usually includes comprehensive protections such as Over-Current Protection (OCP), Over-Voltage Protection (OVP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP).

Typical Applications: Architectural lighting, commercial ambient lighting, high-end residential lighting, gallery lighting, and any application requiring flexible white light control and accent cool white lighting.
