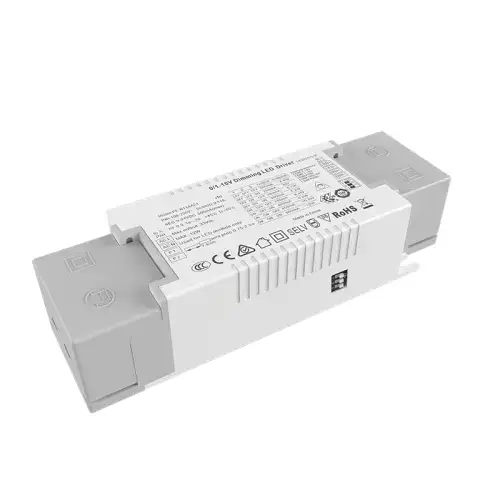

10W Constant Current 0/1-10V CCT Dimmable LED Driver
  • 10W Constant Current 0/1-10V CCT Dimmable LED Driver10W Constant Current 0/1-10V CCT Dimmable LED Driver

10W Constant Current 0/1-10V CCT Dimmable LED Driver

Starwell factory’s high quality 10W Constant Current 0/1-10V CCT Dimmable LED Driver has two channel signal control is adopted, one channel is 0/1-10v to control the brightness, the other channel is 0/1-10v to control the color temperature, the CPU controls the dimming curve, and the mixed frequency control.

Send Inquiry

Product Details

As the professional manufacturer, Starwell would like to provide you high quality 10W Constant Current 0/1-10V CCT Dimmable LED Driver. To achieve visual perception of brightness, the raw materials used are first-line brands, imported chip ultra deep dimming design, matching a variety of intelligent dimming systems on the market Precise control of color temperature, ultra small size design (if the system is a mixed color temperature mode with two channels of brightness adjustment at the same time, it needs to customize the program).


Specification

Model

PE-FN10ACA42

PE-FN20ACA42

OUTPUT

Output Voltage

9-42Vdc 9-41Vdc 9-37Vdc 9-33Vdc 9-28Vdc

9-42Vdc

Max Output Voltage

42Vdc

42Vdc

Non-load Output Voltage

45Vdc

45Vdc

Output Current

120/180/200/240/270/300/350mA

200/250/280/300/350/400/450/500mA

Output Power

1.5W~9.8W

2W~21W

Strobe Level

No Flicker

Dimming Range

0~100%，LEDstart at 0.03%possible.

PWM Dimming Frequency

>3600Hz

Current Accuracy

±5%

Power down mode

No signal maximum brightness output

INPUT

Dimming Interface

0-10V 1-10V signal interface current <2ma

Input Voltage Range

200-250Vac

Frequency

50/60Hz

Input Current

<0.045A ac230v

<0.055A ac230v

Power Factor

PF>0.94/230V  ac(at full load)

PF>0.95/230V ac(at full load)

THD

230Vac@THD <14% (at full load)

Efficency(typ.)

81%

86%

Inrush Current(typ.)

cold start25A@230Vac

Anti Surge

L-N: 1.8kV

Leakage Current

<0.25mA/230Vac

ENVIRONMENT

Working Temperature

ta: 45°C  tc: 80 °C

Working Humidity

20 ~ 95%RH, non-condensing

Storage Temp., Humidity

-40 ~ 80°C, 10~95%RH

Temp.Coefficient

±0.03%/°C(0-50)°C

Vibration

10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.

Over Load Protection

Shut down the output when rated power≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers.

Non-load Protection

output Constant Voltage.

SAFETY & EMC

Withstand Voltage

I/P-O/P: 3750Vac

Isolation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Safety Standards

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emission

/

EMC Immunity

/

Strobe Test Standard

IEEE 1789

OTHERS

Dimension

130×37×22.6mm(L×W×H)

Packing

PE bag

Weight(G.W.)

85g±10g


Fatures:

1.integrate multiple dimming and color matching interfaces 2.0/1-10v brightness adjustment, color matching temperature

3. digital control output without stroboscopic

4. AC input 200-250v range

5. natural air cooling, moisture-proof, heat conducting silicone heat dissipation process

6. deep dimming design

7. multiple protection functions

8. crimping design, convenient and fast


Application:

1. Led dual color light source

2. villa intelligent lighting

3. wireless intelligent lighting system can be accessed

4. museum lighting

5. high end commercial lighting

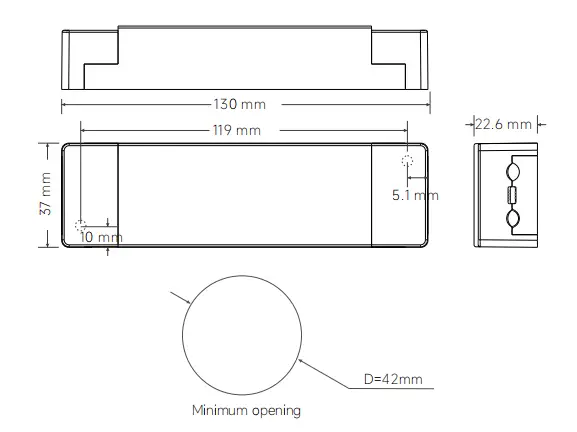

Dimensions :

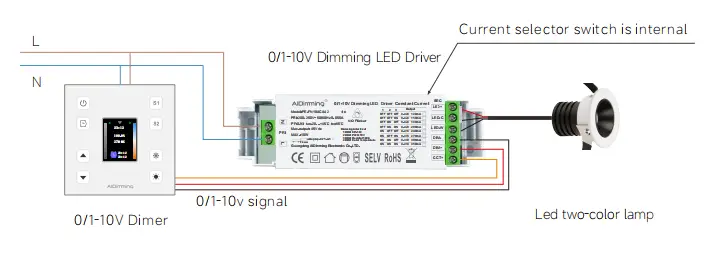

Wiring:

1. Input terminal wiring: suitable for wire gauge 22awg-14awg (0.5mm2 – 1.5mm2), stripping requires 9-10mm tin

2. Output terminal wiring: suitable for wire gauge 22awg-12awg (0.5mm2 – 1.5mm2), stripping requires 6-7mm tin

3. Output terminal wiring: the positive pole of the output LED is the common terminal, and the three wire led can

be connected to one of the positive poles.


Instructions for use:

Unless otherwise specified, all specifications and parameters are measured at 230VAC input, rated load and 25 ℃ Ambient

Temperature

This product has a press line cap at the input, with self-locking clamping, it can be opened up with a screwdriver, then you

will see the input terminal connected with the AC line L and the null lime N, The output terminal connect a according to the

product label, notice the positive and negative pole.

**1:please pay attention to the distinction between input and out put , connect correctly, then power on

**2:please connect first the load of the DC output, open the driver after checking; in the constant current mode, if power

on at open circuit, please turn off the driver and can’t connect the LED until the electric energy stored by the output

release, or it may damage the LED ;

**3.this type of driver is only limited to the use of the LED lamps ,the input voltage range is AC200-250V,the heat insulation

cotton and other items that obstruct the heat dissipation of the product, which conforms to the product under the specified

output voltage, current range, the use environment temperature is -20-45 degrees, and the surface can not cover the

conditions of the environment, this product enjoys 5 years of free warranty.

1.the LED lamp doesn’t bright after the dimming driver is connected at the first time, please turn off the AC input and check

as follow:

1)whether or not DC output bad contact;

2)whether DC output polarity is reversed, or the LED board is welded anti;

3)whether AC input is bad contact, test after eliminating these failures;

2.the device has good connection, LED lights, but the LED flicker, please turn off the AC input and check as follow:

1).whether or not the parameters and actual parameters match.

2).please timely communicate with us if you have any questions in the using, we will try our best to solve the problems with you.


Difference between 0-10V and 1-10V:

1. When the 0 / 10V dimmer is adjusted to the maximum 10V, the output current will reach 100% of the power output, and the brightness will reach 100%. When the 0-10V dimmer is adjusted to 0V,the current will be the

minimum, and the light will be turned off; When the 1-10V dimming is adjusted to 1V, the current is the minimum and the light is off.

2. Difference between 0-10V and 1-10V dimming: different starting and closing voltage, 0-10V is on at 0.7V,

(the min brightness) 1-10V is on at 1.2V (the min brightness).

3. Digital dimming driver 0-10V and 1-10V dimming automatic identification two dimming modes.

4. The same signal circuit controls light and dark at the same time.

5. Dimmer (dimming system) is divided into 0-10V and 1-10V dimming signals.

6. Dimming compatibility is related to the control distance of signal line and the number of control power supply.

If the number is too large or the signal line is too long, problems such as can not adjusted lower and can not adjusted off will occur.
