3KW OBC Charger for Forklift

As a professional manufacturer in China, Starwell would like to provide you high-performance 3KW OBC Charger for Forklift, delivering reliable, sealed, and intelligent charging for diverse battery systems with superior safety and durability.
Features
1.AC input voltage range:180-264VAC;50-60Hz
2. AC Input Maximum Current:7.5A@200VAC Output:102V 35A
3. Power factor>0.93
5.Noise: ≤45dB
6. Grade of waterproof: IP67
7. Weight: 9.0 kg
8. Operating temperature: -30°C-+65°C
9. Storage temperature: -40°C-+95°C

Send Inquiry

Product Details

The Starwell factory’s 3KW OBC Charger for Forklift, developed by a trusted China manufacturer, and supplier, is a fully sealed, high-efficiency onboard charger engineered for industrial electric vehicles and equipment. Designed for durability, safety, and intelligent charging performance, it supports multiple battery chemistries and demanding environments.

What is a 3KW OBC Charger for Forklift?

The 3KW OBC Charger for Forklift is a high-power charging device designed exclusively for various types of vehicles such as electric forklifts, sightseeing vehicles, patrol vehicles, floor scrubbers, AGVs, ships, and electric bumper cars. It converts AC input into a stable DC output for battery charging, supporting both cyclic charging and float charging modes to offer flexible and versatile application capabilities.

Specification

Model	QA3000A
Technology Parameters	AC Input Voltage Range	180-264VAC;45-65Hz
	AC Input Max Current	7.5A@220VAC
	Efficiency	≥93.0%
	Noise	≤45dB
	Protection level	IP67
Output Voltage & Current	102V 35A
Safety	Active LLC technique is applied for a rapid respond on a fault; Quick active software self -protection and reliable passive hardware self-protection on VOLTAGE&CURRENT; Advanced charging strategy is integrated as a safeguard for battery system.
Reliability	The shell is shaped by integrated die casting technique. And filled with special glue. The active cooling fan is also designed to be a fan with a potting structure and a longer life. Products of Charger Series have been operating in all kinds of industrial environment (Wet. Hot. Cold. High altitude) for more than ten years, the design is proved to pass the verification.
Functions	CAN BUS Interface Triple Colors Indicator Charging Interlock System Auxiliary power supply 12V
Net Weight	9.0kg
Operating Temperature	-30℃~65℃
Storage Temperature	-40℃~95℃
Size	314198.298.2mm

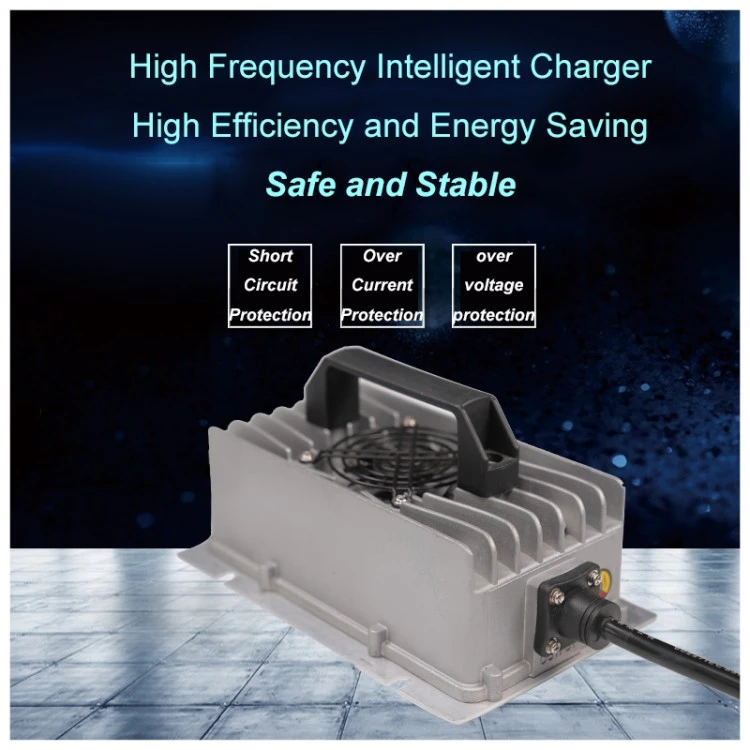

protection Functions	Burnout Protection: Temperature of charger exceeds the limitation. The charge will low down the power load. Temperature of environment exceeds 65℃, the charger will stop charging and switch itself to standby mode until temperature of environment goes down. Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down with batteries when the batteries are connected reversely and will not damage the charger. NO-load Protection: There is no output when the batteries are not connected. Short Circuit Protection: The circuit inside the charger shuts down with batteries when output is short circuit. The charger will start charging only after troubleshooting and restart the charger. Automatic shutdown when fully charging: The charging automatically turns off after the battery is fully charged according to the charger’s judgment.

Key Features

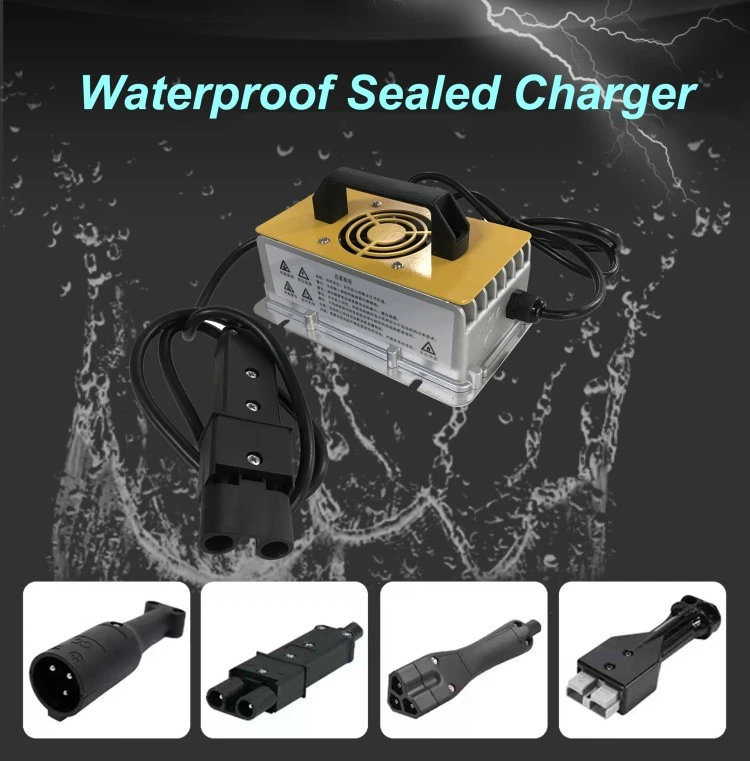

1. Fully Sealed Industrial Design

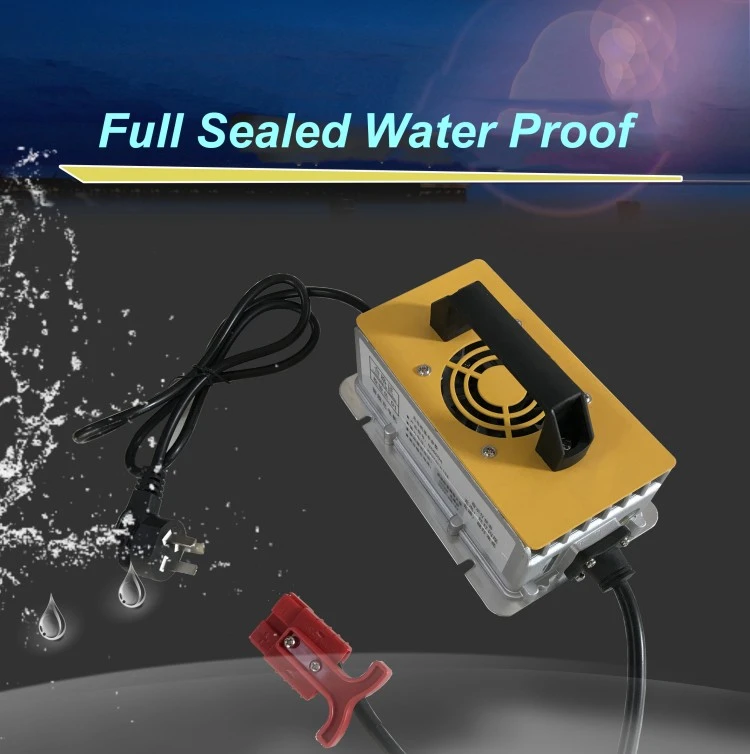

· IP67 waterproof and dustproof structure ensures operation in harsh environments

· Shock-resistant housing ideal for industrial and outdoor use

2. Wide Battery Compatibility

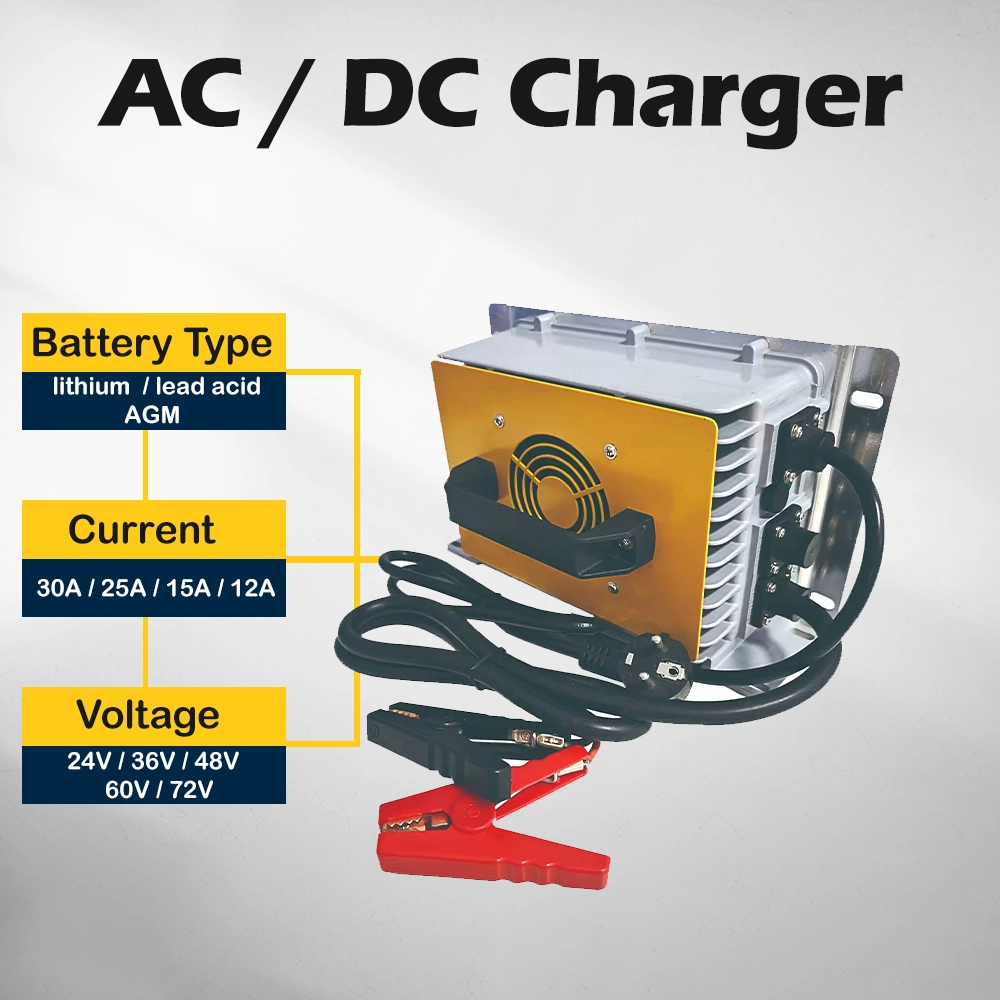

· Supports lead-acid (flooded, AGM, gel), lithium-ion (LiFePO₄), Ni-MH, and Ni-Cd batteries

· Suitable for mixed fleet operations, reducing equipment compatibility issues

3. Intelligent Charging Technology

· Multi-stage CC/CV charging algorithm optimizes battery health

· Extends battery lifespan and reduces long-term maintenance costs

4. High Efficiency & Low Noise

· Efficiency ≥93% ensures energy-saving performance

· Low noise ≤45dB suitable for indoor and sensitive environments

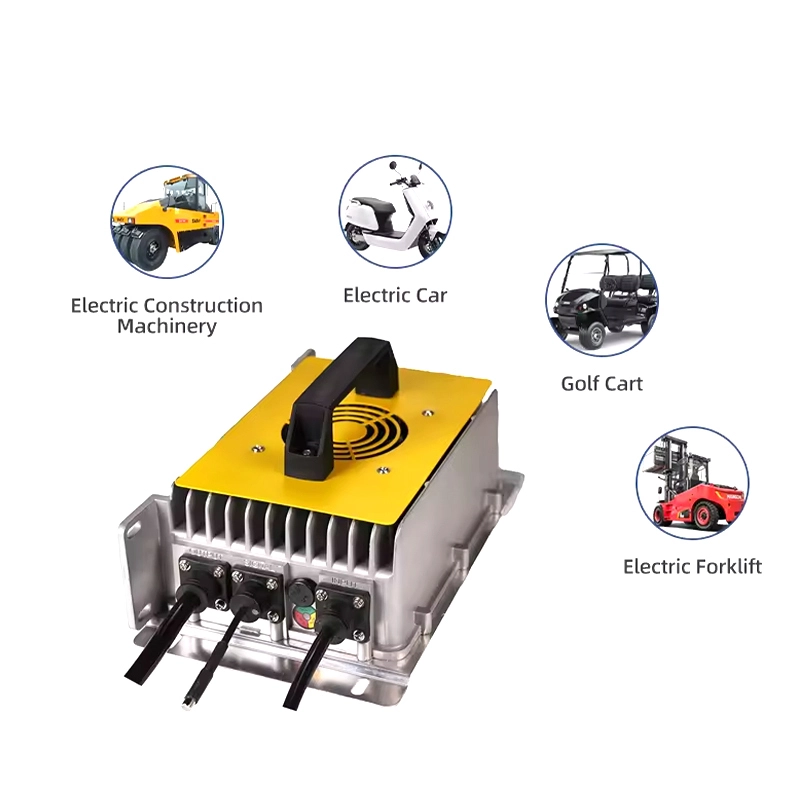

Product Applications Electric bumper cars and amusement rides Sightseeing vehicles and golf carts Patrol vehicles and security carts Forklifts and material handling equipment Floor scrubbers and cleaning machines Automated guided vehicles (AGVs) for warehouses Electric ships, boats, and marine utility vessels

FAQ

1. What batteries are compatible with this 3KW OBC Charger for Forklift?

It supports lead-acid, lithium-ion, Ni-MH, and Ni-Cd batteries, making it suitable for diverse industrial fleets.

2. Can this charger work in extreme environments?

Yes, with an operating temperature range of -30°C to +65°C and IP67 protection, it performs reliably in harsh conditions.

3. Does it support intelligent charging control?

Yes, it features multi-stage intelligent charging algorithms that automatically adjust based on battery status.

4. Is it safe for long-term use?

Absolutely, built-in protections and thermal management ensure safe, stable, and long-term operation.

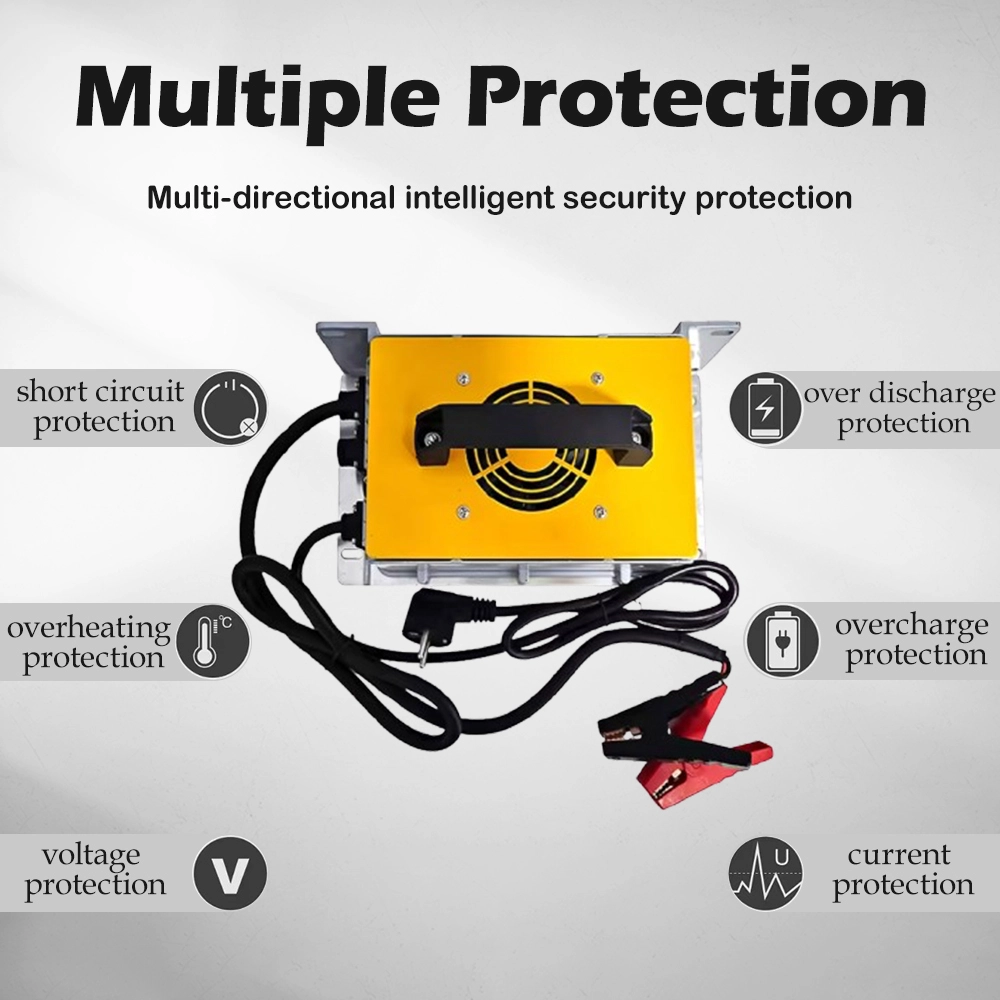

With built-in protections against overvoltage, overcurrent, short circuit, reverse polarity, overtemperature, and battery undervoltage, the charger ensures safe operation under all conditions. The sealed, maintenance-free design reduces downtime and lowers total cost of ownership, making it a reliable choice for fleet operators and equipment manufacturers alike.

Welcome to contact us and get a quote now!
