24V Aluminum LED Driver Power Supply

STARWELL is a professional manufacturer of 24V Aluminum LED Driver Power Supply in China. It provides stable, high-efficiency power output for LED strip lights, cabinet lamps, decorative backlights and indoor low-voltage LED lighting fixtures, available in three rated power options: 50W, 100W and 150W. Adopting fully perforated slim aluminum casing for superior passive heat dissipation, it outputs constant 24V DC with respective rated currents of 1.6A (50W), 4.16A (100W) and 6.25A (150W), and supports universal 100–250V wide-range AC input adaptable to global household and commercial power grids. Integrated with built-in OVP, OCP and short-circuit multi-protection circuitry, it stably operates within -20℃~+50℃ ambient temperature and reaches up to 87% full-load energy conversion efficiency, ensuring long-lasting, flicker-free and safe power supply for diversified indoor LED lighting engineering applications.

Send Inquiry

Product Details

As a professional manufacturer and supplier in China, Starwell would like to provide you high quality 24V Aluminum LED Driver Power Supply , which is engineered for diverse indoor LED lighting projects with three standardized DC24V output variants: 50W, 100W and 150W, widely applied in LED strip lights, cabinet lighting and decorative backlight systems.

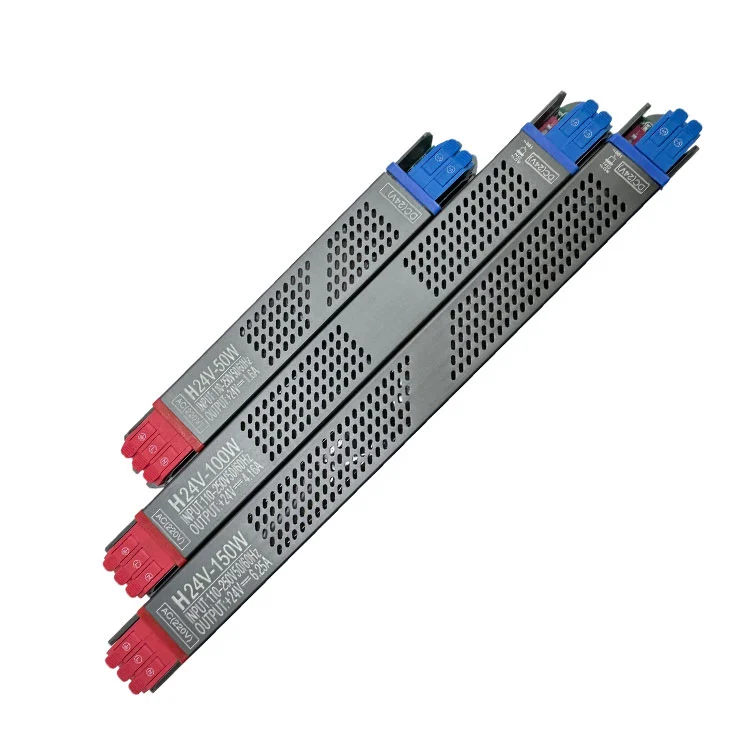

This series accepts universal AC input ranging from 100V to 250V (50/60Hz), compatible with global residential and commercial power grids. Specifically, the 50W model delivers 1.6A output current, the 100W version provides 4.16A, while the 150W unit outputs 6.25A steadily under rated 24V DC. The slim long-strip aluminum housing features dense honeycomb vent holes, optimizing passive heat dissipation without extra cooling fans.

Three Core Selling Points

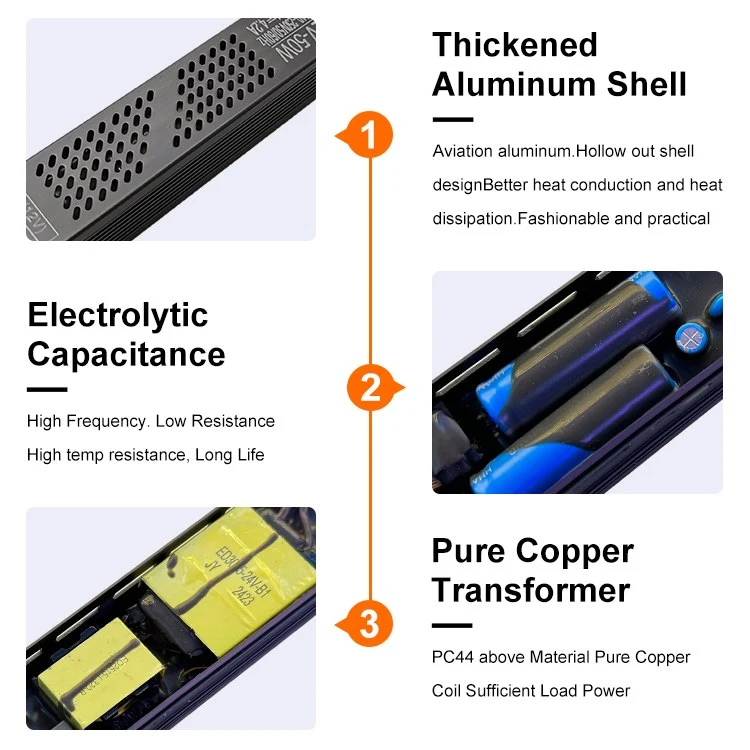

High Thermal Dissipation & Long Service Life: Full aluminum shell with precision perforated ventilation cuts working temperature rise by over 30% vs plastic drivers; rated lifespan exceeds 50,000 hours under -20℃~+50℃ operating ambient.

Wide Compatibility & Stable Output: 100–250V wide-range AC input tolerates ±20% grid voltage fluctuation; constant 24V DC output keeps LED luminance deviation below 3%, avoiding strip flickering.

Plug-and-play Terminal Design: Color-coded quick connectors (red for output, blue for input) cut field wiring time by 60%, no soldering required, greatly accelerating on-site installation for contractors.

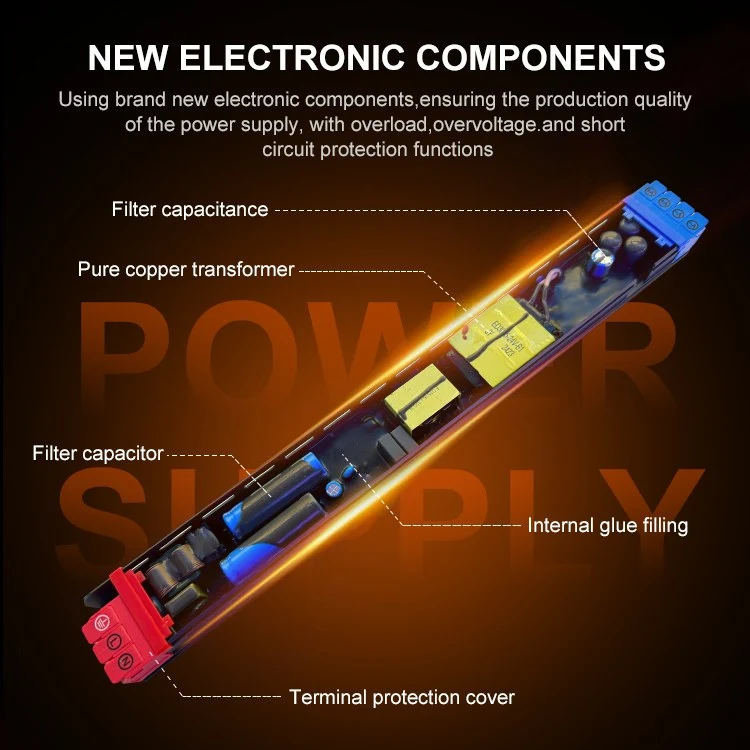

Built with overvoltage, short-circuit and overheat multi-protection circuits, this STARWELL 24V aluminum driver balances cost efficiency and reliability to satisfy bulk procurement from lighting distributors globally.

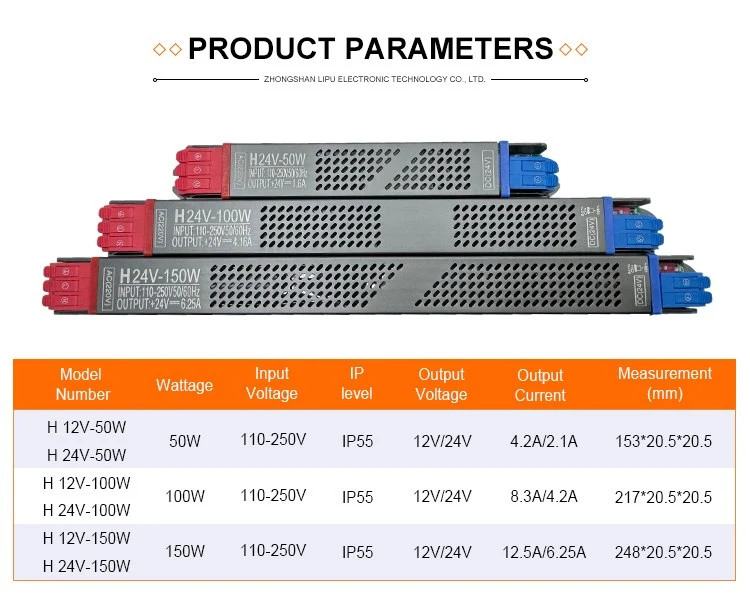

Product parameter

Product	24V IP55 Aluminum LED Driver Power Supply
Output Power	50W 100W 150W
Input voltage	AC 110-250V
Efficiency	95%
Protection	Short Circuit Protection, Overloading Protection, Over Power Protection, Overcurrent Protection, Overvoltage Protection
Warranty	3 Years
