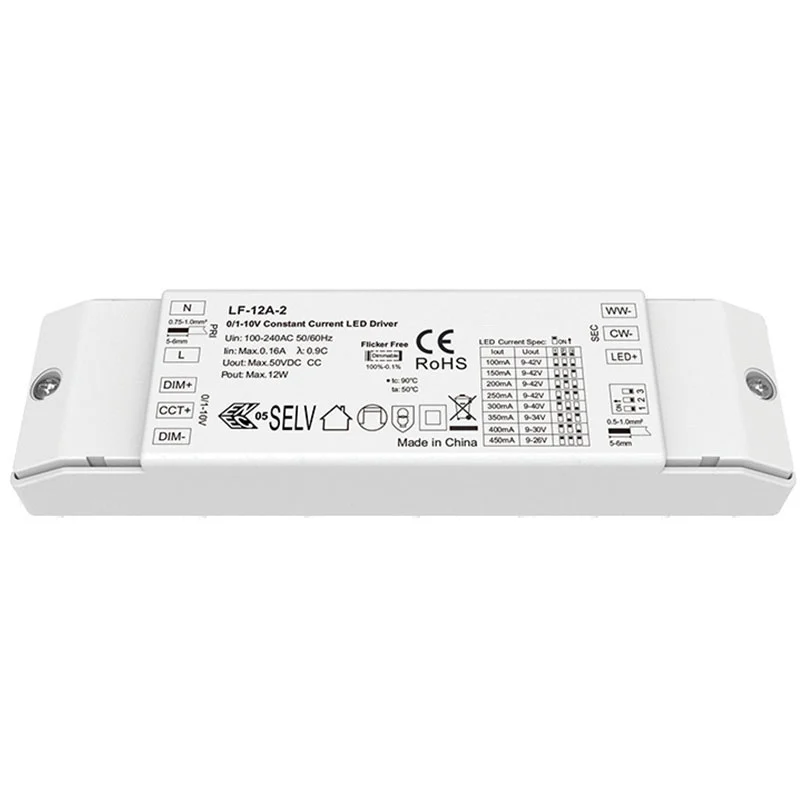

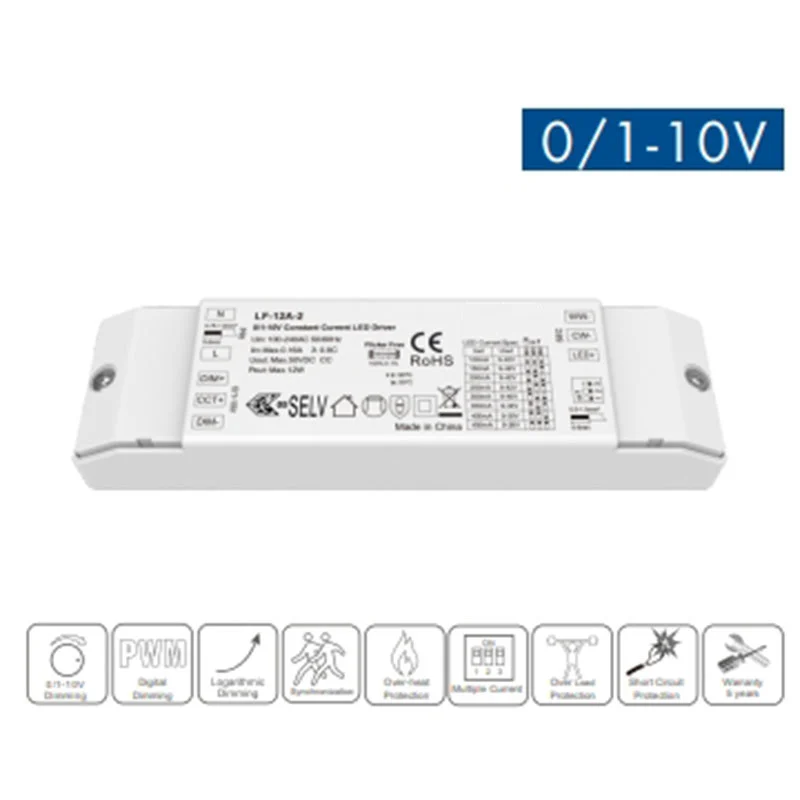

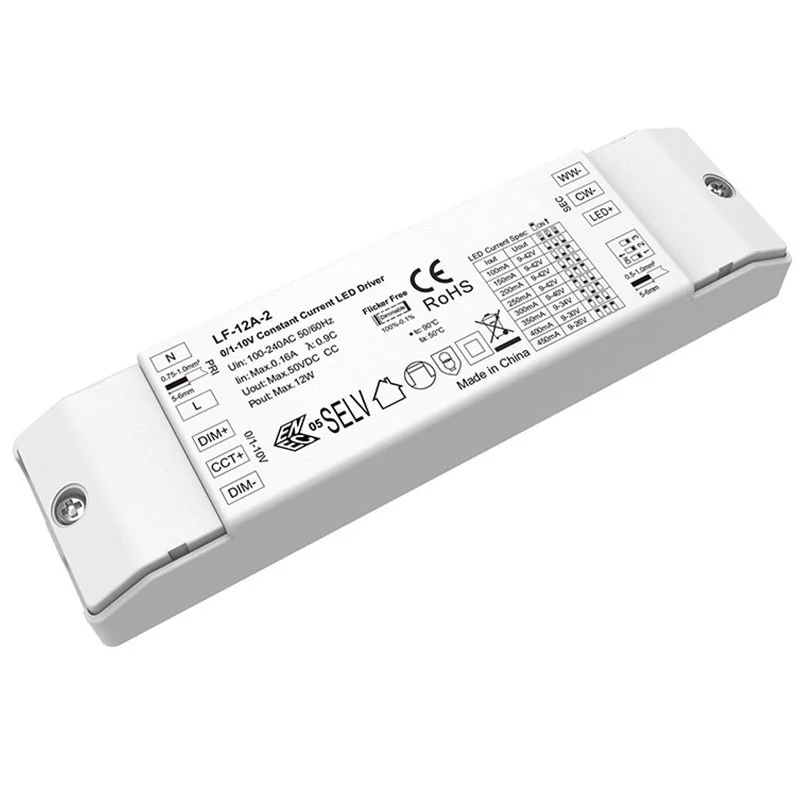

12W Constant Current 0-10V CCT Dimmable LED Driver

STARWELL is a professional manufacturer and supplier of Constant Current 0-10V CCT Dimmable LED Drivers. With 100-240V universal input, >0.98 power factor and flicker-free performance, the high quality 12W Constant Current 0-10V CCT Dimmable LED Driver enables smooth CCT dimming. CE/ROHS certified with full protection, it suits diverse lighting scenarios. STARWELL delivers reliable, high-quality driving solutions globally.

Send Inquiry

Product Details

STARWELL factory’s classy 12W Constant Current 0-10V CCT Dimmable LED Driver is a high-performance lighting solution engineered for stable and flexible illumination control. With a wide input voltage range of 100-240V AC, it adapts seamlessly to diverse electrical systems. Boasting power factor >0.96 and efficiency up to 89%, it ensures energy-saving operation while delivering precise constant current output with ±5% accuracy, eliminating flicker (stroboscopic coefficient <1%). Compliant with CE and ROHS certifications, it’s ideal for commercial, industrial and residential lighting applications.

Key Selling Points:

1. Precise 0-10V CCT Dimming: The 12W Constant Current 0-10V CCT Dimmable LED Driver supports smooth brightness and color temperature adjustment with linear dimming response, compatible with mainstream 0-10V controllers for tailored ambiance control.

2. Superior Power Performance: STARWELL Dimmable LED Driver’s power factor >0.96 and efficiency up to 89% reduce energy consumption, cutting operational costs significantly.

3. Stable Constant Current Output: ±5% current accuracy and stroboscopic coefficient <1% ensure flicker-free lighting, protecting eyesight and enhancing user experience.

4. Wide Compatibility & Reliability: 100-240V AC universal input fits global electrical standards; CE/ROHS certified with over-voltage and short-circuit protection for long-term safe operation.

Product	0-10V led driver
Input Voltage	100-240V; 50/60Hz
PWM Frequency	4000Hz
Output Power	Max.12W
IP Rating	IP20
Input Current	≤0.15A/115VAC, ≤0.08A/230VAC
Warranty	5-Year Warranty
Application	Led Lighting, Outdoor Lighting, Street Light, Flood Light
