Constant Current 0-10V Dimming LED Driver

STARWELL is a professional manufacturer and supplier of high quality Constant Current 0-10V Dimming LED Driver. With rich experience in the LED lighting accessory industry, STARWELL is committed to providing high-quality driving solutions. This product is a high-performance LED driver featuring stable 0.15A constant current output, 50V maximum output voltage and 20W maximum output power. It supports dual dimming modes of 0-10V/1-10V, with multiple protection mechanisms, widely applicable to various lighting scenarios.

Send Inquiry

Product Details

This Stawell CE certified Constant Current 0-10V Dimming LED Driver is a high-performance driving solution specifically designed for LED lighting systems. It features precise current control and flexible dimming methods, and is widely applicable in commercial lighting, industrial lighting, and home smart lighting scenarios. Stawell 0-10V/1-10V dimming LED driver adopts advanced constant current driving technology, maintaining a stable output current of 0.15A. It can precisely match the corresponding power LED lamps, avoiding problems such as light flickering and accelerated aging of the light source due to current fluctuations.

Precise Constant Current Driving: The output current is precisely locked at 0.15 amperes, with the current fluctuation error not exceeding ±3%. This effectively avoids the flickering and glare of the LED source, ensuring the comfort of the lighting, reducing the light attenuation phenomenon, and extending the lifespan of the light source by more than 30%.

Wide Voltage and High Power Compatibility for Stronger Adaptability: The maximum output voltage of Stawell constant current 0-10V dimming LED driver is 50 volts and the maximum output power is 20 watts. It can be compatible with 3 to 15 series-connected LED ribbons, and is suitable for various LED lighting products with a power of 20 watts or less, such as spotlights, downlights and panel lights, etc. No additional driver matching is required, thus reducing the selection and application costs.

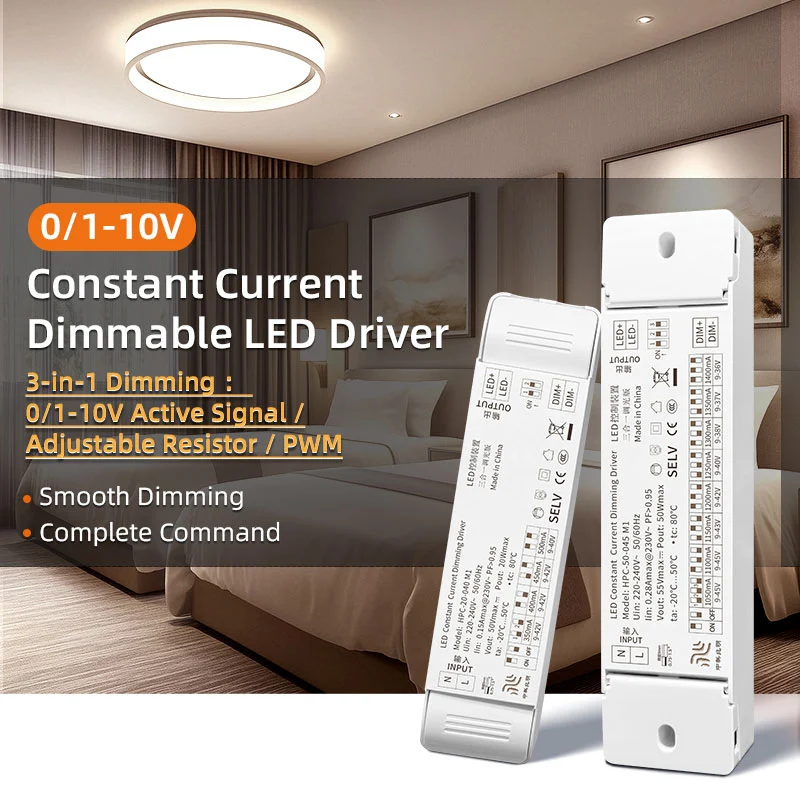

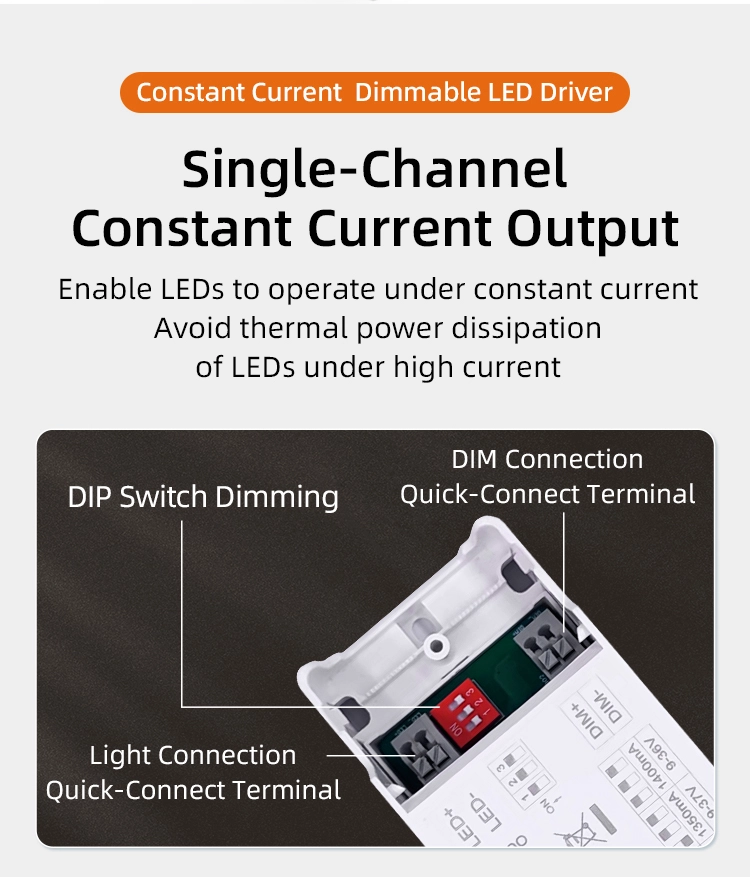

Dual Dimming Modes: The constant current dimming LED driver supports 0-10V/1-10V dual dimming signal input. The dimming range is 0-100%, with a dimming linearity of ≥95%. It can achieve a seamless and smooth transition from dim to full brightness without any dimming jitter or lag. It is compatible with various intelligent dimming systems and can meet the lighting requirements of different scenarios.

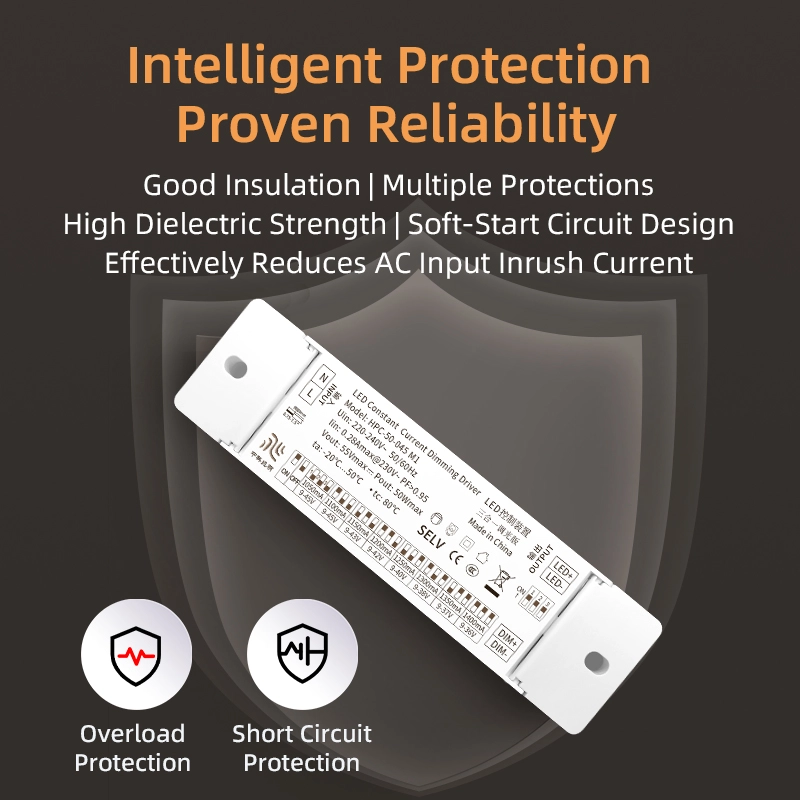

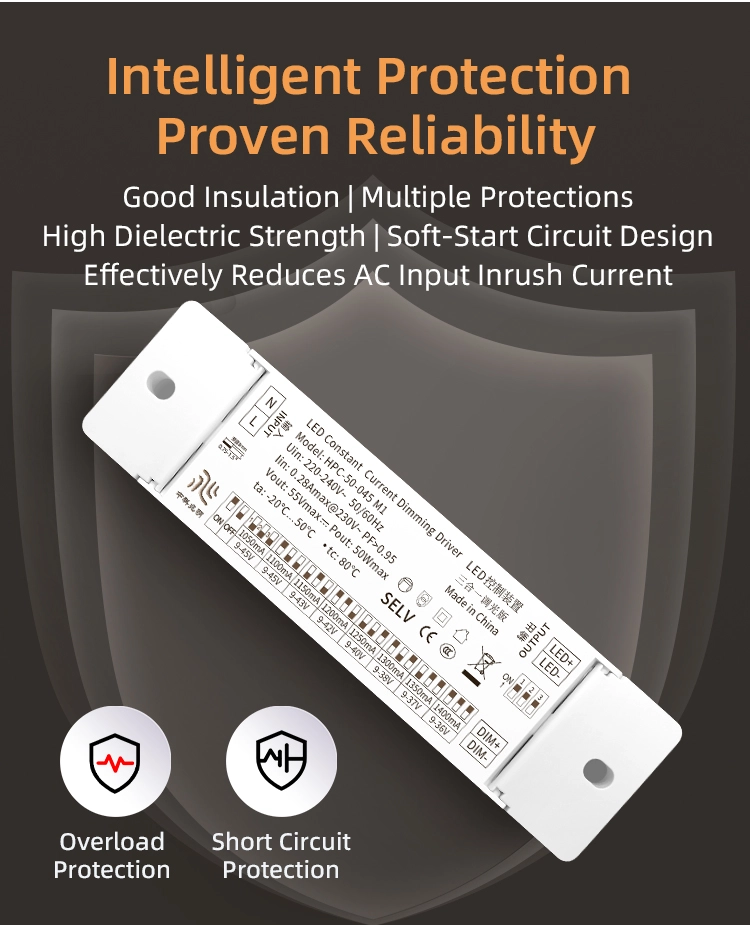

Multiple Protection Design: Built with four protection mechanisms: overvoltage (protection threshold ≥55V), overcurrent (protection threshold ≥0.18A), short circuit, and overheating (protection temperature ≥110℃). It can quickly cut off the output in case of abnormal working conditions to protect the driver and LED light sources from damage.

Product	0-10V led driver
Input Voltage	220-240Vac; 50/60Hz
Protection Class	SELV
ta	-20℃—50℃
tc	80℃
Power Factor (PF)	0.95
THD	≤10%
Efficiency	≥86%
Warranty	5-Year Warranty
