20W Constant Current 0-10V Dimmable LED Driver

STARWELL is a reputable Chinese manufacturer and supplier with years of experience specializing in 20W Constant Current 0-10V Dimmable LED Driver production. We hope to establish commercial ties with you.

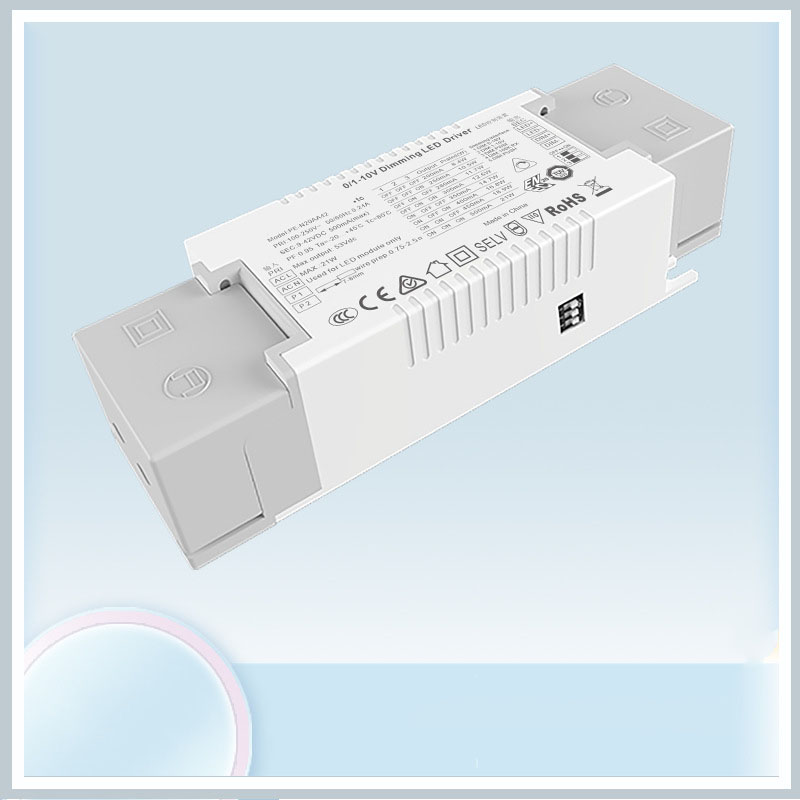

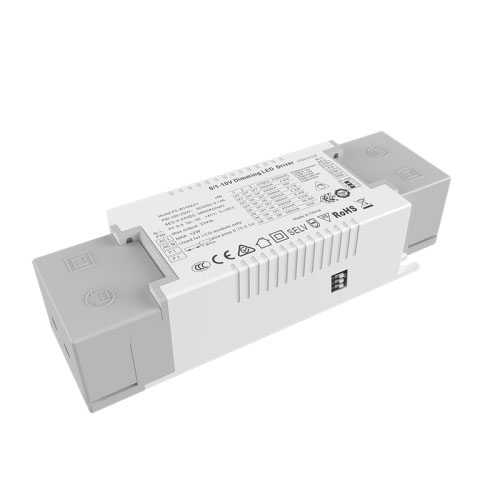

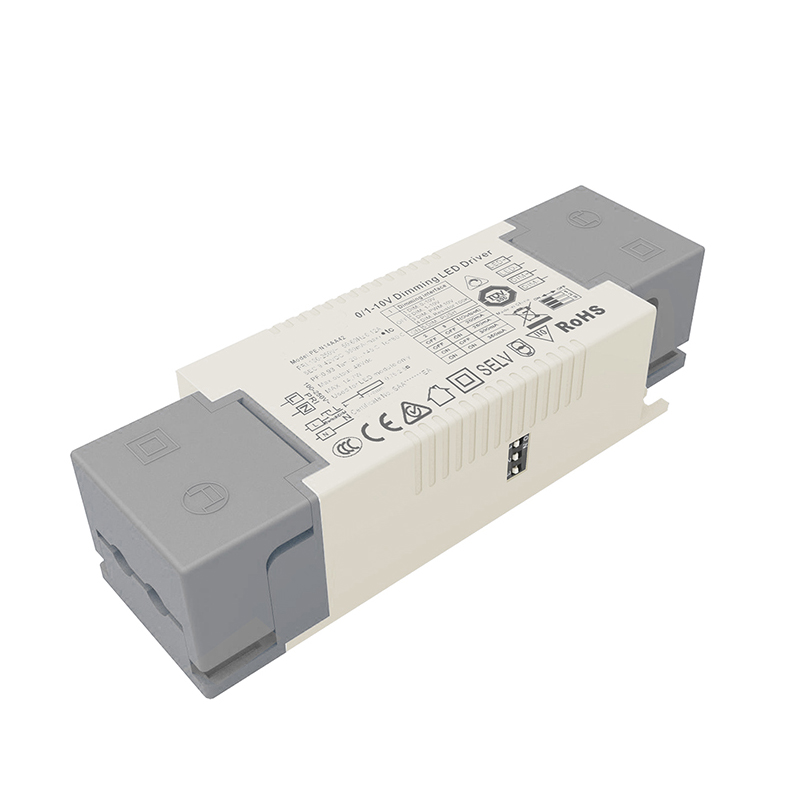

The PE-N20AA is used to control the dimming curve and the mixed frequency control to achieve the visual angle perception brightness. The raw materials used are first-line brands and imported chips are designed for ultra deep dimming,It matches a variety of intelligent dimming systems on the market, accurately controls the brightness, comes with a slow start-up and ultra small size design.

20W Constant Current 0-10V Dimmable LED Driver Features:

1. integrate multiple signal dimming interfaces

2. digital control output without stroboscopic

3. AC input 100-250v range

4. natural air cooling, moisture-proof, heat conducting silicone heat dissipation process

5. deep dimming design

6. multiple protection functions

7. crimping design, convenient and fast

8. TUV CE SAA C-TICK ENEC certificate

9. 127.5*43*30mm

20W Constant Current 0-10V Dimmable LED Driver Model list:

0/1-10V constant current dimming

20W Constant Current 0-10V Dimmable LED Driver Application:

1. Led monochrome light source

2.villa intelligent lighting

3.wireless intelligent lighting system can be accessed

4.museum lighting

5.high end commercial lighting

20W Constant Current 0-10V Dimmable LED Driver Specification:

dimension:

LED Current Selection:

0-10V dimming diagram:

PUSH Dimming dagram:

The use of guidance:

Unless otherwise specified, all specifications and parameters are measured at 230VAC input, rated load and 25 ℃ Ambient Temperature

This product has a press line cap at the input, with self-locking clamping, it can be opened up with a screwdriver, then you will see the input terminal connected with the AC line L and the null lime N, The output terminal connect a according to the product label, notice the positive and negative pole.

1:please pay attention to the distinction between input and out put , connect correctly, then power on

2:please connect first the load of the DC output, open the driver after checking; in the constant current mode, if power on at open circuit, please turn off the driver and can’t connect the LED until the electric energy stored by the output release, or it may damage the LED ;

3.this type of driver is only limited to the use of the LED lamps ,the input voltage range is AC100-250V,the heat insulation cotton and other items that obstruct the heat dissipation of the product, which conforms to the product under the specified output voltage, current range, the use environment temperature is -20-45 degrees, and the surface can not cover the conditions of the environment, this product enjoys 5 years of free warranty.

1.the LED lamp doesn’t bright after the dimming driver is connected at the first time, please turn off the AC input and check as follow:

1)whether or not DC output bad contact;

2)whether DC output polarity is reversed, or the LED board is welded anti;

3)whether AC input is bad contact, test after eliminating these failures;

2.the device has good connection, LED lights, but the LED flicker, please turn off the AC input and check as follow:

1).whether or not the parameters and actual parameters match.

2).please timely communicate with us if you have any questions in the using, we will try our best to solve the problems with you.

Difference between 0-10V and 1-10V:

1.When the 0 / 10V dimmer is adjusted to the maximum 10V, the output current will reach 100% of the power output, and the brightness will reach 100%. When the 0-10V dimmer is adjusted to 0V,the current will be the minimum, and the light will be turned off; When the 1-10V dimming is adjusted to 1V, the current is the minimum

and the light is off.

2.Difference between 0-10V and 1-10V dimming: different starting and closing voltage, 0-10V is on at 0.7V, (the min brightness) 1-10V is on at 1.2V (the min brightness).

3.Digital dimming driver 0-10V and 1-10V dimming automatic identification two dimming modes.

4.The same signal circuit controls light and dark at the same time.

5.Dimmer (dimming system) is divided into 0-10V and 1-10V dimming signals.

6.Dimming compatibility is related to the control distance of signal line and the number of control power supply. If the number is too large or the signal line is too long, problems such as can not adjusted lower and can not adjusted off will occur.

Product warranty scope:

1. the signal control interface shall not be connected to a voltage higher than 15V to damage the power supply

2. input and output connections are reversed, resulting in power damage

3. the power supply is damaged due to water ingress
