0-10V Dimming Constant Current Led Driver

Starwell factory in China produces bulk Starwell Constant Current 0-10V Dimmable LED Drivers, delivering classy quality that meets CE standards. Our high quality 0-10V Dimming Constant Current Led Driver are a versatile signal conditioning and control module designed for industrial automation and smart lighting systems. It integrates four critical functions into a single, compact unit: generating a 0-10V analog signal, accepting a 1-10V input, converting PWM (Pulse Width Modulation) to an analog voltage, and providing precise potentiometer adjustment. 0/1-10V Constant Current Dimming LED driver Features:
·Output constant current
·Range AC input :100-277VAC
·Efficiency up to 78% ·Built-in active PFC function
·Protections: short circuit/over temperature

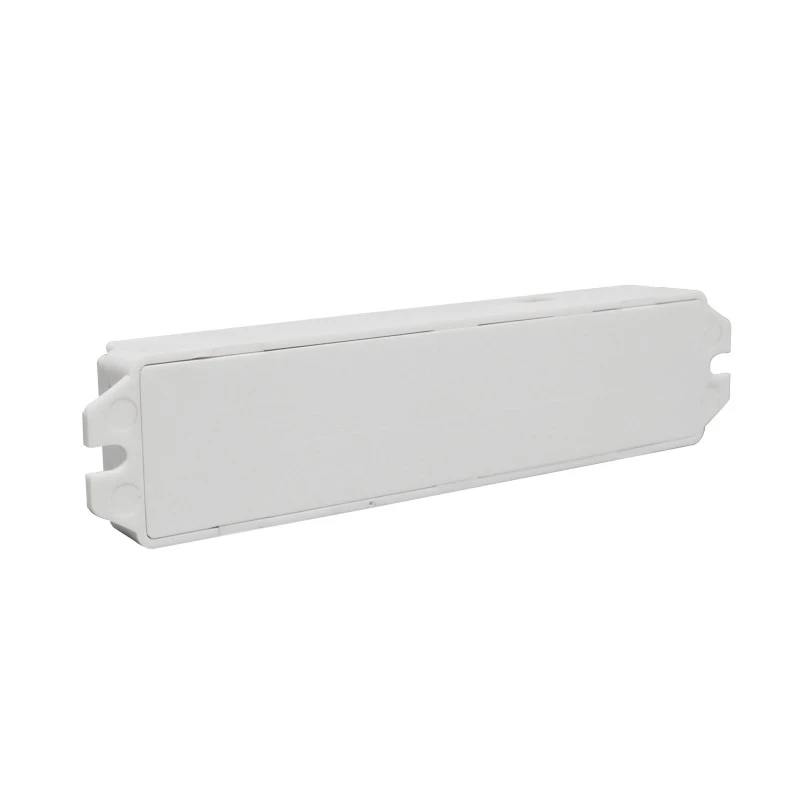

·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Dimming function: 0-10V/1-10V/Potentiometer/10V PWM (4 in 1)
·Strong compatibility, flicker-free dimming ·Suitable for LED lighting and moving sign applications

Product Details

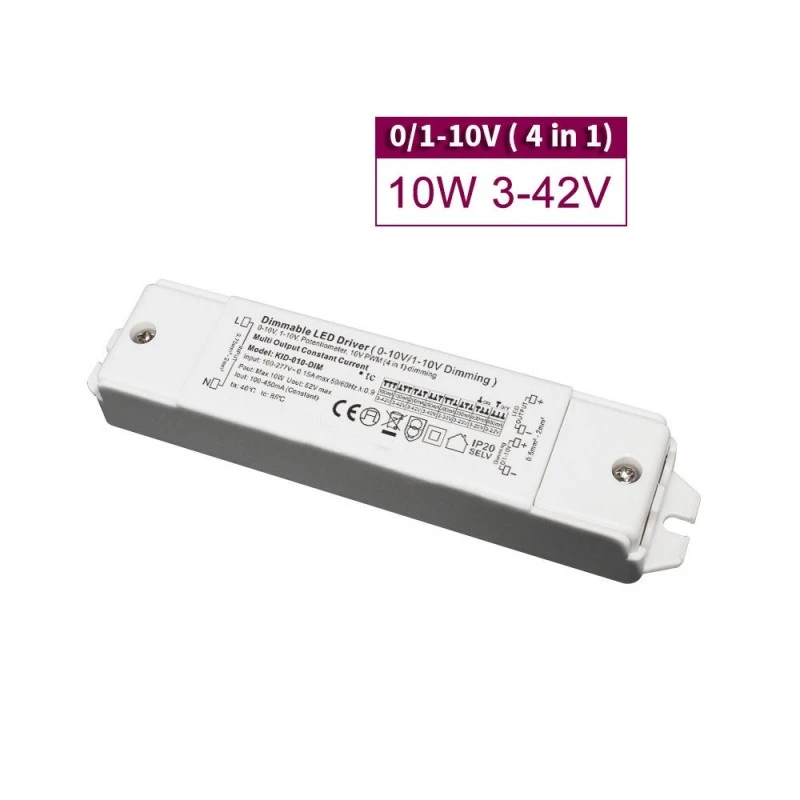

Starwell 0/1-10V Constant Current Dimmable Led Driver

Starwell high quality 0-10V Dimming Constant Current Led Driver acts as a universal interface bridge. It can convert a digital PWM signal (0%-100% duty cycle) into a stable 0-10V analog output, making it ideal for connecting micro controller-based systems to industrial controllers, PLCs, or variable-frequency drives that require a standard analog voltage input. Conversely, it can also generate a smooth, flicker-free 0-10V control signal directly via its high-precision, multi-turn potentiometer, suitable for dimming LED drivers and grow lights. The device supports a wide power supply range (typically DC 3-42V) and ensures accurate, reliable signal conversion with a low error margin.

Key applications include industrial panel control, lighting system automation, motor speed regulation interfaces, and environmental control systems. By consolidating multiple signal types into one robust module, it simplifies wiring, reduces cabinet space, and increases system design flexibility for engineers and installers.

Elevate your indoor lighting projects with STARWELL advanced 0/1-10V / 10V PWM / Potentiometer (4-in-1) Dimming Series. This all-in-one module consolidates four distinct dimming signal capabilities into a single, robust device, engineered for flawless performance with 10-60W LED systems. Designed for integrators, installers, and engineers who demand flexibility, reliability, and simplicity, it is the definitive bridge between your control system and perfect illumination.

This convergence of technologies future-proofs your installations and dramatically simplifies inventory and system design.

Engineered for Reliability and Broad Compatibility

Built to deliver consistent performance, this dimmer supports a wide 3-42V DC output, making it compatible with a vast range of common low-voltage LED modules and strips. Its wide-range input voltage acceptance ensures stable operation in various electrical environments. Capable of driving loads from 10W to 60W, it is perfectly suited for a spectrum of indoor applications—from accent lighting, coves, and under-cabinet task lighting in homes, to more demanding ambient lighting in hotels, restaurants, and offices.

Your Assurance of Quality and Safety

We stand behind the durability and safety of our product. Each module is backed by a comprehensive 3 to 5-year warranty, reflecting our confidence in its long-term performance. It is rigorously tested and certified to meet the highest international standards, such as CE/SAA/UL/ROHS etc.

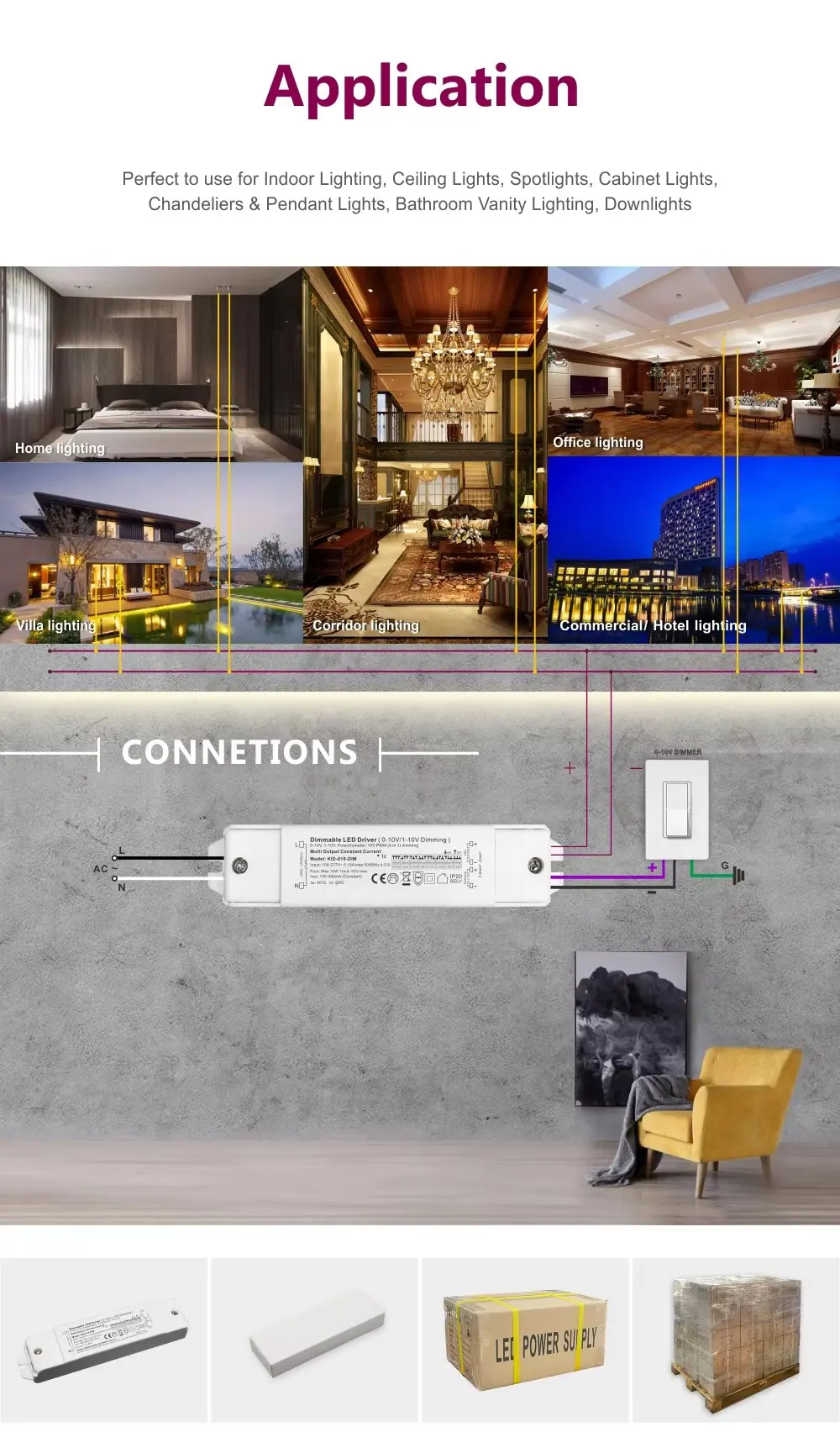

Ideal Application Scenarios

This 4-in-1 dimmer is the intelligent choice for complex lighting ecosystems:

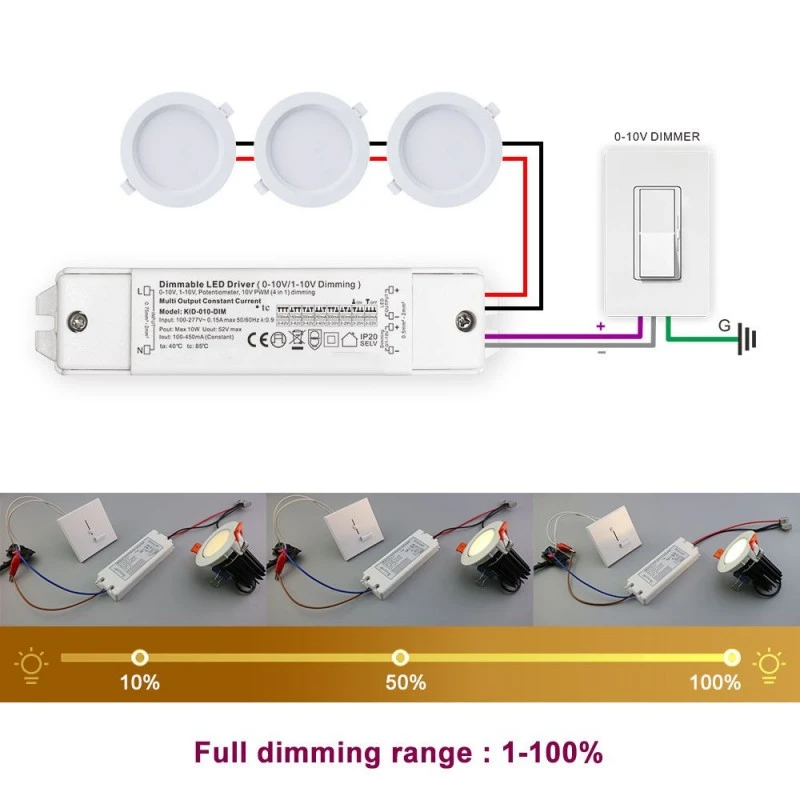

Smart Home & Retrofit Projects: Connect smart controllers (PWM output) to traditional 0-10V dimmable LED drivers or fixtures without compatibility issues.

Commercial Renovations: Upgrade lighting control in offices or retail spaces while leveraging existing 1-10V control wiring or new digital control panels.

Custom Architectural Lighting: Offers designers and installers a single, flexible tool for prototyping, controlling, and fine-tuning intricate lighting schemes, whether via automated systems or manual trim.

Simplify your design, unify your control, and trust in certified quality. Choose the 4-in-1 Dimming Module for a smarter, more adaptable, and professionally guaranteed approach to indoor lighting control.

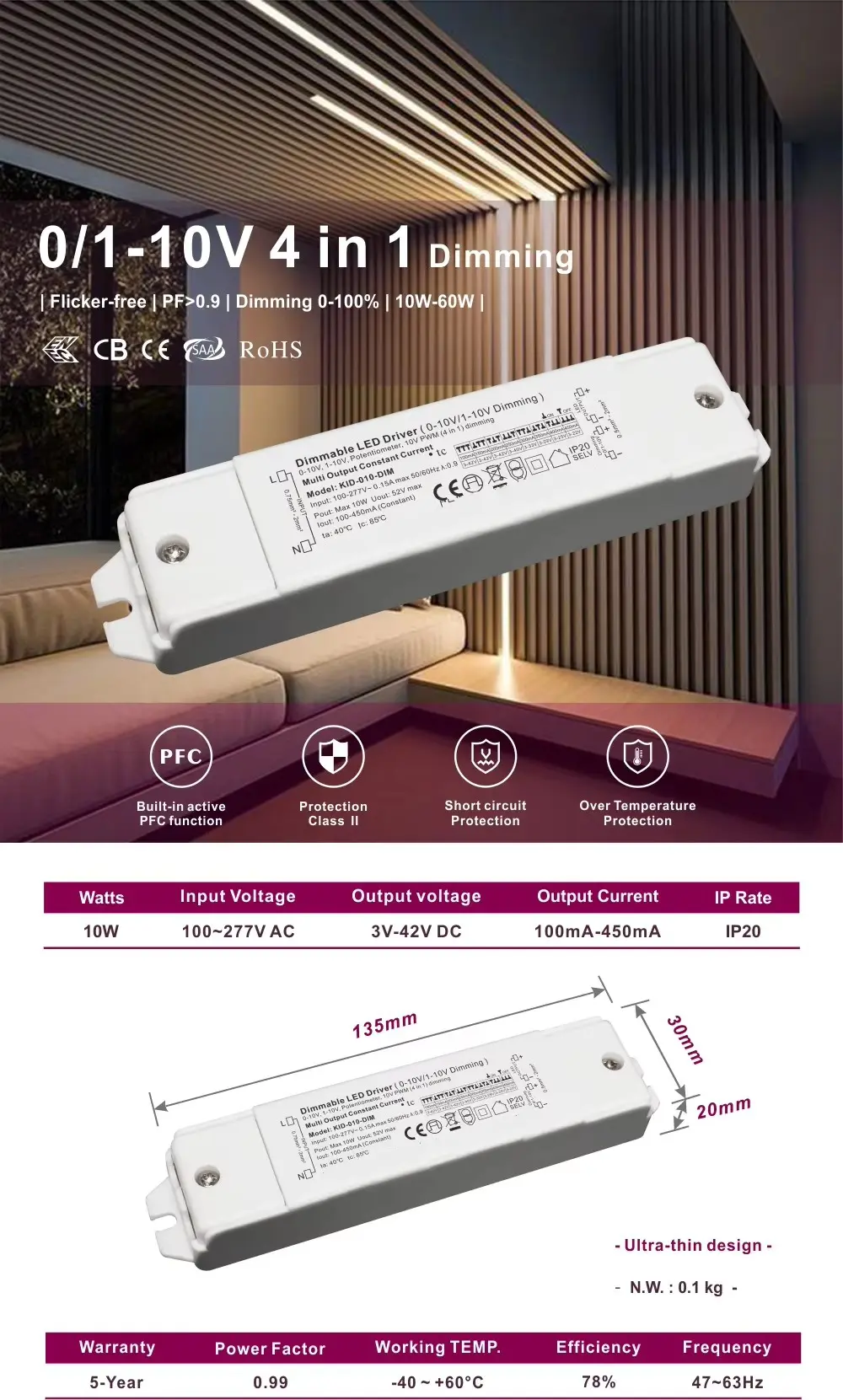

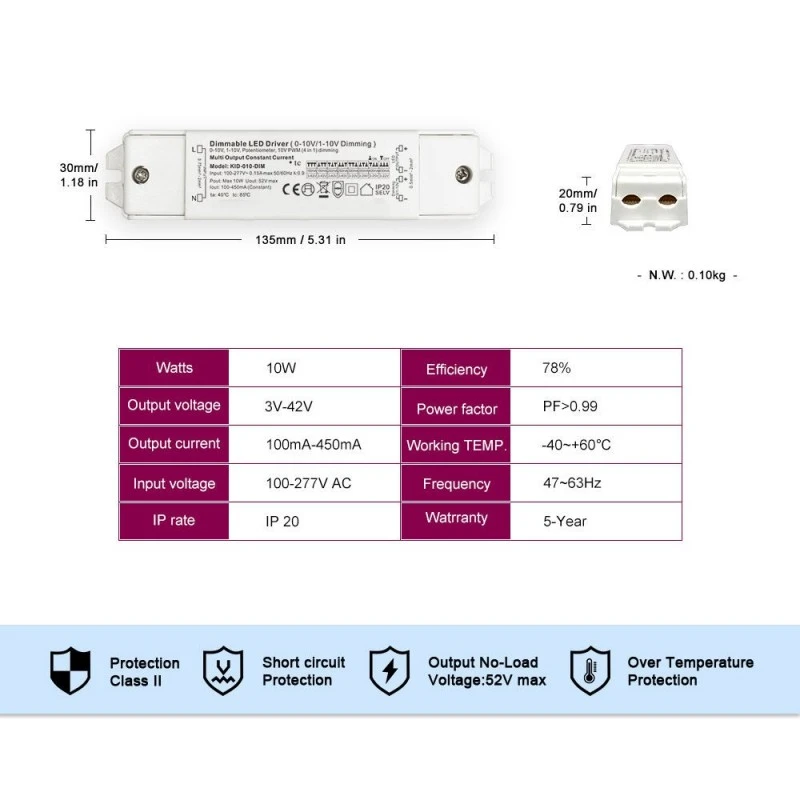

Starwell Constant Current 0-10V Dimmable Led Driver Specification:

Specification:

Model		KID-010-DIM
Output	Rated current (mA)	450	400	350	300	250	200	150	100

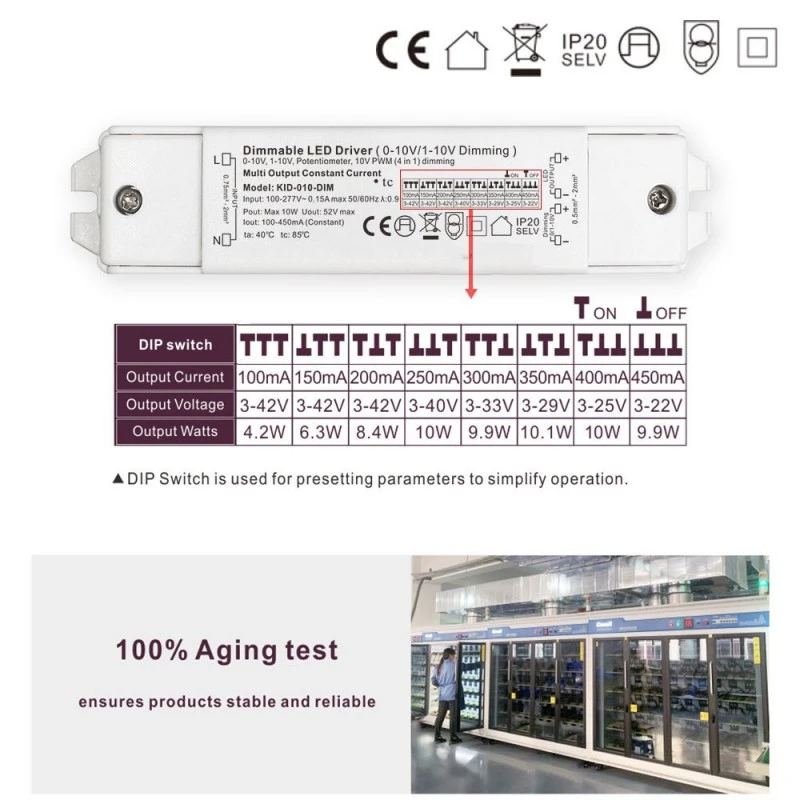

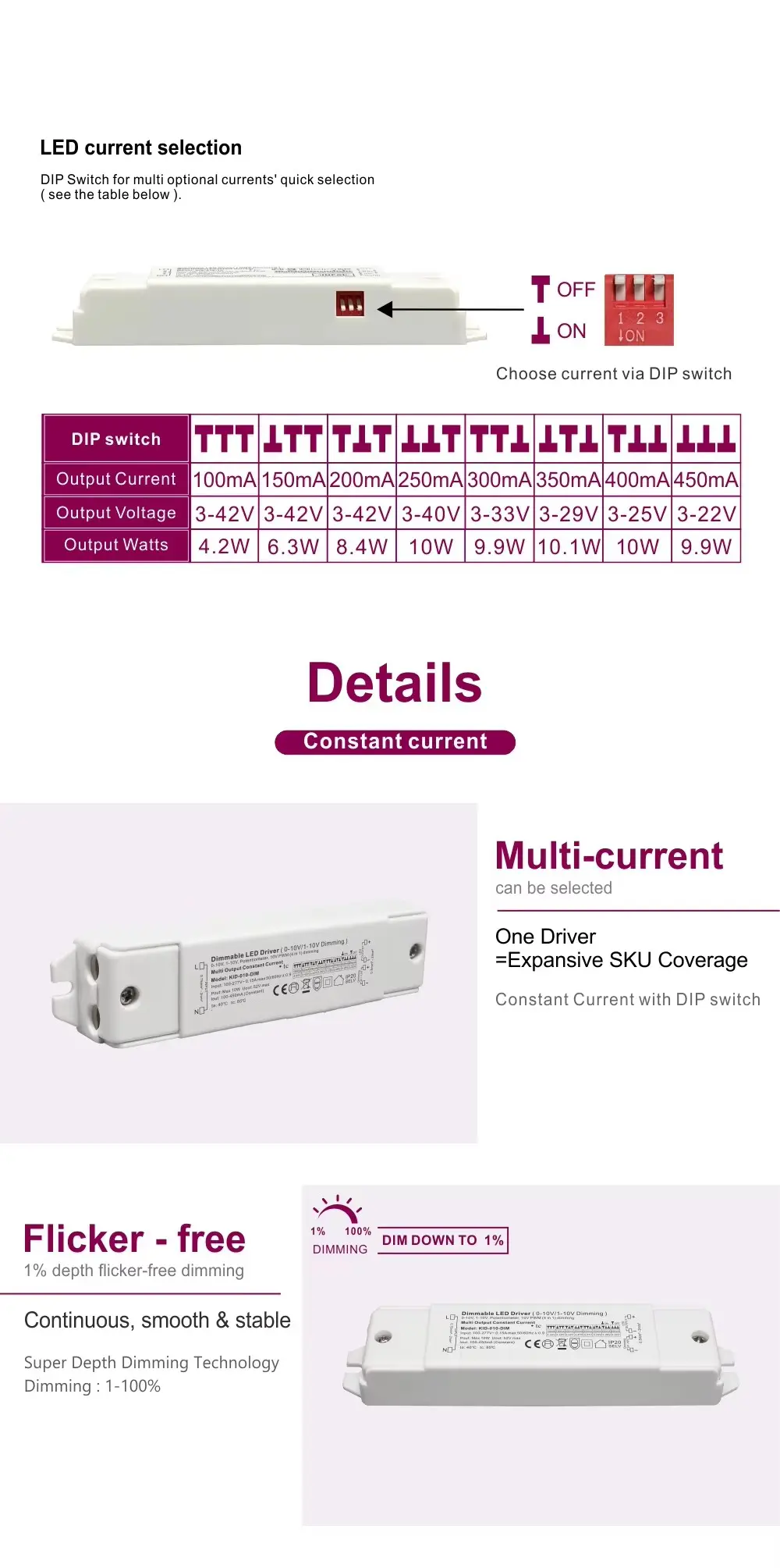

	DIP Code
	Current Tolerance	±25mA
	DC Voltage (V)	3-22	3-25	3-29	3-33	3-40	3-42	3-42	3-42
	Rated power (W)	10	10	10	10	10	8.4	6.3	4..2
Input	Rated Input Voltage	100-277VAC
	Rated Frequency	47-63HZ
	Total harmonic distortion	≤15%
	Power Factor	Full loading ≥0.99@120VAC 60Hz; ≥0.87@277VAC 60Hz;
	Efficiency (Typ.)	Full loading ≥78%@120VAC 60Hz;
	AC Current (Max.)	0.15A
	Inrush Current (Typ.)	7A 24us @ 50% Ipeak at 120VAC
	Leakage current	<0.50mA
Protec- tion	Short Circuit	Constant current mode, recovers automatically after fault condition is removed
	Over temperature	Ambient temp. over 50±5℃, output current will be reduced to 50%; Ambient temp. over 60±5℃, output will be off; recovers automatically after temp. drops.
	Protection Class:	II
