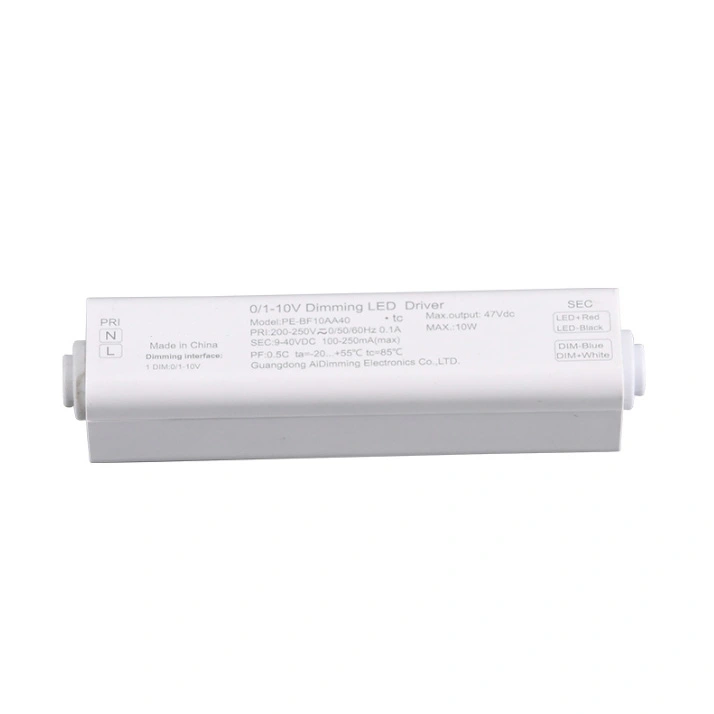

Constant Current 0-10V 1-10V Dimming LED Driver

Wholesale PE-BF10AA Constant Current 0-10V 1-10V Dimming LED Driver with SAA CE ROHS which manufactured by Starwell. We offer cheap price and good quality products for you.
Feature:
1.Switch to select 0-10V/1-10V control signal
2.Digital control output is adopted without stroboscopic
3.AC input 200-250v range
4.Natural air cooling and moisture-proof process
5.Deep dimming design
6.Multiple protection functions
7.Ultra small volume design
8.Crimping design, convenient and fast
9. Use the AIDimming PC assistant Hand to set the current, set 0-10V or 1-10V

Send Inquiry

Product Details

The Starwell high quality Constant Current 0-10V 1-10V Dimming LED Driver is a core power supply component tailored for LED lighting systems, engineered to deliver stable current output while enabling seamless brightness adjustment. Compatible with both 0-10V and 1-10V dimming protocols, it caters to diverse application scenarios—from commercial spaces like offices and shopping malls to residential environments and industrial lighting setups.

Featuring high precision current regulation, the driver ensures consistent luminous flux of LED fixtures, effectively extending their lifespan and avoiding flicker issues caused by unstable voltage. Its dimming function allows smooth brightness transitions from 0% to 100% (or 10% to 100% for 1-10V mode), meeting energy-saving needs and creating comfortable lighting atmospheres. With over-voltage, over-current and short-circuit protection mechanisms, it enhances operational safety and reliability. Compact in design, it supports easy installation and integration with various LED lamps, making it a preferred choice for smart lighting projects pursuing efficiency, stability and flexibility.

Application:

0-10V DIM 1-10V DIM

1. Led light source

2. Villa intelligent lighting

3. Wireless intelligent lighting system can be accessed

4. Museum lighting

item	CONSTANT CURRENT 0-10V/1-10V DIMMING LED DRIVER
Output Voltage	9-40Vdc
Non-load Output Voltage	47Vdc
Output Current	100-250mA
Output Power	1.5W~10W
Dimming Range	0 ~ 100%, LED dimming from 0.1%
PWM Dimming Frequency	>3600Hz
Power down mode	Active signal, no signal access, output the maximum set current
Slow lighting time	3-3.5 seconds (0-100% brightness time)
Dimming Interface	0-10V 1-10V 10vpwm 100k potentiometer signal interface current < 2mA
Power down mode	Active signal, no signal access, output the maximum set current
Current AcCuracy	土5%
Dimming Interface	0-10V 1-10V 10vpwm 100k potentiometer signal interface current < 2mA
Input Voltage Range	200-250Vac
Inrush Current(typ.)	cold start21A/20us@230Vac
Leakage Current	<0.25MA/230Vac
Working Temperature	PF>0.98/230V aclat full load)
Storage Temp., Humidity	-40 ~ 80°C°, 10~95%RH
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
Temp.Coefficient	±0.03%/°C(0-50)°C

General Description:

1. It adopts deep PWM control dimming, digital control dimming curve, power on slow start function to output more comfortable light. The raw materials used are first-line brands,Imported chip ultra deep dimming design, matching a variety of intelligent dimming systems on the market. PWM dimming output controls LED brightness, and the color temperature does not shift during dimming, PCB is sprayed with 3 anti paint, which makes the product more stable

Remark:

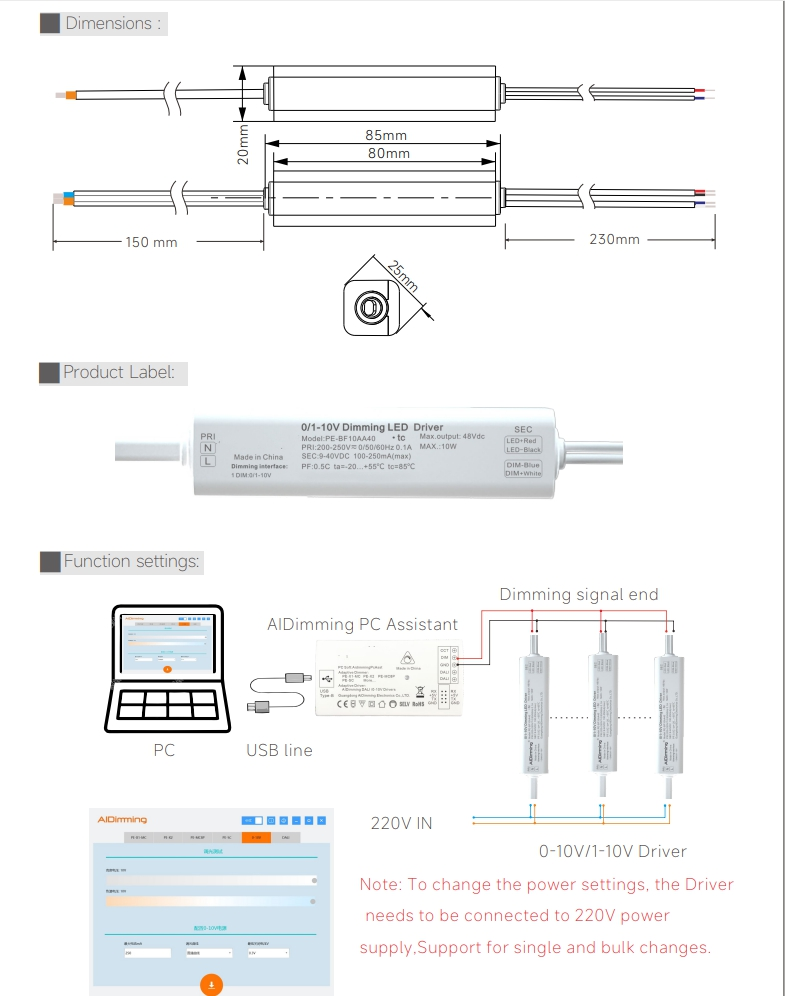

1. Before accessing the dimming signal, please confirm whether the control signal is 0-10V or 1-10V, and the signal and current settings can be changed through AIDimming PC and software.The power supply to change the parameters must be connected to the 220V power supply, which can be changed in batches.

2.The measured parameters are carried out under the input 230V AC environment of 25 degrees

3. Constant current driver, in the non dimming state, the output current is the maximum set value

4. The voltage connected to the lamp shall be within the marked voltage range of the power supply

5. Test distance of signal line: 1.5 square shielded wire, 200m with 100 Drivers. Due to the distance factor, the distance is lengthened, and the number of controls will be reduced
