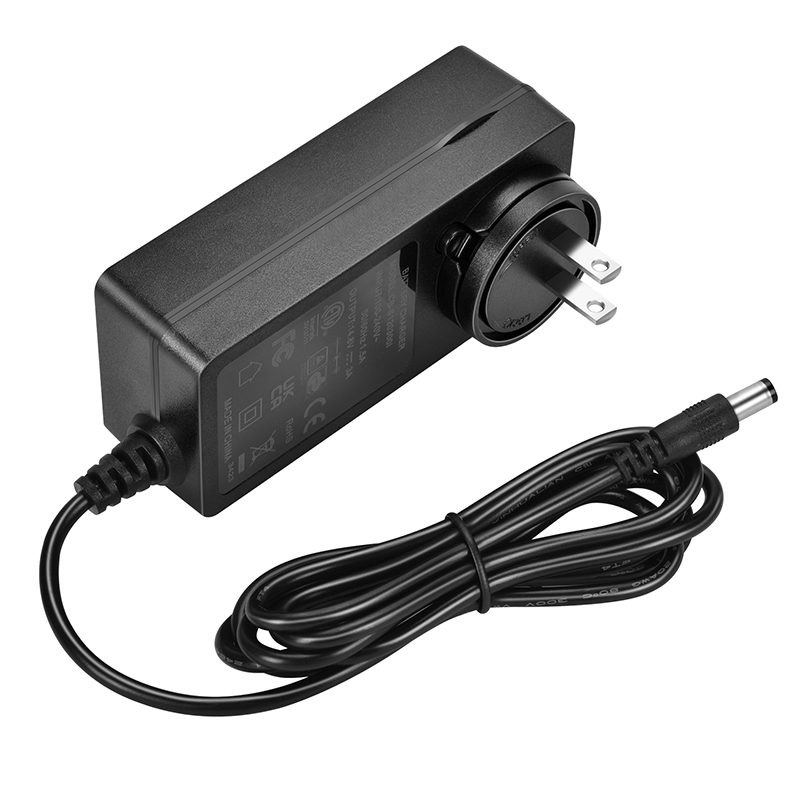

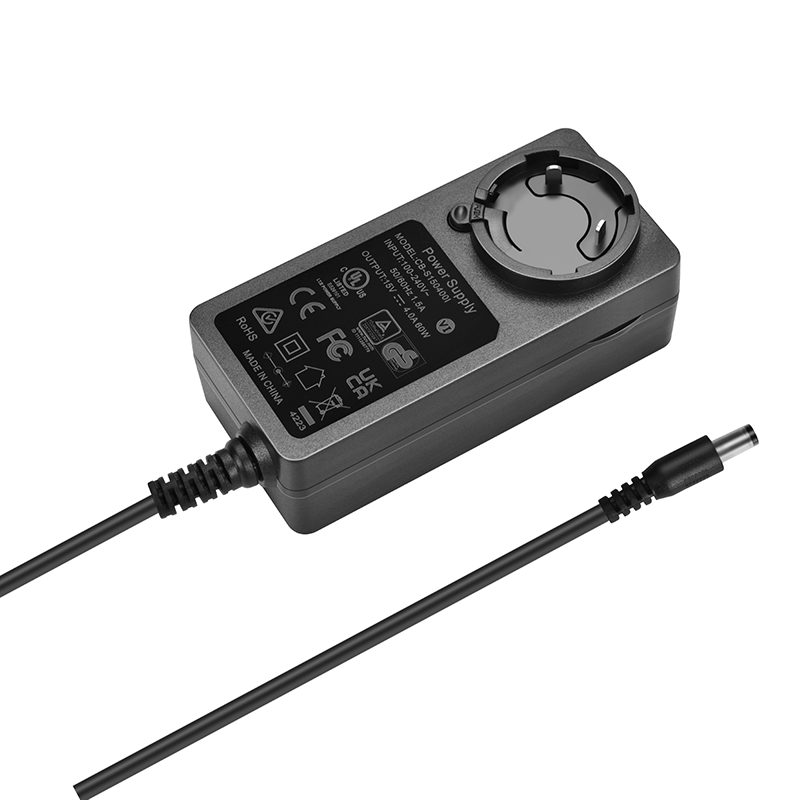

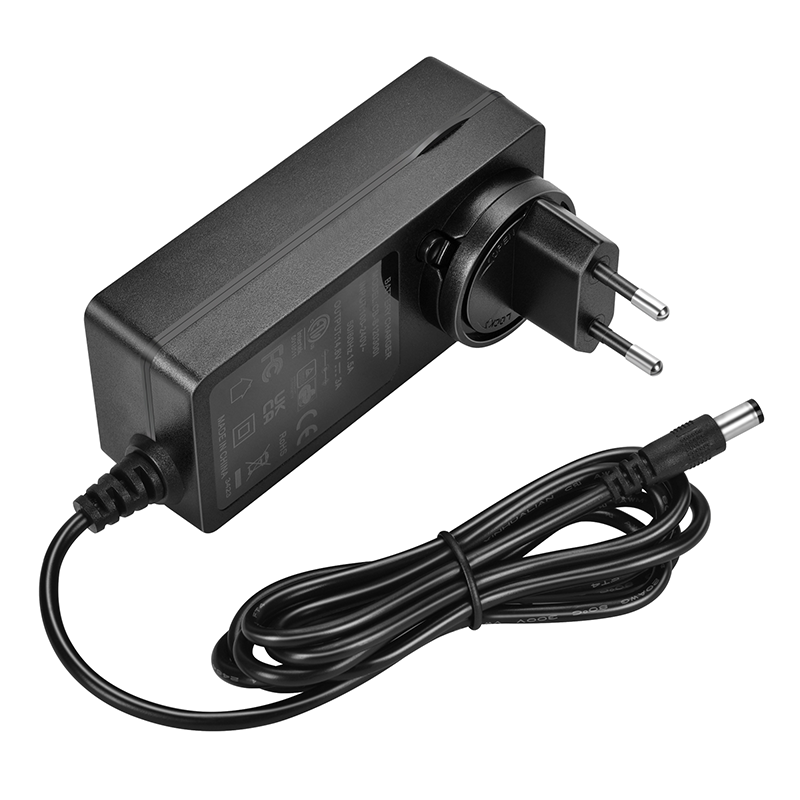

48W Interchangeable Plug Power Adapter

Starwell high quality 48W interchangeable plug power adapter is designed for frequent business trips, cross-border travel, and multi device users. With a detachable plug combination and stable output performance, it becomes a versatile charging companion for home, office, and travel. No need to purchase additional adapters for different countries' voltage and socket types, a set that meets the electricity needs of most regions around the world, bidding farewell to the "burden" of charging equipment.

Send Inquiry

Product Details

As the professional manufacturer, Starwell would like to provide you high quality 48W interchangeable plug power adapter, which output DC voltage is 5V-48V, current range is 1A-5A and input voltage range is 100- 240V AC 50/60Hz. The shell of our 48W power adapter has Wall mount and interchangeable plug type.

Specification

Power supply model	CB-SxxxYYYz
Output	DC voltage	5V-48V
	Rated Current	MAX 5A
	Current Range	1A-5A
	Rated Power	48W
	Ripple & Noise	120Vp-p Max
	Voltage Tolerence	+/- 5%
Input	Voltage Range	100-240V AC 50/60Hz
Safety Standard	EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
Safety Certification	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us.
Operating temperature	0-40 C°
Storage temperature	-20-60 C°
Hi-pot test	Primary To Secondary: 3000VAC 10mA 1 minute or 4242VDC 10mA 3 Sec
Burn-in test	80% to 100% load, 40 C°± 5℃ for 4 hours
Length of DC cord	Optional

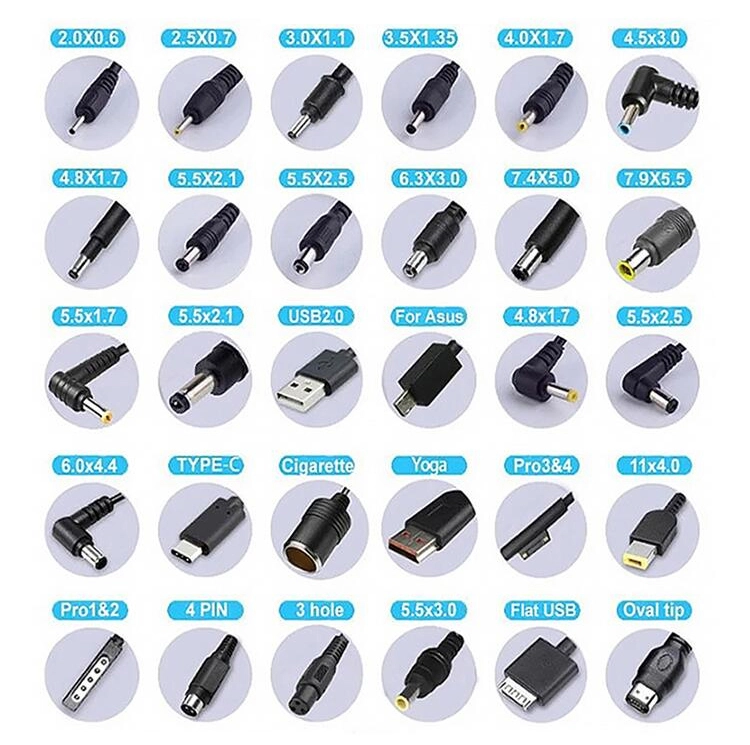

DC plug	USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available
RoHS/Reach	Yes
Package	165g; 80pcs/16.5Kg/0.056CBM
AC plug Type	US/EU/UK/AU or more
Efficiency Level	Eup 2.0, Doe VI, CEC VI, CoC V
load Regulation	+/-5%
Surge	Over 1 KV
No Load power consumption	< 0.1w
Protections	Short-circuit/OCP/OVP
Warranty	2 years

Product Detail

* Housing type: Wall mount, interchangeable plug type

* Input: 100-240VAC 50/60Hz

* Output: 5V-48V @1A-5A 48W max +/-5% tolerance

* Class II starand, indoor use only

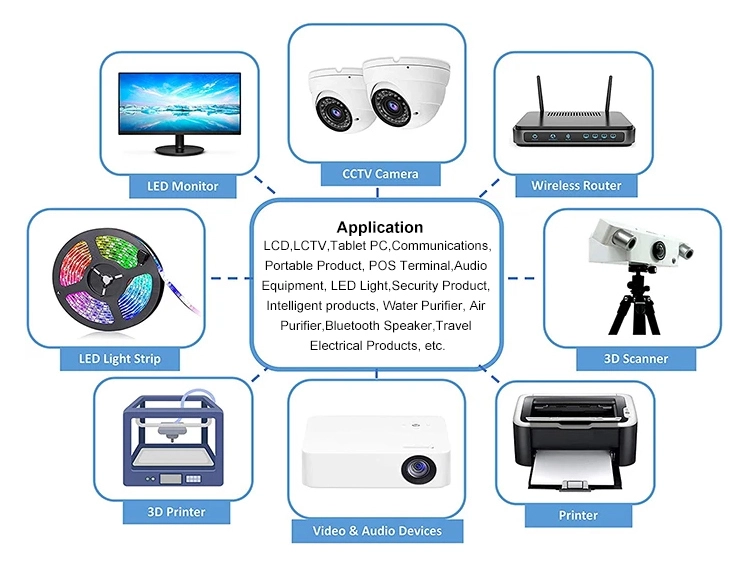

* More units for 48W series: 5V/9V/12V/15V/19V/24V/36V/48V available * Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off. * Wide compatibilities: LED Strip Lights, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, Humidifier, HUB, Keyboard, BT Speaker, Monitor, Webcam, DVR, NVR, audio/ video power supply

Machanical Drawing:

* Size: L90xW48xH32mm (LxWxH)

* Weight: 165g

* Color: Black, White (optional)

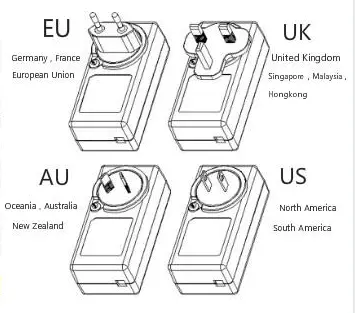

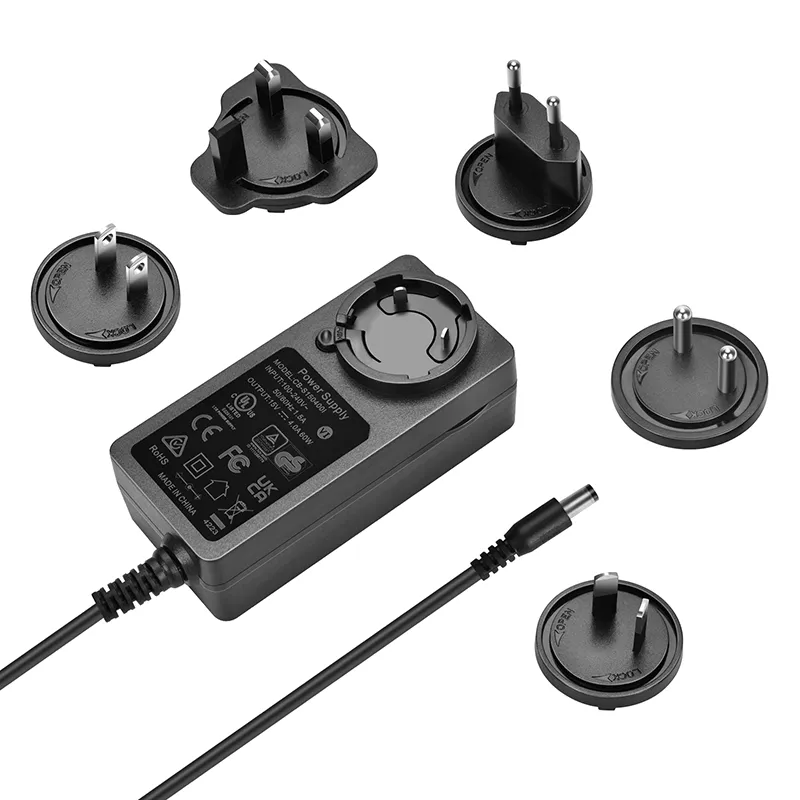

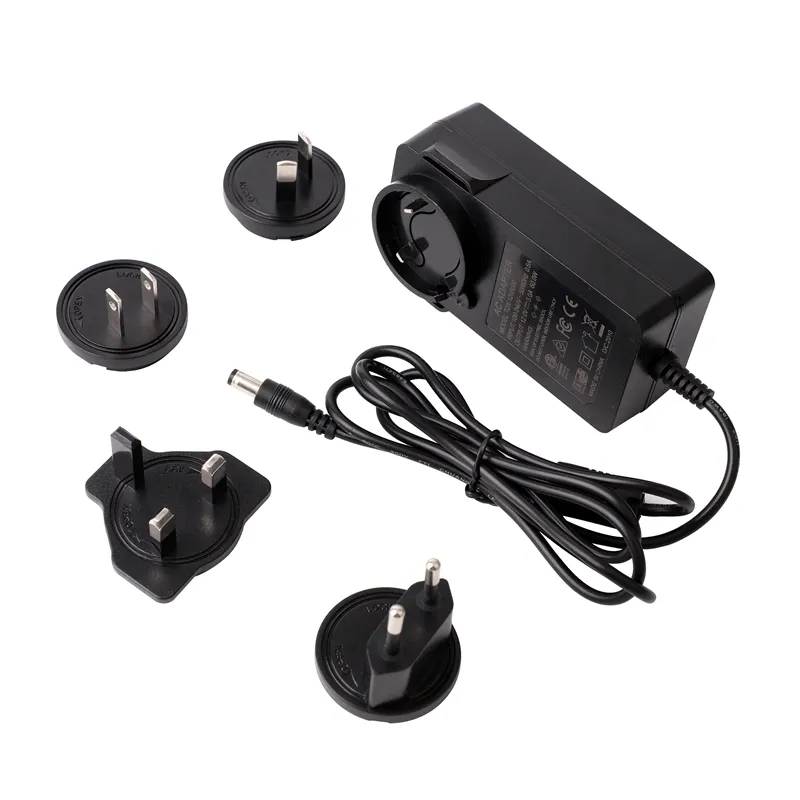

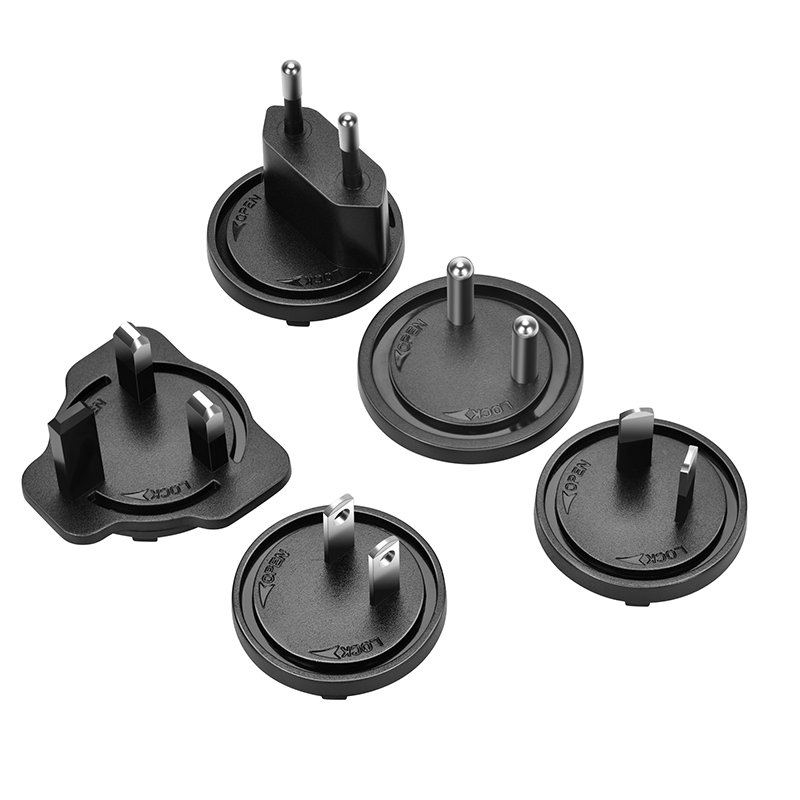

* Universal plugs: US/EU/AU/UK/JP and more

Packaging

1. PE bag+ Small white box + Carton

2. PE bag+ Honeycomb cardboard + Carton

3. We support the customized packing, customer need to provide file in AI format

4. All the master cartons that we used in the good quality as exporting standard

RFQ:

Q1: What is the warranty for your product?
A1: We guaranteed for 24 months, any quality problem happened in this period of time for our reason, we will send the replacement parts in next order.

Q2: How soon can I get samples for test to check quality?
A2: The lead time for our regular products is 3-5 days. For customized products need 2-3 weeks. We will also customized nice product to meet your requirement.

Q3: Can you accept OEM&ODM service business?
A3: Yes, we can. Our month supply ability is 500000pcs. Our R&D team can customize the special product as your needs. You can visit our website to learn more about our excellent R&D team, and you will believe you can get satisfied product.

Q4: Do you accept small quantity orders?
A4: Yes, we accept. But no doubt that the more the amount of you order, you will get more discounts if you have a regular monthly order volume, we also would like to give you the appropriate discount.

Q5: Why should you buy from us not from other suppliers?
Specialized in battery charger, power adapter and OEM/ODM, 22 senior engineers and Integrity, Innovation, Professionalism, Focus, Good quality, Customer first, Quick response. Universal approvals: UL/cUL, ETL, CE, GS, FCC, RoHS, PSE, KC, CCC, RCM, CB...

Q6: What services can we provide?
Accepted Delivery Terms: FOB, DAP, DDP, EXW
Accepted Payment Currency:USD/EUR/HKD/CNY
Accepted Payment Type: T/T, PayPal
