12W Detachable Plug Power Adapter

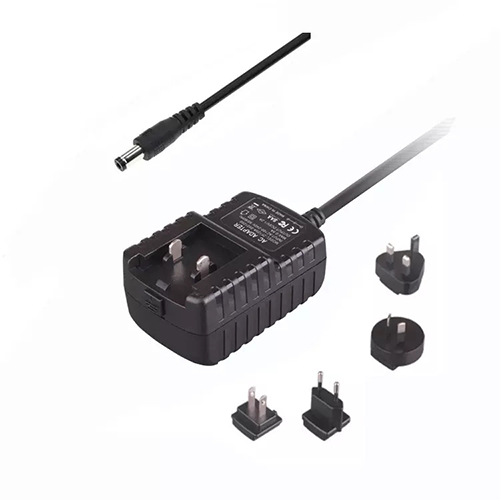

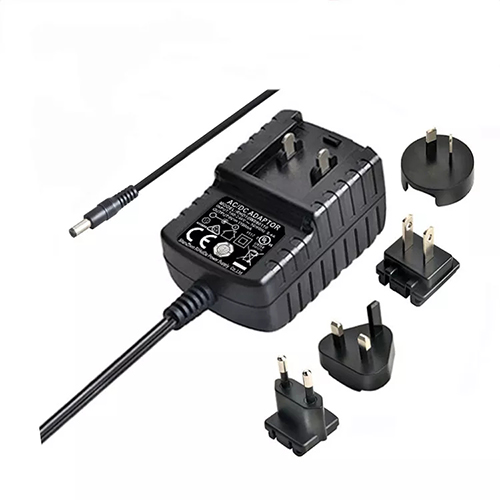

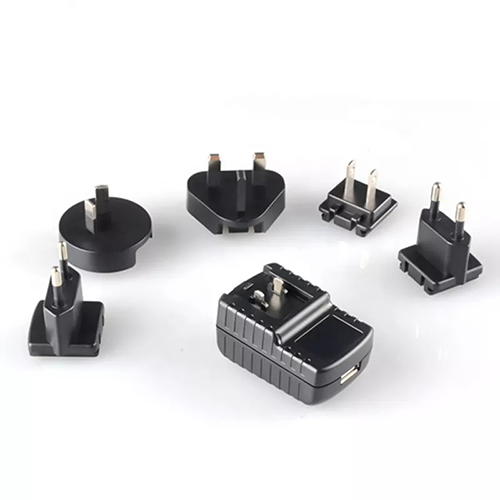

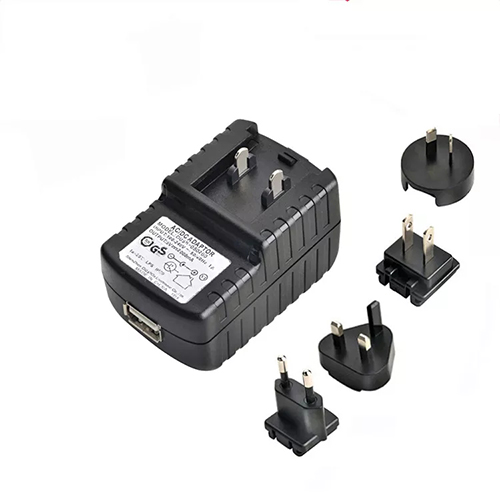

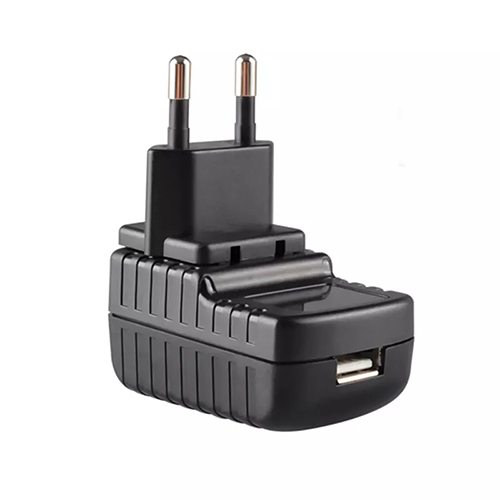

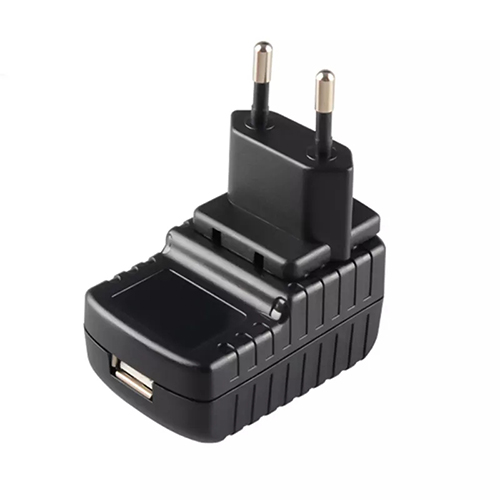

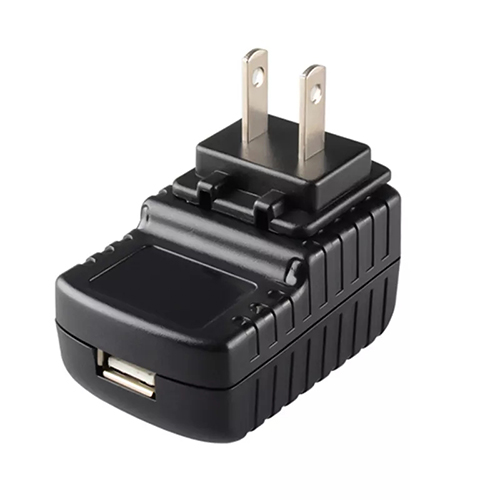

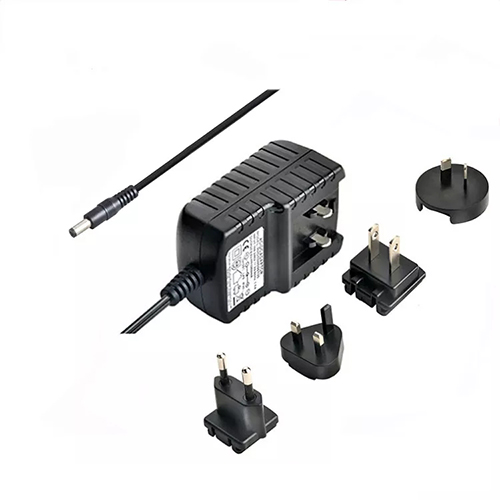

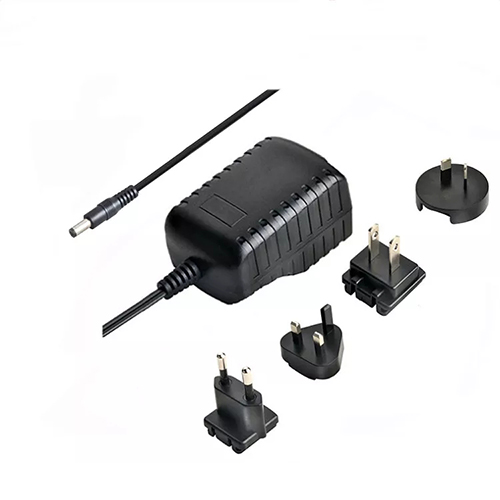

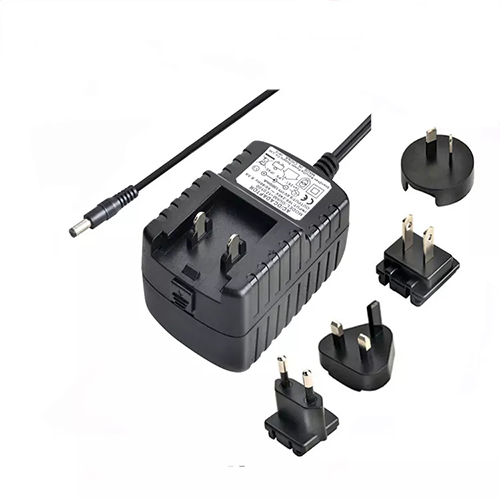

The STARWELL made 12W detachable plug power adapter offers versatility with US/EU/AU/UK/KR/CN interchangeable plugs and provides multiple output options.

Features:
Universal input: 100-240VAC 50-60Hz
Output Power: 12W
Plug Type: US/EU/AU/UK/CN/KR detachable ac plugs
Output: 5V2A, 5V2.4A, 9V1A, 12V1A, 15V0.8A 24V0.5A
Certificates: CCC,UL, cUL,CE, FCC, RCM, C-TICK, TUV, UKCA, KC, and BIS
Safety Standard: IEC62368, IEC60601, IEC1310, IEC61558, IEC60335, IEC61347
Warranty: 3 years
Color: black or white optional.
DC jack: 5.5*2.5mm, 5.5*2.1mm, 4.0*1.7mm, 3.5*1.35mm, USB C etc...
Size: 62.0x39.2x32.1mm (LxWxH)

Send Inquiry

DATASHEET

Product Details

STARWELL, a trusted brand in the industry, offers the versatile and reliable STARWELL 12W detachable plug power adapter. This adapter, manufactured by STARWELL, is designed to provide convenience and compatibility worldwide, making it a perfect solution for your power needs.

Equipped with interchangeable US/EU/AU/UK/KR/CN plugs, this adapter allows for seamless power connectivity in various countries and regions without the need for additional converters. Whether you're traveling or using it at home, it ensures hassle-free power usage.

In addition to its convenience, the STARWELL 12W detachable plug power adapter meets international certifications such as UL, CE, FCC, RCM, ROHS, and REACH. These certifications ensure compliance with safety and environmental standards, giving you peace of mind.

When it comes to performance, the adapter offers multiple output voltage options, including 5V2A, 5V2.4A, 9V1A, 12V1A, 15V0.8A, and 24V0.5A. This versatility allows you to charge a wide range of devices, including smartphones, tablets, Bluetooth speakers, and other compatible electronics.

With its compact and detachable design, the STARWELL 12W detachable plug power adapter is highly portable and easy to carry. It is produced in an ISO-certified factory, ensuring consistent quality. Moreover, it offers good pricing, making it a cost-effective choice.


STARWELL 12W interchangeable ac/dc adapter Specification:

Item 12W interchangeable power adapter, 12W detachable plug power adapter, 12W exchangeable power adapter
Type: Wall mounted power adapter interchangeable plugs
Material PC Fireproof Material
INPUT 100-240VAC 50/60Hz 0.3A max
Output 5V2A, 5V2.4A, 9V1A, 12V1A, 15V0.8A 24V0.5A detachable power adapter
Or consult us for specific voltage and current to see if it can be customized or not
Features Ripple & Noise <120mV ( <50mV for audio product )
Efficiency ERP / CEC-VI standard CoC Tier 2
Installing Available for the system of Safety Class I/II
Environment Operation Temp -10 ~ +65℃, 10 ~ 95% RH non-condensing
Storage Temp -20 ~ +85℃ (Refer to "Derating Curve")
Storage Humidity 20 ~ 90% RH non-condensing
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Cooling Method by NTC (natural cooling)
Safety&EMC Safety Standard IEC62368, IEC60335, IEC61558, IEC1310, IEC61347
Safety Approvals CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH
for more information, please contact us.
EMC Stardard EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
MTBF 5K hrs min. MIL-HDBK-217F (25℃)
Machanicals DC Connectors USB-A, USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available
Dimension 62.0x39.2x32.1mm (LxWxH)
Packing 145g; 54pcs/14.5Kg/0.056CBM
Application Advantage Ultra-small size, light weight, streamline, fully sealed and easy to carry
Low-cost design, high reliability, ultrasonic lamination, fireproof housing
constant voltage mode, high precision, low noise
usage sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc.
facial machines, hair removal device, etc.
massage gun, E-bike, scooter, etc.


MODEL LIST

12W DETACHABLE PLUG POWER ADAPTER
POWER MODEL INPUT OUTPUT
VOLT
OUTPUT
CURRENT
Certificates PLUG
12W Series SK02G-0500200Z 100-240VAC 5V 2.0A UL,CE,FCC, RCM,C-TICK, UKCA interchangeable
SK02G-0500240Z 5V 2.4A
SK02G-1200100Z 12V 1.0A
SK02G-1500080Z 15V 0.8A
SK02G-2400050Z 24V 0.5A
