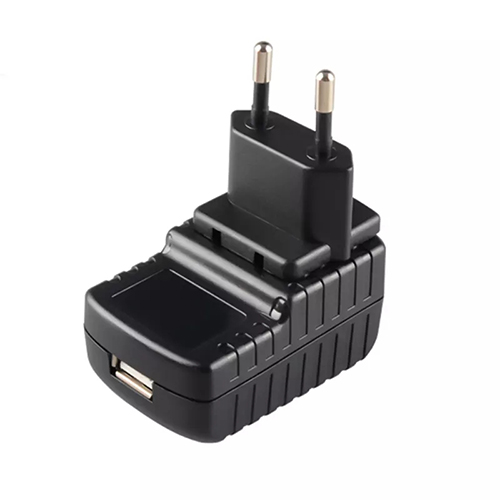

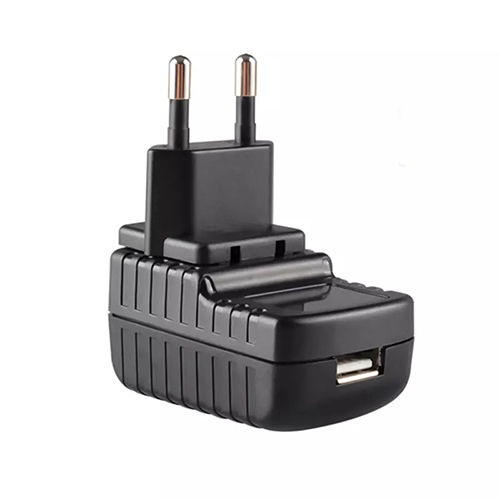

5W Detachable Plug Power Adapter

STARWELL manufacture of the 5W detachable plug power adapter with US/EU/AU/UK/KR/CN interchangeable plugs, ensuring compatibility worldwide. It is UL, CE, FCC, RCM, ROHS, and REACH certified, guaranteeing safety and quality. Additionally, STARWELL offers fast delivery time.

Features:
Universal input: 100-240VAC 50-60Hz
Output Power: 5W
Plug Type: US/EU/AU/UK/CN/KR detachable ac plugs
Output: 5V1A, 5V1.2A, 9V0.5A, 12V0.5A
Certificates: CCC,UL, cUL,CE, FCC, RCM, C-TICK, TUV, UKCA, KC, and BIS
Safety Standard: IEC62368, IEC60601, IEC1310, IEC61558, IEC60335, IEC61347
Warranty: 3 years
Color: black or white optional.
DC jack: 5.5*2.5mm, 5.5*2.1mm, 4.0*1.7mm, 3.5*1.35mm, USB C etc...
Size: 62.0x39.2x32.1mm (LxWxH)

Send Inquiry

DATASHEET

Product Details

STARWELL 5W detachable plug power adapter is a versatile and reliable solution for your power needs. Manufactured by STARWELL, a trusted brand in the industry, this adapter is designed to provide convenience and compatibility worldwide.

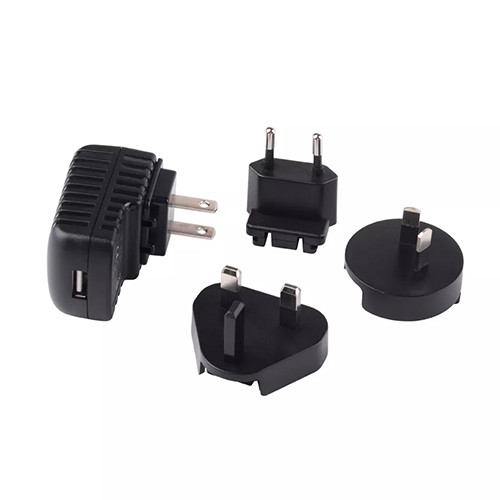

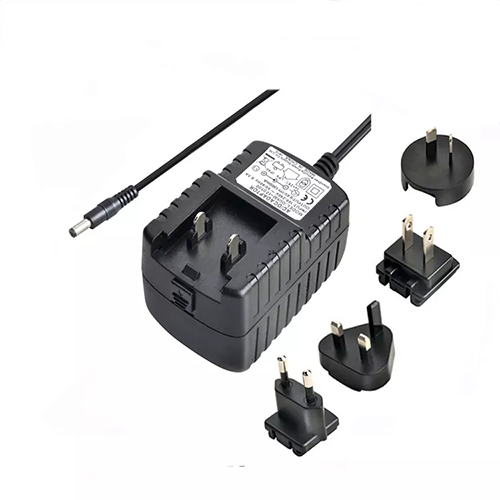

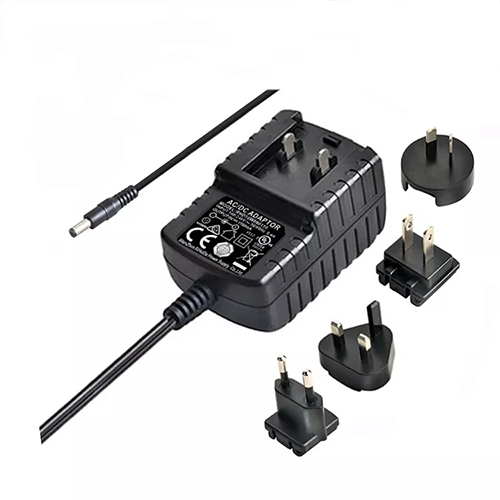

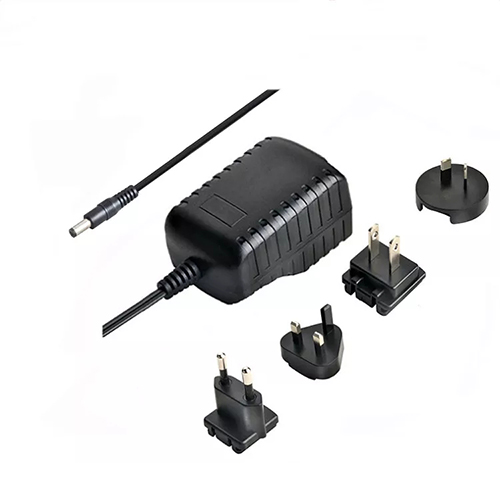

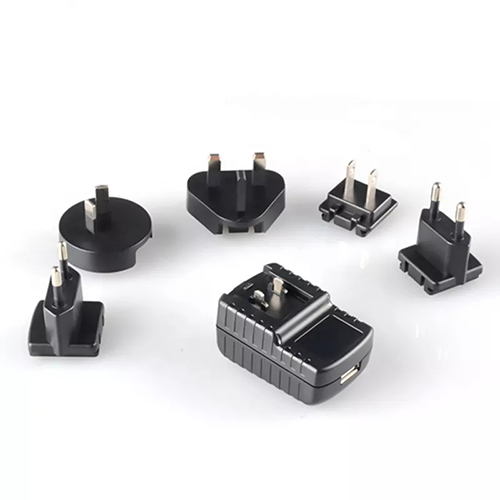

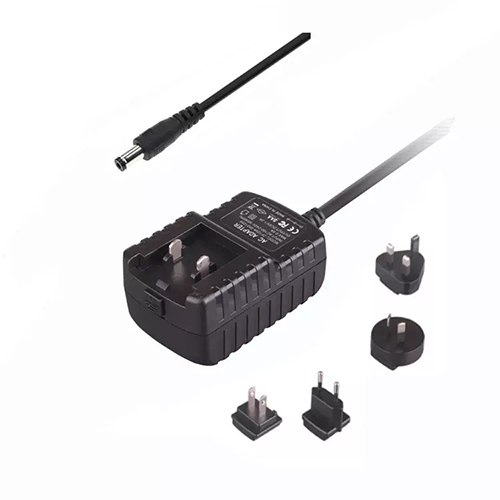

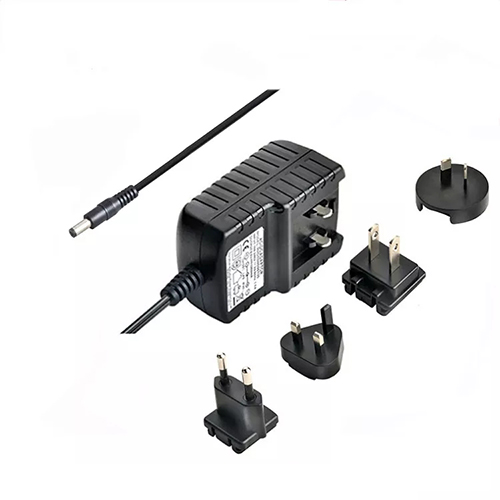

The adapter comes with interchangeable US/EU/AU/UK/KR/CN plugs, allowing you to use it in various countries and regions without the need for additional converters. Whether you're traveling or using it at home, the adapter ensures seamless power connectivity.

Moreover, the STARWELL 5W detachable plug power adapter meets several international certifications, including UL, CE, FCC, RCM, ROHS, and REACH. These certifications guarantee its compliance with safety and environmental standards, providing you with peace of mind.

In terms of performance, the adapter offers multiple output voltage options: 5V1A, 9V0.5A, and 12V0.5A. This versatility allows you to charge a wide range of devices, including smartphones, tablets, Bluetooth speakers, and other compatible electronics.

With its compact and detachable design, the STARWELL 5W detachable plug power adapter is portable and easy to carry. It is a reliable companion for your power needs, offering convenience, safety, and global compatibility.


STARWELL 5W interchangeable ac/dc adapter Specification:

Item 5W interchangeable power adapter, 5W detachable plug power adapter, 5W exchangeable power adapter
Type: Wall mounted power adapter interchangeable plugs
Material PC Fireproof Material
INPUT 100-240VAC 50/60Hz 0.3A max
Output 5V 1A, 5V 1.2A, 9V0.5A, 12V 0.5A detachable power adapter
Or consult us for specific voltage and current to see if it can be customized or not
Features Ripple & Noise <120mV
Energy star level Eup 2.0, Doe VI, CEC VI, CoC VI
Efficiency ERP / CEC-VI standard CoC Tier 2
Installing Available for the system of Safety Class I/II
Environment Operation Temp -10 ~ +65℃, 10 ~ 95% RH non-condensing
Storage Temp -20 ~ +85℃ (Refer to "Derating Curve")
Storage Humidity 20 ~ 90% RH non-condensing
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Cooling Method by NTC (natural cooling)
Safety&EMC Safety Standard IEC62368, IEC60335, IEC61558, IEC1310, IEC61347
Safety Approvals CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH
for more information, please contact us.
EMC Stardard EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
MTBF 5K hrs min. MIL-HDBK-217F (25℃)
Machanicals DC Connectors USB-A, USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available
Dimension 62.0x39.2x32.1mm (LxWxH)
Packing 145g; 54pcs/14.5Kg/0.056CBM
Application Advantage Ultra-small size, light weight, streamline, fully sealed and easy to carry
Low-cost design, high reliability, ultrasonic lamination, fireproof housing
constant voltage mode, high precision, low noise
usage sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc.
facial machines, hair removal device, etc.
massage gun, E-bike, scooter, etc.


MODEL LIST


5W DETACHABLE PLUG POWER ADAPTER
POWER MODEL INPUT OUTPUT
VOLT
OUTPUT
CURRENT
Certificates PLUG
5W Series SK01G-0500100Z 100-240VAC 5V 1.0A UL,CE,FCC, RCM,C-TICK, UKCA interchangeable
SK01G-0500120Z 5V 1.2A
SK01G-1200050Z 12V 0.5A
SK01G-1500030Z 15V 0.3A
SK01G-2400050Z 24V 0.25A
