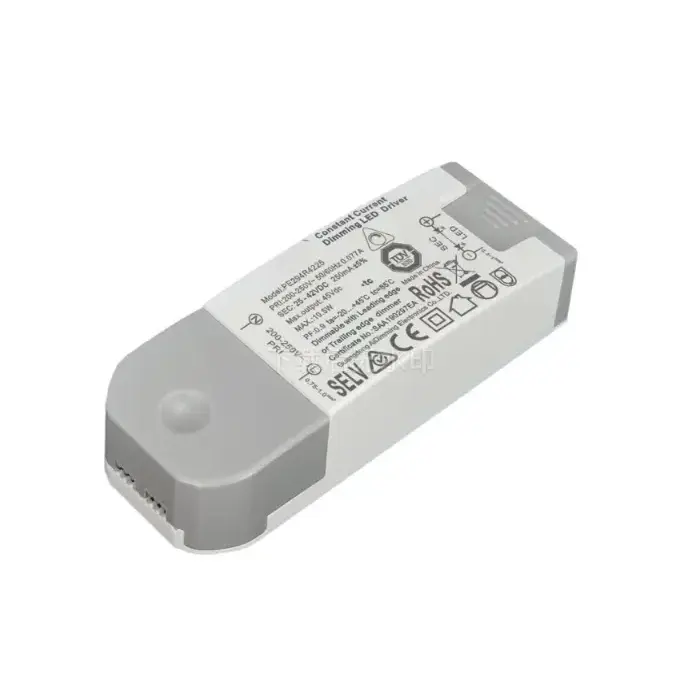

42V Max 200ma Constant Current Triac Dimming Led Driver

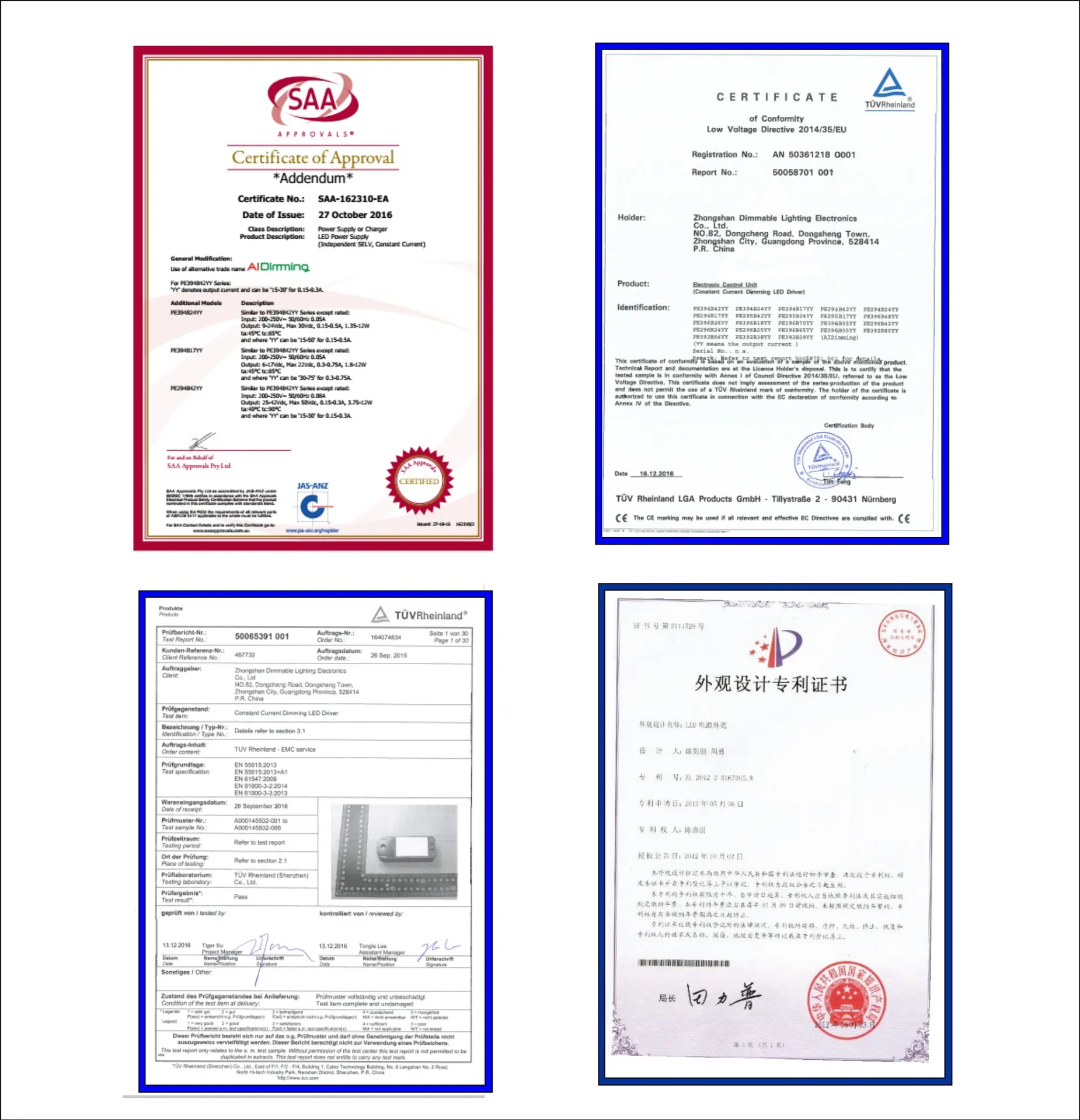

Wholesale PE294R4220 42V max 200ma constant current triac dimming led driver with SAA CE ROHS which manufactured by Starwell. We offer cheap price and good quality Constant Current Dimming LED Driver.
Quick Charger Features:
LED phase-cut dimming driver,
dimming 2-100% is suitable for RPC MOSFET dimmer
FPC TRAlC dimmer@Active PFC Protections:short circuit/over voltage/over current Natural cold wind Big terminal locked by screw Suitable for LED home lighting and commercial lighting Safe no load protection device Economic and convenient install conform to the world lighting equipment safety standards Protection class ll e Three years warranty

Send Inquiry

Product Details

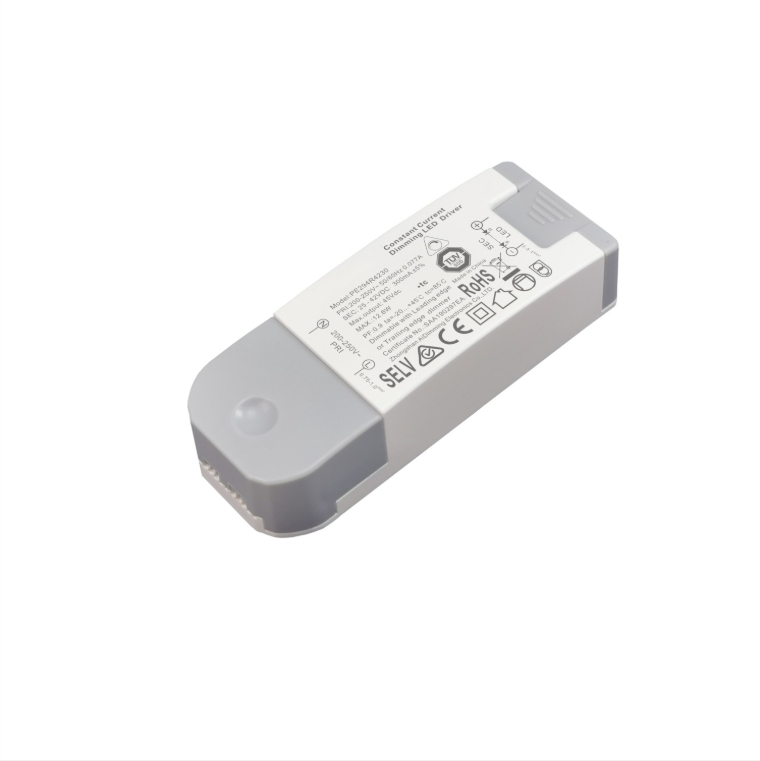

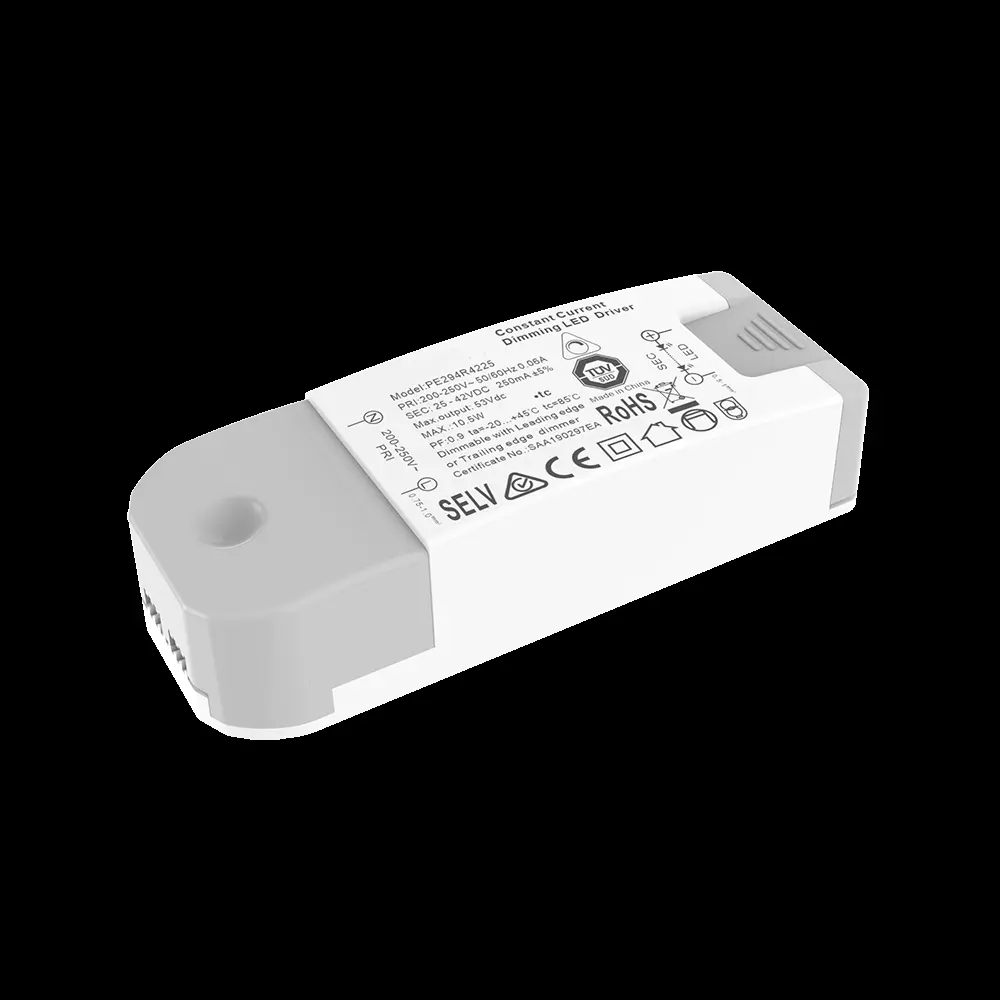

High quality PE294R 42V max 200ma constant current triac dimming led driver is one of the constont current dimming LED diver developed by China manufacturer Starwell with high power factor, high eficiency, highprecision, the use of the efficient stoble low loss switch control chip ond the high performance components mokes it with lownoiselong life and other characteristics.

High-Performance Constant Current Dimming LED Driver stands out as a flagship constant current dimming LED driver independently developed by our company, engineered to redefine reliability and efficiency in LED lighting applications. At its core, the driver boasts three key performance pillars: high power factor (PF), top-tier efficiency, and exceptional current precision—all of which address the critical demands of modern lighting systems, from commercial spaces to industrial facilities.

What sets PE294R apart is its meticulous component selection and circuit design. We adopt an efficient, stable, and low-loss switch control chip as the driver’s "brain," ensuring rapid, accurate response to dimming signals while minimizing energy waste during power conversion. Paired with high-performance electronic components—including low-resistance MOSFETs and precision current-sensing resistors—this design not only pushes the driver’s efficiency to industry-leading levels but also eliminates unnecessary heat generation, a common culprit behind shortened LED lifespans.

Beyond performance, PE294R prioritizes user experience and durability. Its low-noise operation is a standout feature: the optimized circuit layout and noise-suppression components prevent electromagnetic interference (EMI), ensuring the driver works quietly without disrupting nearby electronic devices—ideal for noise-sensitive environments like offices, hospitals, or residential areas. Additionally, the use of high-quality, temperature-resistant materials enhances its long-term stability, even in harsh operating conditions (such as high humidity or fluctuating temperatures), extending the driver’s service life to match the longevity of LED light sources themselves.

Whether for smart lighting systems requiring smooth dimming transitions or large-scale lighting projects demanding consistent performance, PE294R delivers a reliable, efficient solution that balances technical excellence with practical usability.

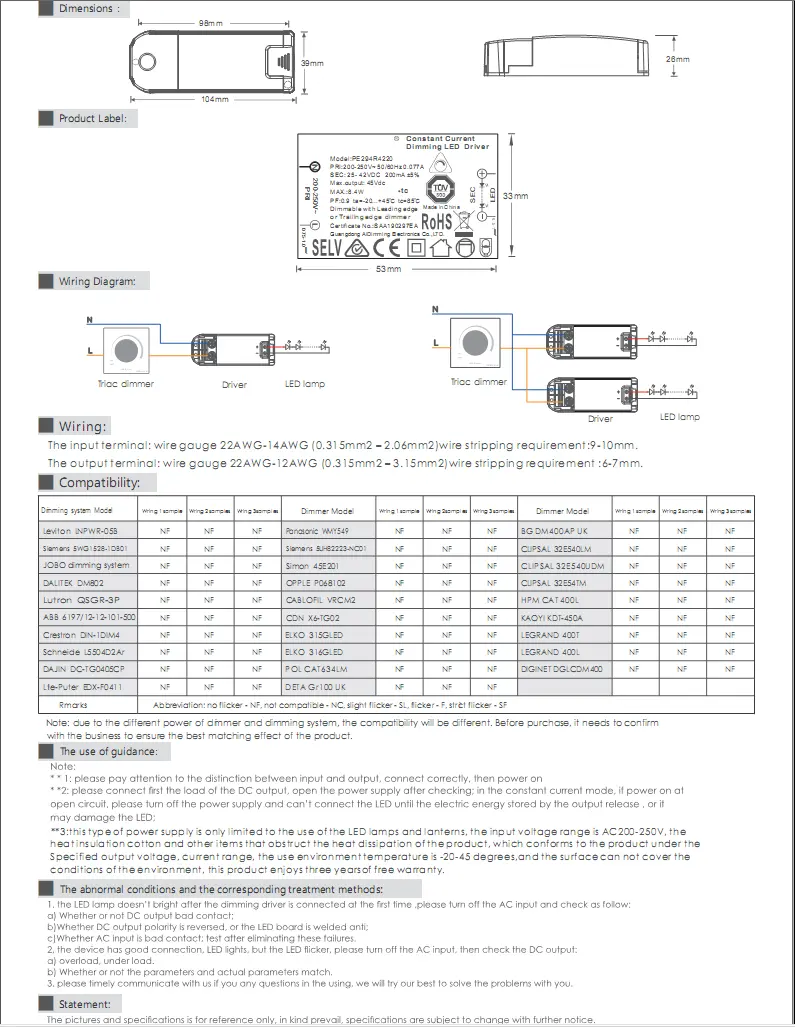

Model		PE294R2435	PE294R4225	PE294R4230	PE294R24250	PE294R1570	PE294R1570
OUTPUT	Output Voltage	12-24Vdc	25-42Vdc	25-42Vdc	12-24Vdc	6-15Vdc	2.5-6Vdc
	Max Output Voltage	24Vdc	42Vdc	42Vdc	24Vdc	15Vdc	6Vdc
	Non-load Output Voltage	27Vdc	45Vdc	45Vdc	27Vdc	19Vdc	8Vdc
	Output Current	350mA	250mA	300mA	500mA	700mA	700mA
	Output Power	4.2W~8.4W	6.25W~10.5W	7.5W~12.6W	6W~12W	4.2W~10.5W	1.8W~4.2W
	Strobe Level	Lower flicker(8%)
	Dimming Range	2~100%,
	PWM Dimming Frequency
	Current Accuracy	±5%
	Ripple &Noise	=500mv p-p
INPUT	Dimming Interface	Triac Leading edge/Tralling edge
	Input Voltage Range	200-250Vac
	Frequency	50/60Hz
	Input Current	<0.072A	<0.077A	<0.077A	<0.066A	<0.077A	<0.02A
	Power Factor	PF>0.9(at full load)	PF>0.9(at ull load)	PF>0.9(at full load)	PF>0.9(at full load)	PF>0.9(at full load)	PF>0.9(at full load)
	THD	230Vac@THD <18%(at fullload)
	Efficiency(typ.)	77%	79%	78%	78%	77%	75%
	Inrush Current(typ.)	Cold start1.44A	Cold start1.54A	Cold start1.54A	Cold start1.32A	Cold start1.54A	Cold start0.4A
	Anti Surge	L-N:2KV
	Leakage Current	<0.25mA/230Vac
ENVIRONMENT	Working Temperature	ta:45℃ tc:85℃
	Working Humidity	20～95%RH,non-condensing
	Storage Temp.Humidity	-40～80 ℃ ,10~95%RH
	Temp.Coefficient	±0.03%/°℃(0-50)℃
	Vibration	10~500Hz,2G 12min./1cycle,period for 72min.each along X,Y,Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature≥110℃,,auto recovers.
	over Load Protection	Shut down the output when rated power≥102%,auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs,auto recovers.
	Non-load Protection	Shut down the output if no load,auto recovers when load back to normal.
SAFETY & EMC	Withstand Voltage	I/P-O/P:3750Vac
	Isolation Resistance	I/P-O/P:100MQ/500VDC/25℃/70%RH
	Safety Standards	IEC/EN61347-1,IEC/EN61347-2-13
	EMC Emission	EN55015,EN61000-3-2 Class C,IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11,EN61547
	Strobe Test Standard	IEEE 1789
OTHERS	Dimension	104×39×26mm(L×W×H)
	Packing	105×40×26.5mm(L×W×H)
	Weigh+(G.W.)	68g±10g

Q1:Can I have a sample order for power supply,LED driver and charger?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2.What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-4 weeks for order quantity more than.

Q3.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available.

Q4.How do you ship the goods and how long does it take to arrive?

A: Airline and sea shipping also optional.ship by sea usually takes 25-35 days to arrive.

Q5.How to proceed an order for power supply?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?with logo printing,what's the MOQ for mass? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.the MOQ for logo OEM is 5000pcs.

Q7: Do you offer guarantee for the products? A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
