36V Constant Voltage 30W DALI Dimmable LED Driver

Starwell high quality 36V Constant Voltage 30W DALI Dimmable LED Driver is specially designed for intelligent lighting systems. It features a stable and reliable constant voltage output, compatible with various 36V LED strips or modules, ensuring uniform and consistent lighting. With an integrated DALI digital dimming interface, it can be seamlessly connected to standard DALI control systems, enabling smooth and stepless brightness adjustment, scene presetting, and group control, meeting the lighting requirements of commercial, office, and high-end home environments. The product boasts high energy efficiency, low ripple, overload protection, and high-temperature resistance. It is easy to install, stable and durable, making it an ideal driver solution for efficient energy conservation and intelligent lighting environment management.

Send Inquiry

Product Details

As a professional constant voltage dali dimmable led driver manufacturer in China, Starwell would like to provide you high quality 36V Constant Voltage 30W DALI Dimmable LED Driver, which is a professional high-performance LED driver power supply, specifically designed for modern intelligent lighting systems. It offers a stable and pure 36V constant DC voltage output with a maximum output power of 30W, perfectly matching various 36V low-voltage LED strips, modules and lamps, ensuring the long-term stable operation of the lighting system.

Features:

·Output constant Voltage (NFC regulation)

·Range: 100-277VAC

·Built-in active PFC function

·Efficiency up to 88%

·Protections: short circuit/ over load/ over temperature

·IP66 waterproof design for indoor and outdoor installation

·Cooling by free air convection

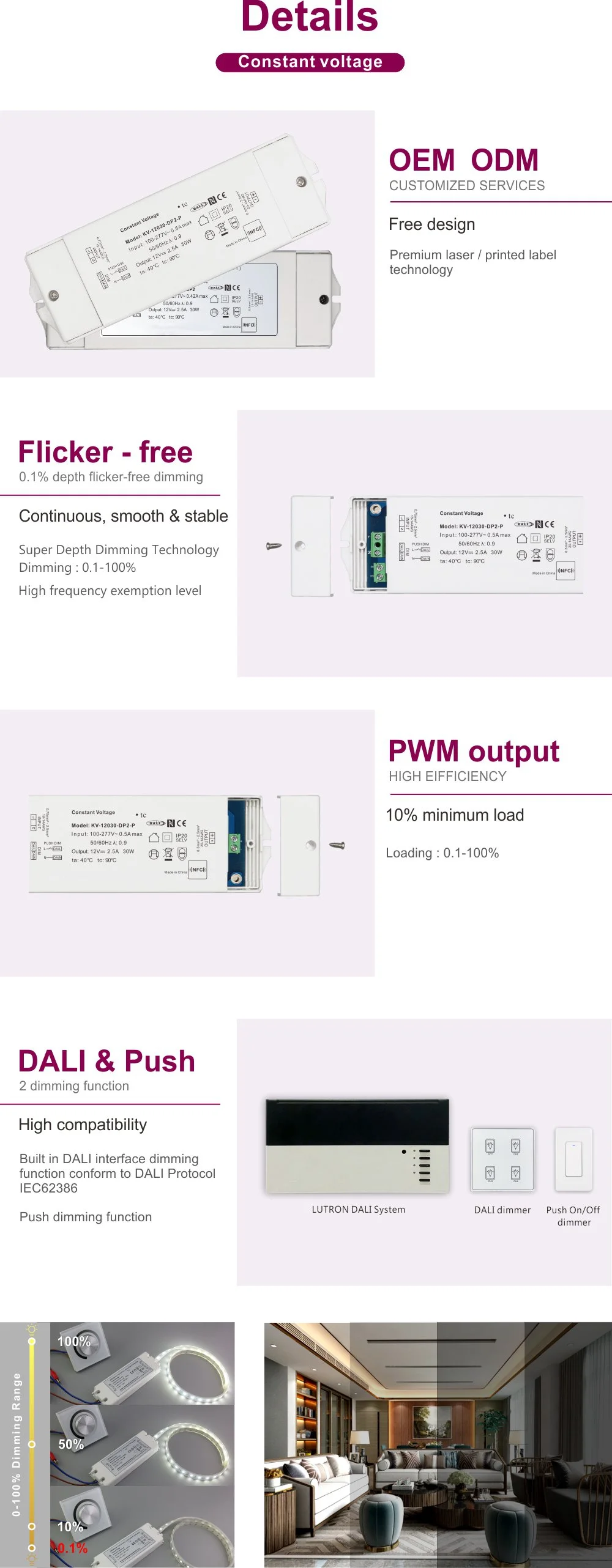

·Dimming curve: Logarithmic (default) and Linear

·Dimming protocol: DALI Protocol IEC62386

·NFC function to adjust output voltage and set address

·Dimming range: 0-100%, LED start at 0.1% possible

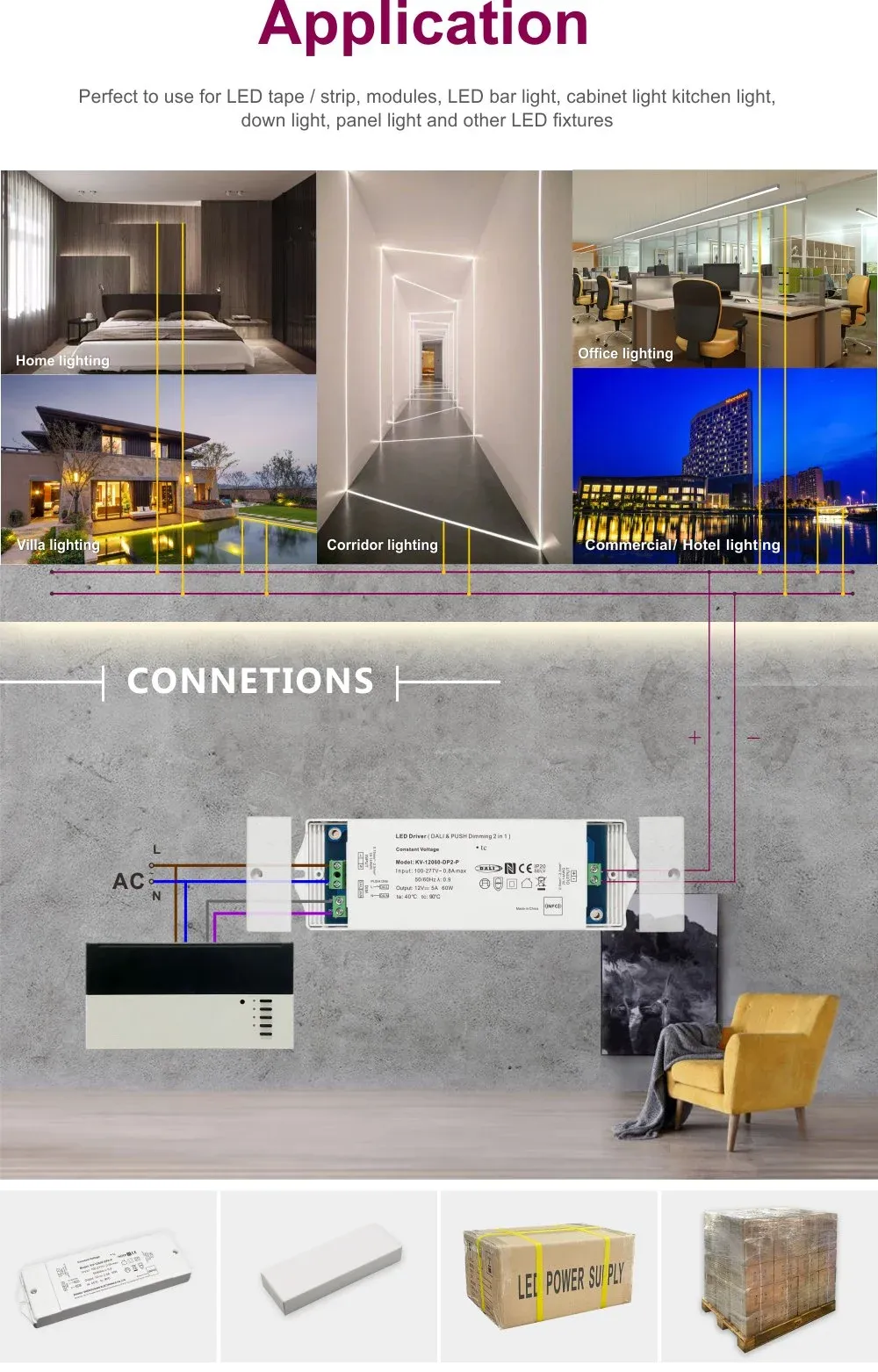

·Suitable for intelligent LED lighting

Its core highlight lies in the integration of the standard DALI (Digital Addressable Lighting Interface) dimming protocol. This means that it goes beyond simple on/off and dimming functions, enabling precise digital lighting control. Users can smoothly and continuously adjust the brightness (0.1% - 100%), preset multiple lighting scenes, group address and time control through the DALI control system, greatly enhancing the flexibility and management efficiency of the lighting environment. The design of the Constant Voltage 30W 36V DALI Dimmable Led power supply ensures perfect compatibility with the world's leading DALI controllers, easily integrating into the lighting networks of smart buildings, offices, hotels, stores and high-end residences.

In addition to its powerful DALI functionality, this driver offers an outstanding dimming experience. It achieves a silky smooth NFC Dimming Smooth No Flicker effect, completely eliminating visible flickering and jittering even at low brightness levels, effectively protecting eyesight and creating a comfortable and healthy lighting environment. Its wide AC input voltage range (100-265V input) design enables it to adapt to voltage fluctuations in power grids worldwide, ensuring stable operation in different regions.

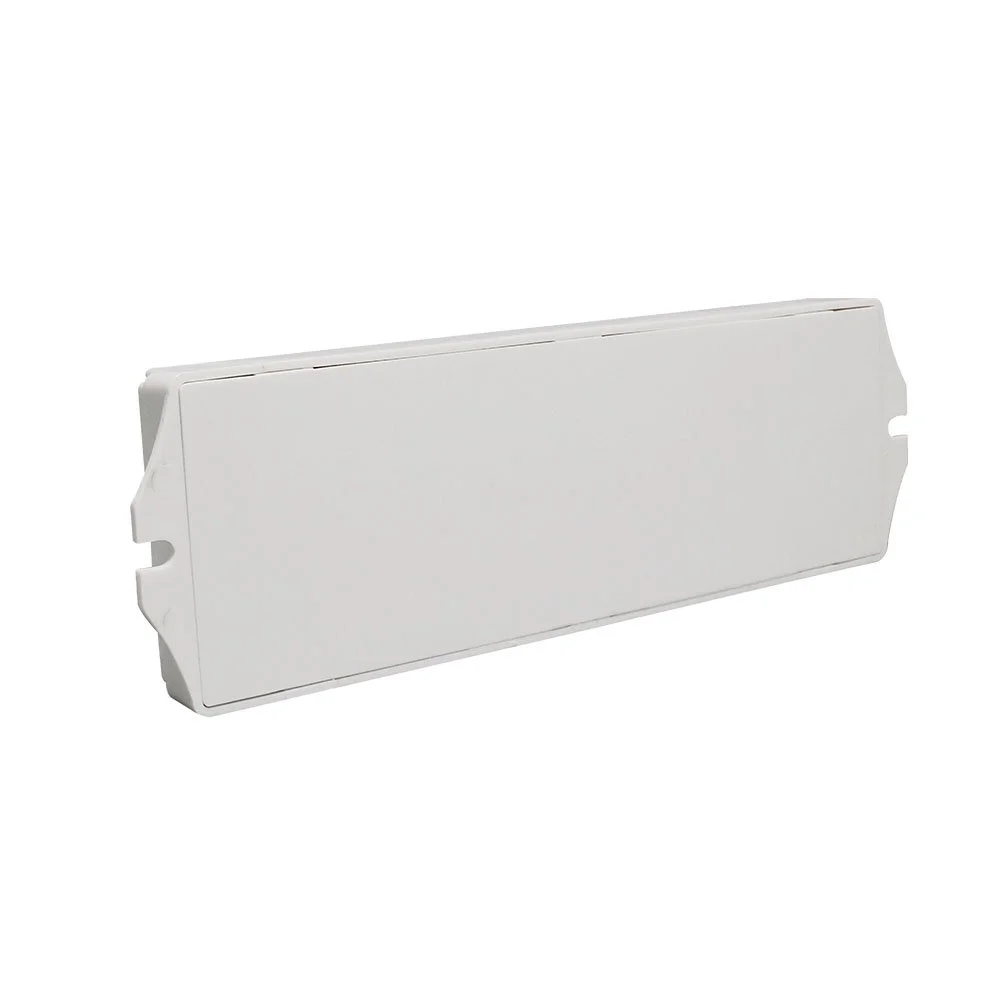

In terms of safety and reliability, this constant voltage 30W DALI dimmable IP20 plastic with ENEC driver performs exceptionally well. The housing is made of flame-retardant plastic and offers an IP20 protection rating, making it suitable for indoor dry environments. It has passed strict European safety certifications such as ENEC, ensuring electrical safety and high quality, giving users peace of mind. The Constant Voltage 30W 36V DALI Dimmable LED power supply combines high efficiency, intelligence, safety and an outstanding user experience, making it an ideal power solution for lighting projects that pursue quality and intelligent control.

The 36V constant voltage 30W DALI dimmable LED driver, with its stable constant voltage output, powerful control capability of the DALI protocol, high-quality flicker-free light effect, wide voltage adaptability, and reliable safety certification, provides a powerful and intelligent "heart" for various LED lighting applications.

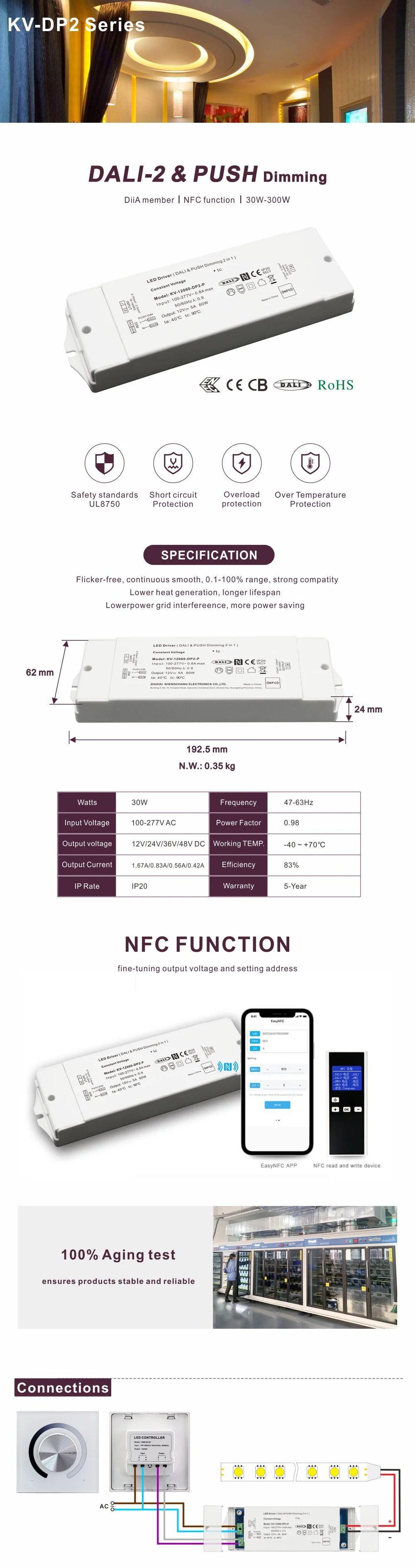

Specification

Model		KV-12030-DP2	KV-24030-DP2	KV-36030-DP2	KV-48030-DP2
Output	DC Voltage	12V (12-13.5V adjust by NFC)	24V (24-26V adjust by NFC)	36V (36-38V adjust by NFC)	48V (48-50V adjust by NFC)
	Voltage Tolerance	±0.2V
	Rated current	2.5A	1.25A	0.83A	0.625A
	Rated power	30W
	Load Regulation	±1%
Input	Standby power consumption	≤0.5W	≤0.5W	≤0.5W	≤0.5W
	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor(Typ.)@ full load	PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.90@277VAC (Full loading)
