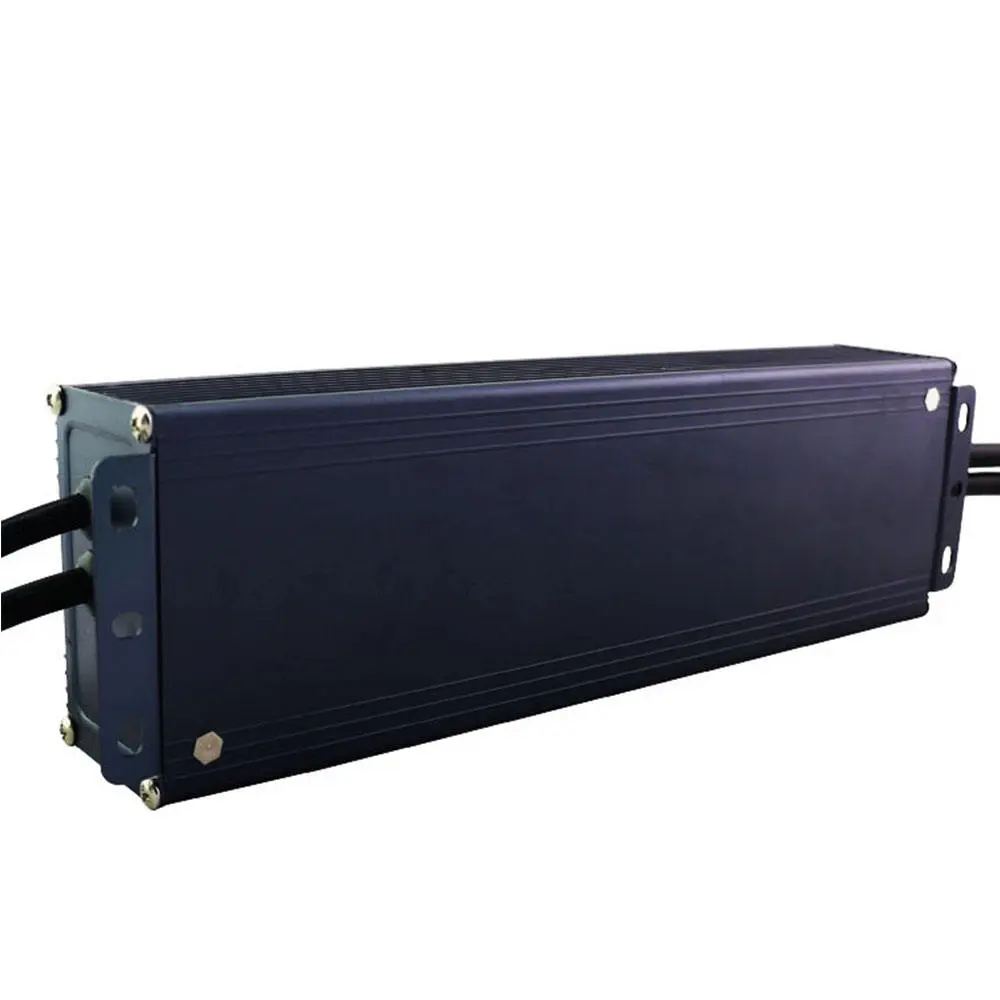

150W DALI Constant Voltage Dimming Led Driver
  • 150W DALI Constant Voltage Dimming Led Driver150W DALI Constant Voltage Dimming Led Driver
  • 150W DALI Constant Voltage Dimming Led Driver150W DALI Constant Voltage Dimming Led Driver
  • 150W DALI Constant Voltage Dimming Led Driver150W DALI Constant Voltage Dimming Led Driver
  • 150W DALI Constant Voltage Dimming Led Driver150W DALI Constant Voltage Dimming Led Driver
  • 150W DALI Constant Voltage Dimming Led Driver150W DALI Constant Voltage Dimming Led Driver
  • 150W DALI Constant Voltage Dimming Led Driver150W DALI Constant Voltage Dimming Led Driver

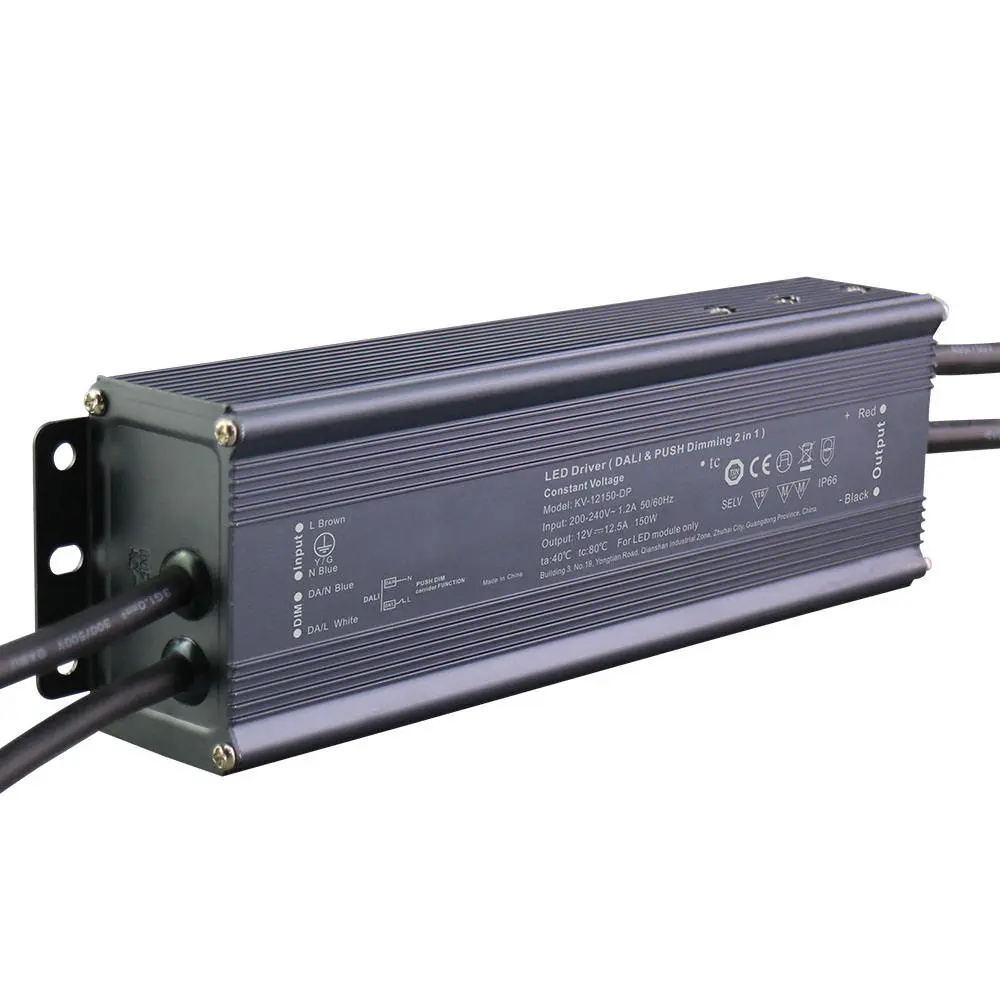

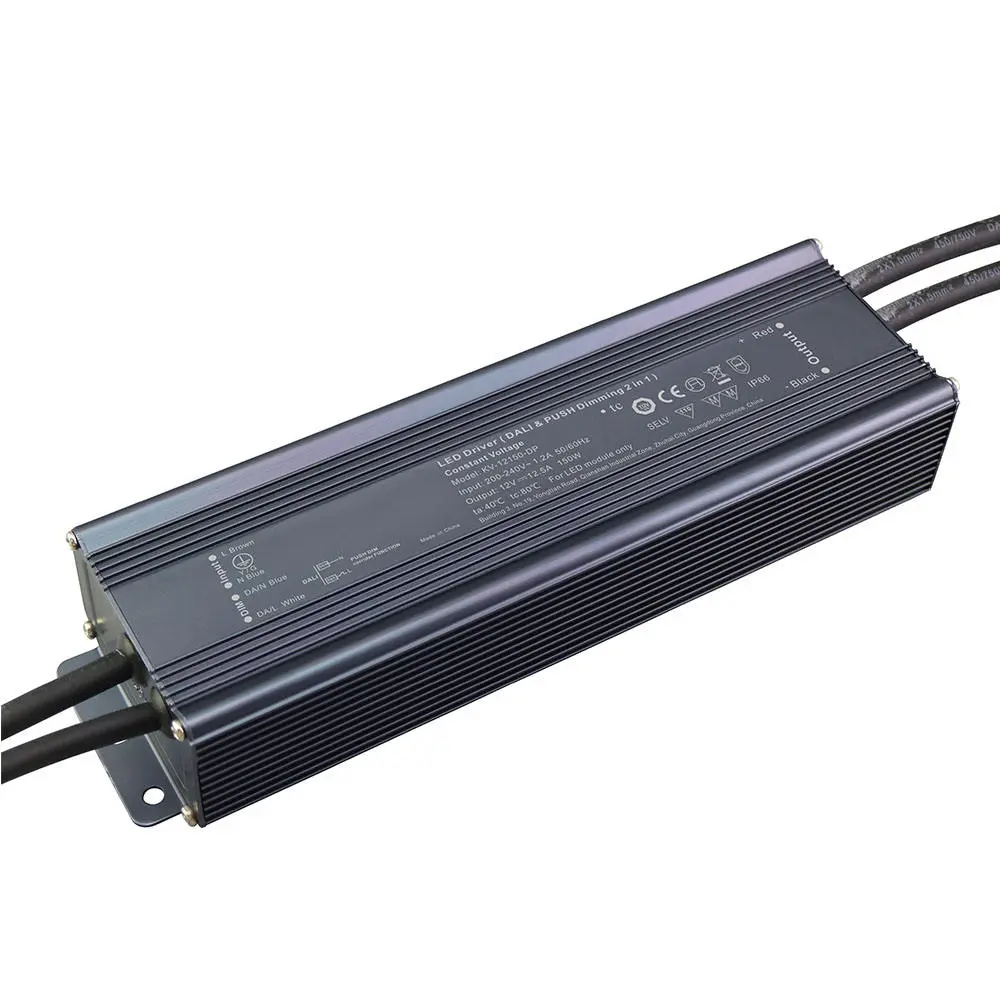

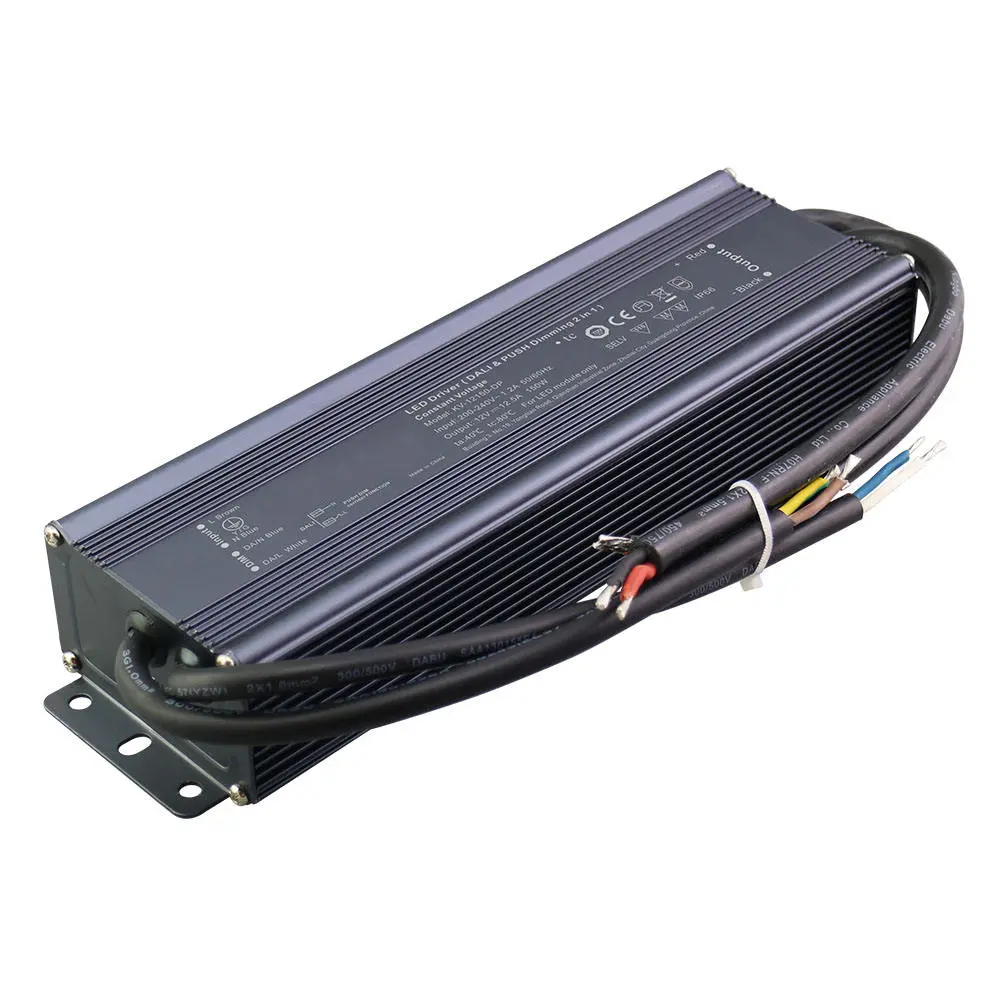

150W DALI Constant Voltage Dimming Led Driver

STARWELL advanced 150W DALI Constant Voltage Dimming Led Driver delivers good performance and exceptional flexibility for professional lighting applications. As a DiiA member, it guarantees full compliance with global DALI standards.
Certified to CE, CB, RoHS, and TUV, it meets the highest benchmarks for safety, quality, and environmental protection. Backed by a robust 5-year warranty, it is built for long-term reliability.
Features:
· Output constant Voltage
· Range: 100-265VAC
· Built-in active PFC function
· Efficiency up to 88%
· Protections: short circuit/over load/ over temperature
· Cooling by free air convection
· IP66 design for indoor and outdoor installation.
· Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

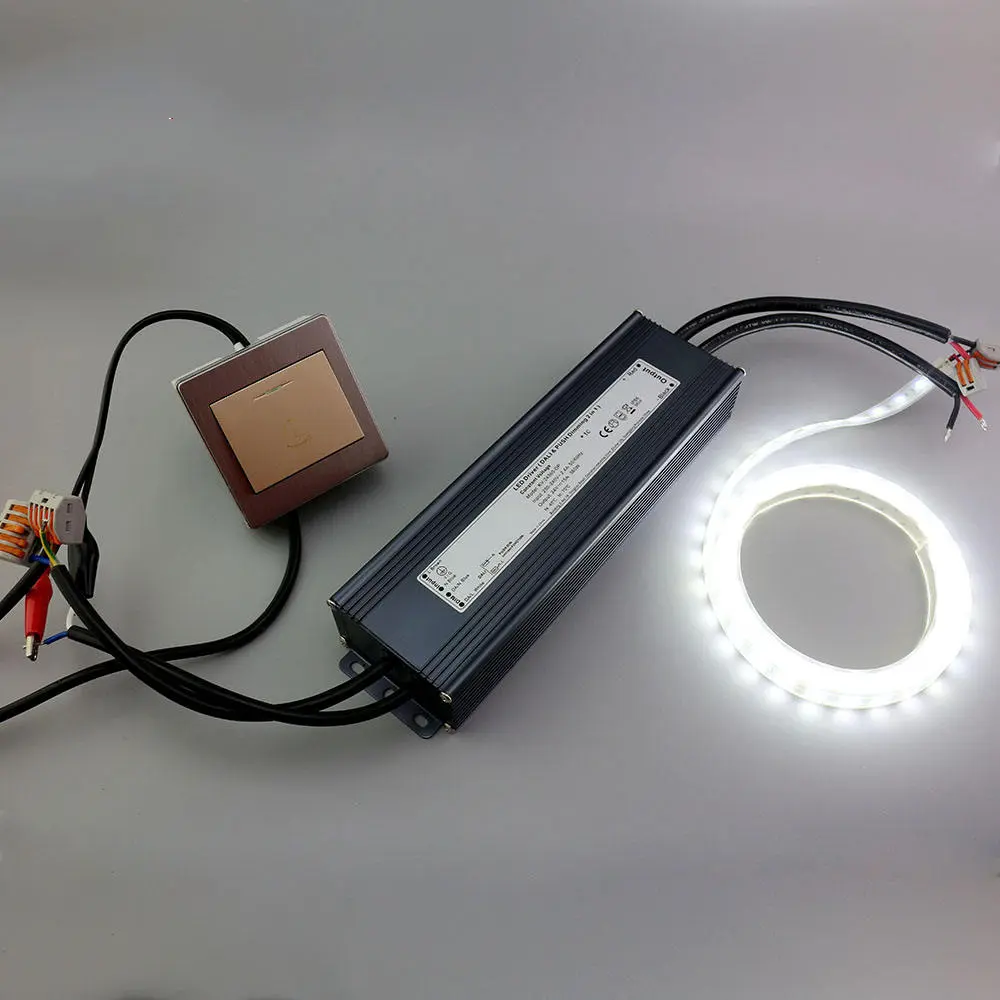

· Push dimming function
· Dimming range: 0-100%, LED start at 0.1% possible
· Suitable for intelligent LED lighting

Send Inquiry

DATASHEET

Product Details

Starwell factory’s durable 150W DALI Constant Voltage Dimming Led Driver's key innovation is its integrated 2-in-1 dimming interface, supporting both DALI-2 protocol for digital control systems and Push Dim for simple, switch-based dimming. This dual compatibility offers unparalleled installation versatility.

Engineered for flawless performance, it features true flicker-free operation and an ultra-smooth 0.1% to 100% dimming range, enabling perfect light quality and ambiance creation. Available in a wide power range from 10W to 360W, with 12V or 24VDC output, it is the ideal, future-proof power solution for a vast array of constant voltage LED strips and modules.


STARWELL high quality 12V/24V constant voltage LED driver integrates advanced DALI-2 protocol and user-friendly Push Dim functionality in a single, future-ready device. Engineered for architects, lighting designers, and installers who demand both technical excellence and practical flexibility, this driver simplifies complex projects while delivering exceptional performance.

Intelligent Control, Simplified Installation

The innovative 2-in-1 interface is our core innovation. For smart, integrated systems, utilize the full DALI-2 certification (verified through our DiiA membership) for digital addressing, grouping, and scene management via a central controller. For standalone applications or intuitive user control, the built-in Push Dim feature operates with a simple push-button switch, eliminating the need for complex wiring. This dual compatibility provides unparalleled project adaptability—whether you’re designing a new smart building or upgrading an existing space.

Perfect Light Quality for Demanding Environments

Experience absolute light stability with guaranteed flicker-free output, essential for offices, retail stores, and healthcare settings. Achieve unparalleled ambiance creation with an ultra-smooth 0.1% to 100% dimming range, enabling seamless transitions from vibrant task lighting to a subtle atmospheric glow.

Versatile Power for Endless Applications

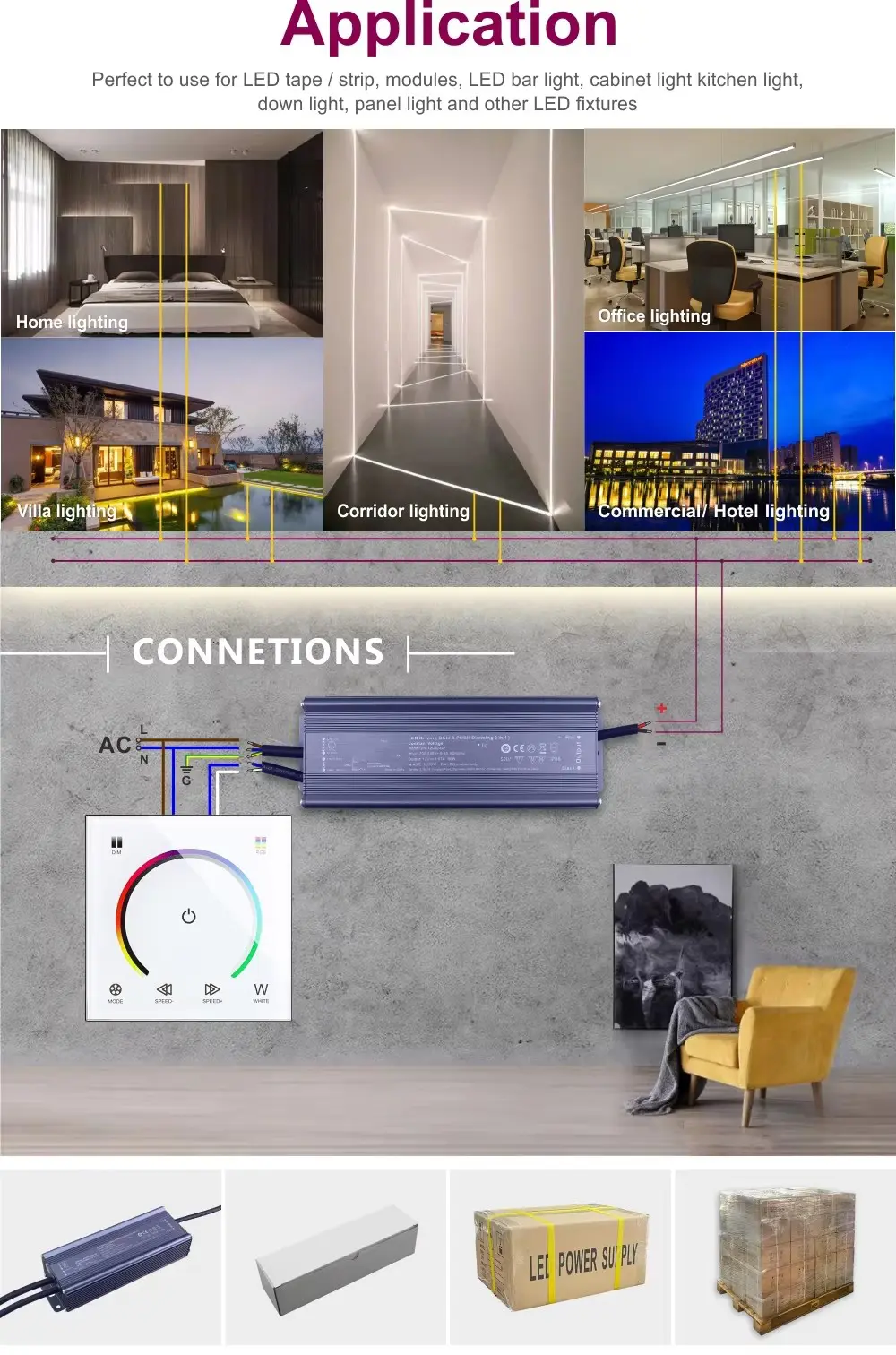

Available from 10W to 360W, this constant voltage driver reliably powers long runs of LED strip lights, modules, and linear fixtures. It is the ideal choice for:

Architectural cove and façade lighting

High-end retail display and cabinet lighting

Hotel corridor and accent lighting

Modern residential feature walls and custom installations

Built for Reliability and Global Compliance

Our driver meets stringent international certifications (CE, CB, TUV, RoHS) and is backed by a robust 5-year warranty, ensuring long-term performance and project integrity.

Upgrade your lighting projects with the driver that masters both intelligence and simplicity.


Starwell 150W Constant Voltage DALI Dimmable Led Driver Specification:

Model

KV-12150-DP

KV-24150-DP

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

12.5A

6.25A

Rated power

150W

Load Regulation

±2%

Input

Voltage Range

100-265VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

PF≥0.99/120VAC PF≥0.96/230VAC (Full loading)

THD(Typ.)@ full load

<20%

Efficiency(Typ.)@ full load

88%

88%

AC Current(Max.)

1.76A

Inrush Current (Typ.)

16A/120VAC 56A/230VAC

Leakage current

<0.5mA

Safety & EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015 EN61000-3-2 EN61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6 ,11, EN61547

Others

Weight

1.4Kg

Dimension

245*70*43mm(L*W*H)

packing

320*270*170mm/10pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
