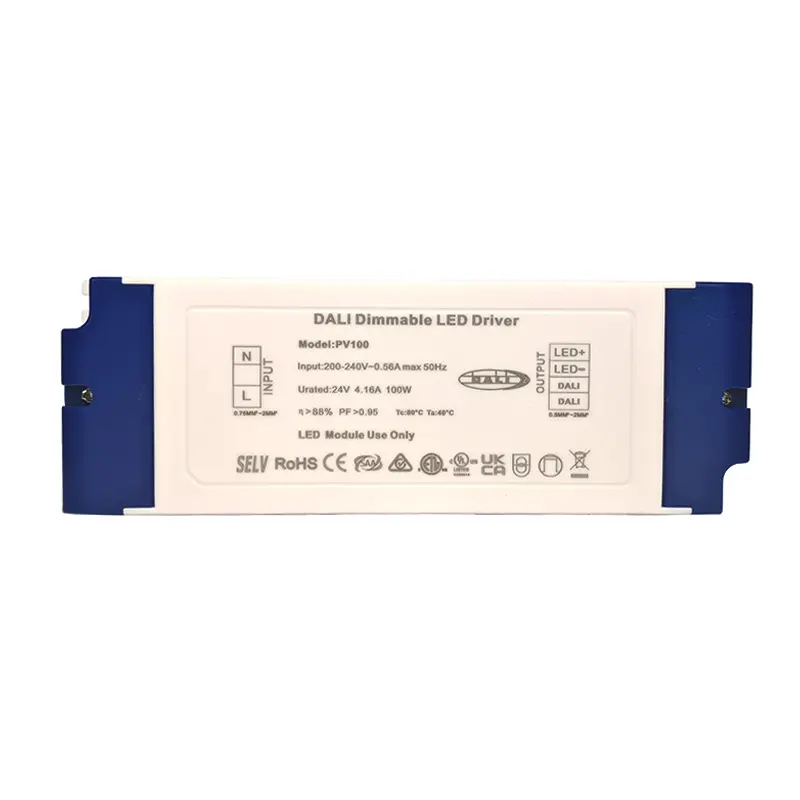

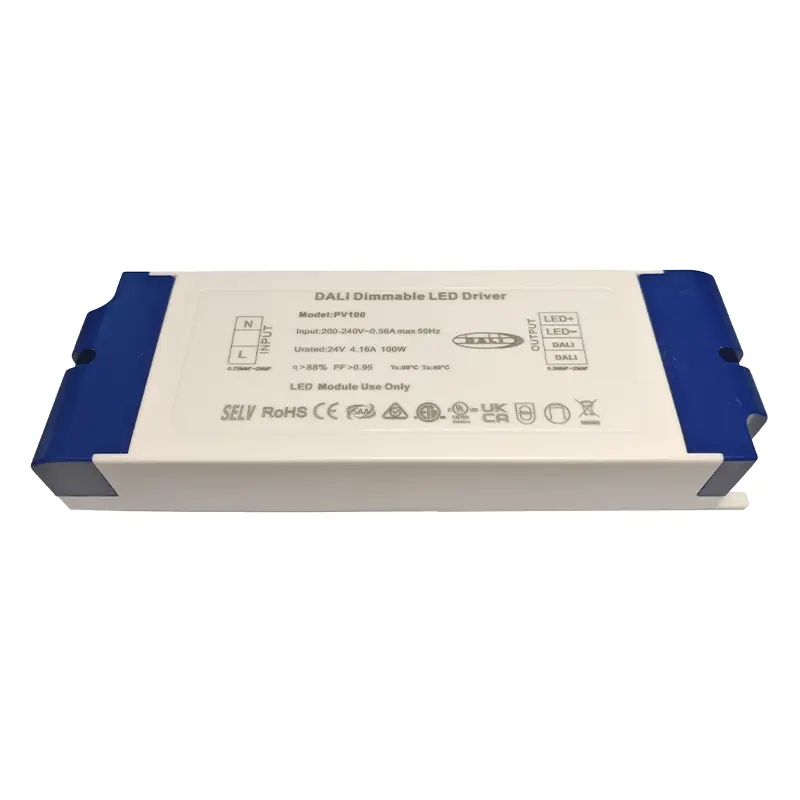

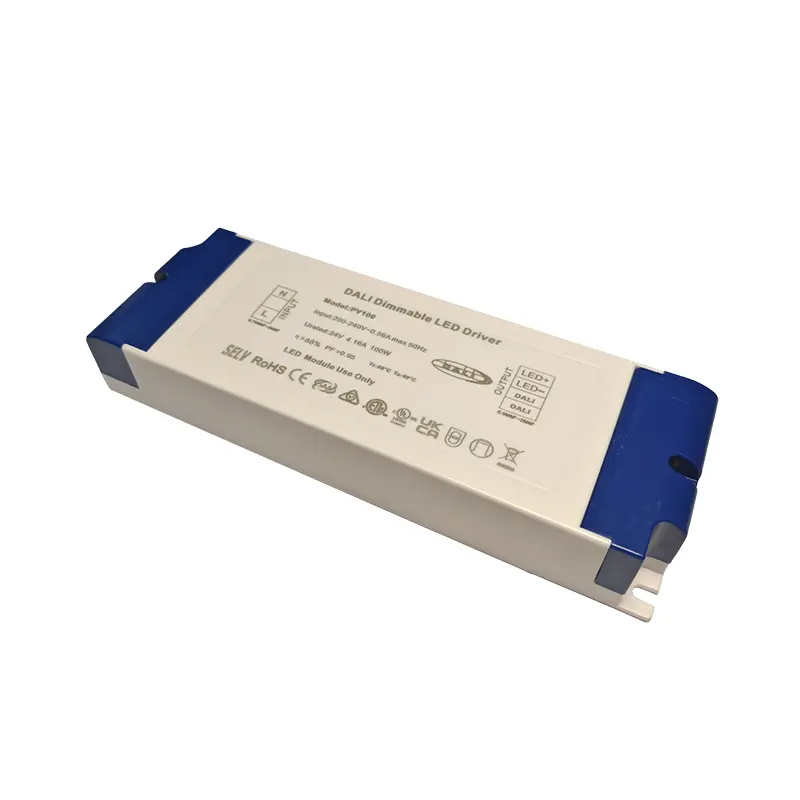

100W Constant Voltage DALI Driver for 24V Dimmable

ShenzhenStarwell TechnologyCo.,Ltd. mainly exports to Iraq, Italy, and Albania, with a positive review rate of 90.9% Our high quality 100W Constant Voltage DALI Driver for 24V Dimmable is a 100-watt constant voltage LED driver designed for powering and controlling 24V dimmable LED lighting systems via the Digital Addressable Lighting Interface (DALI) protocol. It provides a stable 24V DC output, making it ideal for a wide range of LED strips, modules, and low-voltage fixtures requiring precise digital dimming and control.

Send Inquiry

Product Details

As a professional manufacturer of Constant Voltage DALI Drivers in China, Starwell can provide you with a high-quality 100W Constant Voltage DALI Driver for 24V dimmable applications, which offers a stable 24V/4.16A DC output with an efficiency of up to 90%. It supports smooth, flicker-free dimming from 100% to 0.1% and features comprehensive short-circuit, over-voltage, overload, and over-temperature protection functions.

Product Specification

Model	PV100D
Output Voltage	24V
Output Current	4.16A

Power	100W
Efficiency	90%@110VAC
Efficiency	90%@240VAC
Frequency	50-60Hz
Power Factor	PF>0.95@110VAC PF>0.95@230VAC
Standby power
Protection	Short Circuit	Hiccup,recovers after restart
	Over Voltage	Hiccup,recovers after fault condition is removed
	Over Load	Hiccup,recovers after fault condition is removed
	Over Temperature	No Output ,recovers after temperature<110℃
Safety&EMC	Surge	L-N:2KV
	Withstand Voltage	I/P-O/P:3.75KVAC/1min/5mA;I/P-GND:2KVAC/1min/5mA
	Safety Standards	IEC/EN61347-1,IEC/EN61347-2-13
Environment	Working Temp	-25℃~45℃
	Storage Temp	-40℃~85℃
	Tc	85℃
	IP Rating	IP20

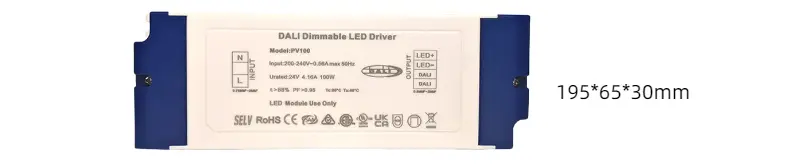

Others	Dimension	1956630mm
Others	Weight	400g

Rated Power: 100W total output.

Output Type: Constant Voltage (CV).

Output Voltage: 24V DC (±5%).

Control Protocol: Fully compliant with DALI-2 (IEC 62386) standards, ensuring interoperability with other certified DALI devices.

Dimming: Smooth, flicker-free dimming from 100% down to 0.1% or 1% (depending on specification), enabled via DALI commands.

Typical Applications

Architectural & Cove Lighting: For linear LED strips in residential and commercial spaces.

Retail & Display Lighting: Highlighting shelves and merchandise with controllable accent light.

Office & Hospitality Lighting: Integrated into DALI-based building management systems for automated lighting control.

Low-Voltage Landscape & Facade Lighting.

Packing and Shipping:

To better ensure the safety of your goods,

professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2012,sell to Mid East(45.00%),South Asia(20.00%),Eastern Asia(10.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Western Europe(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED Driver,LED Flood Light,Solar flood light,LED Street Light,Solar Street Light
4. why should you buy from us not from other suppliers?
More than 10 years' experience in LED Driver
Started with T5 T8 tube light driver ,developed to indoor panel light driver and outdoor light drivers .
Most products are BIS, CE, CB ,TUV, SAA certified
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English
